Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight ANGULA LED Extrusion Profile Corner Shape - 2 Meter - No Diffuser - Silver

ANGULA LED Extrusion Profile Corner Shape2 MeterNo DiffuserSilver

SKU VR-20C-2M

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

SMALL, ALUMINIUM, ANGULAR PROFILE MAŁY, ALUMINIOWY PROFIL KĄTOWY

Features

lighting directions: 30° or 60°
hidden mounting
wide range of accessories, 6 types of covers
maximum LED strip width: 10 mm
dwa kąty świecenia: 30° i 60°
ukryte mocowanie
szeroki wybór akcesoriów, 6 rodzajów kloszy
maksymalna szerokość taśmy LED: 10 mm

Specifications

VR-20C-2MSpecifications from the official datasheetDownload datasheet PDF

Specifications

Finish: Anodized
Length: 2000 mm

General

Available lengths: 2000 mm
The standard profile length tolerance is: +20 mm

Technical drawings

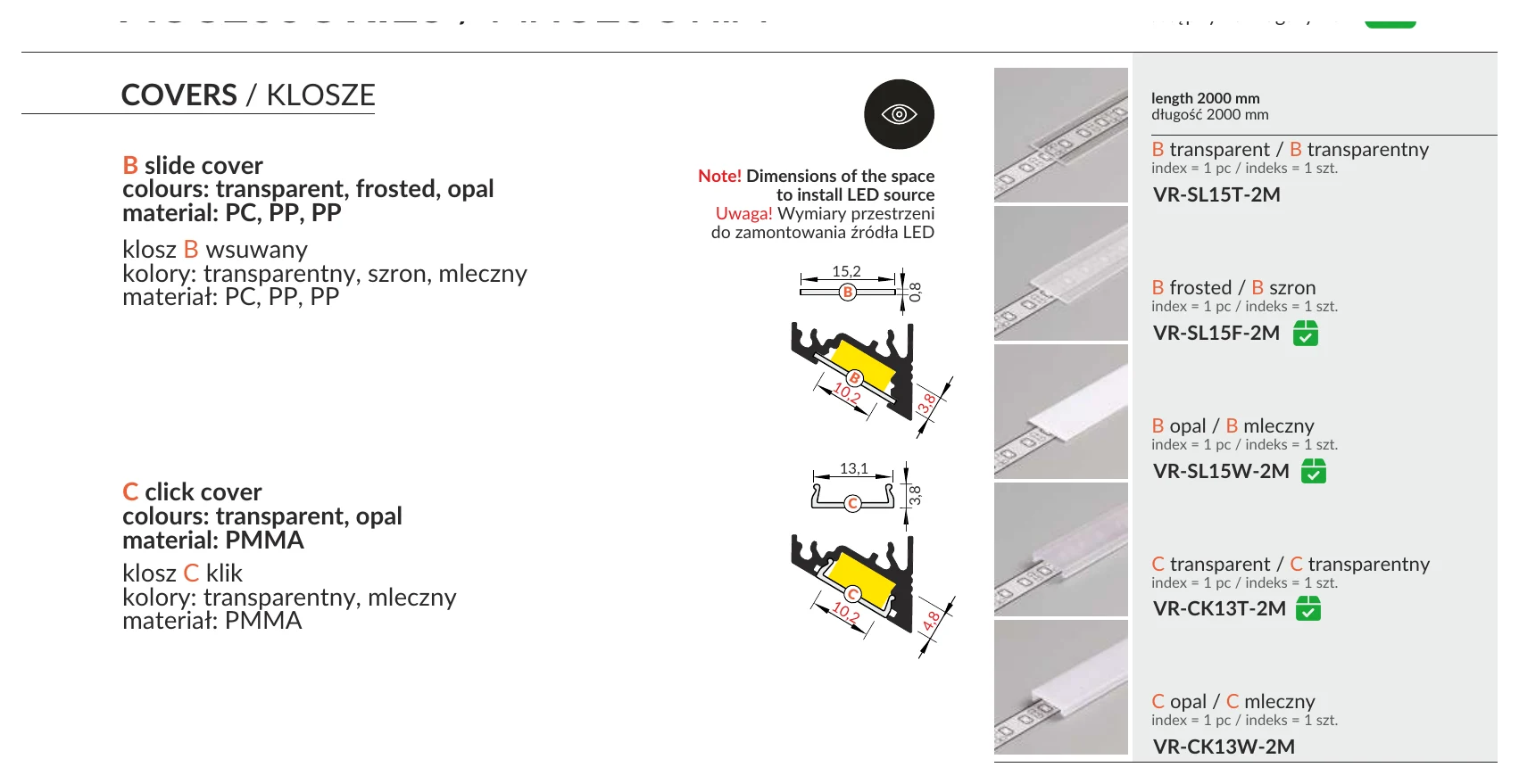

VR-20C-2M COVERS / KLOSZE — COVERS / KLOSZE

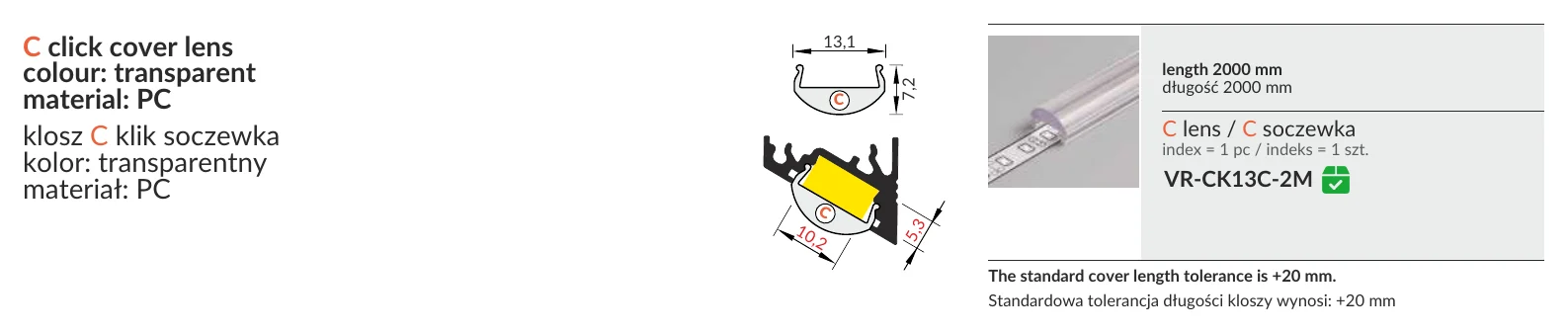

VR-20C-2M C click cover lens — C click cover lens

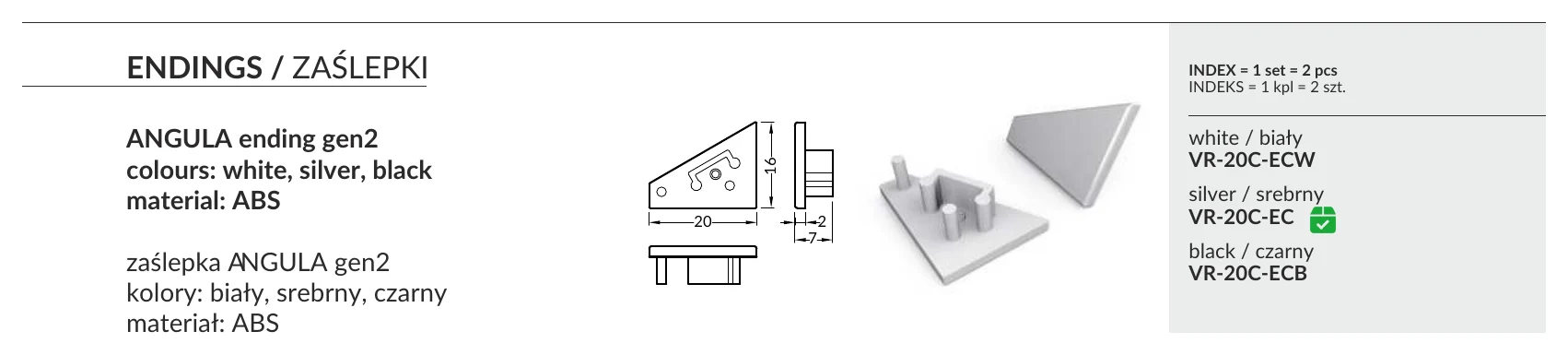

VR-20C-2M ENDINGS / ZAŚLEPKI — ENDINGS / ZAŚLEPKI

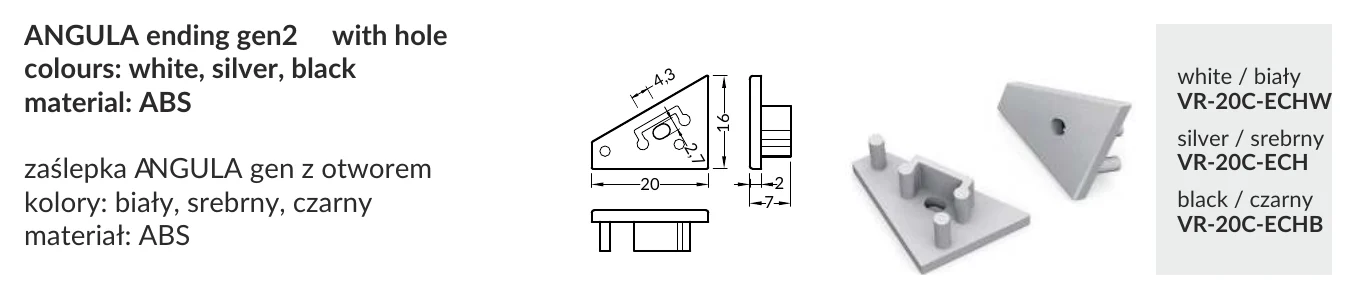

VR-20C-2M ANGULA ending gen2 with hole — ANGULA ending gen2 with hole

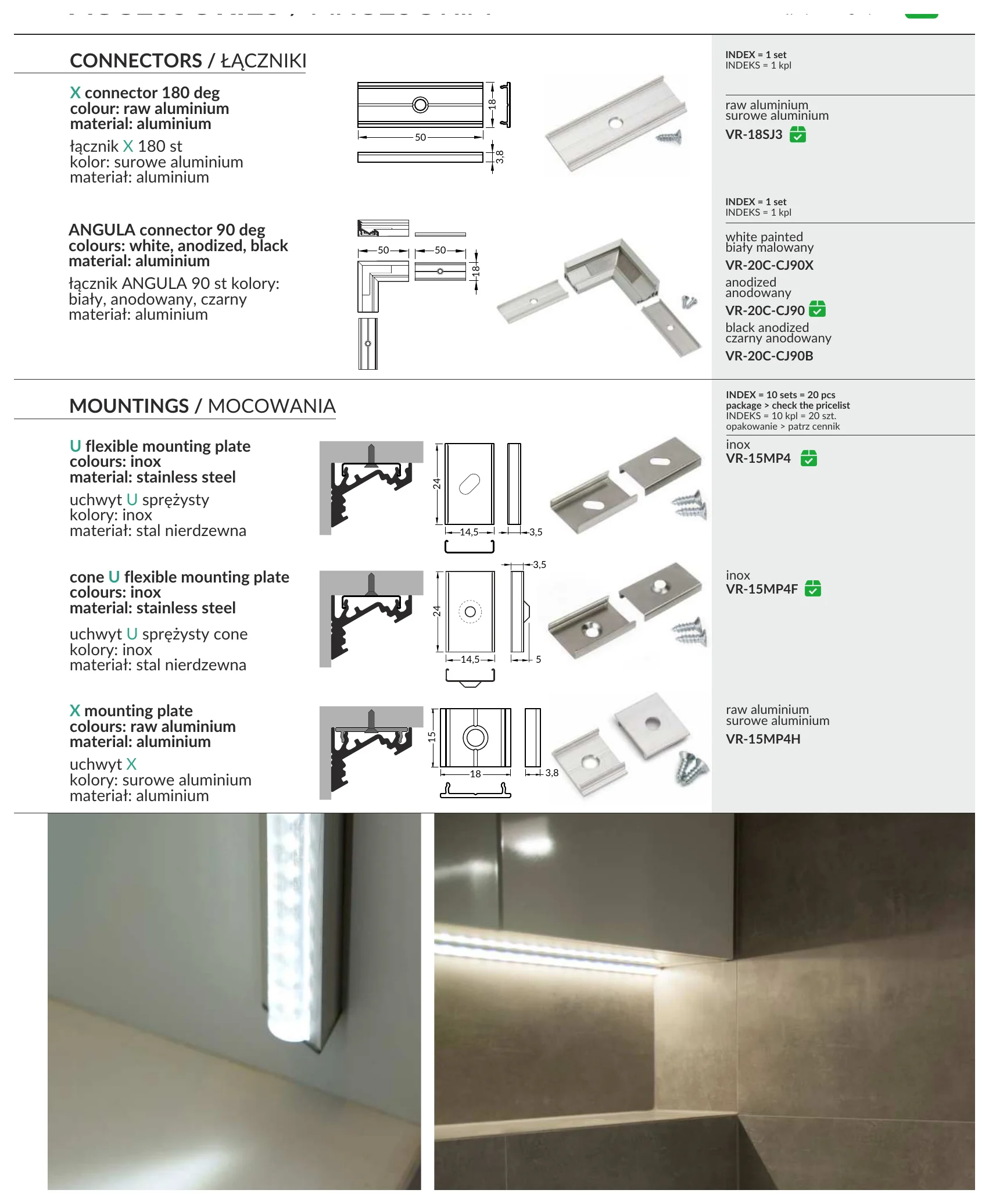

VR-20C-2M CONNECTORS / ŁĄCZNIKI — CONNECTORS / ŁĄCZNIKI

Downloads

Datasheet1

VR-20C-2M datasheetAngula_Spec_sheet.pdf PDF Download

FAQ

What is the VR-20C-2M LED extrusion profile used for?

The VR-20C-2M is a corner-shaped LED extrusion profile designed for linear LED lighting projects. It is suited to applications where a clean, angled aluminium channel is needed for a sleek finished look.

How long is this LED extrusion profile?

This model is supplied in a 2 meter length. The SKU for this specific silver, no-diffuser version is VR-20C-2M.

Does the VR-20C-2M include a diffuser?

No, this product is listed as a no-diffuser version. Buyers who need a diffused lens or cover should confirm compatible accessories separately before ordering.

What finish does this LED extrusion have?

The VR-20C-2M has an anodized finish. It is made from anodized aluminium, giving it a smooth, clean appearance for visible linear lighting applications.

How is this corner shape different from a standard surface LED extrusion?

This model is a corner-shaped extrusion profile, so it is intended for angled linear lighting applications rather than a flat standard surface profile. It is a good fit when the visual design calls for light placement in a corner-style aluminium housing.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Material	Finish
Archilight End Cap for ANGULA Corner Profile - Without Wiring Holes - White	ABS	White	View
Archilight End Cap for ANGULA Corner Profile - Without Wiring Holes - Black	ABS	Black	View
Archilight End Cap for ANGULA Corner Profile - Without Wiring Holes - Silver	ABS	Silver	View
Archilight ANGULA LED Extrusion Profile Corner Shape - 2 Meter - No Diffuser - White	Aluminium	White	View
Archilight ANGULA LED Extrusion Profile Corner Shape - 2 Meter - No Diffuser - Black	Aluminium	Black	View
