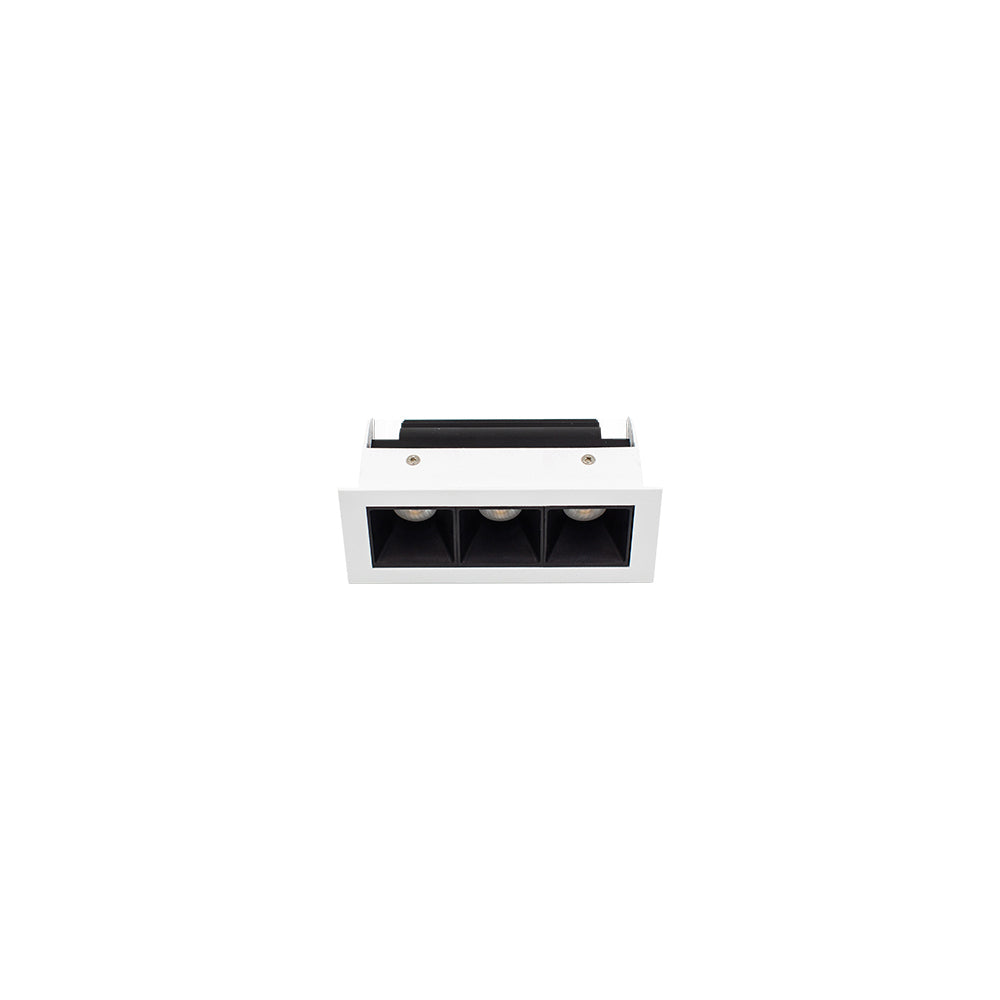

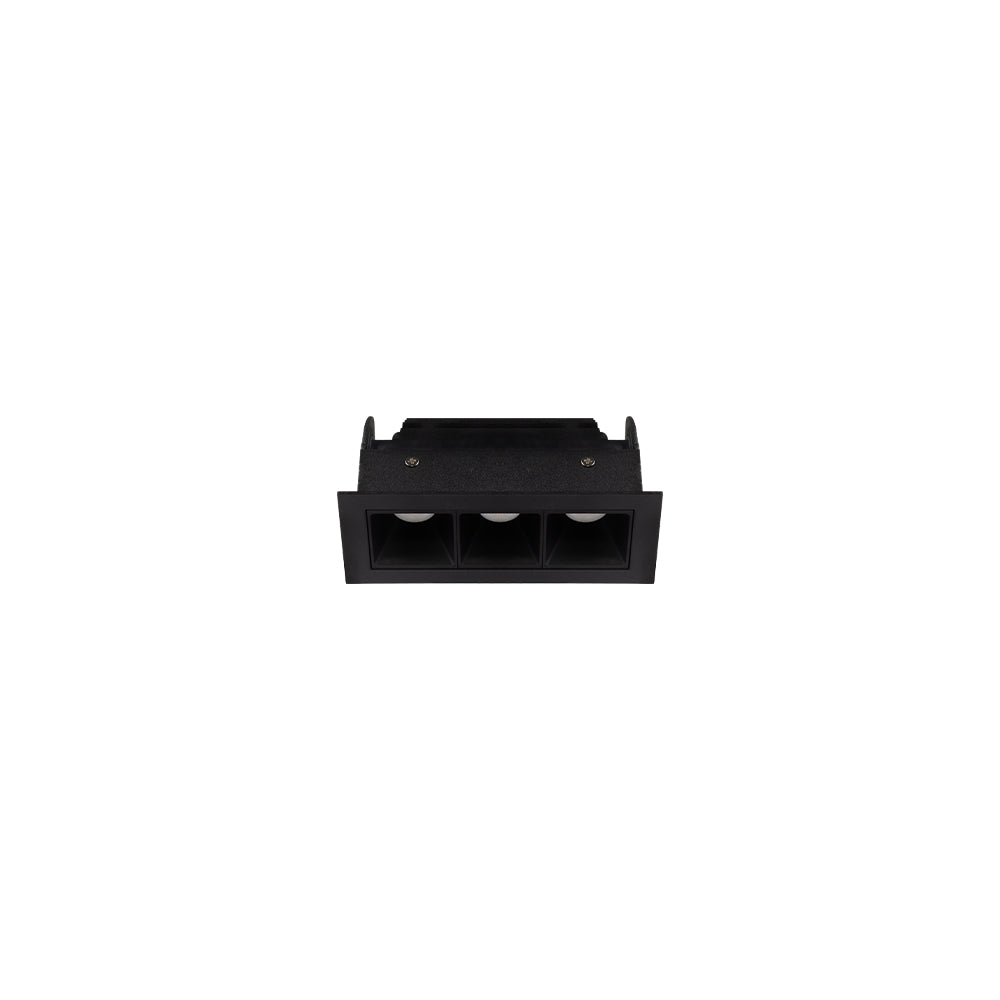

Archilight Cultro 350 3x3W Linear Recessed LED Downlight
Log in to see priceOverview
Recessed LED Downlight
Specifications
FL-FR1160-3K-50D-BSpecifications from the official datasheetDownload datasheet PDF
Specifications
- Order code
- FL-FR1160
- Input
- 230VAC
- Power rating
- 9W
- Beam angle
- 10° / 30° / 50°
- Brightness
- 1200 lm
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 5000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -10°C~40°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 3 years
- Lifetime
- 50,000hrs
- Material
- Die-Cast Aluminum
- Finish
- White, Black
- Efficacy
- 133 lm/W
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA

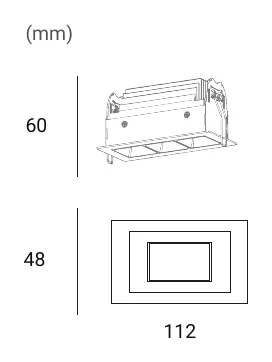

Technical drawings
Downloads
Datasheet1
FAQ
What are the main variant options in the Archilight Cultro 350 3x3W linear recessed LED downlight family?
This product family varies by colour temperature, beam angle, and finish colour. Available colour temperatures are 2700K, 3000K, 4000K, and 5000K, beam angles are 10, 30, and 50 degrees, and finishes are black or white. Core performance stays consistent across the range, including 9W power, CRI 90, driver included, dimmable capability (dimmer optional), 50,000-hour life, and a 3-year warranty.
How do I choose between the 10 degree, 30 degree, and 50 degree beam angles?
The 10 degree option is the narrowest beam and is best when you want a tighter, more focused accent effect. The 30 degree version offers a more balanced spread for general highlighting, while the 50 degree beam gives the widest distribution for broader coverage. Across this family, light output is 1200 lm.
Which colour temperature options are available for this downlight?
The Cultro 350 family is offered in 2700K, 3000K, 4000K, and 5000K versions. This gives buyers flexibility to match warmer hospitality-style lighting, more neutral retail presentation, or cooler task-oriented commercial spaces. Each option remains within the same product family and shares the same 9W platform.
Is this recessed LED downlight dimmable?
Yes, this family is dimmable with an optional dimmer. That makes it suitable for projects that need adjustable light levels without changing the core fixture type. The driver is included across the family.
What size opening does this downlight family fit?
The marked features indicate a size of 109x40mm. The fixture is designed for recessed mounting, so buyers can assess fit against the ceiling detail and recess depth. This is useful when comparing it to other compact linear recessed fittings for commercial interiors.
Is the Archilight Cultro 350 suitable for high-quality interior lighting projects?
Yes, this family is designed for modern interior lighting where a compact recessed form factor and controlled beam selection matter. With CRI 90, it is suited to applications where colour quality and visual presentation are important, such as retail, hospitality, gallery-style, or architectural interiors. Buyers can then choose the beam angle and colour temperature that best match the space.
What are the expected lifespan and warranty for this product family?
The Cultro 350 family is rated for 50,000 hours of life and carries a 3-year warranty. Those figures are consistent across the listed variants. For B2B buyers, that helps support long-term maintenance planning and fixture standardisation across a project.
