Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

Archilight Cultro1050 Series 10x3W Linear Recessed Downlight

SKU FL-FR1157-3K-50D-B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 3 variants

FL-FR1157-3K-50D-B
LED Colour
Finish Colour
3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Overview

Recessed Downlight

Specifications

Archilight Cultro1050 Series 10x3W Linear Recessed DownlightSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourFinish Colour
FL-FR1157-3K-50D-BWarm White 3000KBlack
FL-FR1157-3K-50D-WWarm White 3000KWhite
FL-FR1157-4K-50D-WNatural White 4000KWhite

Specifications

Input
230VAC
Power rating
30W
Beam angle
10° / 30° / 50°
Brightness
2760 lm
Efficacy
≥110.4 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-10°C~40°C
Dimming control
Dimmable (Dimmer Optional)
Tiltable
Fixed
Mounting
Recessed
Driver
Driver Included
Warranty
3 years
Lifetime
50,000hrs
Material
Die-Cast Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA

Technical drawings

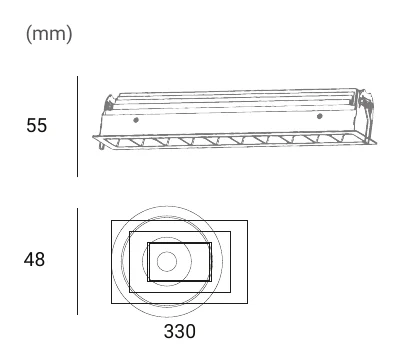

Archilight Cultro1050 Series 10x3W Linear Recessed Downlight Dimensions (mm)
Dimensions (mm)

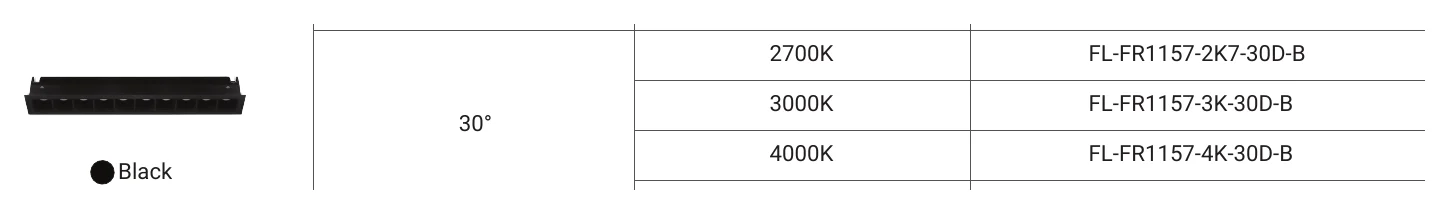

Archilight Cultro1050 Series 10x3W Linear Recessed Downlight Illustration (page 2)
Illustration (page 2)

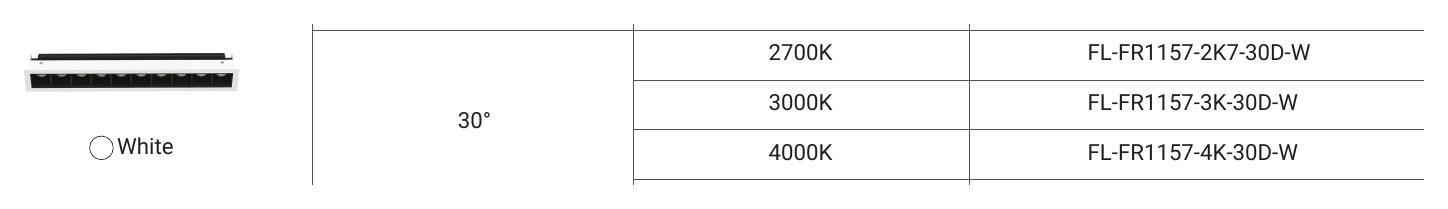

Archilight Cultro1050 Series 10x3W Linear Recessed Downlight Illustration (page 2)
Illustration (page 2)

Downloads

FAQ

What beam angle options are available in the Archilight Cultro1050 Series?

This parent family is available with 10 degree, 30 degree, and 50 degree beam angles. The narrower 10 degree option is better for tighter accent lighting, while 30 degree and 50 degree options provide progressively wider light distribution for broader highlighting.

What color temperature choices are offered across this product family?

The Cultro1050 Series is offered in 2700K, 3000K, and 4000K variants across the family. That gives buyers warm, neutral-warm, and cooler white light options depending on the intended interior lighting effect.

Does the Archilight Cultro1050 Series include a driver and support dimming?

Yes, the driver is included with this product family. These downlights also support AC phase cut dimming, which makes them suitable for projects that require dimmable recessed architectural lighting.

What is the light output of the Archilight Cultro1050 Series 10x3W linear recessed downlight?

Depending on the beam angle, light output in this family ranges from 1908 to 1928 lumens. The 10 degree versions are listed at 1928 lumens, while the 30 degree and 50 degree versions are listed at 1908 to 1909 lumens.

What are the key performance specifications for this linear recessed downlight family?

The Archilight Cultro1050 Series is rated at 30W with CRI 90 for strong color rendering in interior spaces. It also has a 50,000-hour lifetime, operates on 230V power input, and carries a 3-year warranty.

What are the physical dimensions and cut-out range for this product family?

The parent model measures 330 mm long, 55 mm wide, and 48 mm high. Across the child variants shown, the cut-out range is listed as 40 mm minimum by 320 mm maximum.

What finish options are available for the Archilight Cultro1050 Series?

This family is available in black and white finish options. That gives specifiers flexibility to match the fixture finish to different ceiling and interior design requirements.

What types of projects is the Archilight Cultro1050 Series best suited for?

This product family is designed for interior recessed lighting applications where a compact linear fixture and controlled beam performance are important. With multiple beam angles, high CRI, and several color temperature options, it is well suited to commercial and architectural lighting projects that need focused visual emphasis.
