Overview
Recessed Downlight
Specifications
General

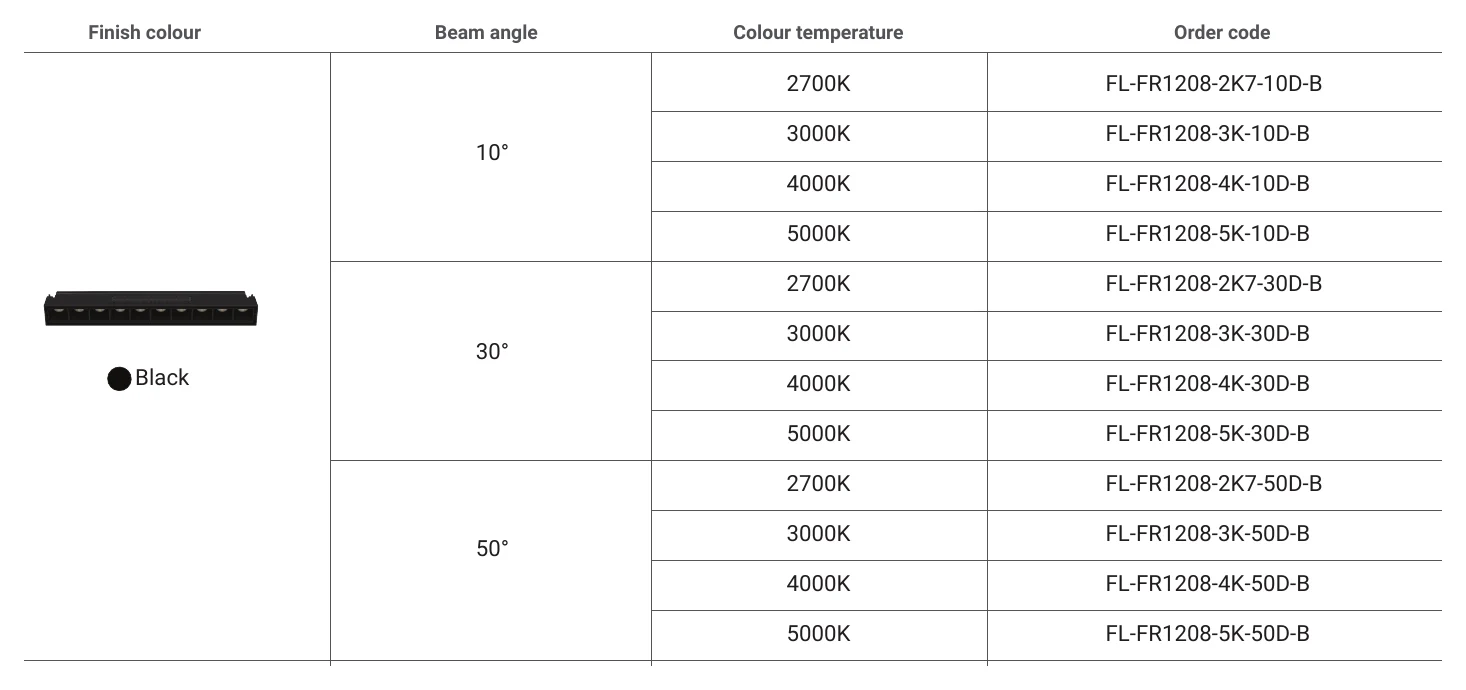

- Order code
- FL-FR1208
- Input
- 230VAC
- Power rating
- 30W
- Beam angle
- 10° / 30° / 50°
- Brightness
- 2000 lm
- Efficacy
- ≥67 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 5000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -10°C~40°C
- Dimming control
- AC Phase Cut Dimming
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 3 years
- Lifetime
- 50,000hrs
- Material
- Die-Cast Aluminum
- Finish
- White, Black, Grey
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, Class II

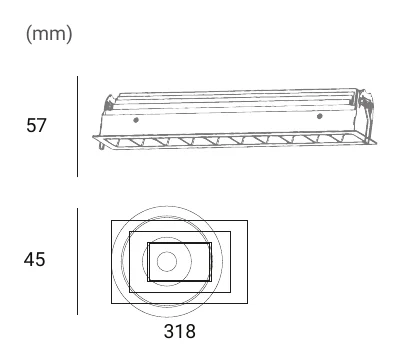

Technical drawings
Downloads
Datasheet1
FAQ
What type of lighting application is the Archilight Cultro1050T Series designed for?
The Archilight Cultro1050T Series is a linear recessed downlight intended for modern interior and commercial lighting applications. Its slim 319 x 46 mm profile is designed to keep a minimal visual footprint while delivering focused illumination for task or feature lighting.
What beam angle options are available across this product family?
This family is available with 10 degree, 30 degree, and 50 degree beam angles. The narrower 10 degree option is better for tighter accent lighting, while 30 degree and 50 degree options provide progressively wider light distribution for broader coverage.
What color temperature options are offered in the Cultro1050T family?
Supported variants in this family include 2700K, 3000K, 4000K, and 5000K color temperature options. That gives buyers a choice between warmer ambient light and cooler, crisper output depending on the project requirement.
What are the main performance specifications of this recessed downlight?
The Cultro1050T Series is rated at 30W and CRI ≥90, with a stated lifetime of 50,000 hours. Brightness is 2000 lm, with an efficacy of ≥67 lm/W.
Is a driver included, and does this light support dimming?
Yes, the listed variants in this family include a driver. They also support AC phase cut dimming, making the family suitable for projects that require dimmable architectural lighting performance.
What cut-out size should buyers check for this product family?
The listed variants have a marked feature size of 319 x 46 mm. Buyers should confirm the ceiling opening matches the selected linear recessed format and the overall fixture dimensions.
What finish, warranty, and durability details are available for this family?
The series is available in White, Black, and Grey finishes. It is backed by a 3-year warranty and a 50,000-hour rated lifetime, which supports long-term use in commercial or architectural interior environments.
