Overview
Recessed Downlight
Specifications
Specifications
- Order code
- FL-FR1158
- Input
- 230VAC
- Power rating
- 3W
- Beam angle
- 10° / 30° / 50°
- Brightness
- 160 lm
- Efficacy
- ≥53.3 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 5000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -10°C~40°C
- Dimming control
- AC Phase Cut Dimming
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 3 years
- Lifetime
- 50,000hrs
- Material
- Aluminum Alloy
- Finish
- White, Black
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, Class II

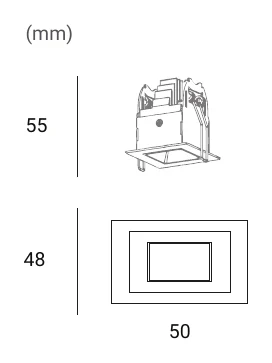

Technical drawings
Downloads
Datasheet1
FAQ

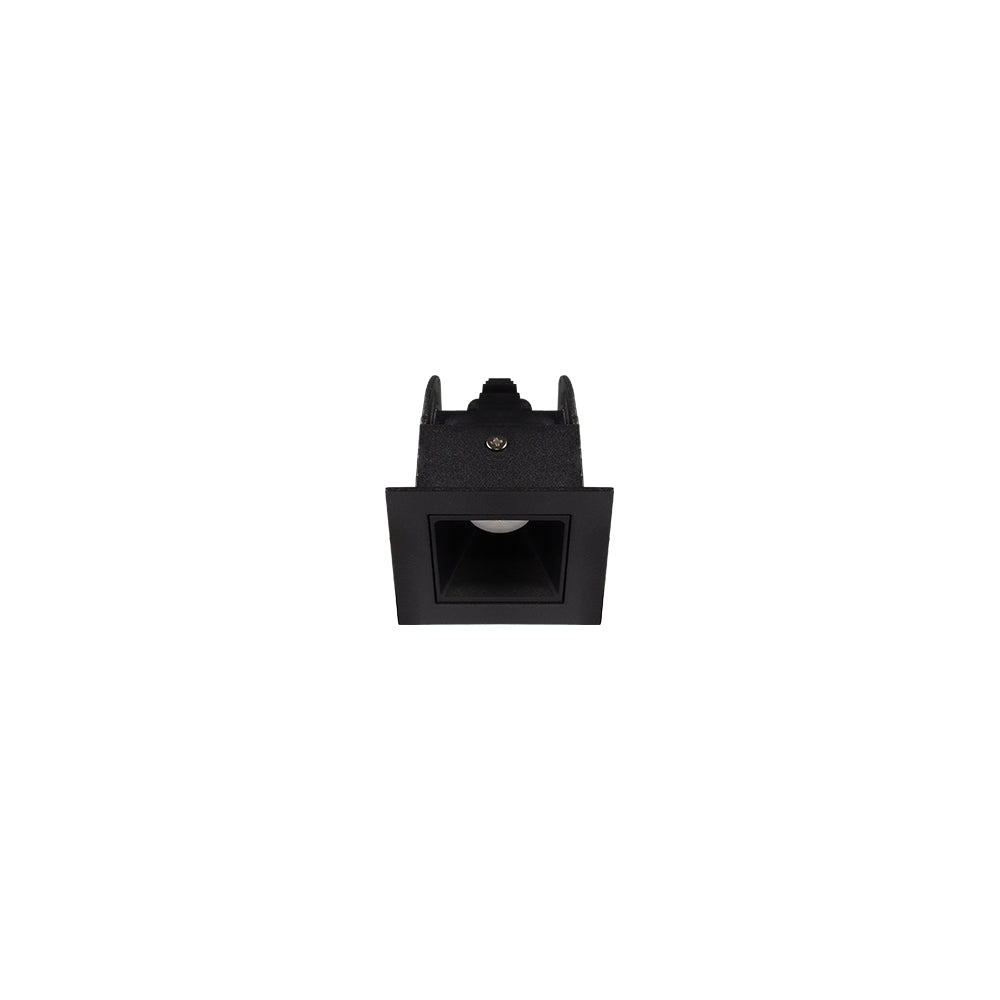

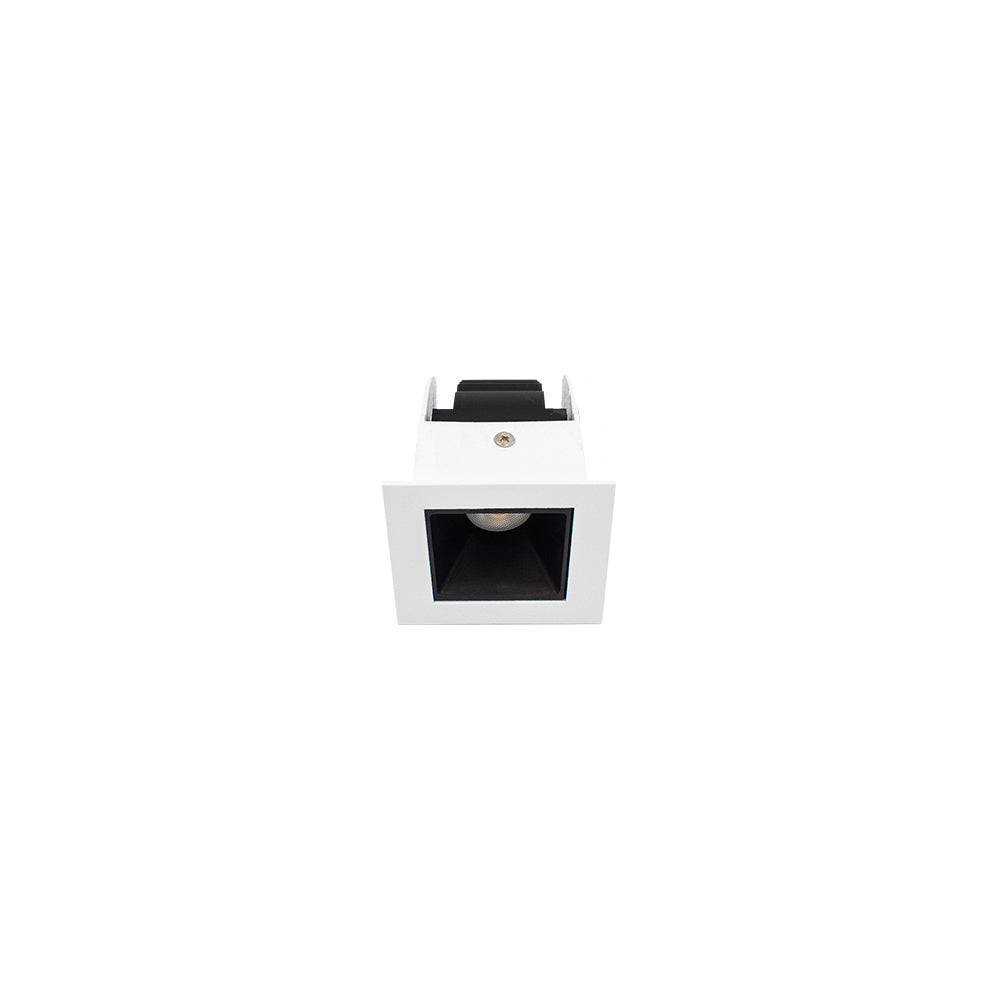

What type of light is the Archilight Cultro150 Series 1x3W Linear Recessed Downlight?
This is a compact linear recessed downlight designed for modern interior lighting where a minimal visible footprint is important. It combines a 3W LED source with a recessed form factor to deliver focused accent or task lighting. The Cultro series is positioned for applications that need a clean, architectural look.
What options are available within the Cultro150 product family?
This parent family includes variants with 10, 30, and 50 degree beam angles, along with black and white finish options. Available color temperature options across the family include 2700K, 3000K, 4000K, and 5000K, depending on the selected variant. These choices let buyers match beam spread, finish, and light tone to the project.
How do the beam angle options affect the light output?
The 10 degree version is the narrowest option for tighter, more concentrated highlighting. The 30 degree option provides a more balanced spread, while the 50 degree version offers the widest distribution in this family. All three are part of the same 3W recessed downlight series, so the main difference is beam focus rather than a change in product type.
What are the main performance specifications of this downlight family?
Each variant in this family uses 3W of power and delivers 160 lumens. The fixtures are rated CRI ≥90 for strong color rendering and have a stated lifetime of 50,000 hours. The product data also indicates 230V power input, AC Phase Cut Dimming capability, and an included driver.
Is the Archilight Cultro150 Series dimmable?
Yes, this product family supports AC Phase Cut Dimming. This allows for adjustable light levels using compatible phase-cut dimmers. Buyers should ensure their dimmer switch is compatible with LED loads for optimal performance.
What cut-out size and fixture dimensions should buyers expect?
The fixture features a 43x40mm marked feature size. It is designed for recessed mounting. This makes the Cultro150 a compact recessed option for projects where space is limited.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Cultro 150 Series Models
1 other model| Model | Power | CRI | Dimming | Cut-out | |
|---|---|---|---|---|---|
| Cultro 150 Tiltable | 3W | 90 | AC Phase Cut Dimming | 47 Millimeter | View |
