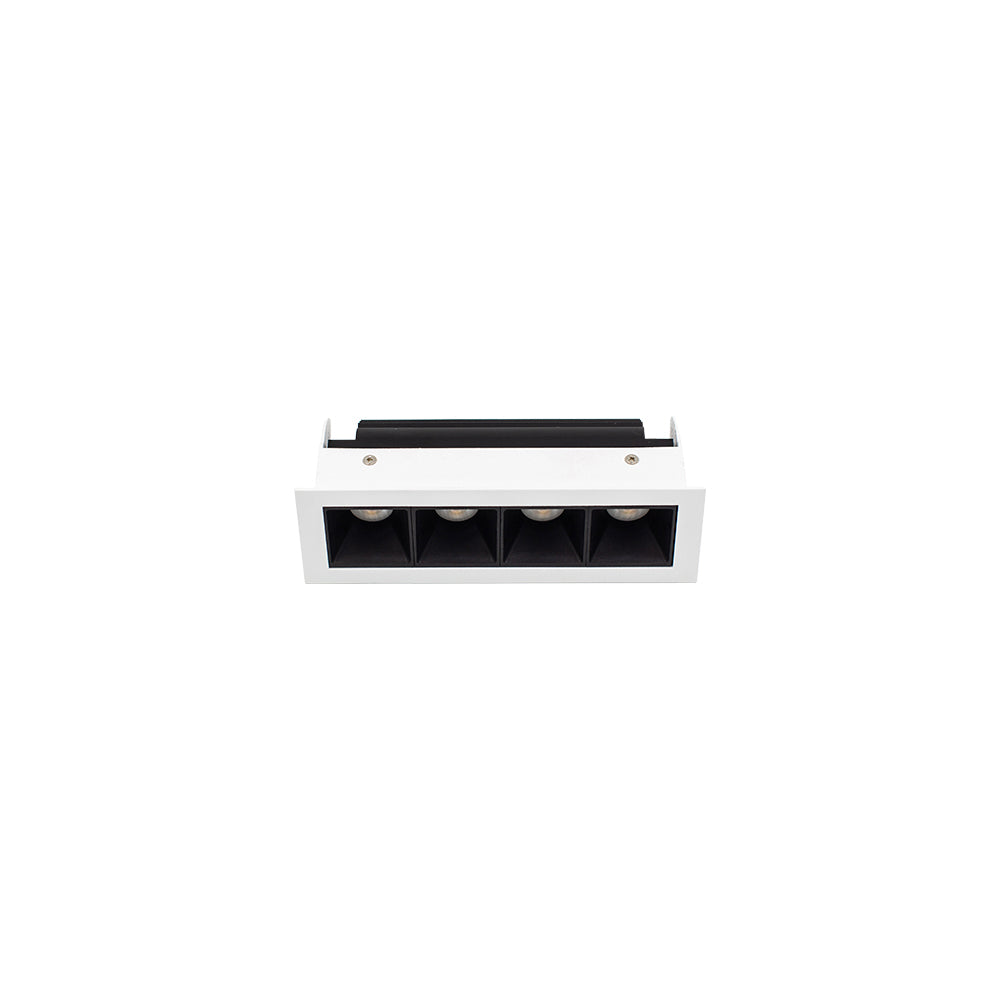

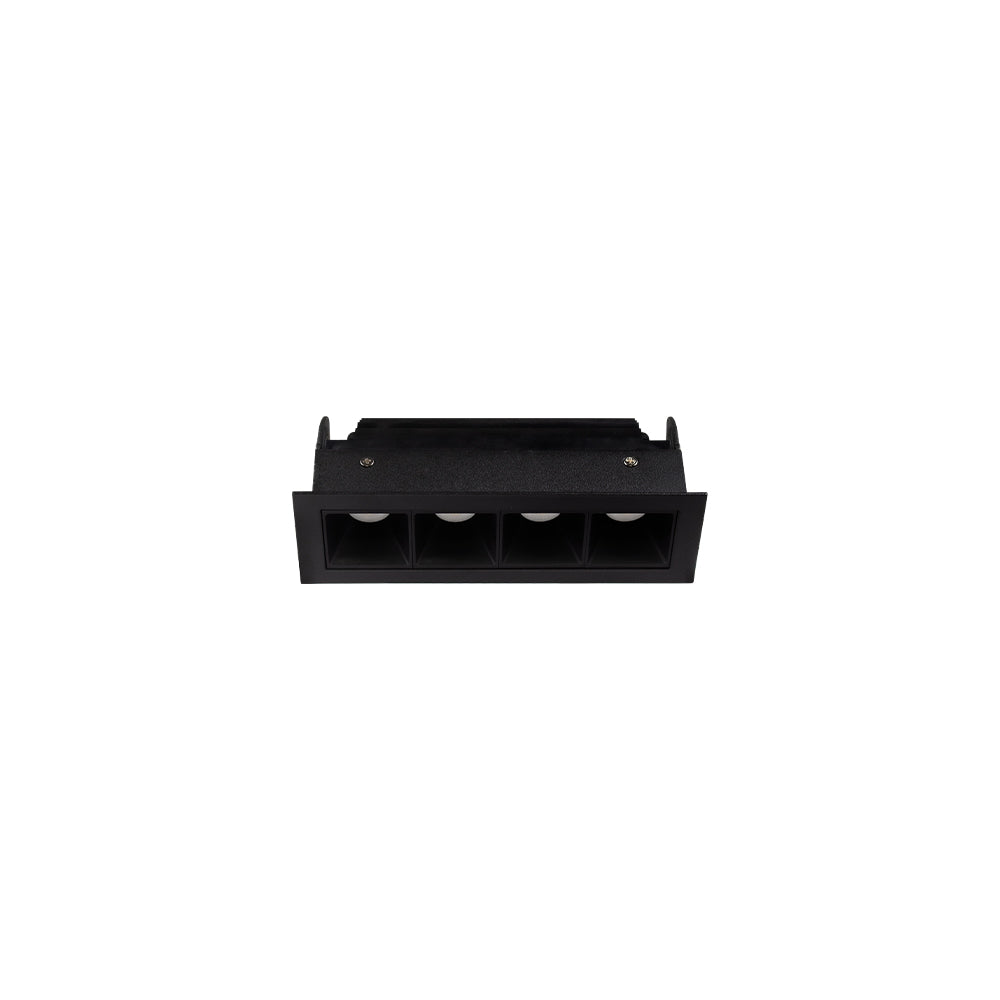

Archilight Cultro450 Series 4x3W Linear Recessed Downlight
Log in to see priceOverview
Recessed Downlight
Specifications
FL-FR1161-3K-50D-BSpecifications from the official datasheetDownload datasheet PDF
Specifications
- Order code
- FL-FR1161
- Input
- 230VAC
- Power rating
- 12W
- Beam angle
- 10° / 30° / 50°
- Brightness
- 2760 lm
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 5000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -10°C~40°C
- Dimming control
- AC Phase Cut Dimming
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 3 years
- Lifetime
- 50,000hrs
- Material
- Die-Cast Aluminum
- Finish
- White, Black
- Efficacy
- 230 lm/W
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA

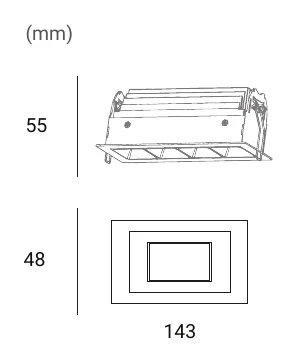

Technical drawings
Downloads
Datasheet1
FAQ
What makes the Archilight Cultro450 Series 4x3W Linear Recessed Downlight suitable for commercial interiors?
This recessed downlight is designed for modern interior lighting where a minimal visual footprint and controlled light output matter. It delivers 2760 lm from a 12 W LED system with CRI ≥90, making it a strong fit for retail, hospitality, display, and other detail-focused indoor spaces.
What beam angle options are available in the Cultro450 Series family?
The family is available in 10 degree, 30 degree, and 50 degree beam angles. This gives buyers the choice between tighter accent lighting, more balanced directional lighting, or a wider spread depending on the application.
What color temperature choices are offered across this product family?
The Cultro450 Series is offered in 2700K, 3000K, 4000K, and 5000K variants. That range covers warmer ambient tones through to cooler, crisper light for more task-oriented or commercial environments.
Does this recessed downlight include a driver and support dimming?
Yes, the driver is included across the family. The product also supports AC phase cut dimming, which makes it suitable for projects that require adjustable light levels with compatible dimming control.
What are the main performance specifications of the Archilight Cultro450 Series 4x3W Linear Recessed Downlight?
Each variant in this family is rated at 12 W and 2760 lm with CRI ≥90. The product is also specified for a 50,000-hour lifetime and comes with a 3-year warranty.
What finish options are available for this downlight family?
This family is available in black and white finishes. That lets specifiers choose a trim color that better matches the ceiling design or overall interior palette.
What cut-out range does this product family support?
The product features a marked size of 136x40mm. Buyers should use these dimensions when confirming whether the product suits the intended recessed opening dimensions.
Is the Cultro450 Series intended for indoor or outdoor use?
This product family is positioned for interior lighting applications. The IP20 rating supports indoor commercial and architectural use rather than outdoor use.
