Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

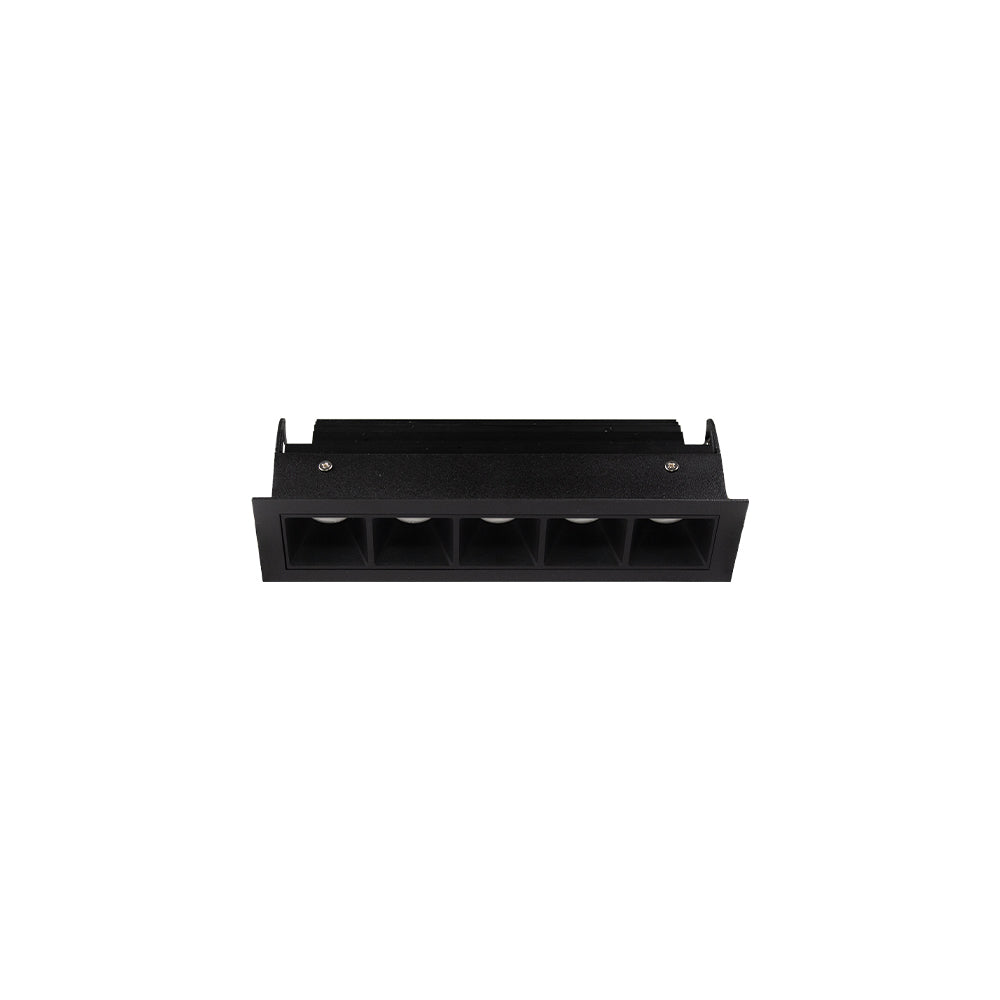

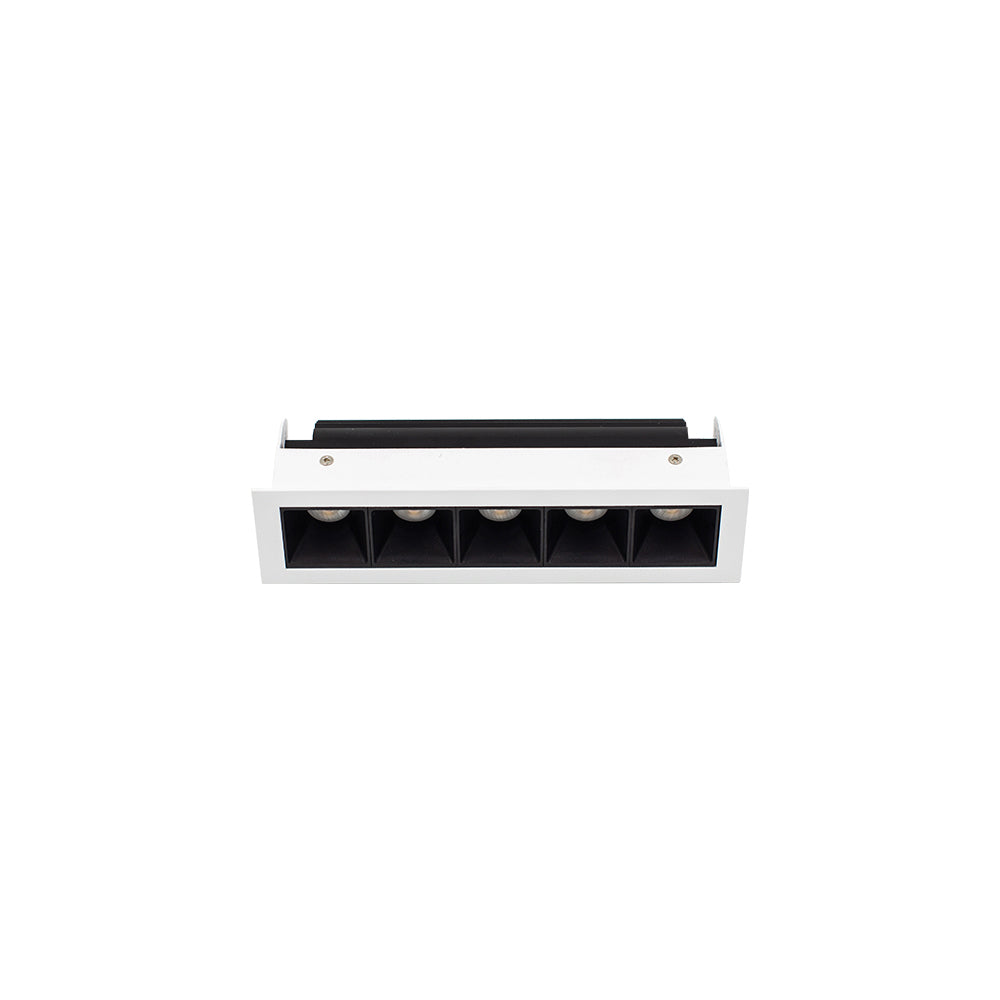

Archilight Cultro550 Series 5x3W Linear Recessed Downlight

SKU FL-FR1156-2K7-30D-W

Log in to see price Trade pricing & online ordering for account holders

Configure — 8 variants

FL-FR1156-2K7-30D-W

LED Colour

Finish Colour

Beam Angle

8 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Recessed Downlight

Specifications

Archilight Cultro550 Series 5x3W Linear Recessed DownlightSpecifications from the official datasheetDownload datasheet PDF

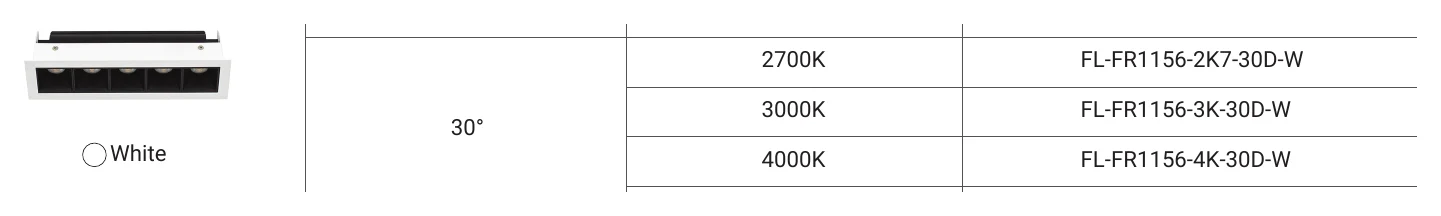

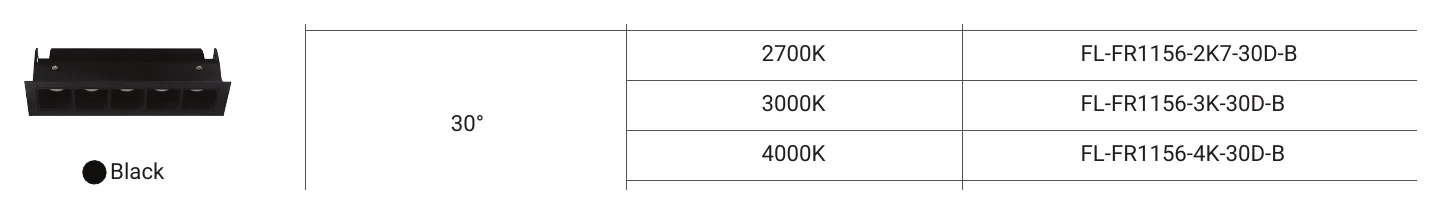

Variants

SKU	Beam Angle	LED Colour	Finish Colour
FL-FR1156-2K7-30D-W	30°	Warm White 2700K	White
FL-FR1156-3K-10D-B	10°	Warm White 3000K	Black
FL-FR1156-3K-10D-W	10°	Warm White 3000K	White
FL-FR1156-3K-30D-B	30°	Warm White 3000K	Black
FL-FR1156-3K-30D-W	30°	Warm White 3000K	White
FL-FR1156-3K-50D-B	50°	Warm White 3000K	Black
FL-FR1156-3K-50D-W	50°	Warm White 3000K	White
FL-FR1156-4K-50D-W	50°	Natural White 4000K	White

Specifications

Input: 230VAC
Power rating: 15W
Brightness: 903 lm
Efficacy: ≥60 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -10°C~40°C
Dimming control: AC Phase Cut Dimming
Tiltable: Fixed
Mounting: Recessed
Driver: Driver Included
Warranty: 3 years
Lifetime: 50,000hrs
Material: Die-Cast Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, Class II

Technical drawings

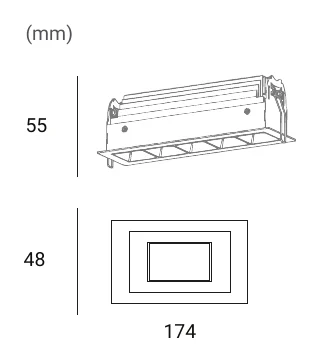

Archilight Cultro550 Series 5x3W Linear Recessed Downlight Dimensions (mm) — Dimensions (mm)

Archilight Cultro550 Series 5x3W Linear Recessed Downlight Illustration (page 2) — Illustration (page 2)

Downloads

Datasheet1

Archilight Cultro550 Series 5x3W Linear Recessed Downlight datasheetFR1156_spec_sheet.pdf PDF Download

FAQ

What are the main variant options in the Archilight Cultro550 Series 5x3W linear recessed downlight family?

This family varies by color temperature, beam angle, and finish color. Available color temperatures are 2700K, 3000K, and 4000K, with beam angles of 10, 30, or 50 degrees. Finish options are black or white across the range.

How much light output does the Cultro550 Series provide?

Each variant in this family delivers 900 lumens from a 15W light engine. That gives buyers a consistent output level across the range, with the beam angle affecting how tightly or broadly the light is distributed. This makes selection more about beam shape and color temperature than brightness differences.

How do I choose between the 10, 30, and 50 degree beam angles?

The 10 degree option is the narrowest beam and is best suited to more focused accent lighting. The 30 degree version gives a more balanced spread for general highlighting, while the 50 degree option provides the widest distribution for broader illumination. All three beam choices are available across the same product family.

Which light color options are available in this downlight family?

The family is offered in 2700K, 3000K, and 4000K versions. 2700K gives a warmer appearance, 3000K is a warm-neutral choice, and 4000K provides a cooler neutral white. This allows the same fixture design to be matched to different interior lighting goals.

Is the Archilight Cultro550 Series dimmable, and is the driver included?

All listed variants in this family are non-dimmable. The driver is included with each version, so the included package is consistent across the range. This is the same regardless of beam angle, color temperature, or finish.

What are the key physical and performance specifications of this product family?

The parent model measures 174 mm long, 48 mm wide, and 55 mm high, with a weight of 0.56 kg. It has a CRI of 90, a rated life of 50,000 hours, and a 3-year warranty. The family is also specified for 230V power input.

What cut-out range is associated with this recessed downlight family?

The child variants in this family list a cut-out minimum of 40 mm and a cut-out maximum of 167 mm. That cut-out data is consistent across all listed versions. Buyers comparing variants do not need to account for different cut-out values within this family.
