Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

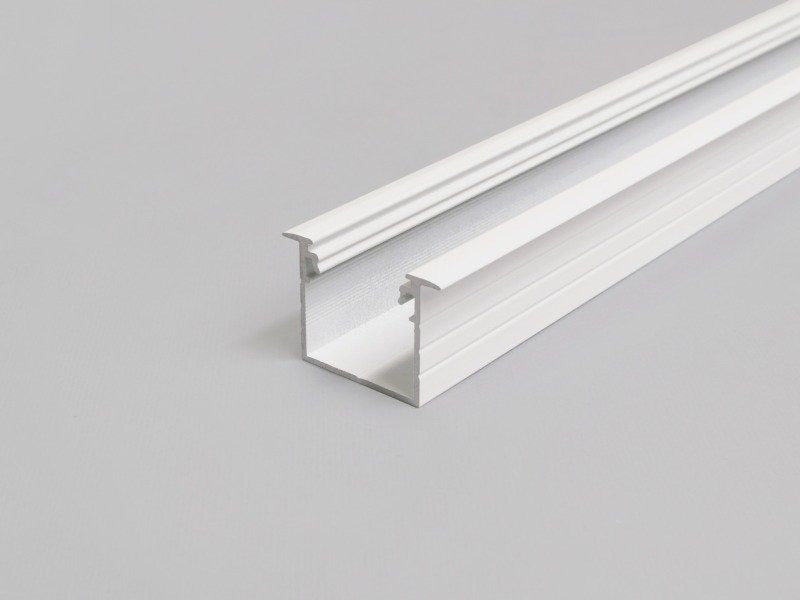

Archilight DECORUS IN LED Extrusion Profile Recessed Profile - 2 Metre - White

DECORUS IN LED Extrusion Profile Recessed Profile2 MetreWhite

SKU VR-30U-2MW

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

CREATING LIGHTING PATTERNS THANKS TO ANGULAR CONNECTORS KSZTAŁTOWANIE WZORÓW ŚWIETLNYCH DZIĘKI ŁĄCZNIKOM KĄTOWYM

Features

continuous line of light (when using LED strip 120 LEDS/m and opal cover)
angled connections illuminated
over 20 accessories available
3 mounting options of LED modules: thermic tape, LED module on a strip, additionally LED clamp
maximum LED source width: 20 mm
ciągła linia światła (przy użyciu taśm 120 LEDS/m oraz klosza mlecznego)
świecące połączenia kątowe
ponad 20 akcesoriów
3 sposoby mocowania modułów LED: taśmą termiczną, moduł na taśmie, dodatkowo docisk LED
maksymalna szerokość źródła LED: 20 mm

Specifications

VR-30U-2MWSpecifications from the official datasheetDownload datasheet PDF

Specifications

Color: white painted
Availability: Available

Dimensions

Length: 2000 mm
Width: 26 mm
Height: 22 mm
Max LED width: 20 mm

Test conditions and notes4

Available lengths: 2000 mm
The standard profile length tolerance is +20 mm.
Dostępne długości: 2000 mm
Standardowa tolerancja długości profili wynosi: +20 mm.

Technical drawings

VR-30U-2MW COVERS / KLOSZE — COVERS / KLOSZE

VR-30U-2MW E7 click cover — E7 click cover

VR-30U-2MW ENDINGS / ZAŚLEPKI — ENDINGS / ZAŚLEPKI

VR-30U-2MW MOUNTINGS / MOCOWANIA — MOUNTINGS / MOCOWANIA

VR-30U-2MW cone U7 mounting plate — cone U7 mounting plate

VR-30U-2MW rack U7 mounting plate — rack U7 mounting plate

VR-30U-2MW spring U7 mounting plate — spring U7 mounting plate

VR-30U-2MW CONNECTION POSSIBILITY — CONNECTION POSSIBILITY

VR-30U-2MW CONNECTORS / ŁĄCZNIKI — CONNECTORS / ŁĄCZNIKI

VR-30U-2MW DECORUS-IN connector 90 deg — DECORUS-IN connector 90 deg

VR-30U-2MW DECORUS-IN connector 90 deg bent — DECORUS-IN connector 90 deg bent

VR-30U-2MW DECORUS-IN connector 135 deg — DECORUS-IN connector 135 deg

VR-30U-2MW DECORUS-IN connector 180 deg — DECORUS-IN connector 180 deg

VR-30U-2MW CLAMP / DOCISK — CLAMP / DOCISK

VR-30U-2MW when using LED strip 120 LEDS/m and opal cover — when using LED strip 120 LEDS/m and opal cover

Downloads

Datasheet1

VR-30U-2MW datasheetDECORUS_IN_Spec_Sheet.pdf PDF Download

FAQ

What is the Archilight VR-30U-2MW?

It is a white painted recessed LED extrusion profile designed for mounting LED strips into surfaces.

What are the dimensions of this profile?

The profile is 2000 mm long, 26 mm wide, and 22 mm high.

What is the maximum LED strip width?

It supports LED strips with a maximum width of 20 mm.

How is this profile installed?

It is designed for recessed installation, allowing it to be embedded flush with the mounting surface.

What is the color and finish of the profile?

The profile has a white painted finish.
