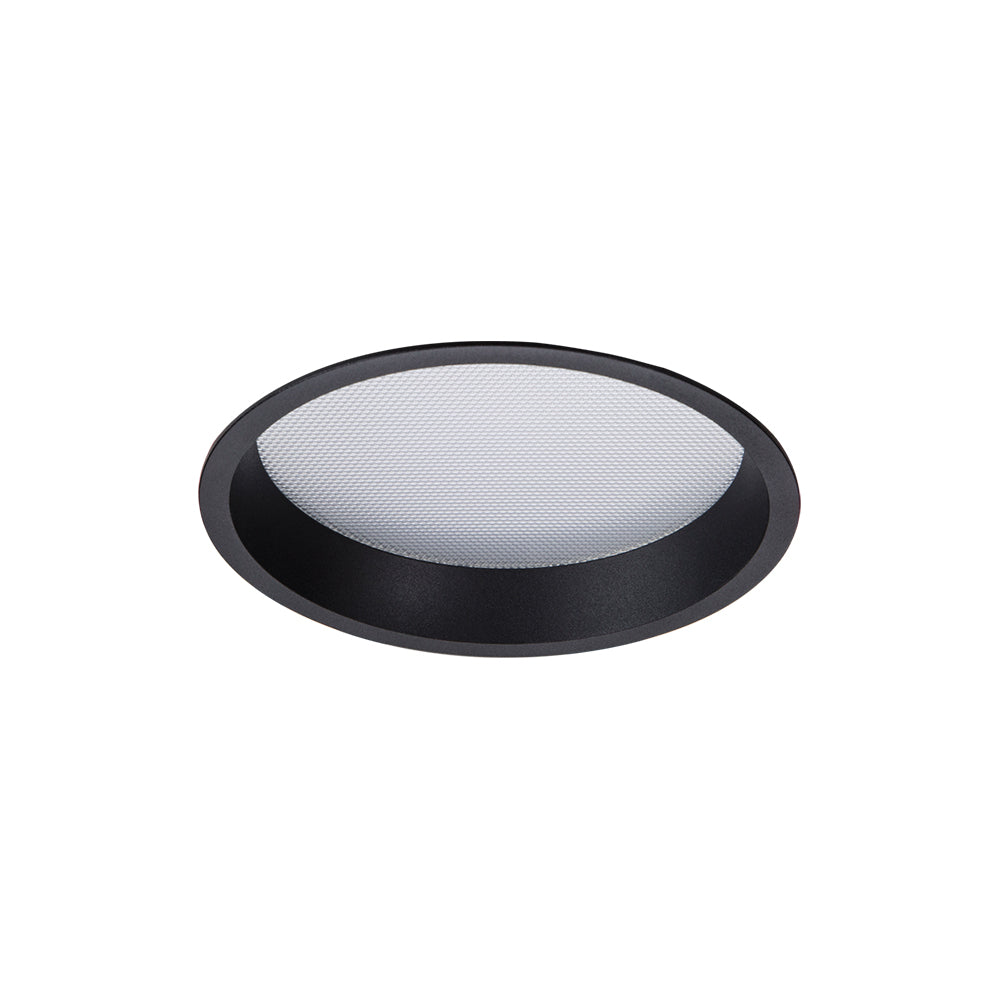

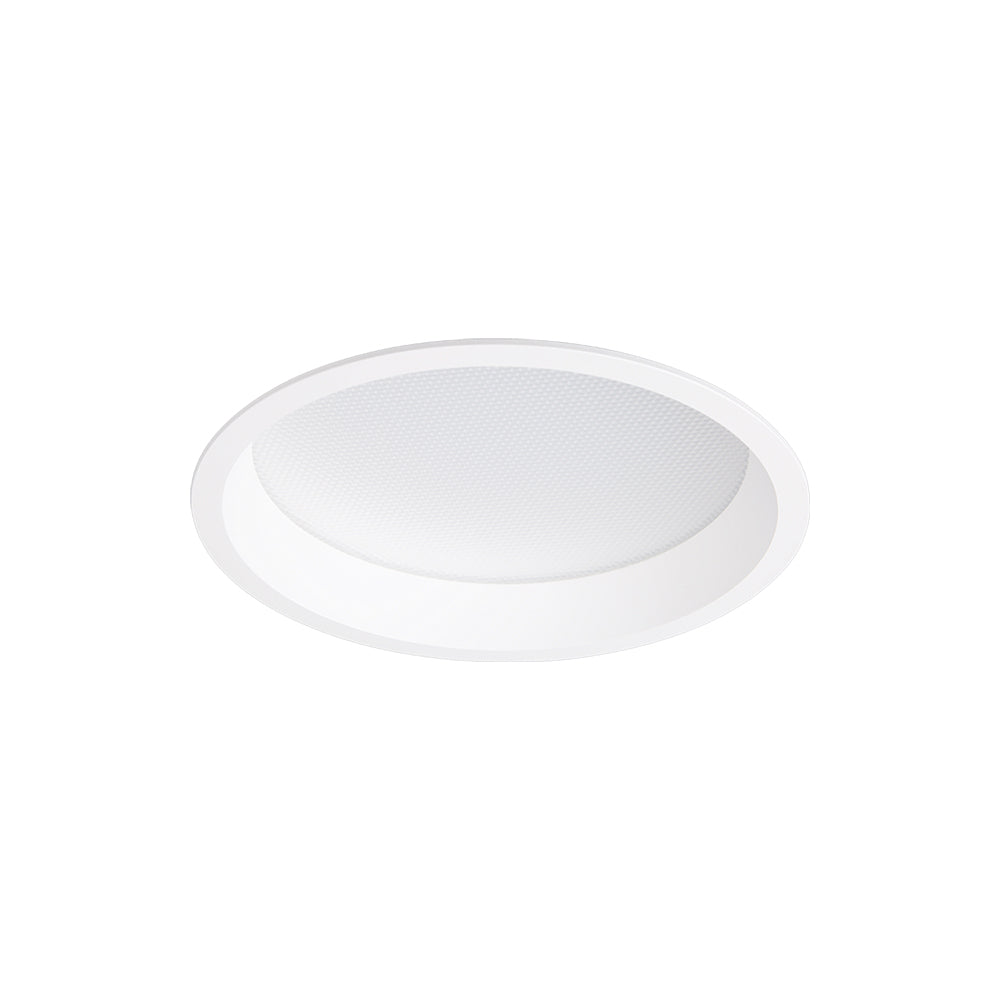

Archilight Deep 2 Downlight 30W

SKU KC-010170C06-90D-4000K-B

Log in to see price Trade pricing & online ordering for account holders

Configure — 4 variants

KC-010170C06-90D-4000K-B

LED Colour

Finish Colour

4 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Deep 2 Downlight 30WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour	Finish Colour
KC-010170C06-90D-4000K-B	Natural White 4000K	Black
KC-010170C06-90D-4000K-W	Natural White 4000K	White
KC-010170C06-90D-6000K-B	Cool White 6000K	Black
KC-010170C06-90D-6000K-W	Cool White 6000K	White

Specifications

Input: 230VAC
Power rating: 30W
Beam angle: 90°
Brightness: 3000 lm
Efficacy: ≥100 lm/W
Colour render index(CRI): ≥85
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Dimmable (Dimmer Optional)
Tiltable: Fixed
Mounting: Recessed
Driver: Driver Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Die-Cast Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

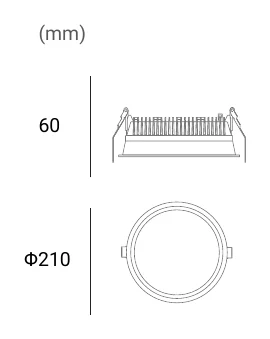

Archilight Deep 2 Downlight 30W Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Deep 2 Downlight 30W datasheetArchilight_Deep_2_Downlight_30W.pdf PDF Download

FAQ

What type of spaces is the Archilight Deep 2 Downlight 30W suited for?

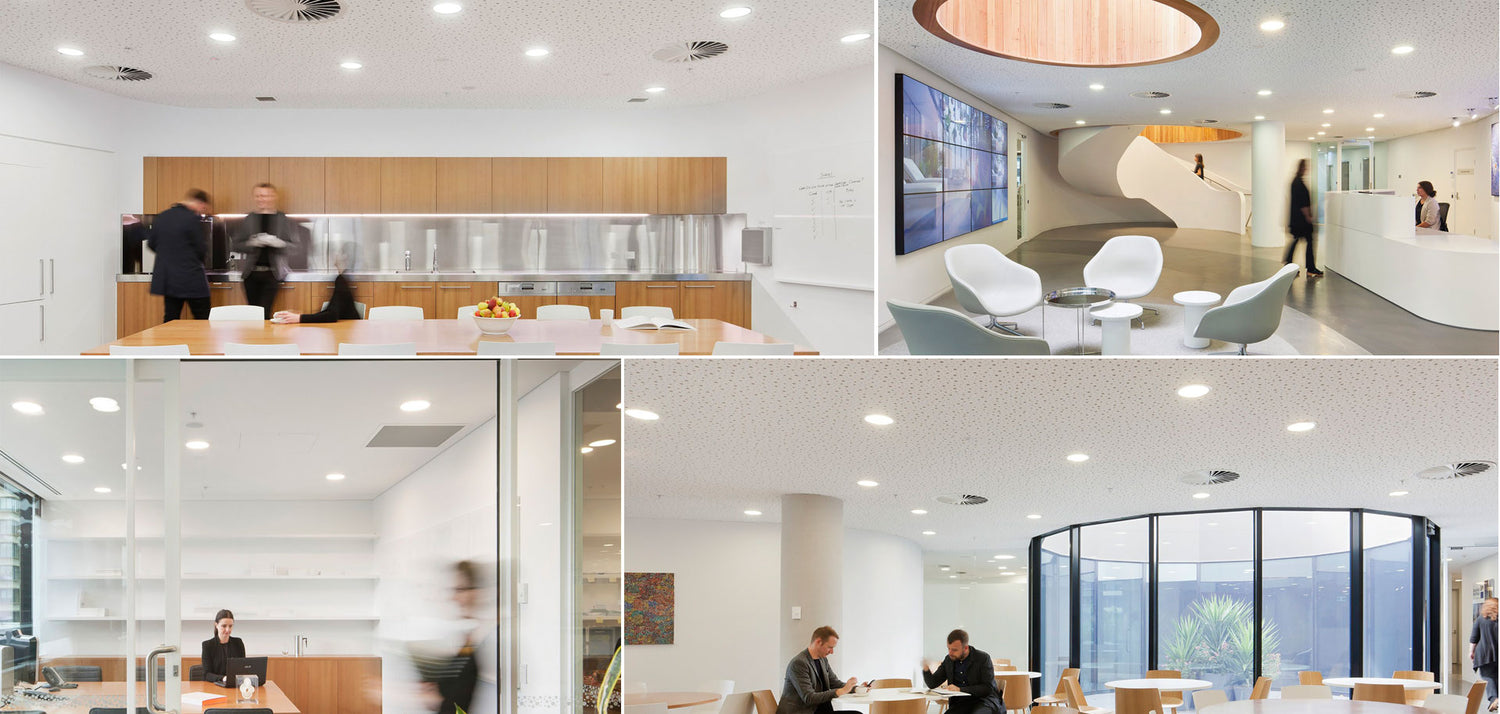

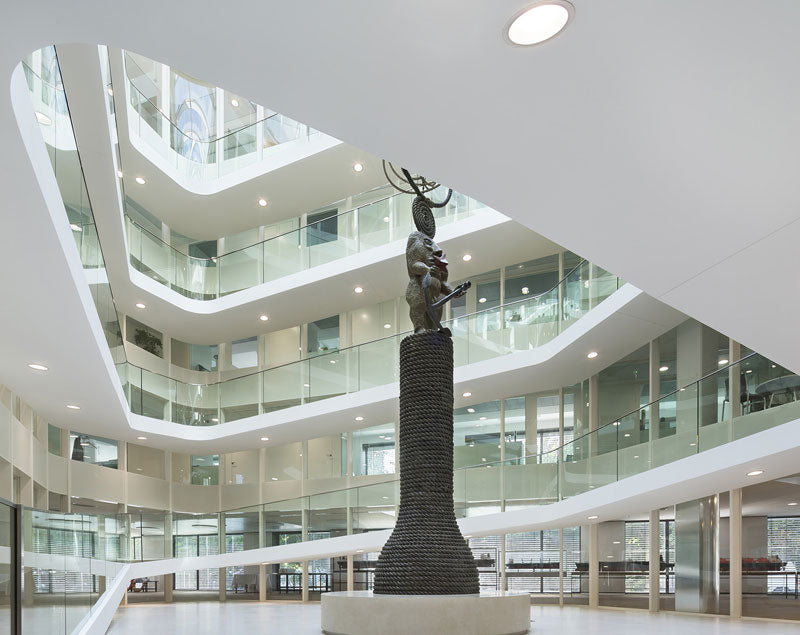

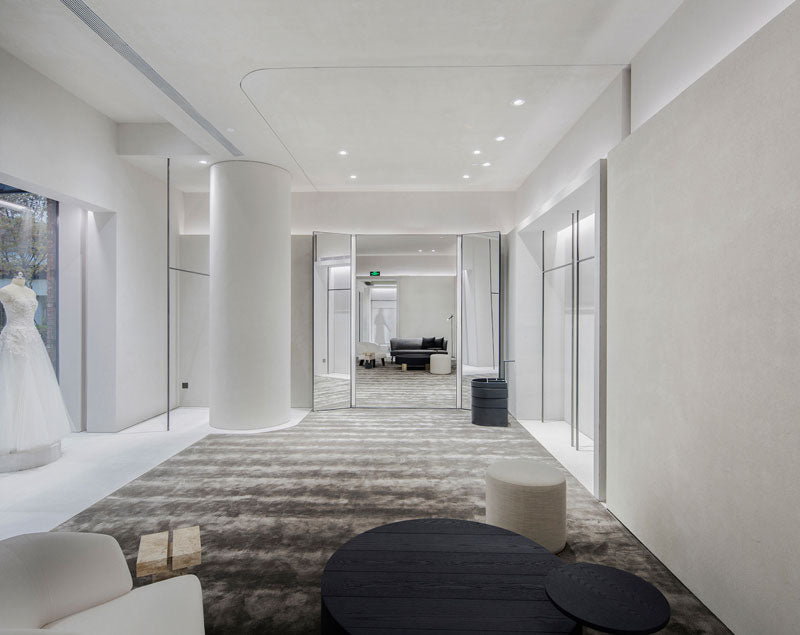

The Archilight Deep 2 Downlight 30W is designed as a commercial recessed downlight for interior applications. Its low-glare design and broad 90 degree beam angle make it a practical choice for spaces that need comfortable general lighting, such as retail, office, and other commercial environments.

What are the main performance specifications of this downlight family?

Across the family, this downlight uses 30W of power and delivers 2700 lumens. It has a 90 degree beam angle, a rated lifetime of 50,000 hours, and a 5 year warranty. The listed colour rendering index for the variants is CRI 85.

What variant options are available in the Archilight Deep 2 Downlight 30W range?

This parent family includes variants in two finish colours, black and white, and two colour temperatures, 4000K and 6000K. The core specifications remain the same across those variants, including 30W power, 2700 lumen output, 90 degree beam angle, included driver, and optional dimming capability.

Is the Archilight Deep 2 Downlight 30W dimmable?

The family is listed as dimmable optional, which means dimming is available as an option rather than as a guaranteed standard feature on every configuration. If dimming is required for your project, it should be confirmed as part of the selected order configuration.

Does this downlight include a driver?

Yes, the product family is specified with driver included. That applies across the variants shown for this parent model, so the included driver is part of the standard product configuration.

What cut-out size does this downlight family require?

The child variants in this family show a cut-out size of 200 mm, with both minimum and maximum values listed at 200 mm. That indicates the family is intended for a consistent recessed opening size across the available variants.

How large is the Archilight Deep 2 Downlight 30W?

The parent model dimensions are listed as 210 mm length, 210 mm width, and 60 mm height, with a weight of 1.0 kg. These dimensions make it a compact commercial recessed downlight suitable for projects where fitting size and ceiling integration matter.
