Archilight Deep Downlight 20W
Log in to see priceSpecifications
Variants
| SKU | LED Colour | Finish Colour |
|---|---|---|

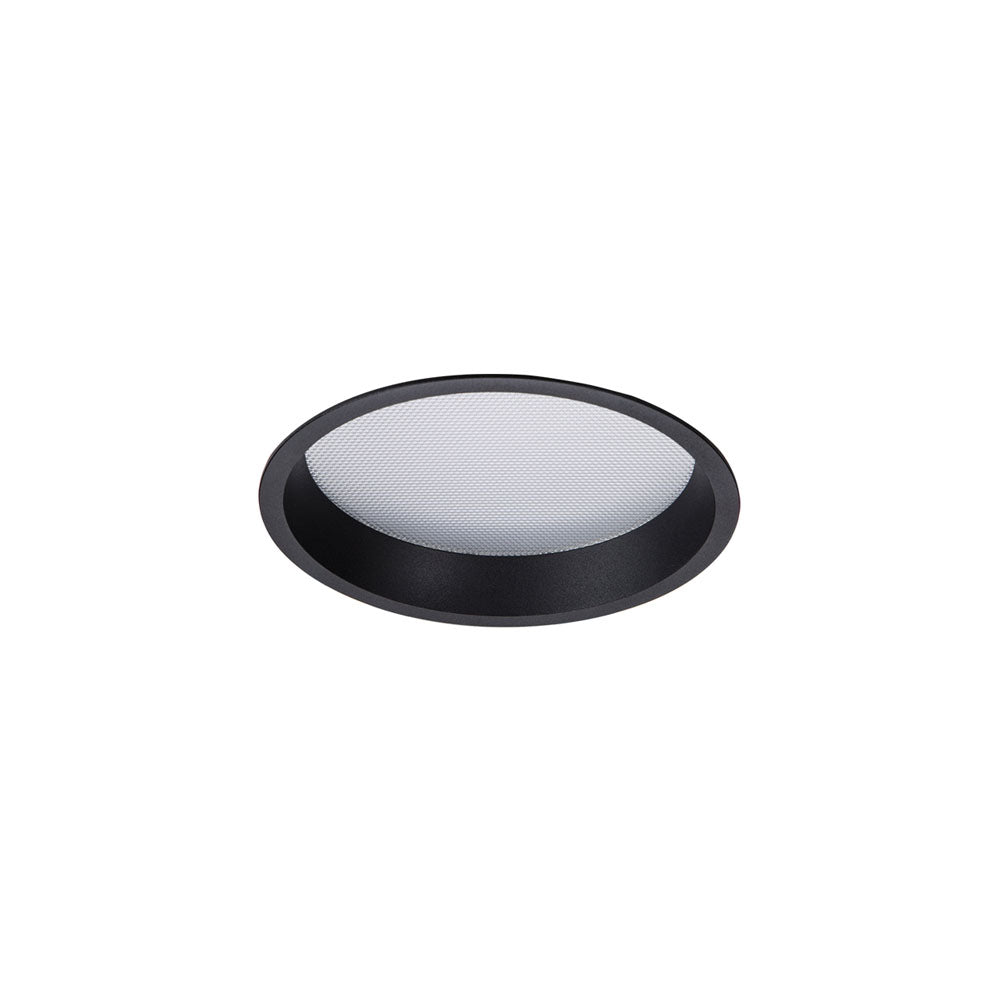

| KC-010170C04-90D-4000K-B | Natural White 4000K | Black |

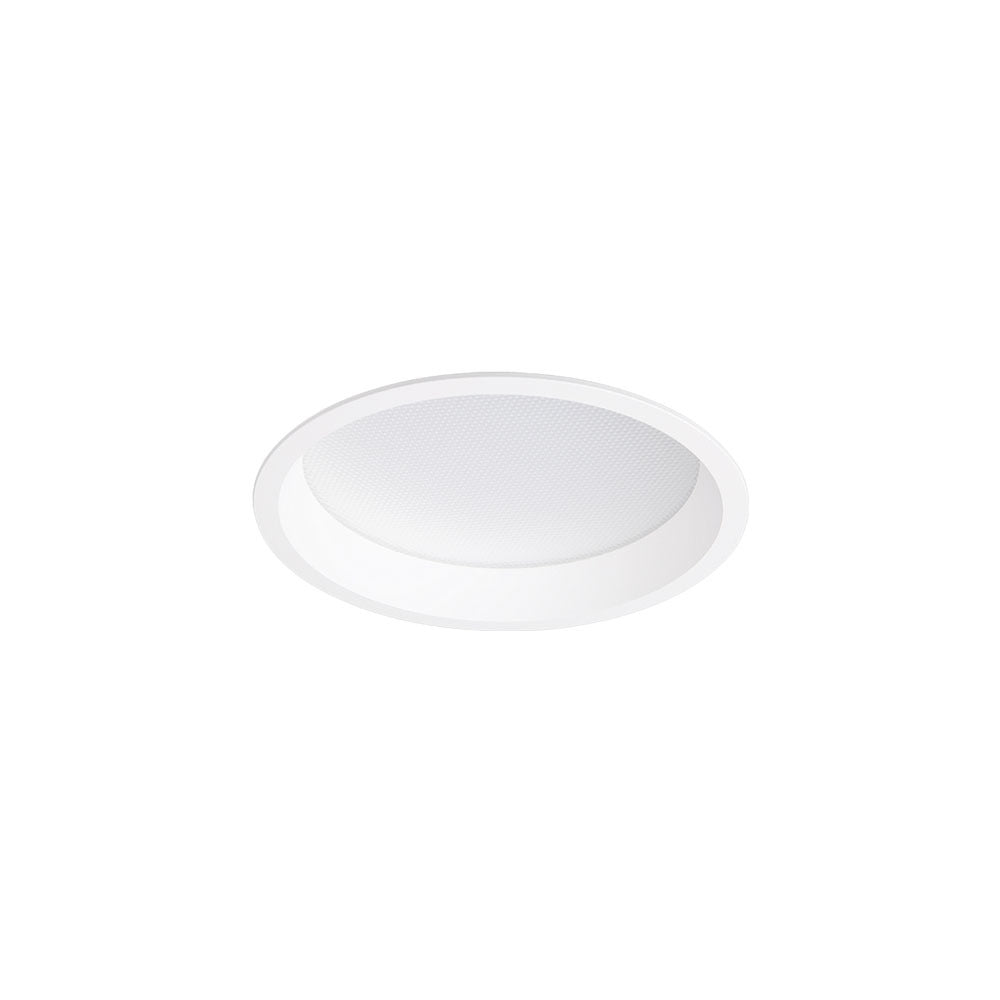

| KC-010170C04-90D-4000K-W | Natural White 4000K | White |
| KC-010170C04-90D-6000K-B | Cool White 6000K | Black |
| KC-010170C04-90D-6000K-W | Cool White 6000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 20W
- Beam angle
- 90°
- Brightness
- 2000 lm
- Efficacy
- ≥100 lm/W
- Colour render index(CRI)
- ≥85
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Die-Cast Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

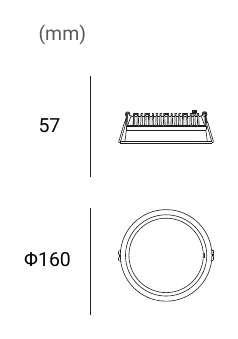

Technical drawings
Downloads
Datasheet1
FAQ
What type of spaces is the Archilight Deep Downlight 20W designed for?

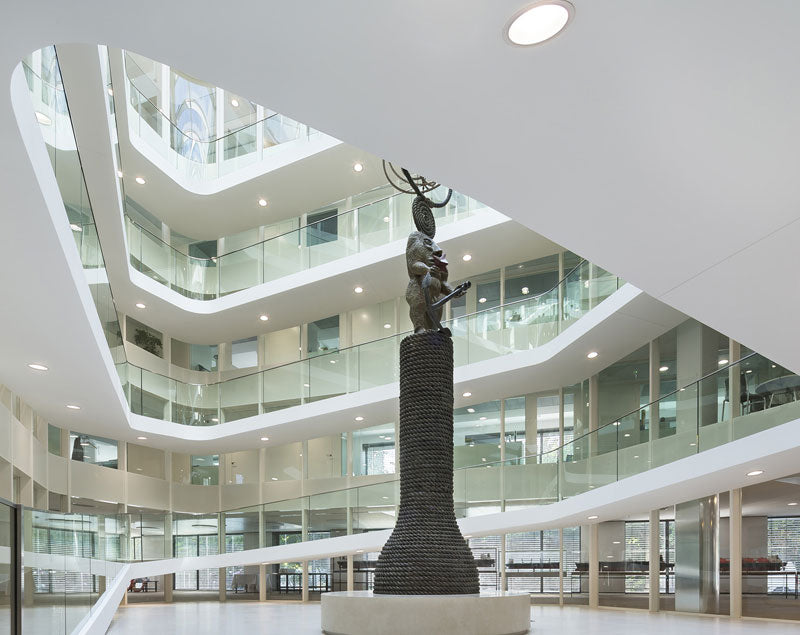

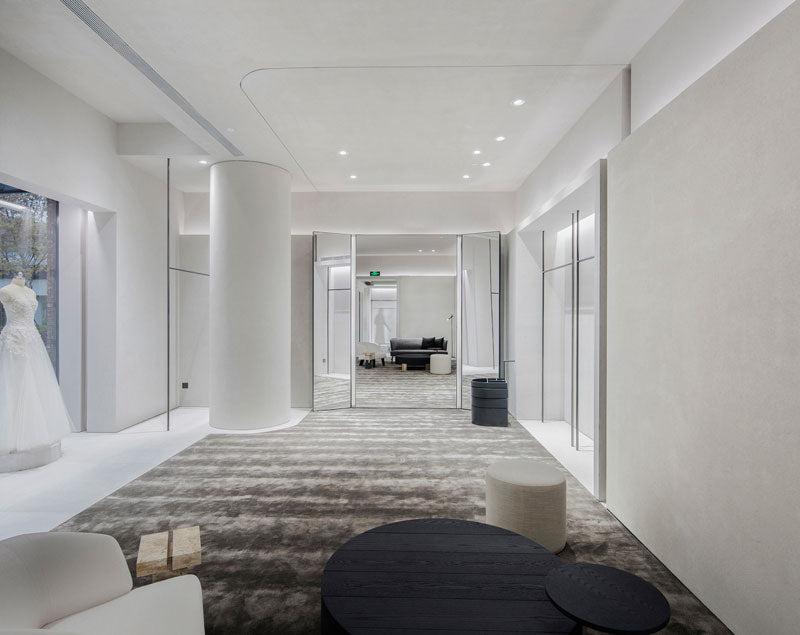

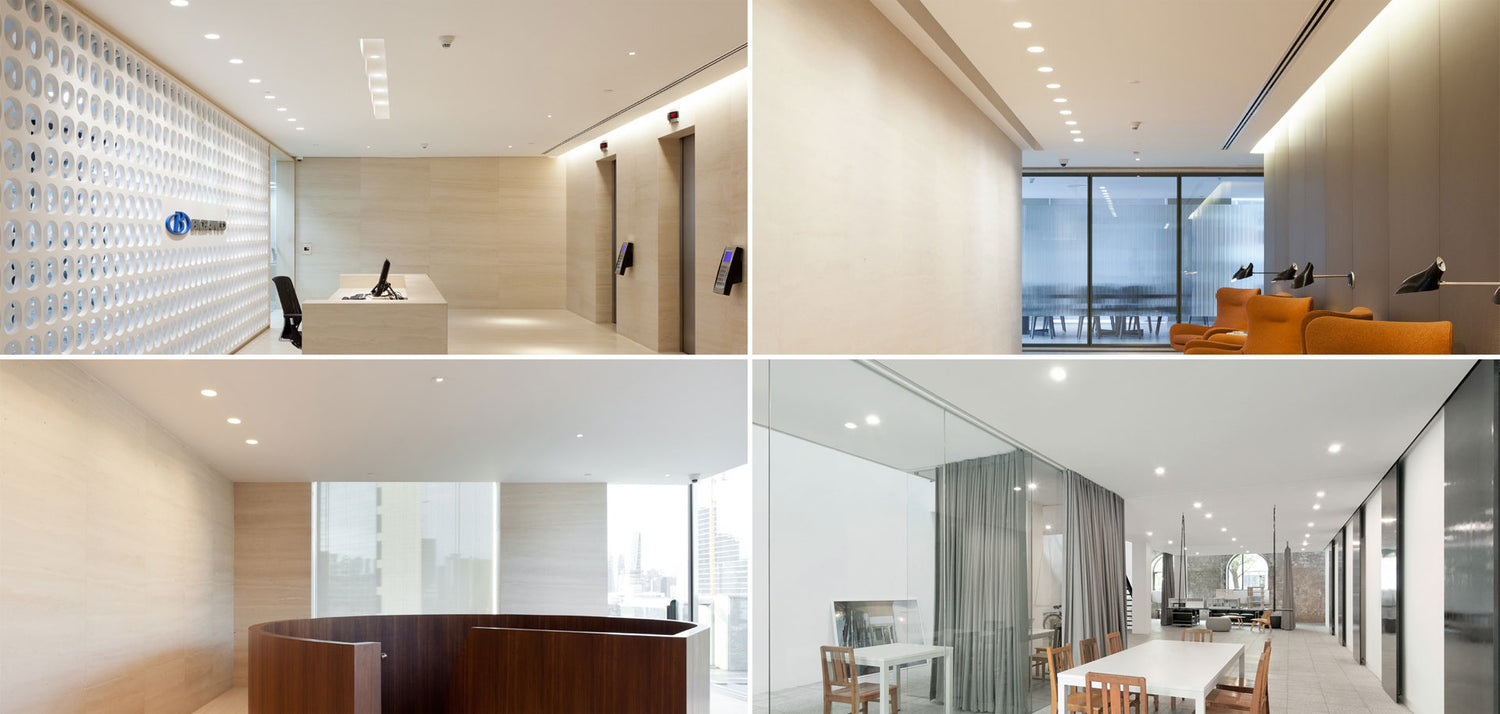

The Archilight Deep Downlight 20W is a commercial recessed downlight intended for interior applications where visual comfort and efficient general lighting are important. Its deep-set design and wide 90 degree beam make it suitable for spaces such as offices, retail areas, showrooms, and other commercial environments.
What are the main differences between the variants in this product family?
This family varies by colour temperature and finish colour. Buyers can choose between 4000K or 6000K light output, and between black or white finishes, while the 20W power rating, 2000 lumen output, 90 degree beam angle, driver inclusion, and optional dimming remain the same across the range.
How bright is the Archilight Deep Downlight 20W?
All variants in this family deliver 2000 lumens at a 20W power rating. That makes it a high-output commercial downlight suited to spaces that need strong, even illumination from a recessed fitting.
Is the Archilight Deep Downlight 20W dimmable?
Yes, this product family is listed as dimmable optional. That means the fitting supports dimming when paired with a suitable dimming setup, but dimming is not described as standard by default in the product data provided.
What cut-out size should buyers check for this downlight family?
The child variants in this family all show a 145 mm cut-out size, with both the minimum and maximum cut-out listed at 145 mm. Buyers comparing this family at the parent-product level should therefore expect a consistent 145 mm ceiling cut-out requirement across the range shown.
What lifespan and warranty does this downlight family offer?
The Archilight Deep Downlight 20W family is rated for a 50,000 hour lifetime and carries a 5 year warranty. These figures are consistent across the listed variants, which supports use in commercial settings where long service life and reduced maintenance matter.
