Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

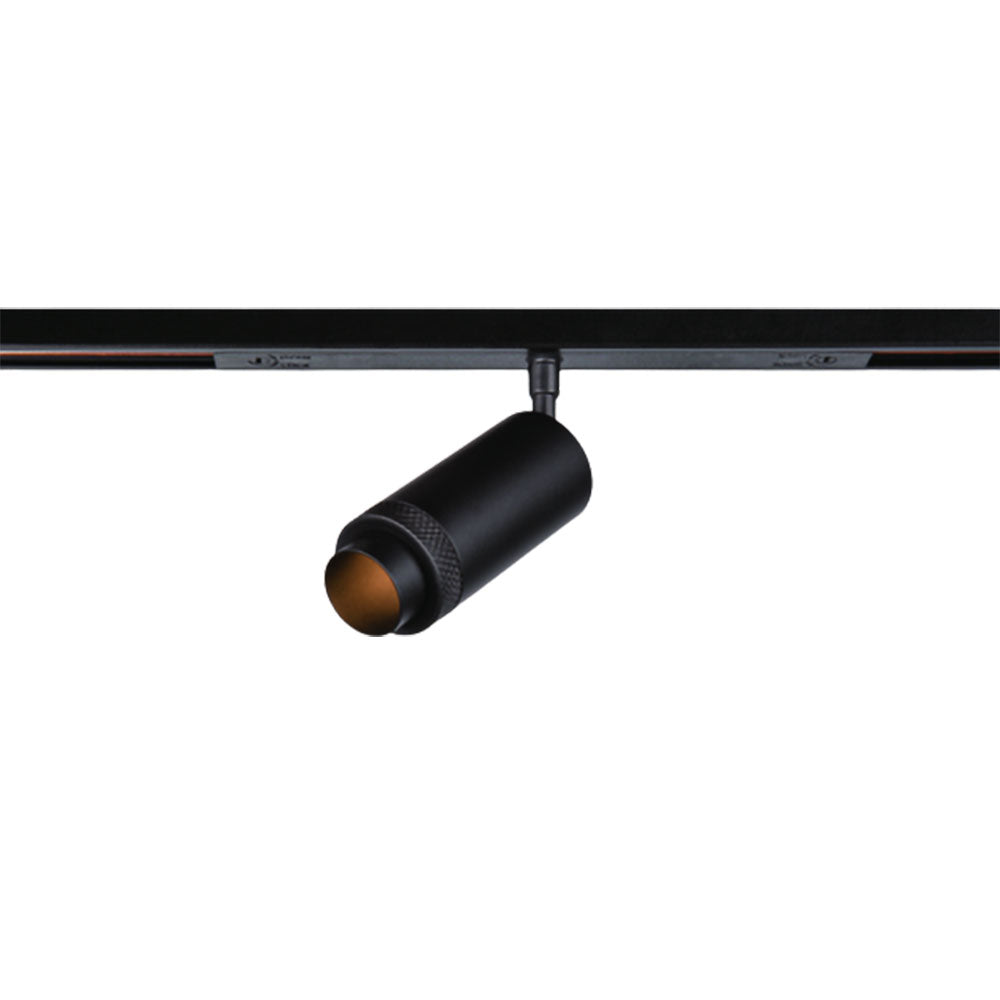

Archilight Dot Mini 30 Track Light 5.3W - Black + Gold

SKU:

KC-10.003A01-18-31D-3000K-BG

Log in to see price Trade pricing & online ordering for account holders

LED Colour

Warm White 3000K Natural White 4000K

Finish Colour

Black and Gold

Beam Angle

18-31 Degree

Product variants

Notify me when it's back in stock

Features:

Archilight Mini-series features a similar design to the Motion system. Being a lot smaller in size, the ultra-thin design is seen as a minimalist line, creating infinite visual effects yet the outstanding performance and function is maintained. This system is the best choice for a dedicated space where only the light itself attracts focus not the luminaire.

Archilight Dot Mini comes in different sizes, from 22 to 30mm in diameter. It also comes in different angles, colour and colour temperatures, covering all different scenarios. The light can also be rotated to create the best angle possible.

Pair It With:

Mini S Surface Tracks

Mini T Trimless Tracks

Mini O Suspended Tracks

Frequently Asked Questions

What type of track lighting application is the Archilight Dot Mini 30 designed for?

The Archilight Dot Mini 30 is built for micro magnetic track lighting where a very small, low-visual-profile fixture is preferred. Its ultra-thin Mini-series design suits dedicated interior spaces where the lighting effect should stand out more than the luminaire itself.

What are the main specifications of the Archilight Dot Mini 30 family?

This parent model uses 5.3W of power, has a CRI of 90, and is rated for a 50,000-hour service life. It also carries a 5-year warranty and uses 48V power input, with overall dimensions of 100 mm length, 30.5 mm width, and 65 mm height.

What beam angle options are available in this product family?

The child variants shown for this parent all use the same 18 to 31 degree beam angle option. That makes this family suitable when you want a controlled directional light spread rather than a wide flood distribution.

What color temperature options are available for the Archilight Dot Mini 30 family?

Based on the listed variants, this family is available in 3000K and 4000K versions, plus one variant where the color temperature is not specified in the provided data. That gives buyers a choice between a warmer and a more neutral white output where those variants are offered.

Is a driver included with the Archilight Dot Mini 30 track light?

No, the provided product data states that the driver is not included. When evaluating this family, buyers should account for that in the overall track system specification and procurement process.

Can the Archilight Dot Mini 30 be dimmed?

The listed parent and child data show dimming control as none. This means the family should be treated as a non-dimmable option unless a separate system-level specification confirms otherwise.

Which Archilight Mini track systems pair with this light family?

The parent description specifically pairs this light with Mini S Surface Tracks, Mini T Trimless Tracks, and Mini O Suspended Tracks. Those pairings indicate the product is part of the broader Archilight Mini magnetic track system range.
