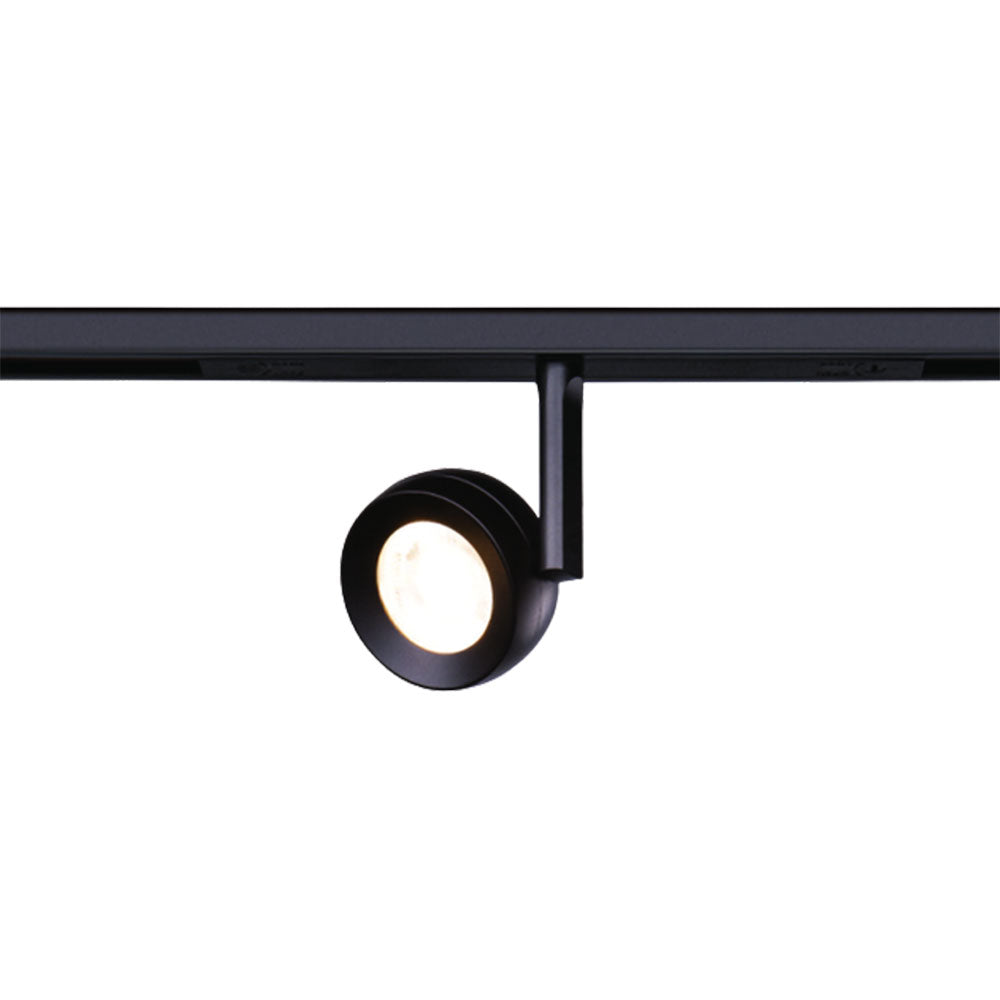

Archilight Eyelet Mini Track Light 5.6W - Black + Gold

SKU KC-10.006A01-19D-3000K-BG

Log in to see price Trade pricing & online ordering for account holders

Configure — 8 variants

KC-10.006A01-19D-3000K-BG

LED Colour

Beam Angle

8 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Technical drawings

Archilight Eyelet Mini Track Light 5.6W - Black + Gold XS TRACK Mini A surface — XS TRACK Mini A surface

Archilight Eyelet Mini Track Light 5.6W - Black + Gold XS TRACK Mini A surface (2) — XS TRACK Mini A surface (2)

Archilight Eyelet Mini Track Light 5.6W - Black + Gold XS TRACK Mini A surface (3) — XS TRACK Mini A surface (3)

Archilight Eyelet Mini Track Light 5.6W - Black + Gold XS TRACK Mini O suspended — XS TRACK Mini O suspended

Archilight Eyelet Mini Track Light 5.6W - Black + Gold XS TRACK Mini O suspended (2) — XS TRACK Mini O suspended (2)

Archilight Eyelet Mini Track Light 5.6W - Black + Gold CURVED TRACK Mini AC — CURVED TRACK Mini AC

Archilight Eyelet Mini Track Light 5.6W - Black + Gold CURVED TRACK Mini AC (2) — CURVED TRACK Mini AC (2)

Archilight Eyelet Mini Track Light 5.6W - Black + Gold XS TRACK Mini A / Mini O / Mini T — XS TRACK Mini A / Mini O / Mini T

Downloads

Datasheet1

Archilight Eyelet Mini Track Light 5.6W - Black + Gold datasheeteyelet_mini_spec_sheet.pdf PDF Download

FAQ

What type of product is the Archilight Eyelet Mini Track Light 5.6W - Black + Gold?

This is a compact LED light module designed for the Archilight Mini magnetic track lighting system. It is part of the Mini-series, which uses an ultra-thin, minimalist form so the light effect stands out more than the luminaire itself.

What beam angle options are available across this product family?

This parent family is available in four beam angles: 19 degrees, 26 degrees, 38 degrees, and 58 degrees. That range allows the same fixture style to suit narrower accent lighting or broader light distribution depending on the variant selected.

What colour temperature options are offered in this Eyelet Mini family?

Available variants include 3000K and 4000K colour temperatures, and some listed variants are marked as 2700-6000K. Buyers should choose the specific child variant that matches the required light colour for the project.

What are the key performance specifications of this track light?

This product family has a power rating of 5.6W, CRI 90, rated brightness of 492 lumens, and a lifetime of 50,000 hours. It is intended for 48V power input and is backed by a 5-year warranty.

Is the driver included, and does this light support dimming?

The listed parent specifications state that the driver is not included. The dimming control is listed as none, so this family should be treated as non-dimmable based on the provided data.

Which track systems is this Eyelet Mini light intended to pair with?

The parent product content identifies compatibility within the Archilight Mini system and specifically pairs it with Mini S Surface Tracks, Mini T Trimless Tracks, and Mini O Suspended Tracks. This makes it suitable for projects using the Mini-series magnetic track platform.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Eyelet Wall Washer Track Light BLE	20W	90	Dimmable by Bluetooth	19	View
