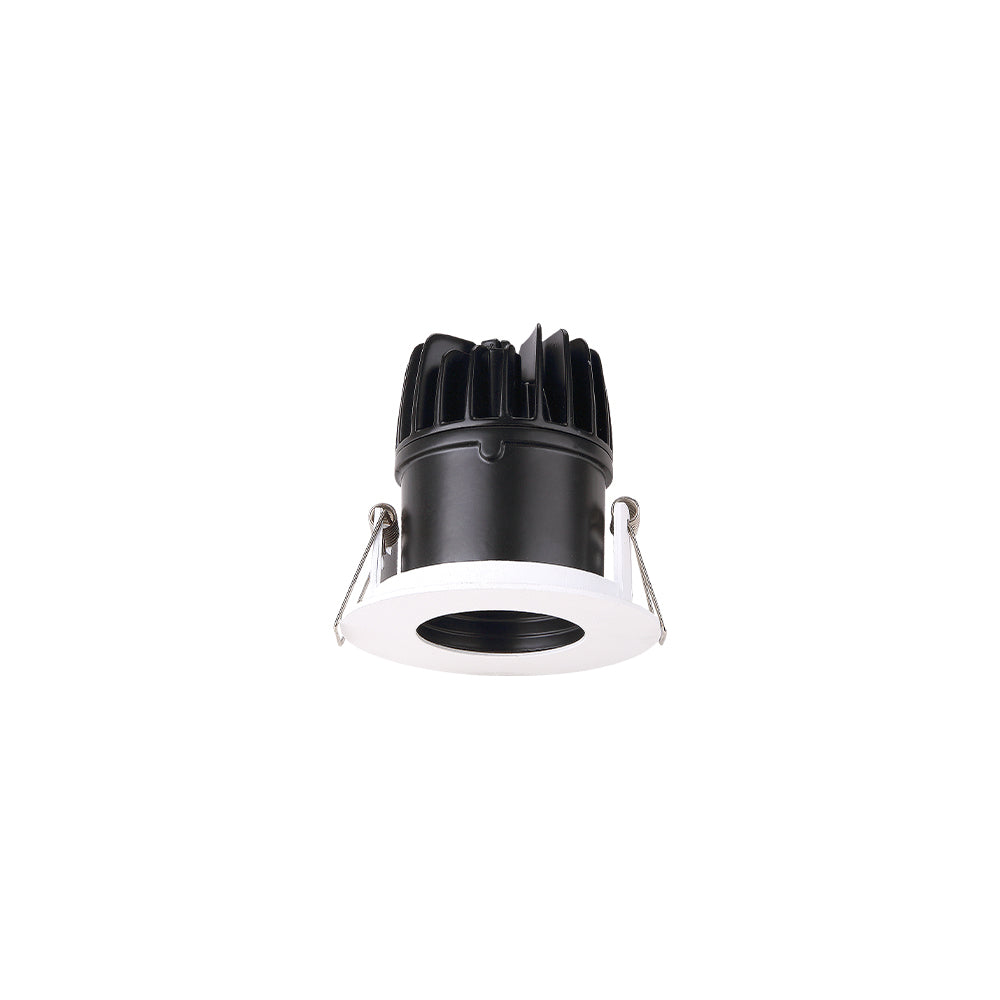

Archilight Jet 10W Tiltable Deep Recessed Downlight

SKU FL-FR1035-2K7-15D-W

Log in to see price Trade pricing & online ordering for account holders

Configure — 4 variants

FL-FR1035-2K7-15D-W

LED Colour

Finish Colour

Beam Angle

4 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Specifications

Archilight Jet 10W Tiltable Deep Recessed DownlightSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour	Brightness	Finish Colour
FL-FR1035-2K7-15D-W	15°	Warm White 2700K	536 lm	White
FL-FR1035-3K-30D-B	30°	Warm White 3000K	505 lm	Black
FL-FR1035-3K-40D-W	40°	Warm White 3000K	424 lm	White
FL-FR1035-4K-30D-W	30°	Natural White 4000K	505 lm	White

Specifications

Input: 230VAC
Power rating: 10W
Efficacy: ≥85lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -10°C~40°C
Dimming control: Dimmable (Dimmer Optional)
Tiltable: Adjustable
Mounting: Recessed
Driver: Driver Included
Warranty: 3 years
Lifetime: 50,000hrs
Material: Die-Cast Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

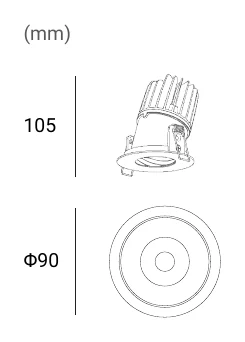

Archilight Jet 10W Tiltable Deep Recessed Downlight Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Jet 10W Tiltable Deep Recessed Downlight datasheetFR1035_Specs_Sheet.pdf PDF Download

FAQ

What type of spaces is the Archilight Jet 10W Tiltable Deep Recessed Downlight best suited for?

This recessed downlight is designed for interior applications where a clean, minimal ceiling appearance is important. Its deep recessed, tiltable design makes it well suited to focused lighting in residential, retail, hospitality, and other architectural spaces.

What beam angles are available in this product family?

The Archilight Jet 10W family is offered with 15, 20, 30, and 40 degree beam angles. Narrower beams are better for tighter accent lighting, while wider beams are better when you want broader light coverage from the same fixture family.

How does light output vary across the beam angle options?

Light output varies slightly by beam angle in the listed variants. The 15 degree version is rated at 536 lm, the 20 degree version at 524 lm, the 30 degree version at 505 lm, and the 40 degree version at 424 lm.

What color temperatures are available for this parent model?

The family includes variants in 2700K, 3000K, 4000K, and 5000K. That gives buyers a range from warmer ambient tones through to cooler, crisper light depending on the project requirement.

Is the driver included and is this downlight dimmable?

The listed product data shows the driver is included across the family. Dimming is optional, so buyers should confirm the compatible dimming setup for the selected project before ordering.

What are the main physical and performance specifications of this downlight?

This is a 10W LED downlight with CRI 90, a rated lifetime of 50,000 hours, and a 3-year warranty. The parent dimensions are 90 x 90 x 86 mm, and the listed cut-out range across variants is 83 to 90 mm.

What finish options are available in the Archilight Jet 10W family?

The child variants show this family is available in black and white finishes. That makes it easier to match the fixture to different ceiling designs and interior palettes while keeping the same core performance platform.
