Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

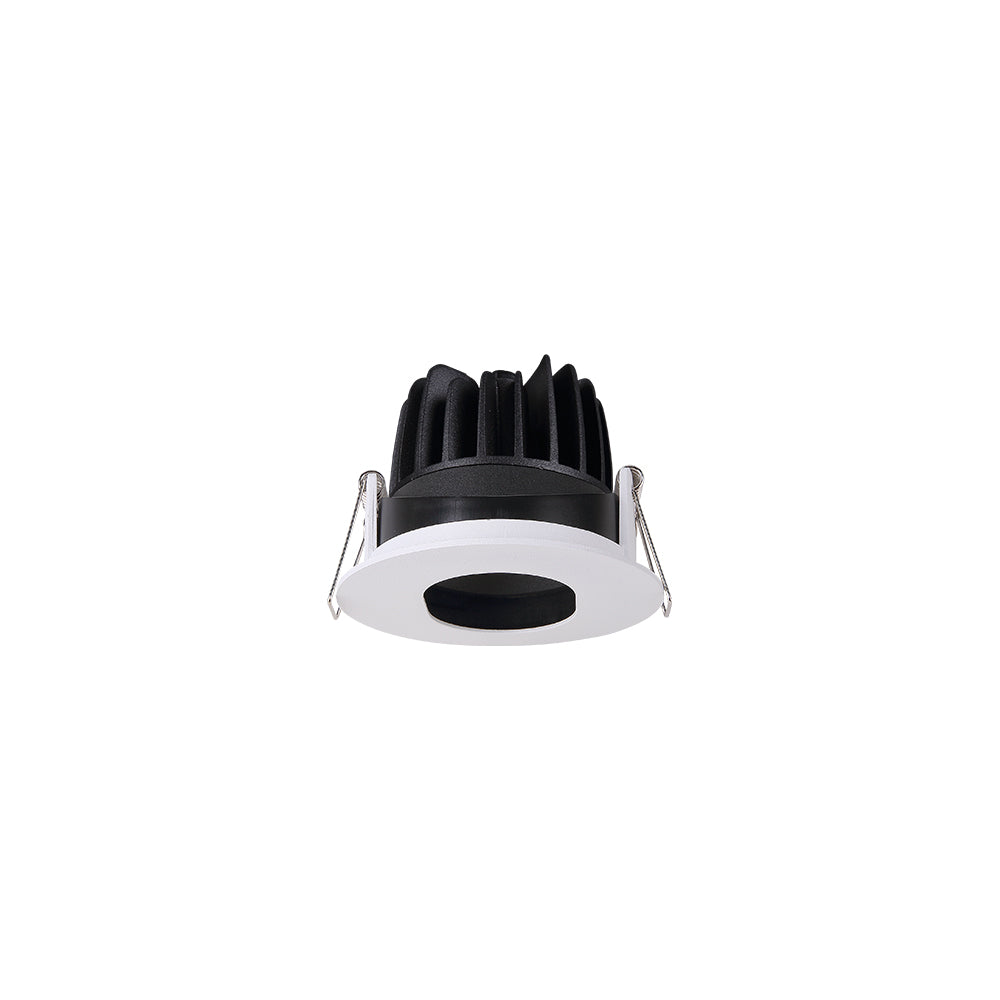

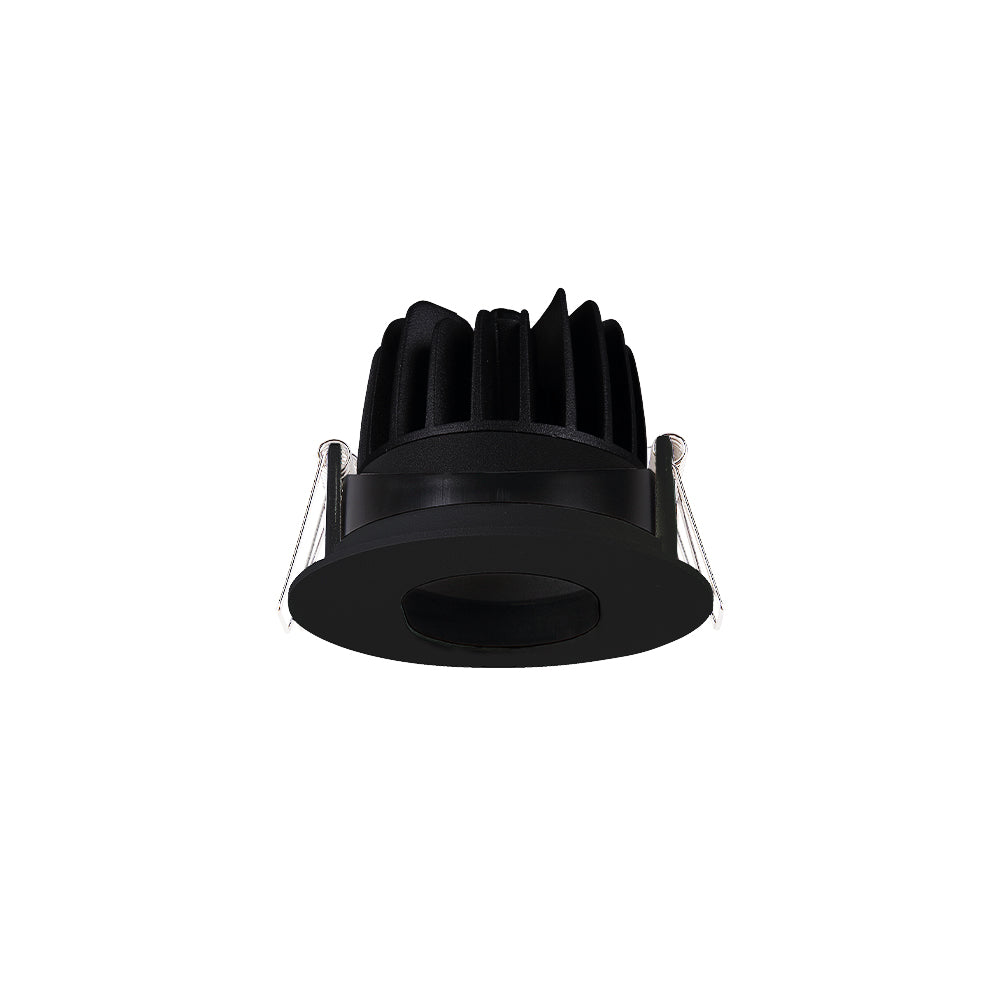

Archilight Jet Zeno 10W Tiltable Recessed Downlight
Log in to see priceArchilight Zeno series are designed to bear minimal footprint, while highlighting the most important features. Cultro packs compact, powerful and stylish all together to create the most unique experience when it comes to modern lighting concepts.
Backed up with 3 the beam angle choices to make sure the beam focus only on the tasks, not your eyes.
-
BrandArchilight
-
SeriesArchilight Jet Zeno Series
-
Power Rating10 Watt
-
Operating Temperature-10°C~40°C
-
Warranty3 Year
-

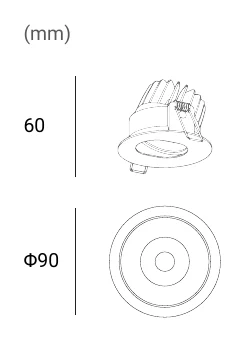

Length9 cm
-
Width9 cm
-
Height6 cm
-
Weight0.3 kg
::specification::
Frequently Asked Questions
What type of lighting is the Archilight Jet Zeno 10W designed for?
This product family is a tiltable recessed downlight for interior lighting applications where a compact fixture and controlled beam are important. Its small 90 x 90 mm face and 60 mm height make it suitable for clean architectural ceilings. The tiltable design also helps direct light toward displays, features, or task areas.
What beam angle options are available in this product family?
The Jet Zeno 10W family is offered with 24 degree, 36 degree, and 60 degree beam angles. Narrower beams are better for more focused accent lighting, while the wider option provides broader light distribution. Buyers can choose the beam based on how concentrated or open the lighting effect needs to be.
Are there different color temperature choices for this downlight family?
Yes. The variants shown in this family include warm to cool color temperature options, with available values including 2700K, 3000K, 4000K, and 5000K depending on the selected variant. That gives buyers flexibility to match hospitality, retail, residential, or more task-oriented interior environments.
What are the key performance specifications of the Archilight Jet Zeno 10W?
This family is rated at 10W with CRI 90 for strong color rendering in interior spaces. The listed variants deliver 667 lumens and have a 50,000 hour lifetime. The product is also backed by a 3 year warranty.
Is the driver included, and is dimming supported?
Yes, the parent product data indicates the driver is included. Dimming is optional, so dimming capability depends on the control setup used with the selected product configuration. For specification work, it should be treated as dimmable optional rather than universally dimmable by default.
What ceiling cut-out size does this recessed downlight require?
The child variants in this family show a cut-out range of 83 mm to 90 mm. That range is consistent across the listed variants, so it is a useful planning reference at the parent-family level. The outer product dimensions are 90 x 90 mm with a height of 60 mm.
Does this product family come in different finish colors?
Yes. The listed variants are available in black and white finishes. This makes it easier to align the downlight with lighter or darker ceiling and interior design schemes without changing the core product platform.
