Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

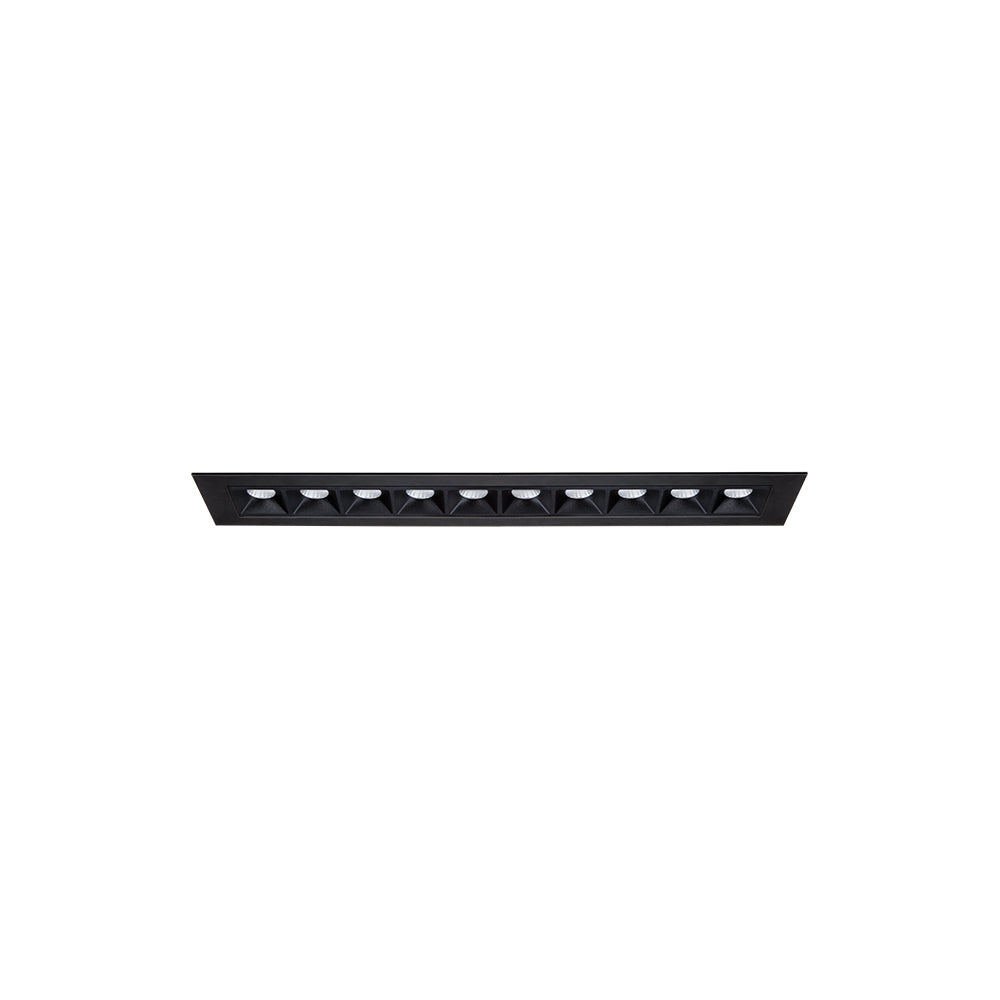

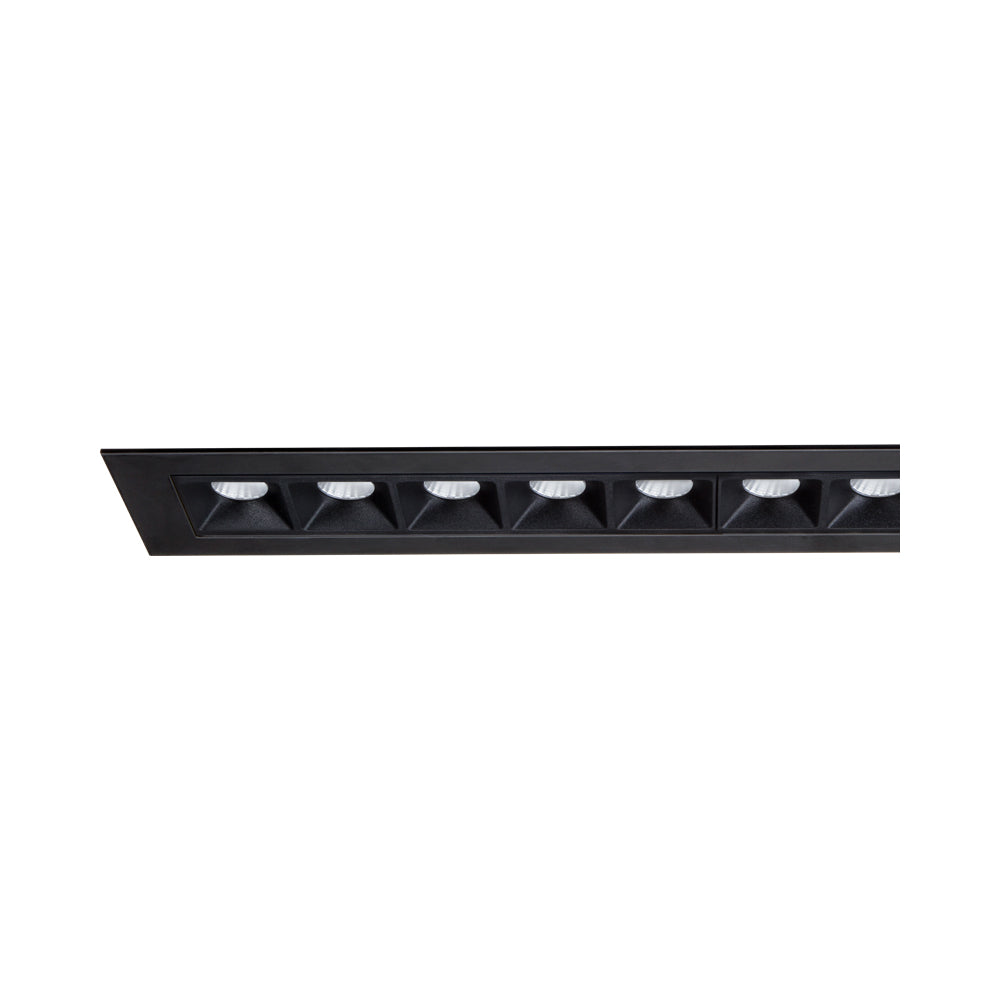

Archilight Lattice 10 Adj Ac Dimmable Downlight 20W
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
SKU:
KC-010180C10-15D-2700K-B-TDM
Log in to see price
Trade pricing & online ordering for account holders
|
Notify me when it's back in stock
Archilight Lattice 10 Adj Ac Dimmable Downlight 20W
Log in to see priceThe Lattice series is a stylish, compact, and near-invisible linear downlight series. Its power efficient design with high colour rendering index (CRI>90) and low UGR rating (UGR<19) makes it a top quality light with low glare to provide high visual comfort, whilst displaying the true colours of an area beautifully. With a unique look, the Lattice series is for the modern interior that wants to add that subtle wow factor, without being too extravagant.
-
BrandArchilight
-
SeriesArchilight Lattice 10 Adj AC Dimmable Series
-
Power Rating20 Watt
-
Standards MetCB,CCC,CE,SAA,TUV
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length30 cm
-
Width5.8 cm
-
Height4.85 cm
-
Weight1.3 kg
::specification::
Frequently Asked Questions
What type of spaces is the Archilight Lattice 10 Adj AC Dimmable Downlight 20W best suited for?
This model is designed for modern interior and commercial recessed lighting applications where a compact, low-visibility fitting is preferred. Its linear form, low glare rating of UGR90 make it well suited to spaces that need both visual comfort and accurate colour presentation.
What are the main variant options available in this Lattice 10 adjustable family?
Across the family, buyers can choose between 15 degree, 30 degree, and 45 degree beam angles, as well as 2700K, 3000K, 4000K, and 5000K colour temperatures. The range is also offered in black or white finishes, while the core output, 20W power rating, and 1700 lumen brightness remain consistent across the listed variants.
How do I choose between the different beam angle options?
The family is available in 15 degree, 30 degree, and 45 degree beam angles, giving different light distribution options within the same product line. A narrower beam is typically chosen for more focused lighting, while wider beams are better when broader coverage is preferred.
What colour temperature options are available for this parent product?
This family is available in 2700K, 3000K, 4000K, and 5000K variants. That gives buyers flexibility to select a warmer or cooler light appearance while staying within the same Lattice 10 adjustable 20W platform.
Is the Archilight Lattice 10 adjustable downlight dimmable, and is the driver included?
Yes, the parent model is dimmable and the listed variants show the driver is included. This makes the family suitable for projects that require adjustable light levels without sourcing a separate driver for the fitting.
What are the key physical and performance specifications of this downlight family?
The parent model has a 20W power rating, CRI 90, 50,000 hour lifetime, and a 5 year warranty. Its body dimensions are 300 mm long, 58 mm wide, and 48.5 mm high, with child variants showing a cut-out range of 45 mm to 290 mm and a weight of 1.3 kg for the parent model.
Is this a good option for interiors where glare control and visual comfort matter?
Yes, this family is positioned for high-comfort interior lighting thanks to its low UGR90 performance. That combination helps reduce glare while maintaining strong colour quality, which is important in commercial and design-focused indoor spaces.
