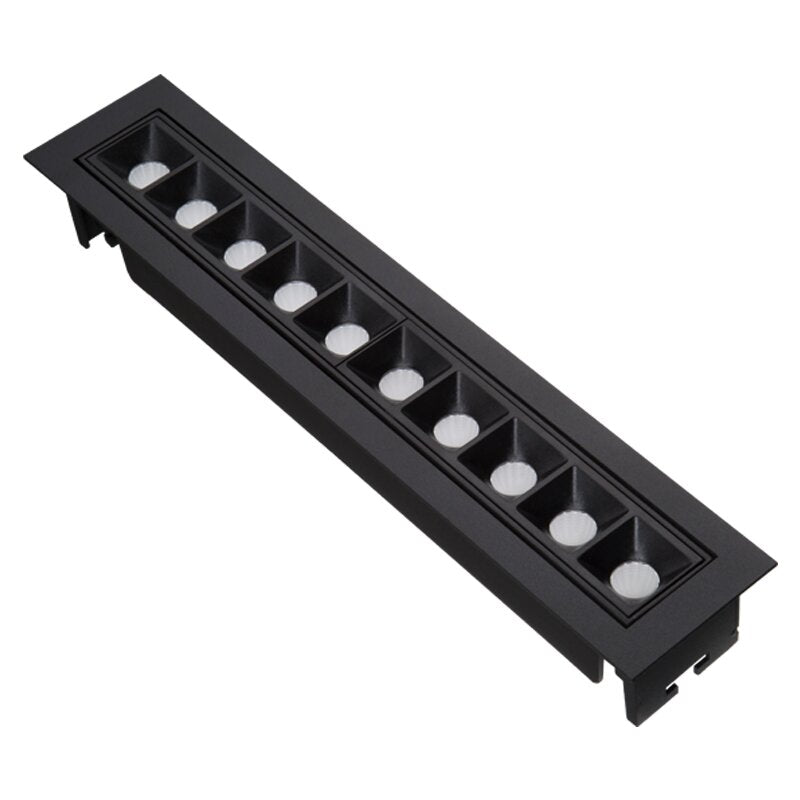

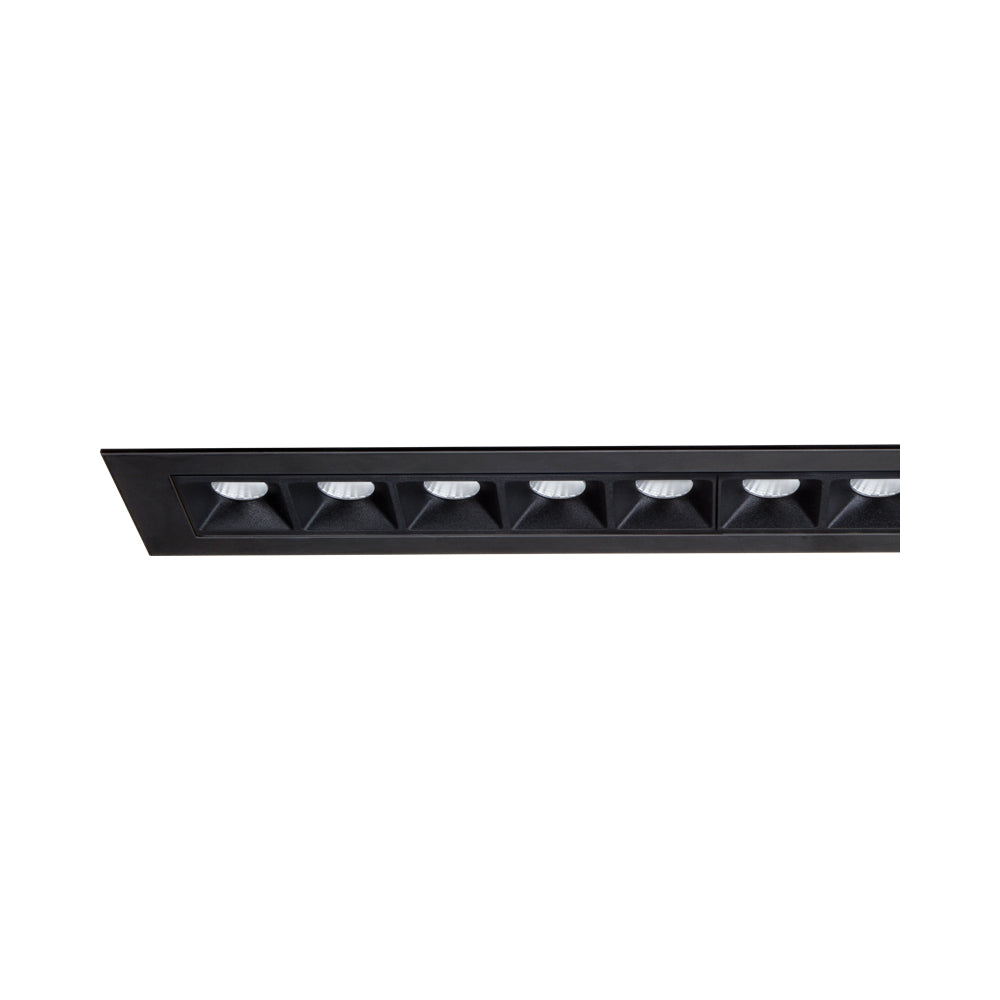

Archilight Lattice 10 Adj Downlight 20W
Log in to see priceSpecifications
Archilight Lattice 10 Adj Downlight 20WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180C10-30D-2700K-B | 30° | Warm White 2700K | Black |
| KC-010180C10-30D-2700K-W | 30° | Warm White 2700K | White |
| KC-010180C10-30D-3000K-B | 30° | Warm White 3000K | Black |
| KC-010180C10-30D-3000K-W | 30° | Warm White 3000K | White |
| KC-010180C10-30D-4000K-B | 30° | Natural White 4000K | Black |
| KC-010180C10-30D-4000K-W | 30° | Natural White 4000K | White |
| KC-010180C10-30D-5000K-B | 30° | Cool White 5000K | Black |
| KC-010180C10-30D-5000K-W | 30° | Cool White 5000K | White |
| KC-010180C10-45D-2700K-B | 45° | Warm White 2700K | Black |
| KC-010180C10-45D-2700K-W | 45° | Warm White 2700K | White |
| KC-010180C10-45D-3000K-B | 45° | Warm White 3000K | Black |
| KC-010180C10-45D-3000K-W | 45° | Warm White 3000K | White |
| KC-010180C10-45D-4000K-B | 45° | Natural White 4000K | Black |
| KC-010180C10-45D-4000K-W | 45° | Natural White 4000K | White |
| KC-010180C10-45D-5000K-B | 45° | Cool White 5000K | Black |
| KC-010180C10-45D-5000K-W | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 20W
- Brightness
- 1220 lm
- Efficacy
- ≥61 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Adjustable 30°
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

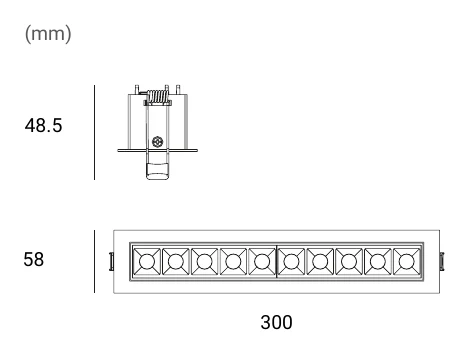

Technical drawings
Downloads
Datasheet1
Archilight Lattice 10 Adj Downlight 20W datasheetLattice_10_adj__corrected_11_02_21_.pdf
PDF
Download
