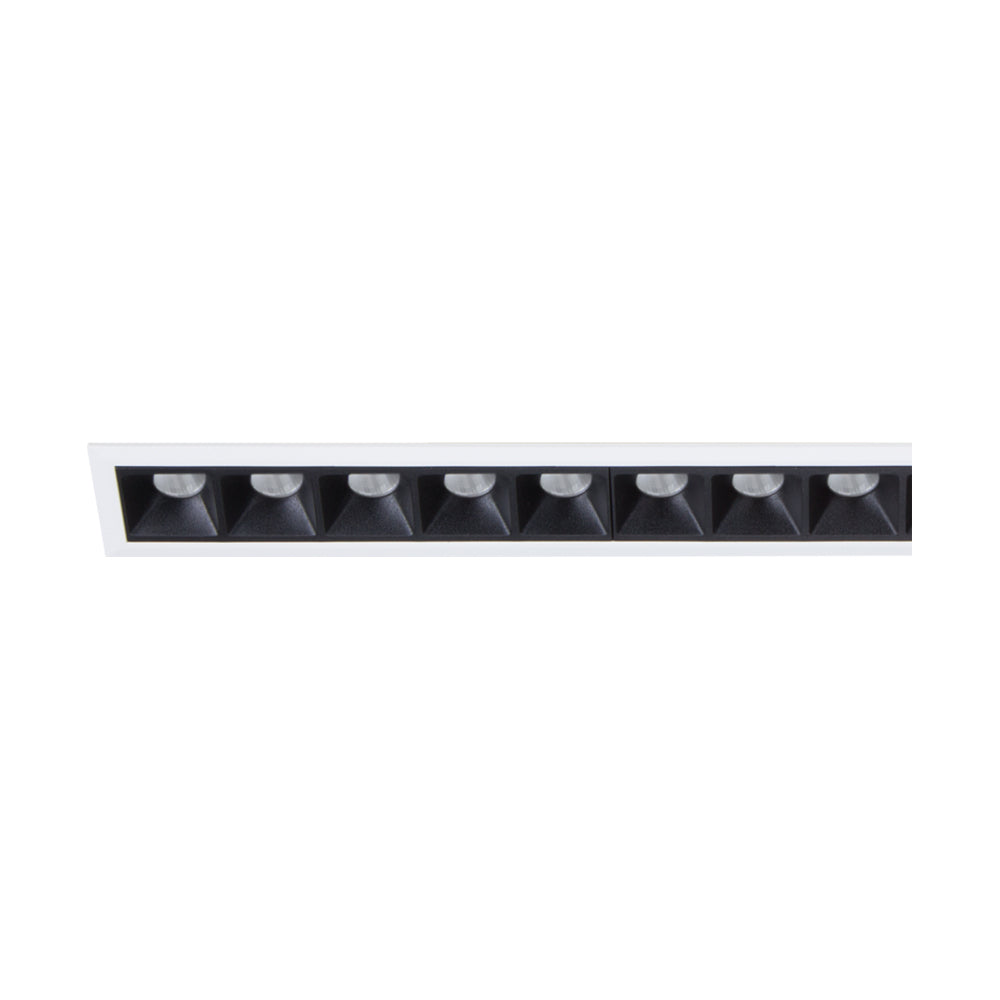

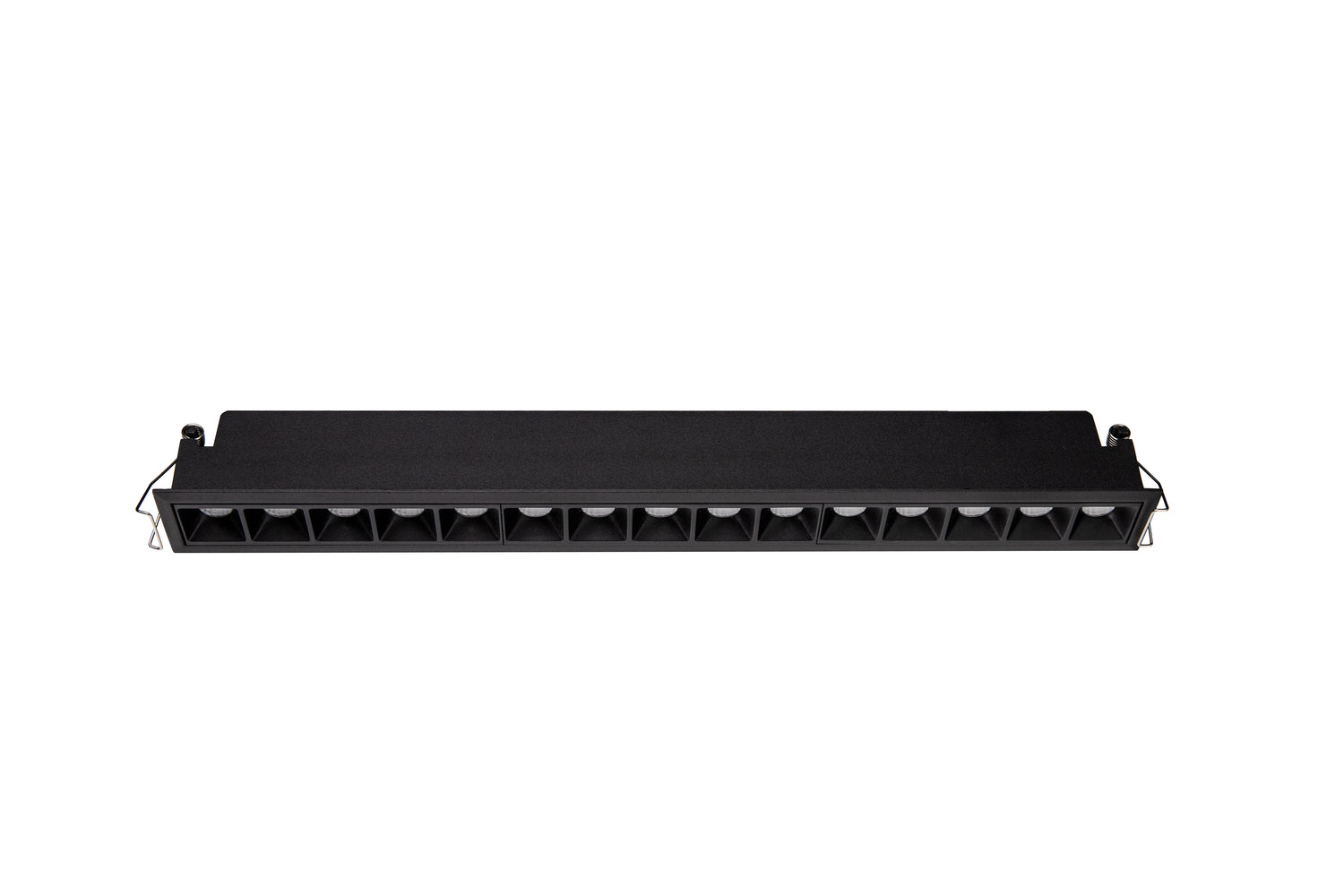

Archilight Lattice 15 Ac Dimmable Downlight 30W
Log in to see priceOverview
Recessed Ac Dimmable Downlight
Specifications
Archilight Lattice 15 Ac Dimmable Downlight 30WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180A15-15D-2700K-B-TDM | 15° | Warm White 2700K | Black |
| KC-010180A15-15D-2700K-W-TDM | 15° | Warm White 2700K | White |
| KC-010180A15-15D-3000K-B-TDM | 15° | Warm White 3000K | Black |
| KC-010180A15-15D-3000K-W-TDM | 15° | Warm White 3000K | White |
| KC-010180A15-15D-4000K-B-TDM | 15° | Natural White 4000K | Black |
| KC-010180A15-15D-4000K-W-TDM | 15° | Natural White 4000K | White |
| KC-010180A15-15D-5000K-B-TDM | 15° | Cool White 5000K | Black |
| KC-010180A15-15D-5000K-W-TDM | 15° | Cool White 5000K | White |
| KC-010180A15-30D-2700K-B-TDM | 30° | Warm White 2700K | Black |
| KC-010180A15-30D-2700K-W-TDM | 30° | Warm White 2700K | White |
| KC-010180A15-30D-3000K-B-TDM | 30° | Warm White 3000K | Black |
| KC-010180A15-30D-3000K-W-TDM | 30° | Warm White 3000K | White |
| KC-010180A15-30D-4000K-B-TDM | 30° | Natural White 4000K | Black |
| KC-010180A15-30D-4000K-W-TDM | 30° | Natural White 4000K | White |
| KC-010180A15-30D-5000K-B-TDM | 30° | Cool White 5000K | Black |
| KC-010180A15-30D-5000K-W-TDM | 30° | Cool White 5000K | White |
| KC-010180A15-45D-2700K-B-TDM | 45° | Warm White 2700K | Black |
| KC-010180A15-45D-2700K-W-TDM | 45° | Warm White 2700K | White |
| KC-010180A15-45D-3000K-B-TDM | 45° | Warm White 3000K | Black |
| KC-010180A15-45D-3000K-W-TDM | 45° | Warm White 3000K | White |
| KC-010180A15-45D-4000K-B-TDM | 45° | Natural White 4000K | Black |
| KC-010180A15-45D-4000K-W-TDM | 45° | Natural White 4000K | White |
| KC-010180A15-45D-5000K-B-TDM | 45° | Cool White 5000K | Black |
| KC-010180A15-45D-5000K-W-TDM | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 30W
- Brightness
- 2250lm
- Efficacy
- ≥75 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

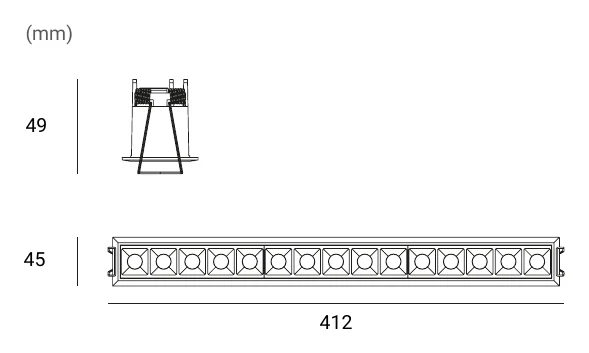

Technical drawings
Downloads
Datasheet1
FAQ
What type of spaces is the Archilight Lattice 15 AC Dimmable Downlight 30W designed for?
This linear downlight is suited to modern interior commercial and architectural spaces where a compact, low-visibility fitting is preferred. Its low-glare design with UGR below 19 and CRI above 90 makes it a strong choice for areas where visual comfort and accurate colour appearance matter.
What beam angle options are available in this Lattice 15 family?
This product family is available in 15 degree, 30 degree, and 45 degree beam angles. That gives buyers a choice between tighter accent-style distribution and broader light spread, while keeping the same 30W platform and overall product format.
What colour temperature options are offered across the range?
The family is available in 2700K, 3000K, 4000K, and 5000K variants. This lets you select a warmer or cooler light appearance depending on the mood and functional requirements of the project.
Are different finish colours available for this parent product?
Yes, the Lattice 15 AC Dimmable Downlight 30W is offered in both black and white finishes across the listed variants. That makes it easier to coordinate the fitting with different ceiling and interior design schemes.
What are the main performance specifications of this downlight family?
All listed variants in this family are 30W dimmable downlights with a CRI of 90, a rated life of 50,000 hours, and a 5-year warranty. The child variants shown also list light output at 2550 lumens, with the same driver-included configuration across the range.
Is the driver included with the Archilight Lattice 15 AC Dimmable Downlight 30W?
Yes, the parent model is specified as driver included, and that is consistent across the child variants provided. This helps keep product selection straightforward when specifying the family for a project.
What are the physical dimensions of the parent model?
The parent product dimensions are 412 mm long, 45 mm wide, and 49 mm high, with a listed weight of 1.0 kg. The child data also shows a cut-out range from 37 mm to 405 mm across the family.
