Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

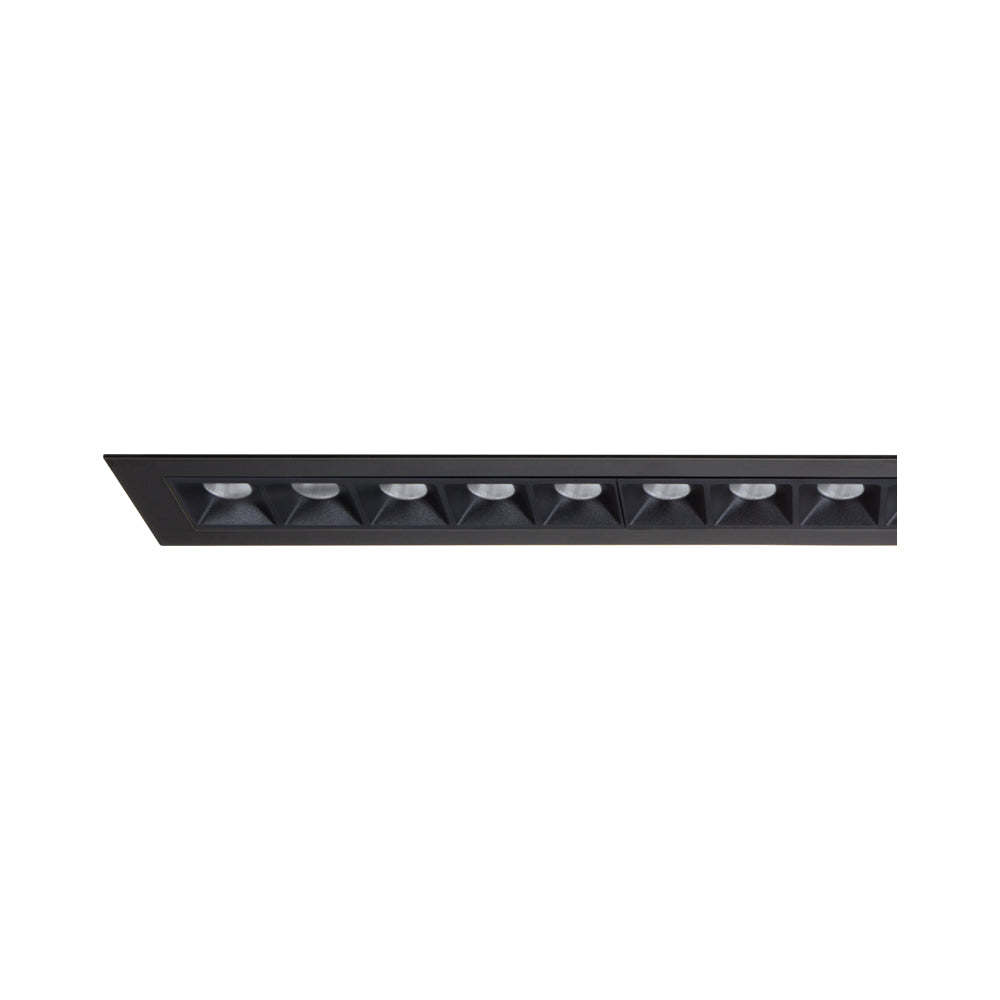

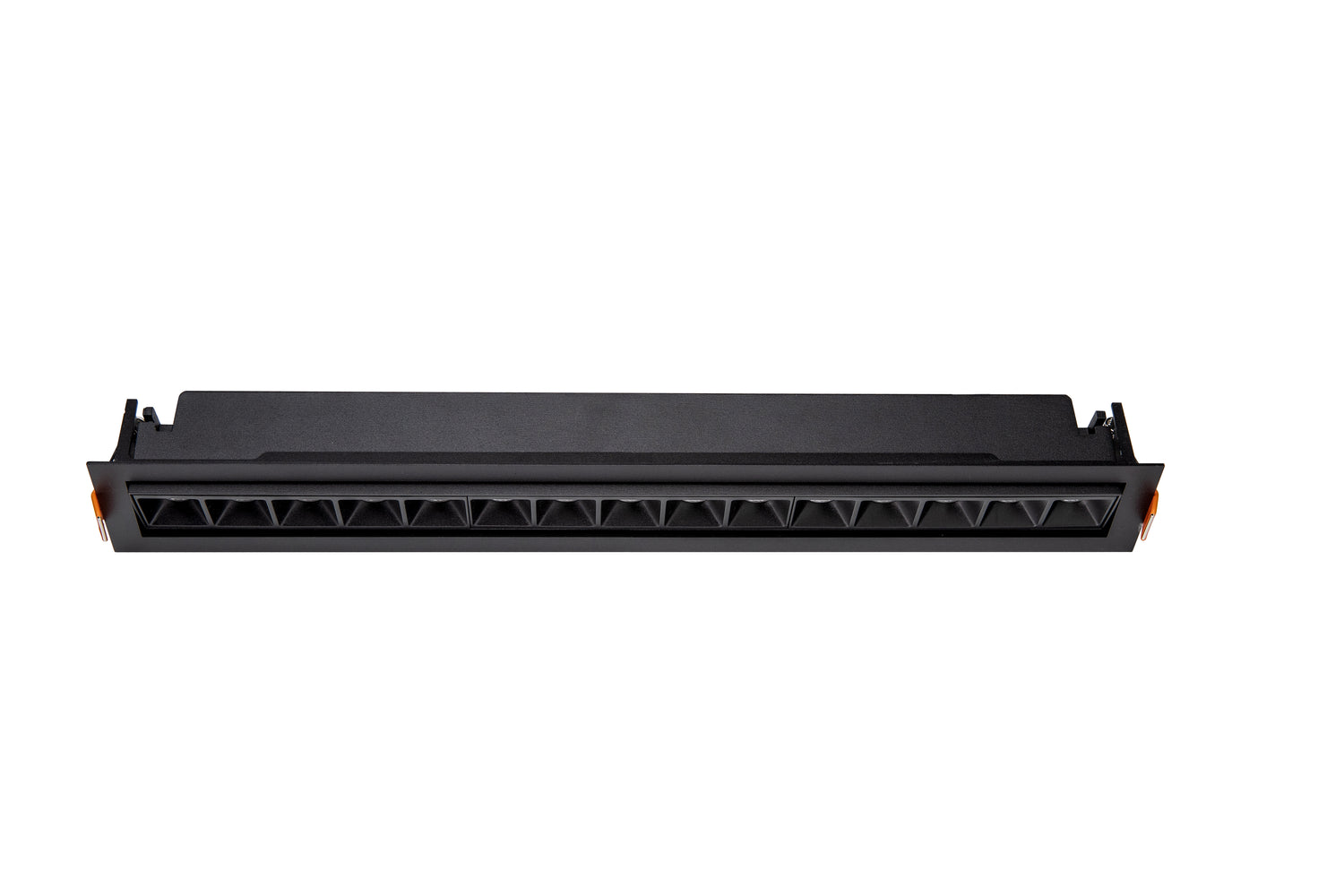

Archilight Lattice 15 Adj Ac Dimmable Downlight 30W
SKU
KC-010180C15-15D-2700K-W-TDM
Log in to see price
Trade pricing & online ordering for account holders
Currently unavailable
|
Notify me when it's back in stock
Specifications
KC-010180C15-15D-2700K-W-TDMSpecifications from the official datasheetDownload datasheet PDF
Specifications
- Order code
- KC-010180C15
- Input
- 230VAC
- Power rating
- 30W
- Beam angle
- 15° / 30° / 45°
- Brightness
- 2250lm
- Efficacy
- ≥75 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 5000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Adjustable 30°
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- White, Black
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

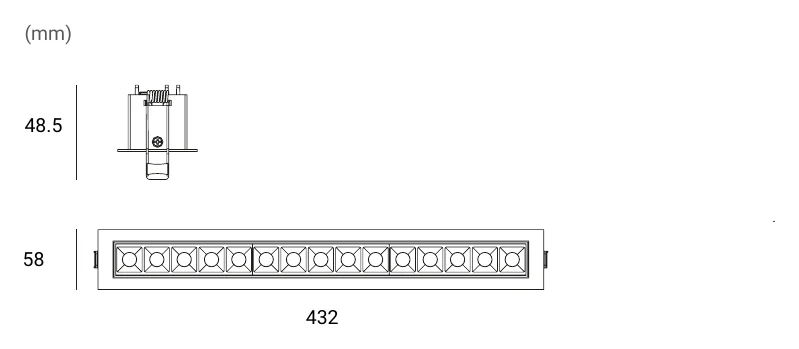

Technical drawings
Downloads
Datasheet1
FAQ
What type of lighting application is the Archilight Lattice 15 Adj Ac Dimmable Downlight 30W designed for?
This product is a compact, recessed linear downlight intended for modern interior commercial and architectural spaces. The Lattice series is designed to deliver a near-invisible look with low glare and strong visual comfort, making it suitable where a subtle, refined lighting effect is preferred.
What are the main performance specifications across the Lattice 15 adjustable family?
Across the full family, each variant uses 30W of power, delivers 2250 lumens, and has a CRI of ≥90. The range is also dimmable, includes the driver, is rated for a 50,000-hour lifetime, and comes with a 5-year warranty.
What beam angle options are available in this parent product family?
This family is available in 15 degree, 30 degree, and 45 degree beam angles. That gives buyers a choice between narrower and wider light distribution depending on the lighting effect required, while keeping the same 30W output platform across the range.
What colour temperature options are available for this downlight family?
The family is offered in 2700K, 3000K, 4000K, and 5000K variants. This allows the same fixture design to be specified in warmer or cooler light tones depending on the project environment and visual intent.
What finish options are available for the Archilight Lattice 15 adjustable range?
The variants in this family are available in black and white finishes. Both finishes are offered across the listed beam angles and colour temperatures, so finish can be selected to better suit the interior design scheme.
Is the Archilight Lattice 15 adjustable downlight dimmable and does it include a driver?
Yes. The parent family is specified as dimmable, and all listed child variants include the driver. That makes the family suitable for projects that require adjustable light levels without sourcing a separate driver for these variants.
What dimensions and cut-out range should buyers expect for this product family?
The product features a marked dimension of 45x420mm. The specifications list a recessed mounting style with an adjustable tilt of 30 degrees.
How does the Lattice series support visual comfort and colour quality?
The product description states that the Lattice series combines a high colour rendering index of over 90 with a low UGR rating under 19. In practice, that means it is designed to show colours more accurately while helping reduce glare in interior spaces.
