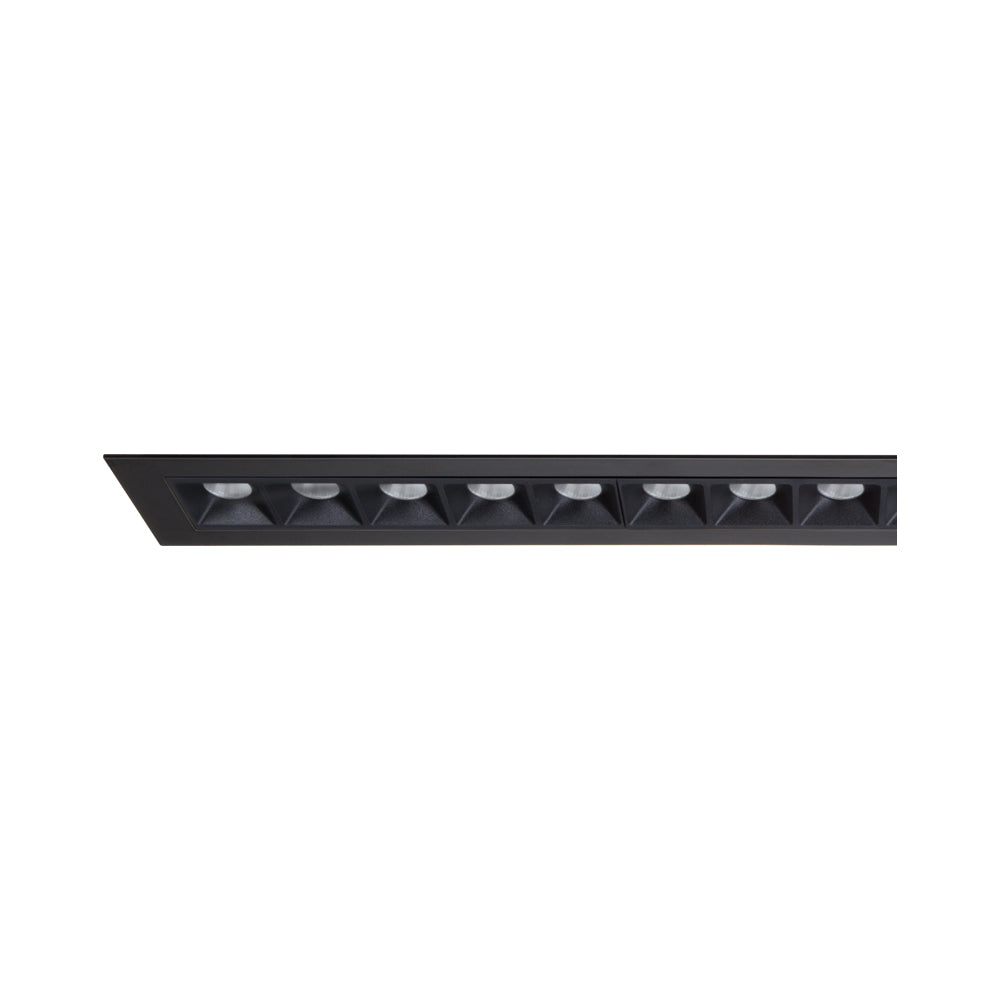

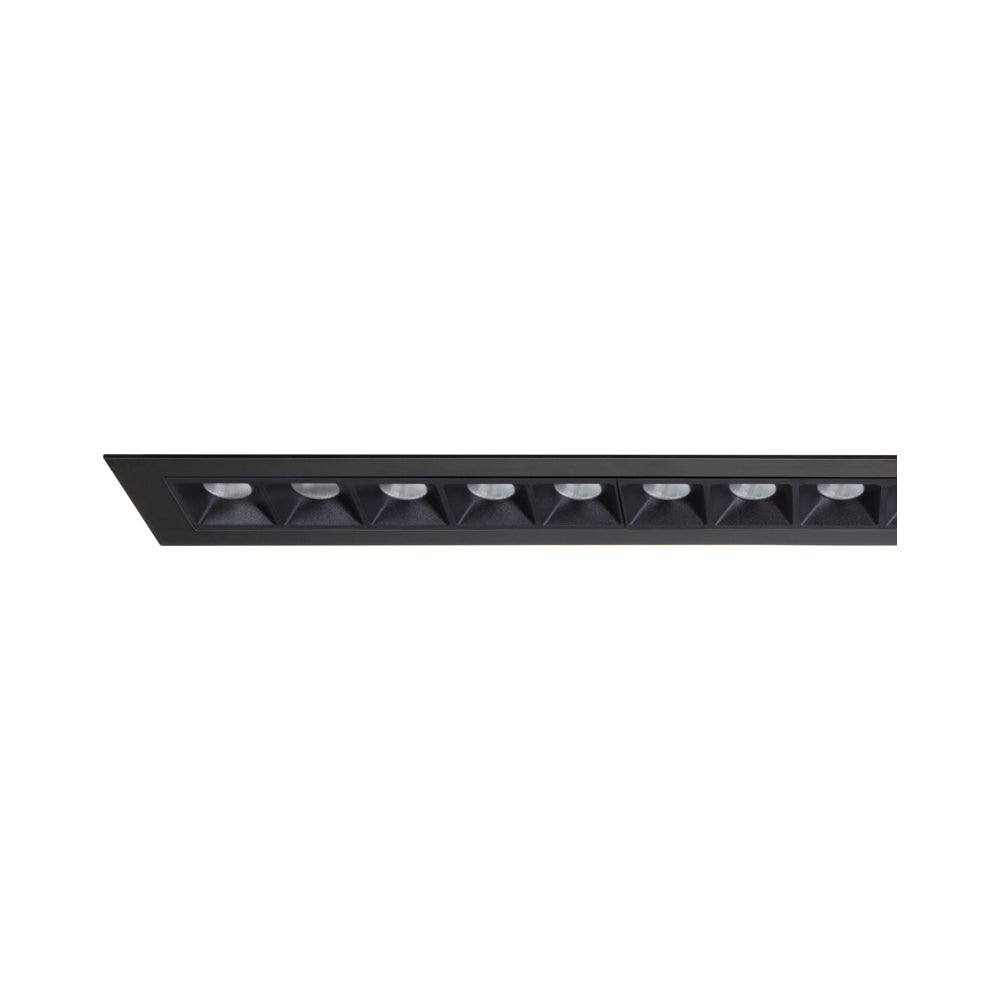

Archilight Lattice 15 Adj Downlight 30W
Log in to see priceSpecifications
Archilight Lattice 15 Adj Downlight 30WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180C15-15D-2700K-B | 15° | Warm White 2700K | Black |
| KC-010180C15-15D-2700K-W | 15° | Warm White 2700K | White |
| KC-010180C15-15D-3000K-B | 15° | Warm White 3000K | Black |
| KC-010180C15-15D-3000K-W | 15° | Warm White 3000K | White |
| KC-010180C15-15D-4000K-B | 15° | Natural White 4000K | Black |
| KC-010180C15-15D-4000K-W | 15° | Natural White 4000K | White |
| KC-010180C15-15D-5000K-B | 15° | Cool White 5000K | Black |
| KC-010180C15-15D-5000K-W | 15° | Cool White 5000K | White |
| KC-010180C15-30D-2700K-B | 30° | Warm White 2700K | Black |
| KC-010180C15-30D-2700K-W | 30° | Warm White 2700K | White |
| KC-010180C15-30D-3000K-B | 30° | Warm White 3000K | Black |
| KC-010180C15-30D-3000K-W | 30° | Warm White 3000K | White |
| KC-010180C15-30D-4000K-B | 30° | Natural White 4000K | Black |
| KC-010180C15-30D-4000K-W | 30° | Natural White 4000K | White |
| KC-010180C15-30D-5000K-B | 30° | Cool White 5000K | Black |
| KC-010180C15-30D-5000K-W | 30° | Cool White 5000K | White |
| KC-010180C15-45D-2700K-B | 45° | Warm White 2700K | Black |
| KC-010180C15-45D-2700K-W | 45° | Warm White 2700K | White |
| KC-010180C15-45D-3000K-B | 45° | Warm White 3000K | Black |
| KC-010180C15-45D-3000K-W | 45° | Warm White 3000K | White |
| KC-010180C15-45D-4000K-B | 45° | Natural White 4000K | Black |
| KC-010180C15-45D-4000K-W | 45° | Natural White 4000K | White |
| KC-010180C15-45D-5000K-B | 45° | Cool White 5000K | Black |
| KC-010180C15-45D-5000K-W | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 30W
- Brightness
- 2250lm
- Efficacy
- ≥75 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Adjustable 30°
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
Archilight Lattice 15 Adj Downlight 30W datasheetLattice_15_adj__corrected_11_02_21_.pdf
PDF
Download
FAQ
What type of lighting is the Archilight Lattice 15 Adj Downlight 30W designed for?

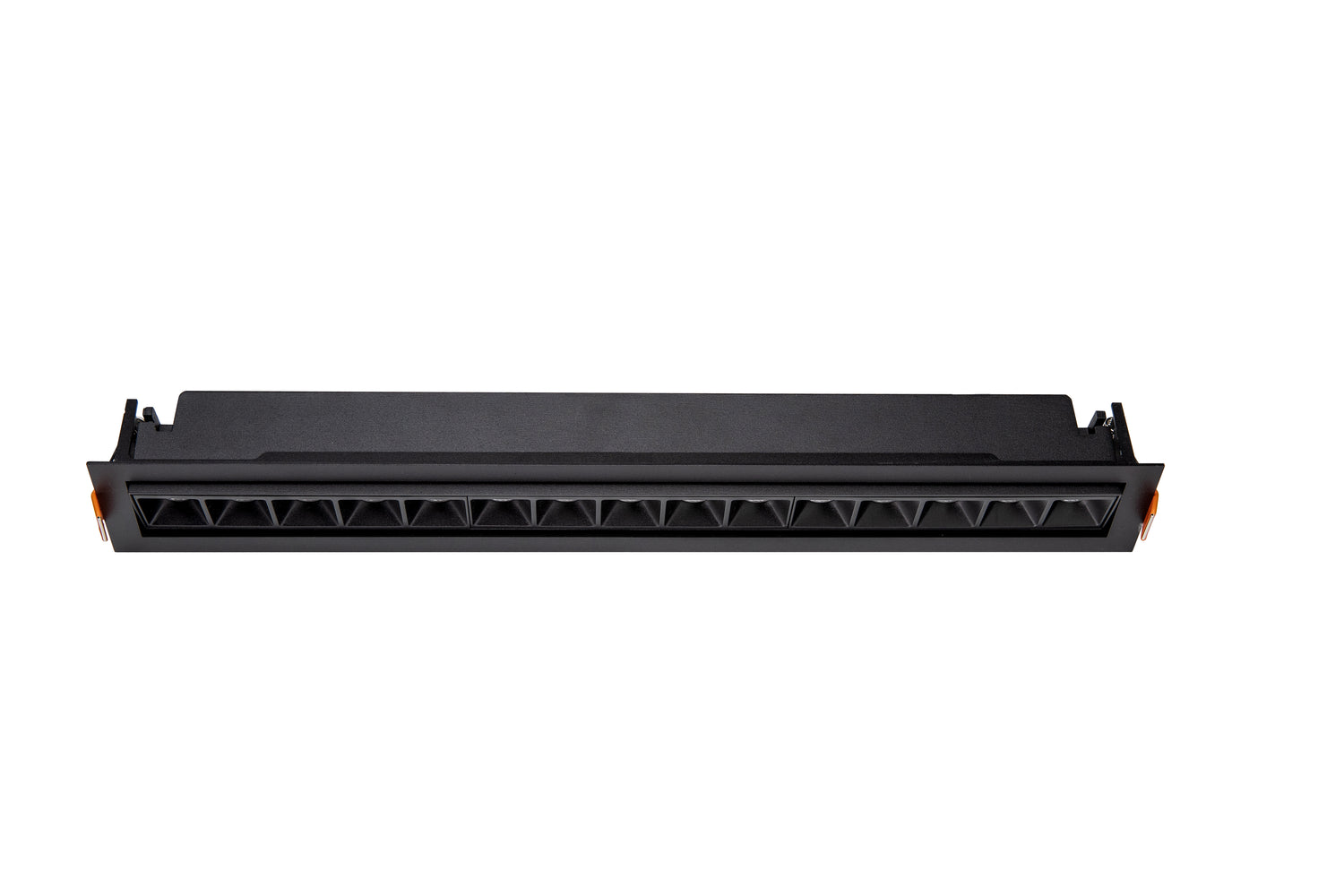

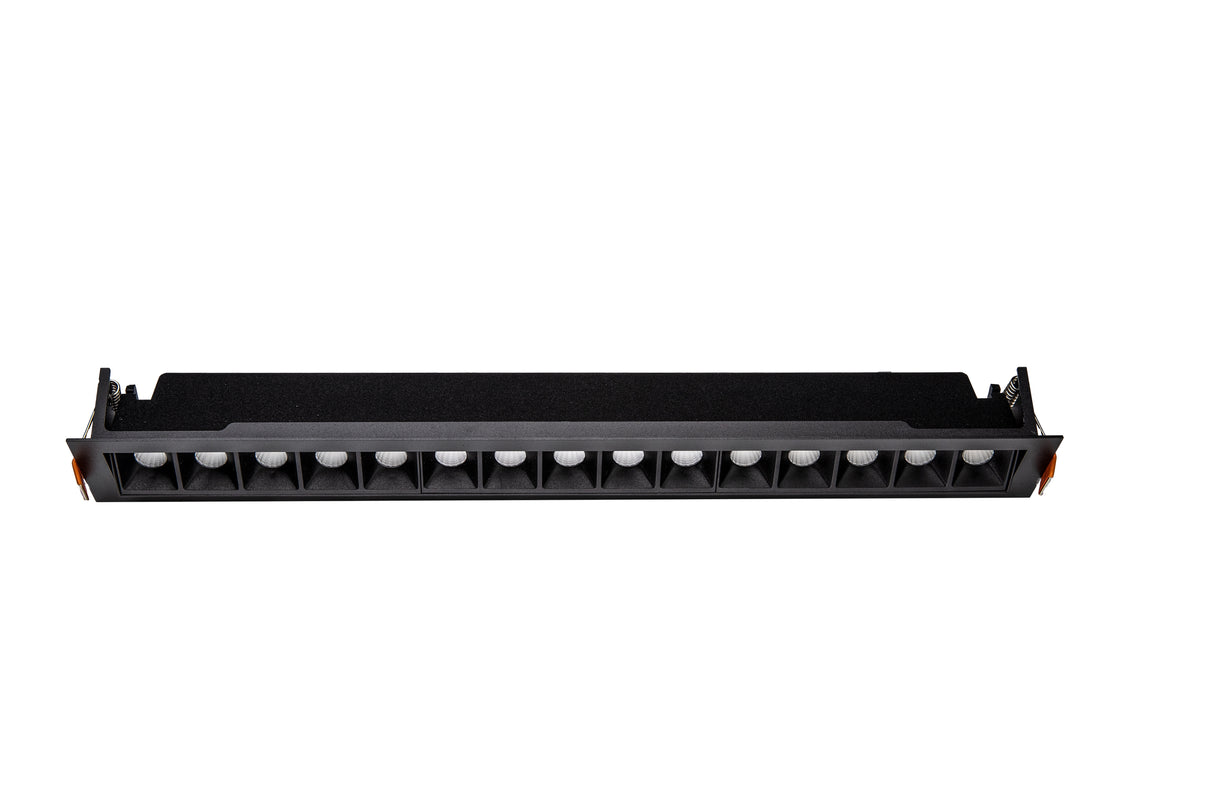

This is a compact, recessed linear downlight intended for modern interior and commercial-style spaces where a clean, low-visibility lighting detail is important. Its low-glare design and CRI over 90 make it suitable for areas that need both visual comfort and accurate colour presentation.
What are the main variant options available in the Lattice 15 Adj Downlight 30W family?
This product family is offered with beam angles of 15, 30, or 45 degrees, giving buyers a choice between narrower and wider light distribution. It is also available in 2700K, 3000K, 4000K, and 5000K colour temperatures, with black or white finish options across the range.
How bright is the Archilight Lattice 15 Adj Downlight 30W?
All listed variants in this family deliver 2550 lumens while operating at 30W. That gives the range a consistent output level, so the main selection differences are beam angle, colour temperature, and finish rather than brightness.
How does the beam angle affect which variant I should choose?
The family includes 15 degree, 30 degree, and 45 degree beam options, which change how concentrated or broad the light spread is. A narrower beam is better for more focused accent lighting, while a wider beam is generally better when broader coverage is preferred across a surface or area.
Is the Lattice 15 Adj Downlight 30W dimmable, and does it include a driver?
Yes, the family is listed as driver included, so the driver is supplied with the product. Dimming is available as an optional feature, which makes it suitable for projects that may require adjustable light levels.
What performance and lifespan specifications does this downlight family offer?
The Lattice 15 Adj Downlight 30W range has a CRI of 90, a rated lifetime of 50,000 hours, and a 5-year warranty. It is designed for 230V power input and combines high colour rendering with a low UGR under 19 for strong visual comfort in interior environments.
What are the physical dimensions and cut-out range for this product family?
The parent model dimensions are 432 mm long, 58 mm wide, and 48.5 mm high, with a listed weight of 1.5 kg. Across the child variants shown, the cut-out range is 45 mm minimum to 420 mm maximum.
