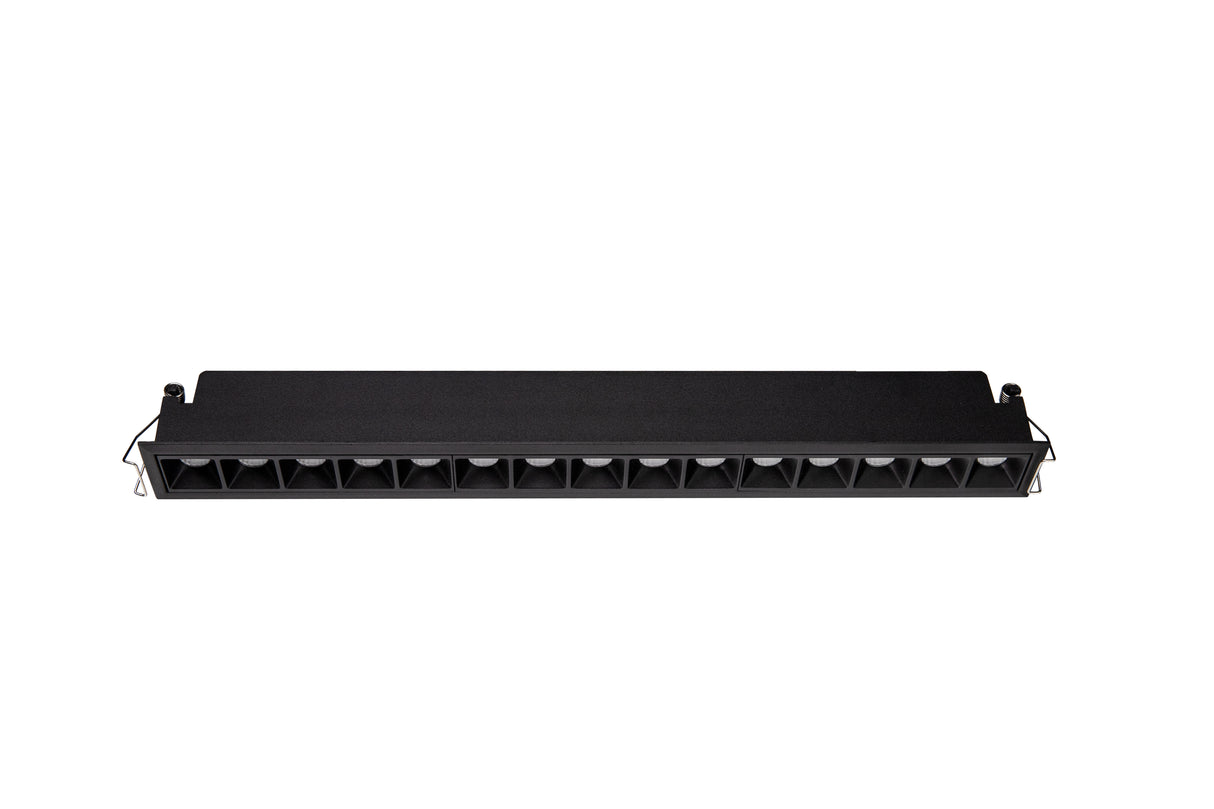

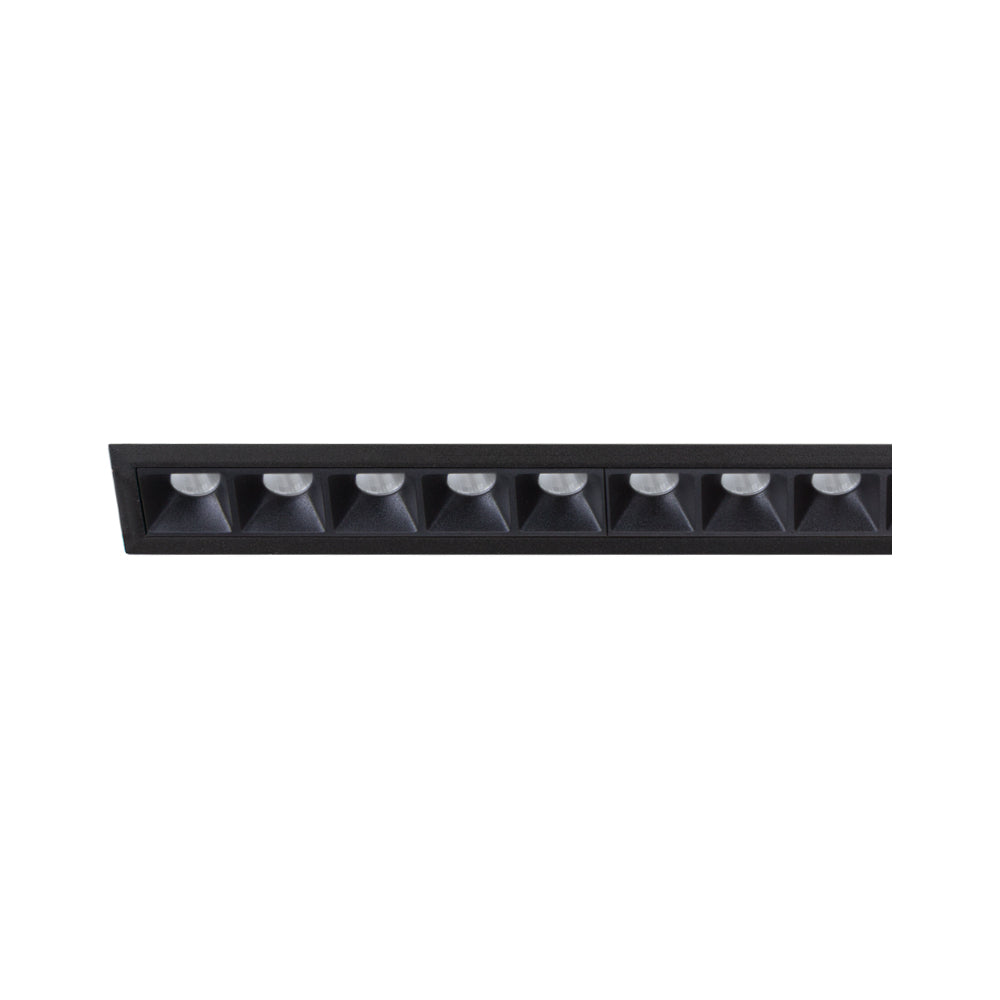

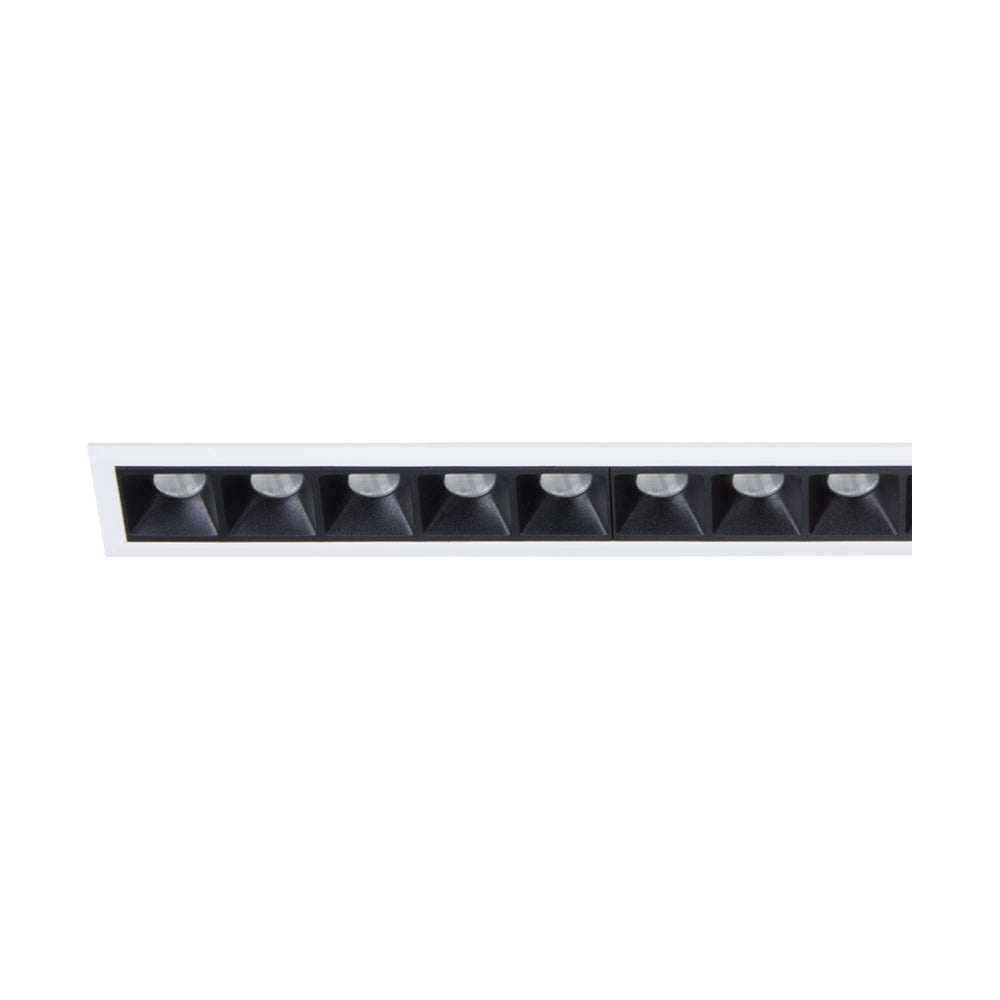

Archilight Lattice 15 Downlight 30W
Log in to see priceOverview
Recessed Downlight
Specifications
Archilight Lattice 15 Downlight 30WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180A15-15D-2700K-B | 15° | Warm White 2700K | Black |
| KC-010180A15-15D-2700K-W | 15° | Warm White 2700K | White |
| KC-010180A15-15D-3000K-B | 15° | Warm White 3000K | Black |
| KC-010180A15-15D-3000K-W | 15° | Warm White 3000K | White |
| KC-010180A15-15D-4000K-B | 15° | Natural White 4000K | Black |
| KC-010180A15-15D-4000K-W | 15° | Natural White 4000K | White |
| KC-010180A15-15D-5000K-B | 15° | Cool White 5000K | Black |
| KC-010180A15-15D-5000K-W | 15° | Cool White 5000K | White |
| KC-010180A15-30D-2700K-B | 30° | Warm White 2700K | Black |
| KC-010180A15-30D-2700K-W | 30° | Warm White 2700K | White |
| KC-010180A15-30D-3000K-B | 30° | Warm White 3000K | Black |
| KC-010180A15-30D-3000K-W | 30° | Warm White 3000K | White |
| KC-010180A15-30D-4000K-B | 30° | Natural White 4000K | Black |
| KC-010180A15-30D-4000K-W | 30° | Natural White 4000K | White |
| KC-010180A15-30D-5000K-B | 30° | Cool White 5000K | Black |
| KC-010180A15-30D-5000K-W | 30° | Cool White 5000K | White |
| KC-010180A15-45D-2700K-B | 45° | Warm White 2700K | Black |
| KC-010180A15-45D-2700K-W | 45° | Warm White 2700K | White |
| KC-010180A15-45D-3000K-B | 45° | Warm White 3000K | Black |
| KC-010180A15-45D-3000K-W | 45° | Warm White 3000K | White |
| KC-010180A15-45D-4000K-B | 45° | Natural White 4000K | Black |
| KC-010180A15-45D-4000K-W | 45° | Natural White 4000K | White |
| KC-010180A15-45D-5000K-B | 45° | Cool White 5000K | Black |
| KC-010180A15-45D-5000K-W | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 30W
- Brightness
- 2550lm
- Efficacy
- ≥75 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

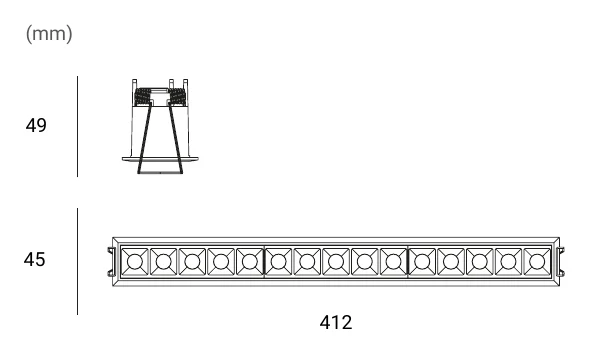

Technical drawings
Downloads
Datasheet1
FAQ
What type of spaces is the Archilight Lattice 15 Downlight 30W designed for?
This recessed linear downlight is suited to modern interior spaces where a compact, low-visibility fitting is preferred. Its low glare rating of UGR90 make it a strong fit for commercial and other interior environments that need visual comfort and accurate colour appearance.
What are the main performance specifications across the Lattice 15 Downlight 30W family?
All variants in this family use 30W of power, deliver 2550 lumens, and have a CRI of 90. They also share a 50,000-hour rated life, a 5-year warranty, included driver, and optional dimming capability.
What beam angle options are available in this product family?
The Lattice 15 Downlight 30W family is available in 15 degree, 30 degree, and 45 degree beam angles. This gives buyers a choice between narrower and wider light distribution depending on the lighting effect required.
What colour temperature options are offered for this parent model?
This family is available in 2700K, 3000K, 4000K, and 5000K options. That range supports warmer through cooler lighting preferences while keeping the same 30W power rating and 2550 lumen output across the family.
What finish colours are available for the Archilight Lattice 15 Downlight 30W?
The family is offered in black and white finishes. These finish choices apply across the listed beam angle and colour temperature variants, so you can match the fitting to different interior design schemes.
Is the Archilight Lattice 15 Downlight 30W dimmable?
Yes, this product family is listed as dimmable optional. That means the fittings support dimming capability when specified with the appropriate dimming arrangement for the selected project.
What are the physical dimensions of the parent model?
The parent model dimensions are 412 mm in length, 45 mm in width, and 49 mm in height, with a listed weight of 1 kg. The child variants also show the same cut-out range of 37 mm to 405 mm across the family.
