Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

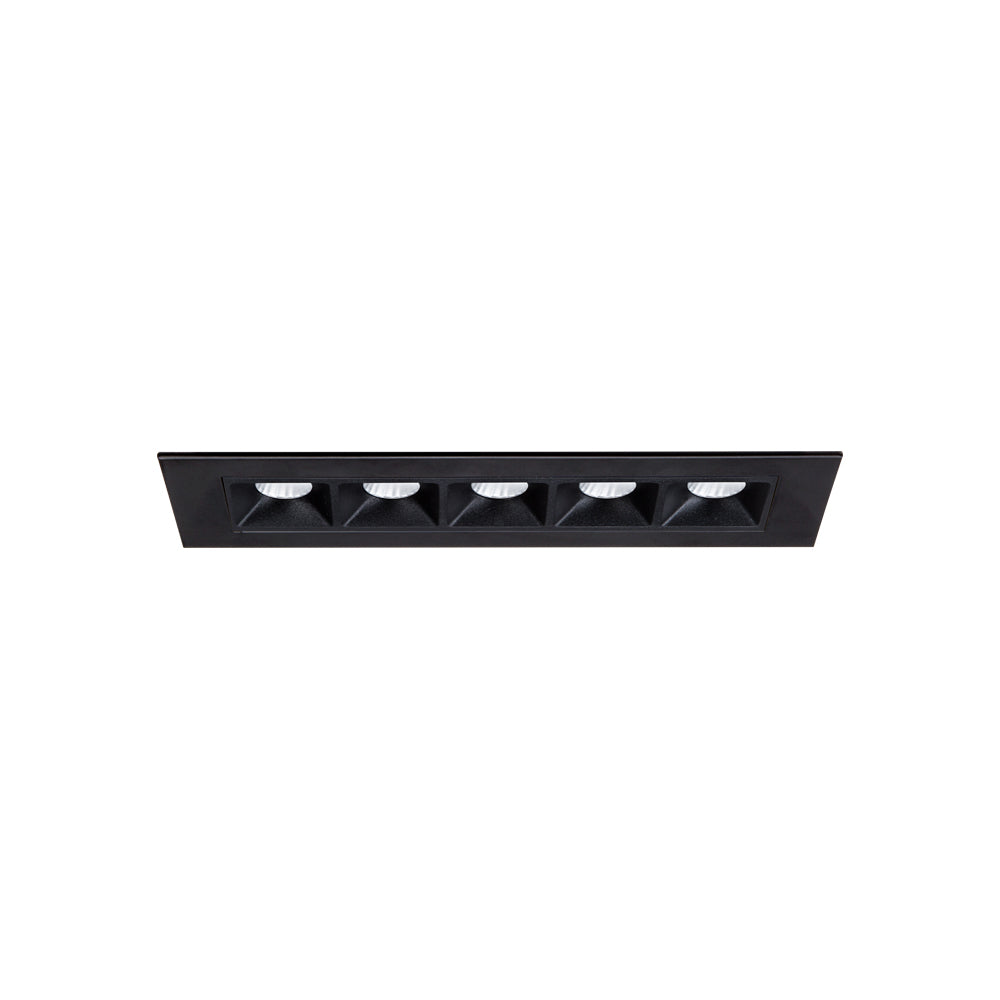

Archilight Lattice 5 Adj Ac Dimmable Downlight 10W
Log in to see priceOverview
Recessed Downlight
Specifications
Archilight Lattice 5 Adj Ac Dimmable Downlight 10WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180C05-15D-2700K-B-TDM | 15° | Warm White 2700K | Black |
| KC-010180C05-15D-2700K-W-TDM | 15° | Warm White 2700K | White |
| KC-010180C05-15D-3000K-B-TDM | 15° | Warm White 3000K | Black |
| KC-010180C05-15D-3000K-W-TDM | 15° | Warm White 3000K | White |
| KC-010180C05-15D-4000K-B-TDM | 15° | Natural White 4000K | Black |
| KC-010180C05-15D-4000K-W-TDM | 15° | Natural White 4000K | White |
| KC-010180C05-15D-5000K-B-TDM | 15° | Cool White 5000K | Black |
| KC-010180C05-15D-5000K-W-TDM | 15° | Cool White 5000K | White |
| KC-010180C05-30D-2700K-B-TDM | 30° | Warm White 2700K | Black |
| KC-010180C05-30D-2700K-W-TDM | 30° | Warm White 2700K | White |
| KC-010180C05-30D-3000K-B-TDM | 30° | Warm White 3000K | Black |
| KC-010180C05-30D-3000K-W-TDM | 30° | Warm White 3000K | White |
| KC-010180C05-30D-4000K-B-TDM | 30° | Natural White 4000K | Black |
| KC-010180C05-30D-4000K-W-TDM | 30° | Natural White 4000K | White |
| KC-010180C05-30D-5000K-B-TDM | 30° | Cool White 5000K | Black |
| KC-010180C05-30D-5000K-W-TDM | 30° | Cool White 5000K | White |
| KC-010180C05-45D-2700K-B-TDM | 45° | Warm White 2700K | Black |
| KC-010180C05-45D-2700K-W-TDM | 45° | Warm White 2700K | White |
| KC-010180C05-45D-3000K-B-TDM | 45° | Warm White 3000K | Black |
| KC-010180C05-45D-3000K-W-TDM | 45° | Warm White 3000K | White |
| KC-010180C05-45D-4000K-B-TDM | 45° | Natural White 4000K | Black |
| KC-010180C05-45D-4000K-W-TDM | 45° | Natural White 4000K | White |
| KC-010180C05-45D-5000K-B-TDM | 45° | Cool White 5000K | Black |
| KC-010180C05-45D-5000K-W-TDM | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 10W
- Brightness
- 540lm
- Efficacy
- ≥54 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Adjustable 30°
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
Archilight Lattice 5 Adj Ac Dimmable Downlight 10W datasheetLattice_5_adj__corrected_11_02_11_.pdf
PDF
Download
FAQ
What type of downlight is the Archilight Lattice 5 Adj Ac Dimmable Downlight 10W?
This is a compact, adjustable recessed LED downlight from the Archilight Lattice series. It is designed to deliver a near-invisible linear look with low glare and strong visual comfort for modern interior spaces.
What variant options are available in this product family?
Across the family, this model is available in 2700K, 3000K, 4000K, and 5000K colour temperatures. It also comes in 15, 30, and 45 degree beam angles, with black or white finish options.
How bright is the Archilight Lattice 5 adjustable downlight?
All listed variants in this family produce 850 lumens while using 10W of power. That gives consistent light output across the available beam angles, finishes, and colour temperatures.
Is this downlight dimmable and does it include a driver?
Yes, the parent model is dimmable and the driver is included. These details are consistent across the child variants provided for this family.
What are the key light quality specifications for this product family?
This downlight family has a CRI of 90, which supports strong colour rendering in interior spaces. The product description also states a low UGR rating of less than 19, helping reduce glare and improve visual comfort.
What cut-out range does this downlight family support?
The listed variants show a cut-out range from 45 mm to 155 mm. Buyers should use that range when checking whether the selected model suits the intended recessed opening.
Is the Archilight Lattice 5 suitable for long-term commercial or interior lighting use?
This family is positioned for interior lighting where visual comfort, low glare, and a refined appearance matter. It also has a 50,000 hour lifetime and a 5 year warranty, which supports long-term use in professional environments.
