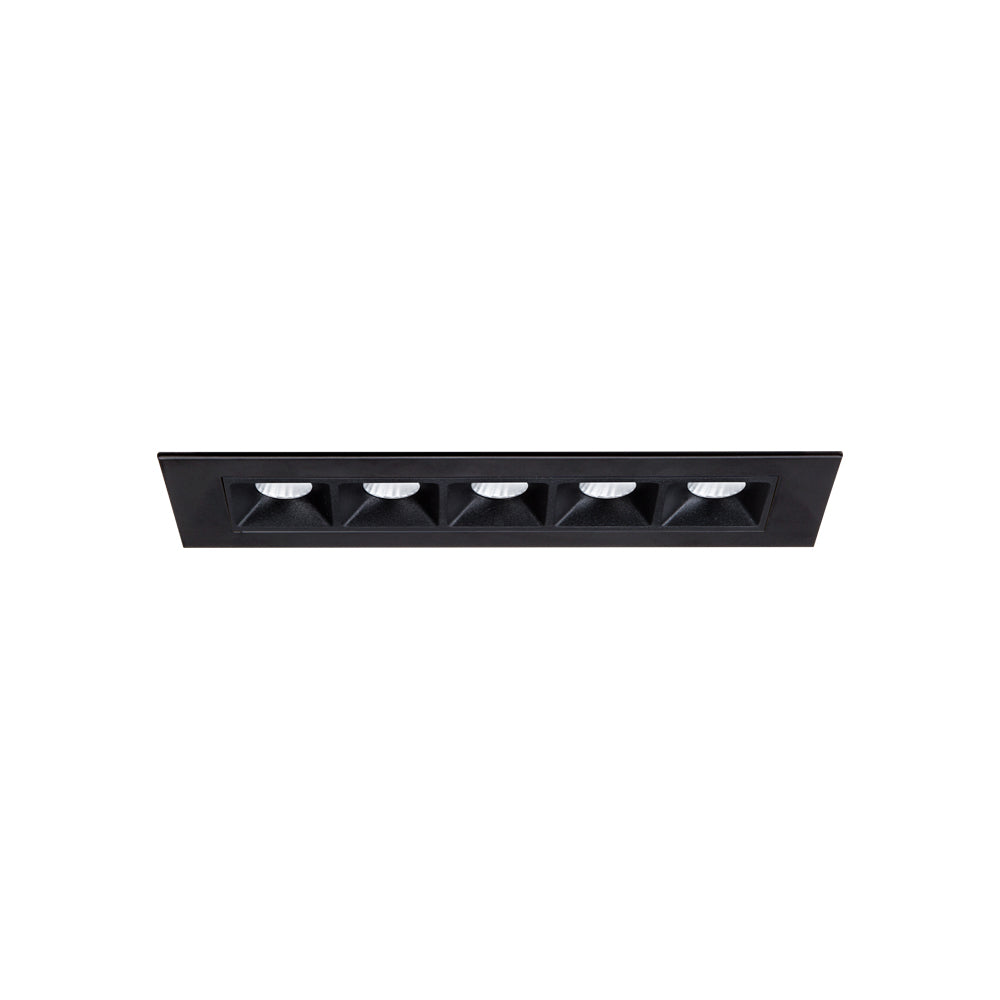

Archilight Lattice 5 Adj Downlight 10W
Log in to see priceOverview
Recessed Downlight
Specifications
Archilight Lattice 5 Adj Downlight 10WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180C05-15D-2700K-B | 15° | Warm White 2700K | Black |
| KC-010180C05-15D-2700K-W | 15° | Warm White 2700K | White |
| KC-010180C05-15D-3000K-B | 15° | Warm White 3000K | Black |
| KC-010180C05-15D-3000K-W | 15° | Warm White 3000K | White |
| KC-010180C05-15D-4000K-B | 15° | Natural White 4000K | Black |
| KC-010180C05-15D-4000K-W | 15° | Natural White 4000K | White |
| KC-010180C05-15D-5000K-B | 15° | Cool White 5000K | Black |
| KC-010180C05-15D-5000K-W | 15° | Cool White 5000K | White |
| KC-010180C05-30D-2700K-B | 30° | Warm White 2700K | Black |
| KC-010180C05-30D-2700K-W | 30° | Warm White 2700K | White |
| KC-010180C05-30D-3000K-B | 30° | Warm White 3000K | Black |
| KC-010180C05-30D-3000K-W | 30° | Warm White 3000K | White |
| KC-010180C05-30D-4000K-B | 30° | Natural White 4000K | Black |
| KC-010180C05-30D-4000K-W | 30° | Natural White 4000K | White |
| KC-010180C05-30D-5000K-B | 30° | Cool White 5000K | Black |
| KC-010180C05-30D-5000K-W | 30° | Cool White 5000K | White |
| KC-010180C05-45D-2700K-B | 45° | Warm White 2700K | Black |
| KC-010180C05-45D-2700K-W | 45° | Warm White 2700K | White |
| KC-010180C05-45D-3000K-B | 45° | Warm White 3000K | Black |
| KC-010180C05-45D-3000K-W | 45° | Warm White 3000K | White |
| KC-010180C05-45D-4000K-B | 45° | Natural White 4000K | Black |
| KC-010180C05-45D-4000K-W | 45° | Natural White 4000K | White |
| KC-010180C05-45D-5000K-B | 45° | Cool White 5000K | Black |
| KC-010180C05-45D-5000K-W | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 10W
- Brightness
- 540lm
- Efficacy
- ≥54 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Adjustable 30°
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

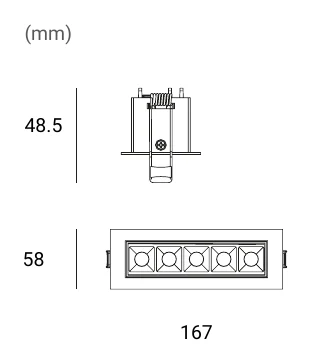

Technical drawings
Downloads
Datasheet1
FAQ
What type of light is the Archilight Lattice 5 Adj Downlight 10W?
This is a compact, recessed linear downlight designed for modern interior spaces that want a subtle, low-visibility lighting effect. The adjustable Lattice 5 family combines a slim form factor with low glare performance for visually comfortable general or accent lighting.
What beam angle options are available in the Lattice 5 Adj Downlight 10W range?
The parent family is available in 15 degree, 30 degree, and 45 degree beam angles. This gives buyers a choice between narrower, more focused light and wider light distribution, depending on the look and coverage needed.
What colour temperature options are offered across this product family?
Variants in this family are offered in 2700K, 3000K, 4000K, and 5000K colour temperatures. That allows the same fitting style to be specified in warmer or cooler light tones across different interior applications.
What are the main performance specifications of the Archilight Lattice 5 Adj Downlight 10W?
Each variant in this family is rated at 10W and delivers 850 lumens, with CRI 90 for strong colour rendering. The series is also described as having a low glare design with UGR below 19, supporting high visual comfort in interior spaces.
Is the driver included, and is this downlight dimmable?
Yes, the parent model is supplied with a driver included. Dimming is optional, so the family supports dimmable use where a suitable dimming setup is specified.
What finishes are available in the Lattice 5 Adj Downlight 10W family?
This product family is available in black and white finish options. The finish choice does not change the core electrical and lighting performance, so buyers can select the look that best suits the interior scheme.
What is the expected service life and warranty for this downlight family?
The Lattice 5 Adj Downlight 10W family has a rated lifetime of 50,000 hours. It is backed by a 5-year warranty, making it suitable for long-term commercial or professional interior lighting projects.
