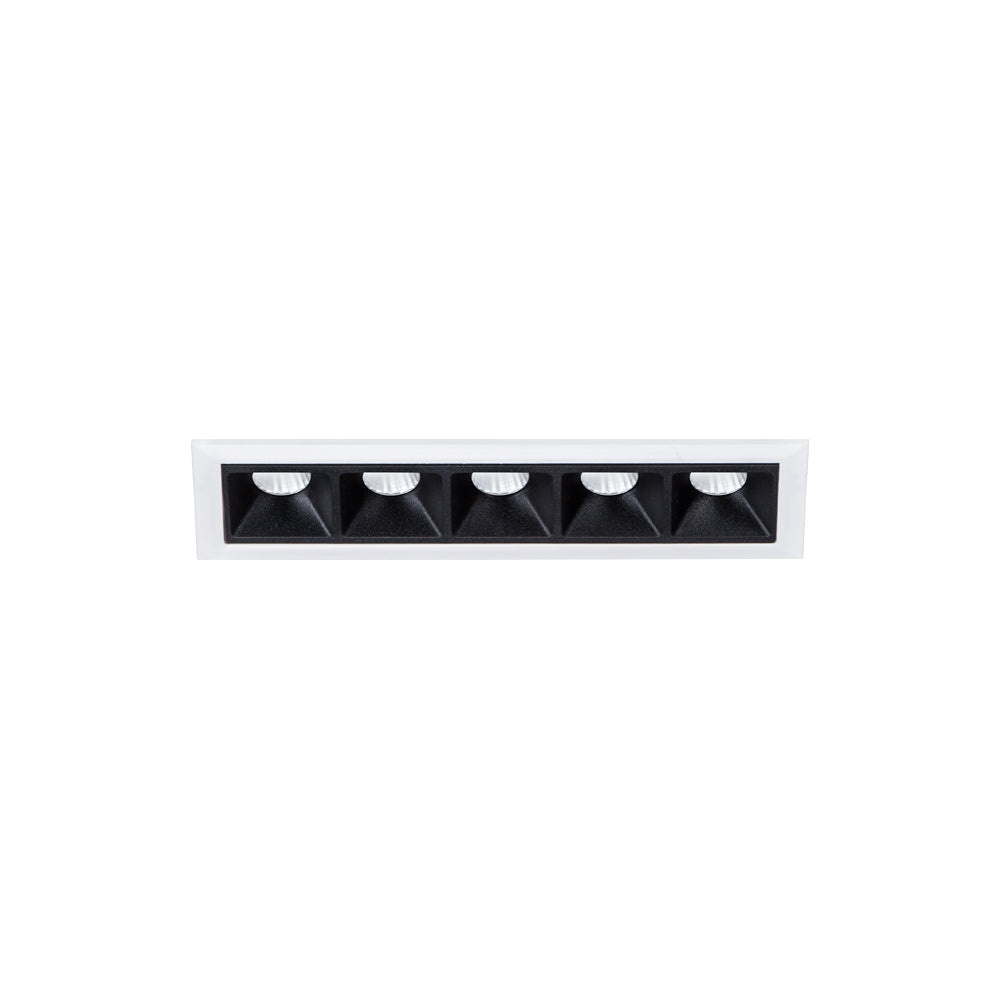

Archilight Lattice 5 Downlight 10W
Log in to see priceSpecifications
Archilight Lattice 5 Downlight 10WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180A05-15D-3000K-W | 15° | Warm White 3000K | White |
| KC-010180A05-15D-4000K-B | 15° | Natural White 4000K | Black |
| KC-010180A05-15D-4000K-W | 15° | Natural White 4000K | White |
| KC-010180A05-15D-5000K-B | 15° | Cool White 5000K | Black |
| KC-010180A05-15D-5000K-W | 15° | Cool White 5000K | White |
| KC-010180A05-30D-2700K-B | 30° | Warm White 2700K | Black |
| KC-010180A05-30D-2700K-W | 30° | Warm White 2700K | White |
| KC-010180A05-30D-3000K-B | 30° | Warm White 3000K | Black |
| KC-010180A05-30D-3000K-W | 30° | Warm White 3000K | White |
| KC-010180A05-30D-4000K-B | 30° | Natural White 4000K | Black |
| KC-010180A05-30D-4000K-W | 30° | Natural White 4000K | White |
| KC-010180A05-30D-5000K-B | 30° | Cool White 5000K | Black |
| KC-010180A05-30D-5000K-W | 30° | Cool White 5000K | White |
| KC-010180A05-45D-2700K-B | 45° | Warm White 2700K | Black |
| KC-010180A05-45D-2700K-W | 45° | Warm White 2700K | White |
| KC-010180A05-45D-3000K-B | 45° | Warm White 3000K | Black |
| KC-010180A05-45D-3000K-W | 45° | Warm White 3000K | White |
| KC-010180A05-45D-4000K-B | 45° | Natural White 4000K | Black |
| KC-010180A05-45D-4000K-W | 45° | Natural White 4000K | White |
| KC-010180A05-45D-5000K-B | 45° | Cool White 5000K | Black |
| KC-010180A05-45D-5000K-W | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 10W
- Brightness
- 850 lm
- Efficacy
- ≥85 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

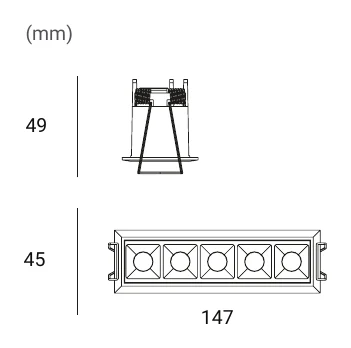

Technical drawings
Downloads
Datasheet1
FAQ
What type of light is the Archilight Lattice 5 Downlight 10W?
The Archilight Lattice 5 is a compact linear recessed downlight designed for modern interior spaces. It is built to deliver a subtle, near-invisible look while still providing strong visual comfort with low glare. Its high CRI of over 90 also helps colours appear more natural and accurate.
What light output and power rating does the Lattice 5 family offer?
Across this product family, the fitting is rated at 10W and delivers 850 lumens. That combination makes it suitable for projects that want efficient output from a compact downlight format. All listed variants in this family share the same power rating and lumen output.
What beam angle options are available in the Archilight Lattice 5 range?
The Lattice 5 family is available in 15 degree, 30 degree, and 45 degree beam angles. This gives buyers flexibility depending on whether they want a narrower, more focused effect or a broader spread of light. Beam angle is one of the main variant differences in this parent range.
What colour temperature options are available for this downlight?
This family is offered in 2700K, 3000K, 4000K, and 5000K options. That allows the range to cover warmer ambient lighting as well as cooler, crisper lighting preferences. Colour temperature is a variant choice, so the exact CCT depends on the selected option.
What finish colours are available in the Lattice 5 family?
The Archilight Lattice 5 Downlight 10W is available in black and white finishes. Both finish options are offered across the listed beam angles and colour temperatures in this family. This makes it easier to match the fitting to different interior design schemes.
Is the Archilight Lattice 5 dimmable, and is a driver included?
Yes, this family is listed as dimmable optional, and the driver is included. That means the product range supports dimming capability where the appropriate dimming setup is used. Driver inclusion is consistent across the variants shown for this parent model.
What are the cut-out and product dimensions for the Lattice 5 family?
The listed variants show a cut-out range of 37 mm to 140 mm. The parent model dimensions are 167 mm long, 45 mm wide, and 49 mm high, with a weight of 0.5 kg. These figures are useful for confirming physical fit within recessed interior lighting layouts.
Is the Archilight Lattice 5 suitable for long-term commercial or interior use?
This family is designed for interior lighting applications and is supported by a 50,000-hour lifetime and a 5-year warranty period. Its low UGR design and CRI over 90 make it well suited to spaces where visual comfort and colour quality matter. Those characteristics make it a strong option for professional and commercial interiors.
