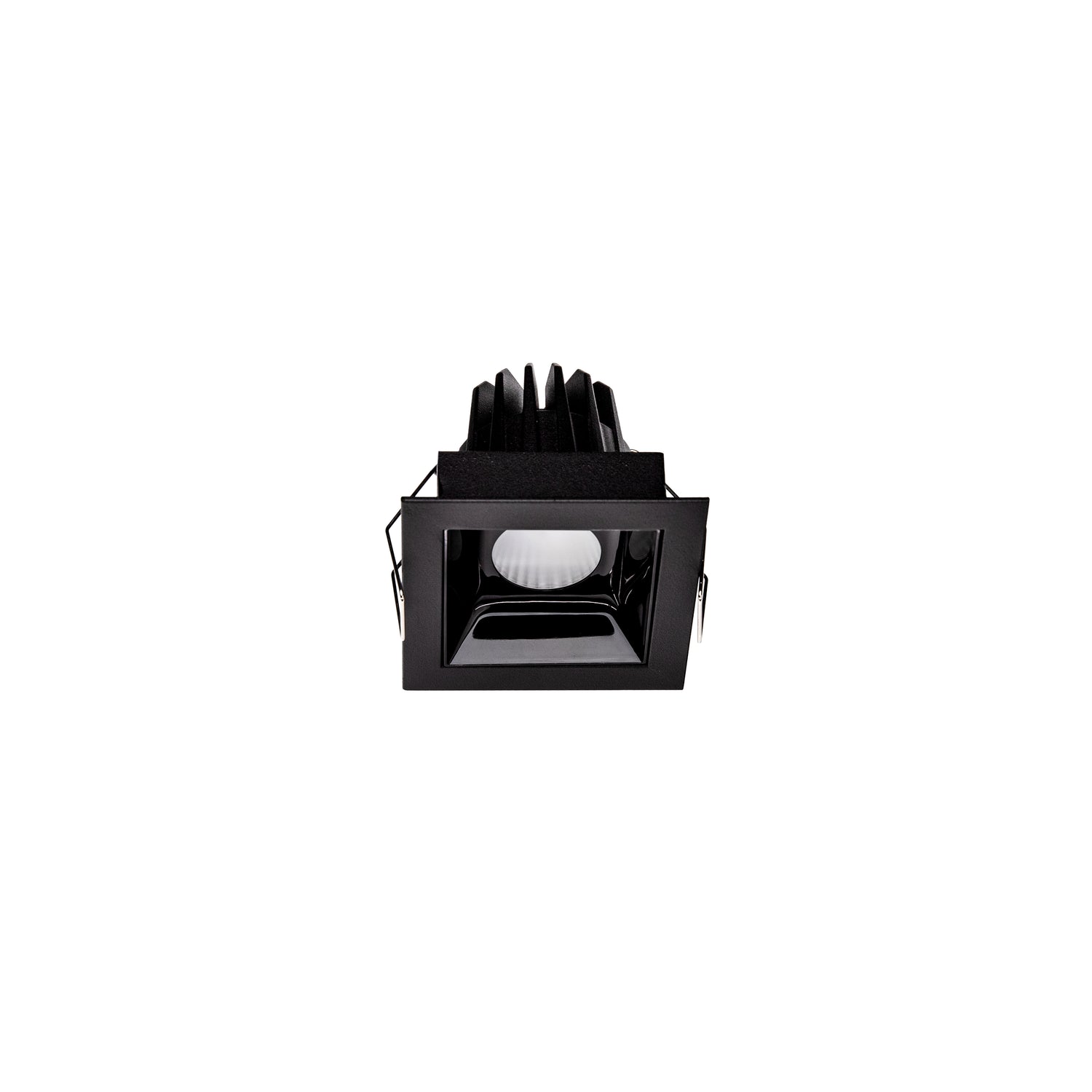

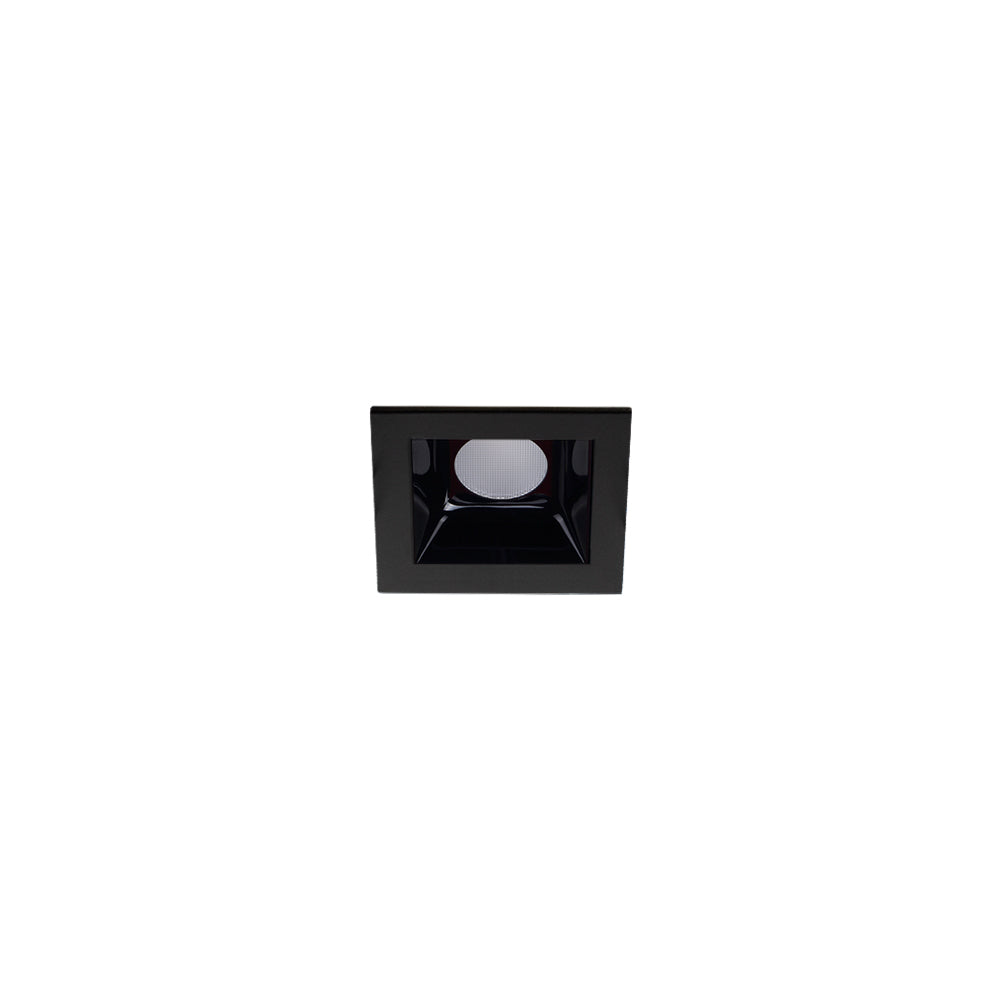

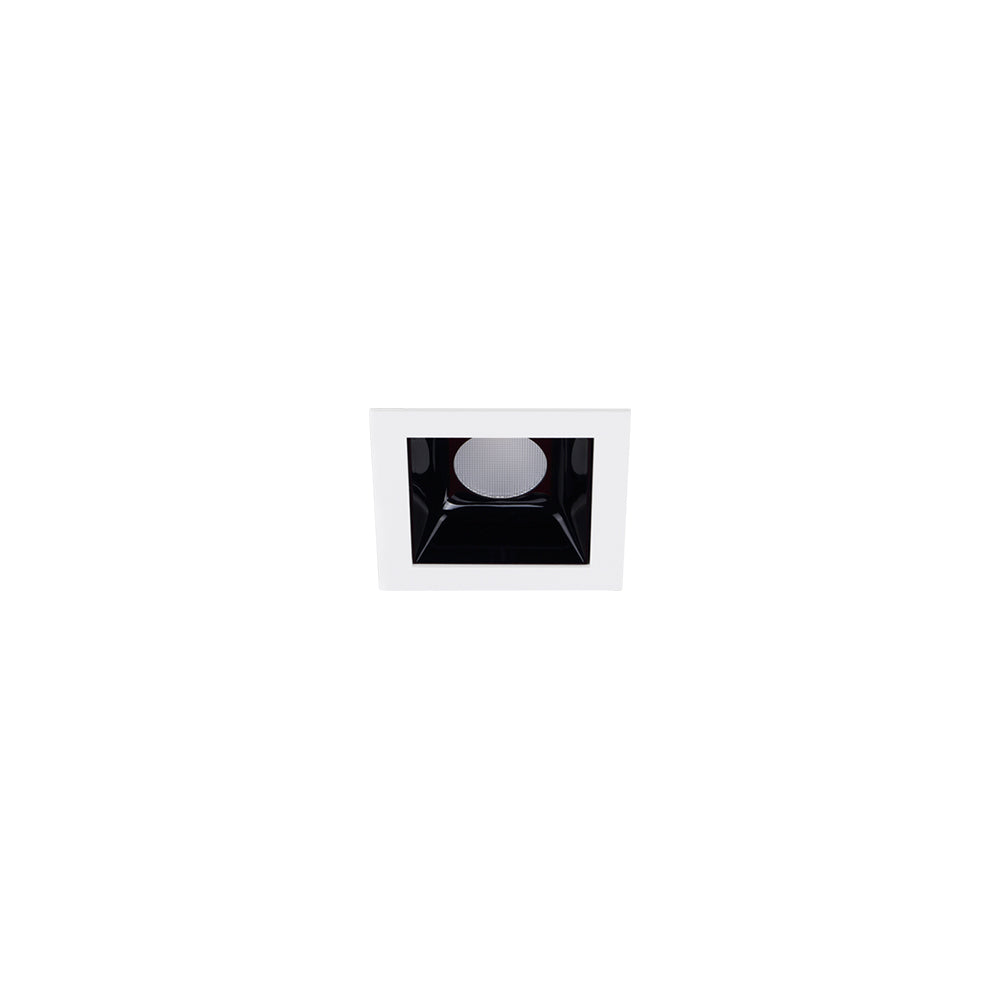

Archilight Lattice L1 Ac Dimmable Downlight 10W
Log in to see priceOverview
Recessed Ac Dimmable Downlight
Specifications
Archilight Lattice L1 Ac Dimmable Downlight 10WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | LED Colour | Finish Colour |
|---|---|---|
| KC-010011A01-45D-2700K-W-TDM | Warm White 2700K | White |
| KC-010011A01-45D-3000K-B-TDM | Warm White 3000K | Black |
| KC-010011A01-45D-3000K-W-TDM | Warm White 3000K | White |
| KC-010011A01-45D-4000K-B-TDM | Natural White 4000K | Black |
| KC-010011A01-45D-4000K-W-TDM | Natural White 4000K | White |
| KC-010011A01-45D-5000K-B-TDM | Cool White 5000K | Black |
| KC-010011A01-45D-5000K-W-TDM | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 10W
- Beam angle
- 15° / 30° / 45°
- Brightness
- 850lm
- Efficacy
- ≥85 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

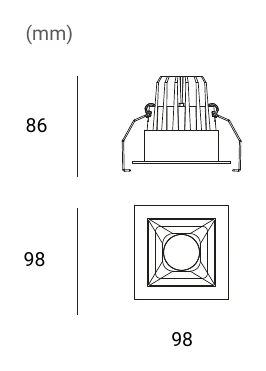

Technical drawings
Downloads
Datasheet1
FAQ
What type of spaces is the Archilight Lattice L1 AC Dimmable Downlight 10W designed for?
This recessed LED downlight is suited to interior commercial and architectural spaces where low glare and strong visual comfort matter. Its square-format Lattice L design, CRI over 90, and UGR below 19 make it a good fit for offices, retail areas, hospitality settings, and other refined indoor applications.
What variant options are available in the Lattice L1 AC Dimmable Downlight 10W family?
The parent family includes multiple beam angles, colour temperatures, and finish colours. Based on the variant data, buyers can choose 15 degree, 30 degree, or 45 degree beam angles, 2700K, 3000K, 4000K, or 5000K colour temperatures, and either black or white finishes.
How bright is the Archilight Lattice L1 10W downlight across the range?
The listed variants in this family are rated at 850 lumens with a 10W power rating. That gives buyers a consistent light output across the family while allowing them to choose beam spread, finish, and colour temperature to suit the project.
Is the Archilight Lattice L1 10W downlight dimmable and does it include a driver?
Yes, this parent model is described as dimmable, and the child variants show the driver is included. That means the family is positioned for projects that need dimming capability without sourcing a separate driver for the fitting.
What are the cut-out and product dimensions for this downlight family?
The child variants list a 75 mm cut-out, while the parent model dimensions are 98 mm high, 86 mm long, and 98 mm wide. The parent model also has a listed weight of 0.4 kg, which can help with project specification and fixture planning.
Is the Lattice L1 AC Dimmable Downlight 10W a good choice for colour-sensitive interiors?
Yes, the family is specified with CRI 90, which supports strong colour rendering in interior spaces. Combined with its low-glare UGR below 19, it is intended for environments where both appearance and occupant comfort are important.
What is the expected service life and warranty for the Archilight Lattice L1 10W family?
This product family is listed with a 50,000-hour lifetime and a 5-year warranty period. Those figures make it suitable for professional projects looking for a long-life recessed LED downlight with defined warranty coverage.
