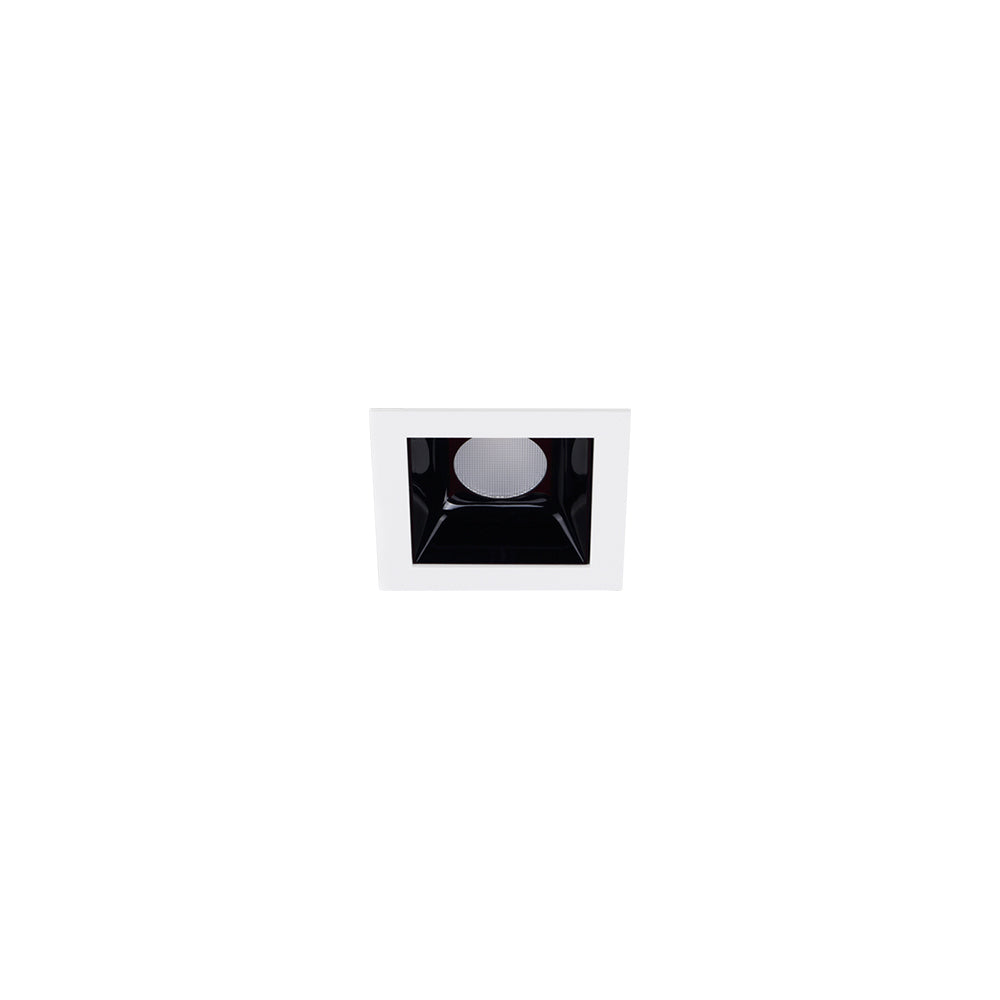

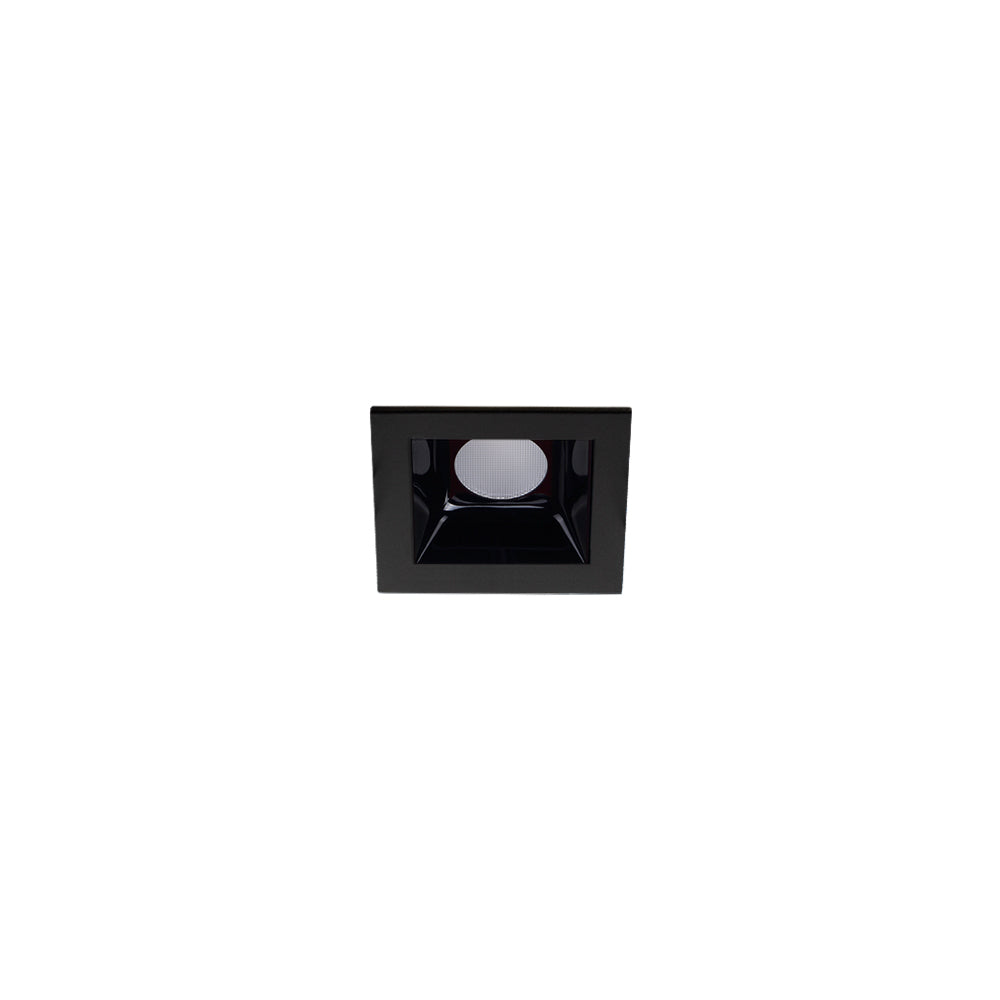

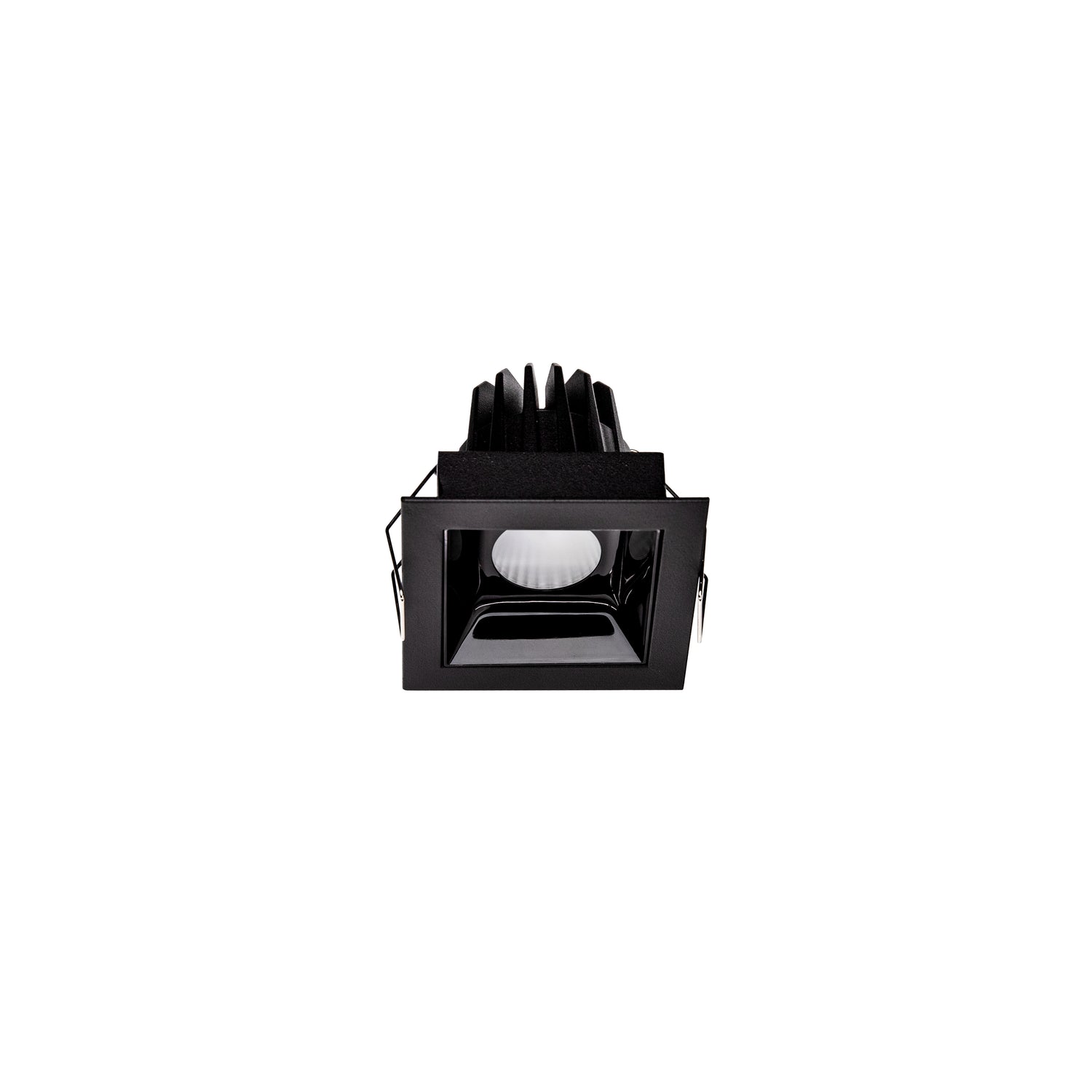

Archilight Lattice L1 Downlight 10W
Log in to see priceOverview
Recessed Downlight
Specifications
Archilight Lattice L1 Downlight 10WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | LED Colour | Finish Colour |
|---|---|---|
| KC-010011A01-45D-2700K-W | Warm White 2700K | White |
| KC-010011A01-45D-3000K-B | Warm White 3000K | Black |
| KC-010011A01-45D-3000K-W | Warm White 3000K | White |
| KC-010011A01-45D-4000K-B | Natural White 4000K | Black |
| KC-010011A01-45D-4000K-W | Natural White 4000K | White |
| KC-010011A01-45D-5000K-B | Cool White 5000K | Black |
| KC-010011A01-45D-5000K-W | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 10W
- Beam angle
- 15° / 30° / 45°
- Brightness
- 850lm
- Efficacy
- ≥85 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

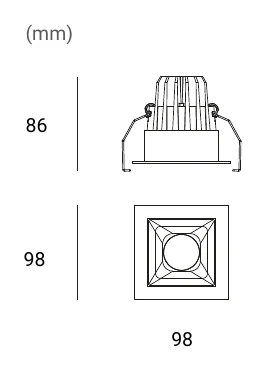

Technical drawings
Downloads
Datasheet1
FAQ
What beam angle options are available in the Archilight Lattice L1 Downlight 10W range?
The Lattice L1 Downlight 10W family is available with 15 degree, 30 degree, and 45 degree beam angles. This gives buyers a choice between narrower and wider light distribution while staying within the same product family.
What colour temperature options are offered across this parent product range?
This parent range is offered in 2700K, 3000K, 4000K, and 5000K options. That allows the family to cover warmer through cooler lighting preferences depending on the project requirement.
Is the Archilight Lattice L1 Downlight 10W dimmable?
The product family is listed as dimmable optional. A driver is included with the fitting, but dimming depends on the selected control setup rather than being implied as standard in every application.
What light output and colour rendering can I expect from this downlight family?
The child variants shown for this family are rated at 850 lumens and CRI 90. The product description also highlights low glare performance with a UGR below 19, supporting visually comfortable interior lighting.
What finishes are available in the Lattice L1 Downlight 10W range?
The family is available in black and white finish options. These finish choices are offered across the variant set shown, so buyers can match the fitting to different interior design schemes.
Is this downlight suitable for long-term commercial interior use?
The family is positioned as an interior recessed LED downlight with a 50,000 hour lifetime and a 5 year warranty period. Its CRI above 90 and low glare design make it well suited to applications where visual comfort and colour quality matter.
Do all variants in this family use the same cut-out size?
Yes. The child variants provided all show a 75 mm cut-out, which means the family maintains the same stated ceiling opening size across the available beam angles, finishes, and colour temperatures.
