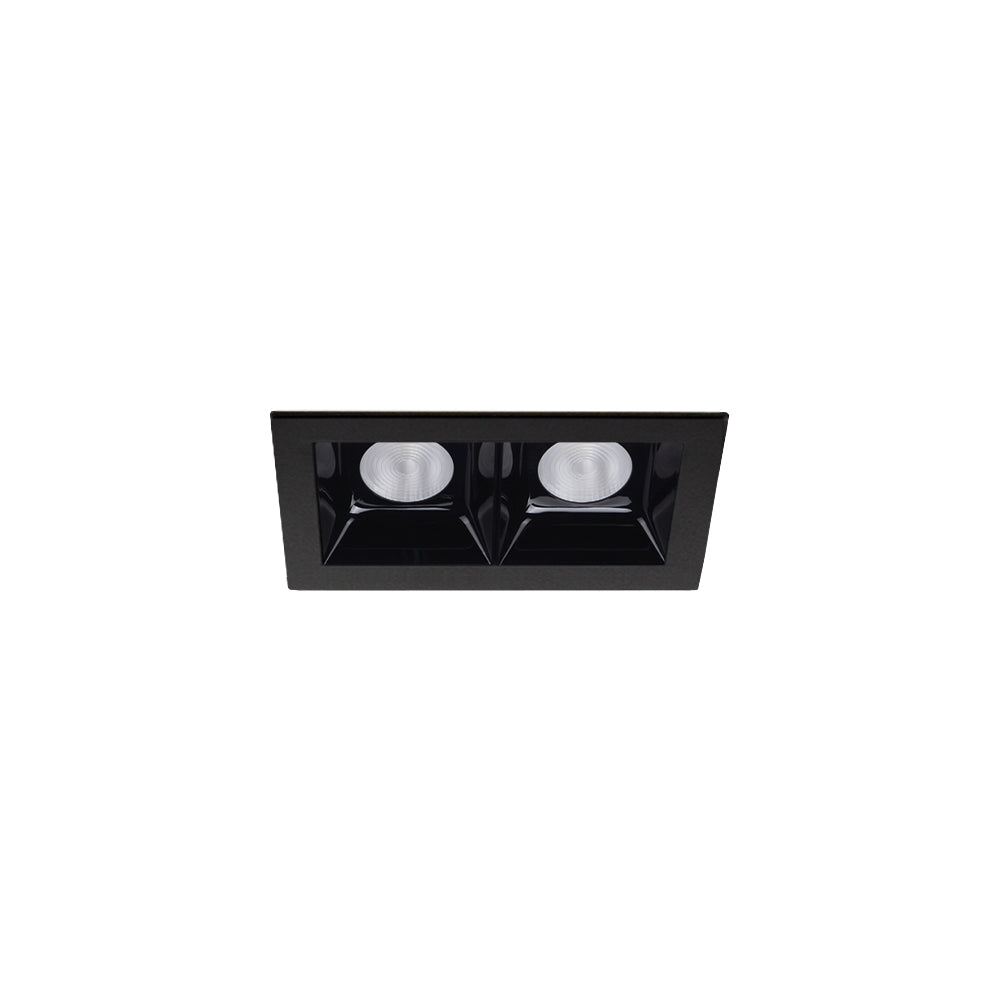

Archilight Lattice L2 Ac Dimmable Downlight 20W
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
SKU:
KC-010011A02-15D-2700K-B-TDM
Log in to see price
Trade pricing & online ordering for account holders
|
Notify me when it's back in stock
Archilight Lattice L2 Ac Dimmable Downlight 20W
Log in to see priceThe Lattice L series is a stylish, square/rectangle downlight series. Its power efficient design with high colour rendering index (CRI>90) and low UGR rating (UGR<19) makes it a top quality light with low glare to provide high visual comfort, whilst displaying the true colours of an area beautifully. With a variety of beam options available, the Lattice L series is a great all purpose light with a modern look.
-
BrandArchilight
-
SeriesArchilight Lattice L2 AC Dimmable Series
-
Power Rating20 Watt
-
Standards MetCB,CCC,CE,SAA,TUV
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length8.6 cm
-
Width16.7 cm
-
Height9.8 cm
-
Weight0.7 kg
::specification::
Frequently Asked Questions
What type of downlight is the Archilight Lattice L2 AC Dimmable Downlight 20W?
The Archilight Lattice L2 AC Dimmable Downlight 20W is a recessed commercial LED downlight in the Lattice L series. It uses a square or rectangular design and is intended for interior applications where a modern look, low glare, and strong colour quality are important.
What beam angles are available across the Lattice L2 AC Dimmable 20W family?
This parent family is available in 15 degree, 30 degree, and 45 degree beam angles. That gives buyers a choice between narrower and wider light distribution while staying within the same 20W product platform.
What colour temperatures can I choose from in this product family?
The family includes 2700K, 3000K, 4000K, and 5000K variants. This makes it suitable for spaces that need warmer ambient lighting or cooler, more neutral task-oriented light.

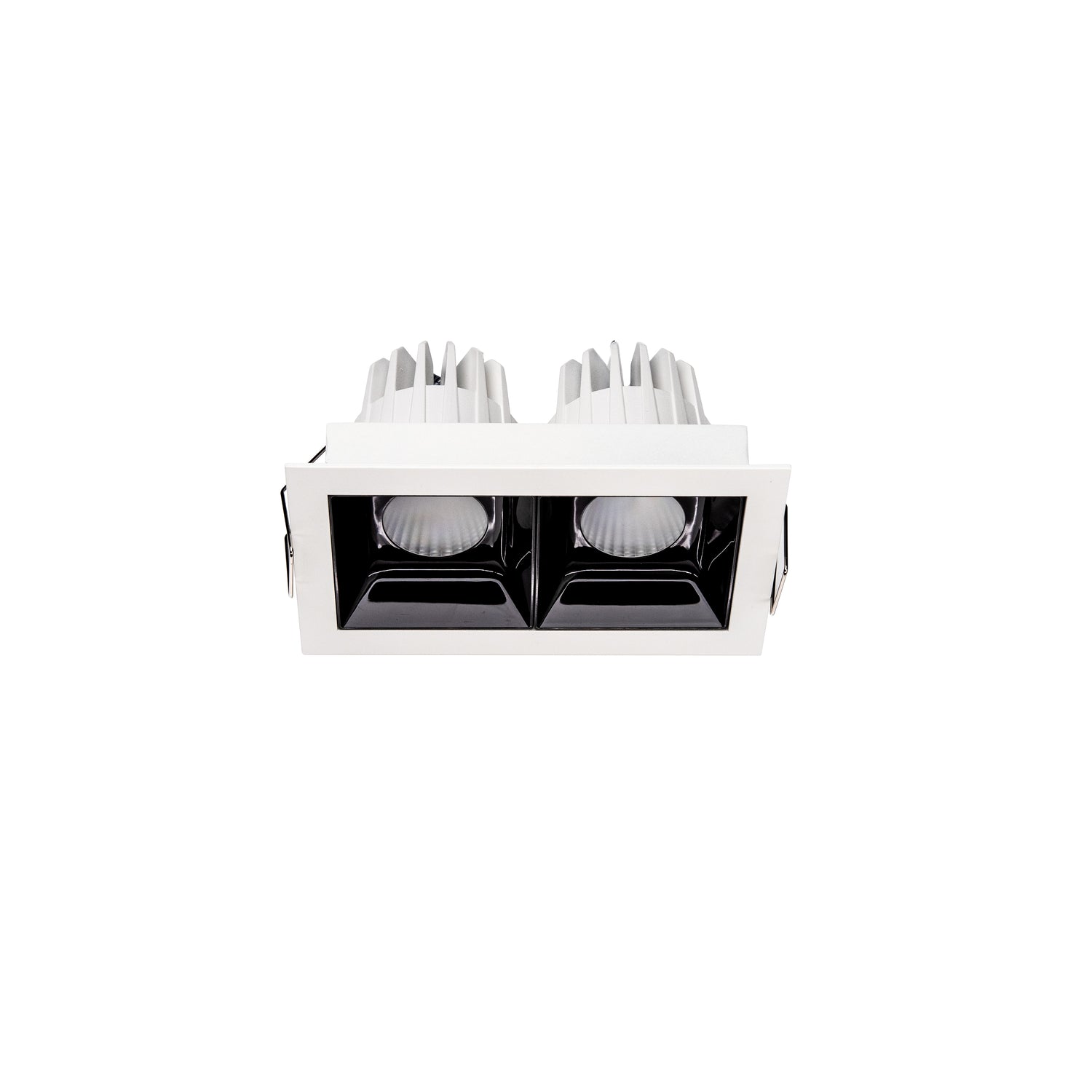

What finishes are offered for the Archilight Lattice L2 AC Dimmable Downlight 20W?
The available finish colours in this family are black and white. Both finishes are offered across the listed beam angle and colour temperature options, so the visual choice does not limit the main performance options shown here.
What are the key performance specifications of this downlight family?
All listed variants in this family are 20W dimmable downlights with a driver included and a CRI of 90. The child variants shown deliver 1700 lumens, and the parent data lists a 50,000 hour lifetime with a 5-year warranty.
Is the Lattice L2 AC Dimmable Downlight 20W designed for visual comfort?
Yes. The product description states that the Lattice L series combines CRI above 90 with a low UGR rating below 19, helping reduce glare while maintaining strong colour quality. That makes it a good fit for interior spaces where comfort and appearance both matter.
What size and cut-out range should buyers expect for this product family?
The parent model dimensions are 167 mm wide, 86 mm long, and 98 mm high, with a weight of 0.7 kg. The listed child variants show a cut-out range of 75 mm to 145 mm across the family.
