Archilight Lattice L2 Downlight 20W
Log in to see priceOverview

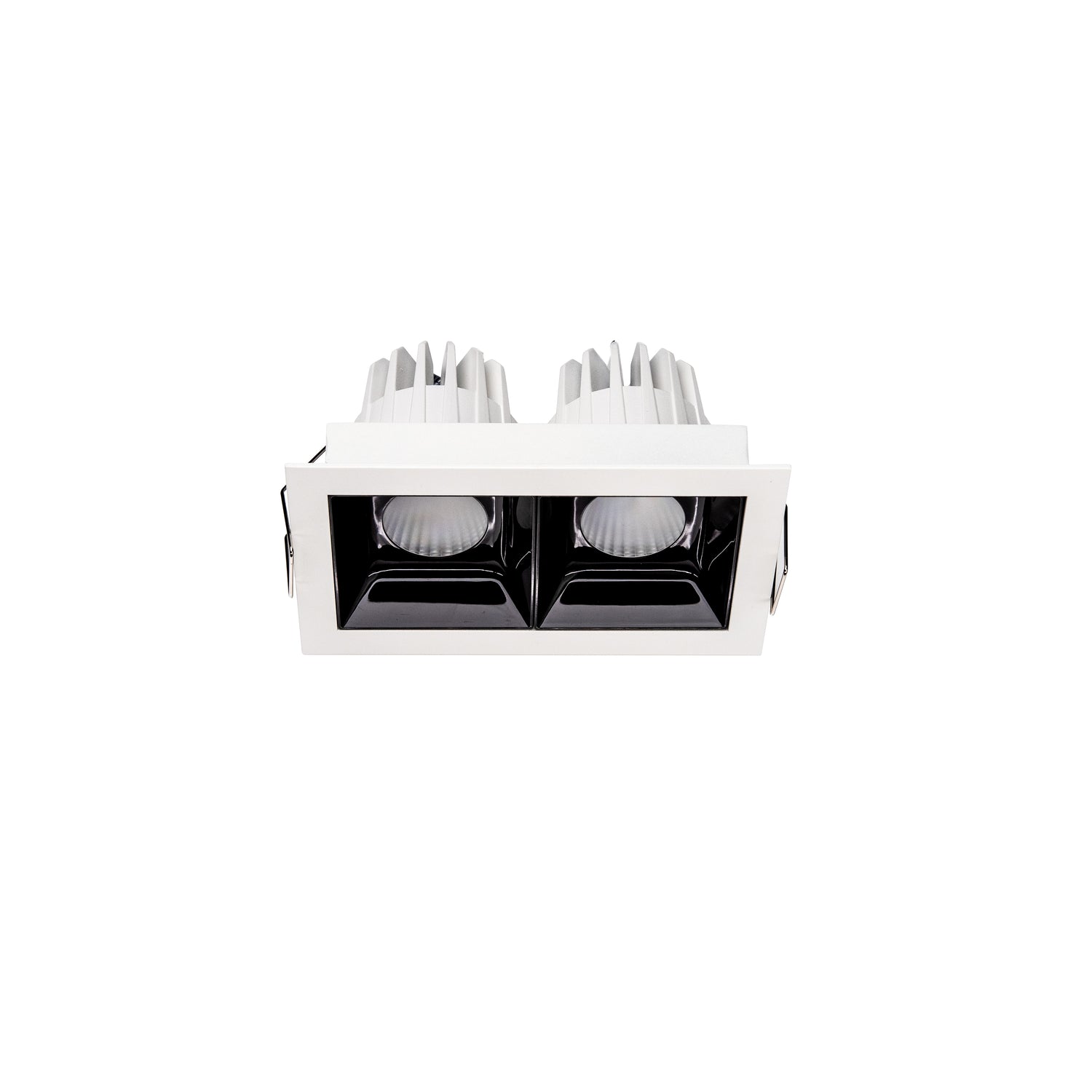

Recessed Downlight
Specifications
Archilight Lattice L2 Downlight 20WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010011A02-15D-2700K-B | 15° | Warm White 2700K | Black |
| KC-010011A02-15D-2700K-W | 15° | Warm White 2700K | White |
| KC-010011A02-15D-3000K-B | 15° | Warm White 3000K | Black |
| KC-010011A02-15D-3000K-W | 15° | Warm White 3000K | White |
| KC-010011A02-15D-4000K-B | 15° | Natural White 4000K | Black |
| KC-010011A02-15D-4000K-W | 15° | Natural White 4000K | White |
| KC-010011A02-15D-5000K-B | 15° | Cool White 5000K | Black |
| KC-010011A02-15D-5000K-W | 15° | Cool White 5000K | White |
| KC-010011A02-30D-2700K-B | 30° | Warm White 2700K | Black |
| KC-010011A02-30D-2700K-W | 30° | Warm White 2700K | White |
| KC-010011A02-30D-3000K-B | 30° | Warm White 3000K | Black |
| KC-010011A02-30D-3000K-W | 30° | Warm White 3000K | White |
| KC-010011A02-30D-4000K-B | 30° | Natural White 4000K | Black |
| KC-010011A02-30D-4000K-W | 30° | Natural White 4000K | White |
| KC-010011A02-30D-5000K-B | 30° | Cool White 5000K | Black |
| KC-010011A02-30D-5000K-W | 30° | Cool White 5000K | White |
| KC-010011A02-45D-2700K-B | 45° | Warm White 2700K | Black |
| KC-010011A02-45D-2700K-W | 45° | Warm White 2700K | White |
| KC-010011A02-45D-3000K-B | 45° | Warm White 3000K | Black |
| KC-010011A02-45D-3000K-W | 45° | Warm White 3000K | White |
| KC-010011A02-45D-4000K-B | 45° | Natural White 4000K | Black |
| KC-010011A02-45D-4000K-W | 45° | Natural White 4000K | White |
| KC-010011A02-45D-5000K-B | 45° | Cool White 5000K | Black |
| KC-010011A02-45D-5000K-W | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 20W
- Brightness
- 1700lm
- Efficacy
- ≥85 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

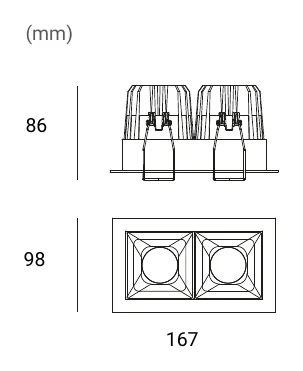

Technical drawings
Downloads
Datasheet1
FAQ
What type of spaces is the Archilight Lattice L2 Downlight 20W best suited for?
The Lattice L2 is a recessed LED downlight designed for interior commercial and professional spaces where visual comfort and a clean modern look matter. Its low glare rating of UGR90 make it well suited to offices, retail, hospitality, and other environments where both comfort and accurate colour appearance are important.
What beam angles are available across the Lattice L2 20W range?
This parent range is available in 15 degree, 30 degree, and 45 degree beam options. That gives buyers the choice between narrower accent-style distribution and broader general illumination, depending on the variant selected.
What colour temperature options are offered in this product family?
Across the Lattice L2 20W family, variants are offered in 2700K, 3000K, 4000K, and 5000K. This allows the range to cover warmer ambient lighting through to cooler, more task-oriented lighting preferences.
Does the Archilight Lattice L2 20W come in different finishes?

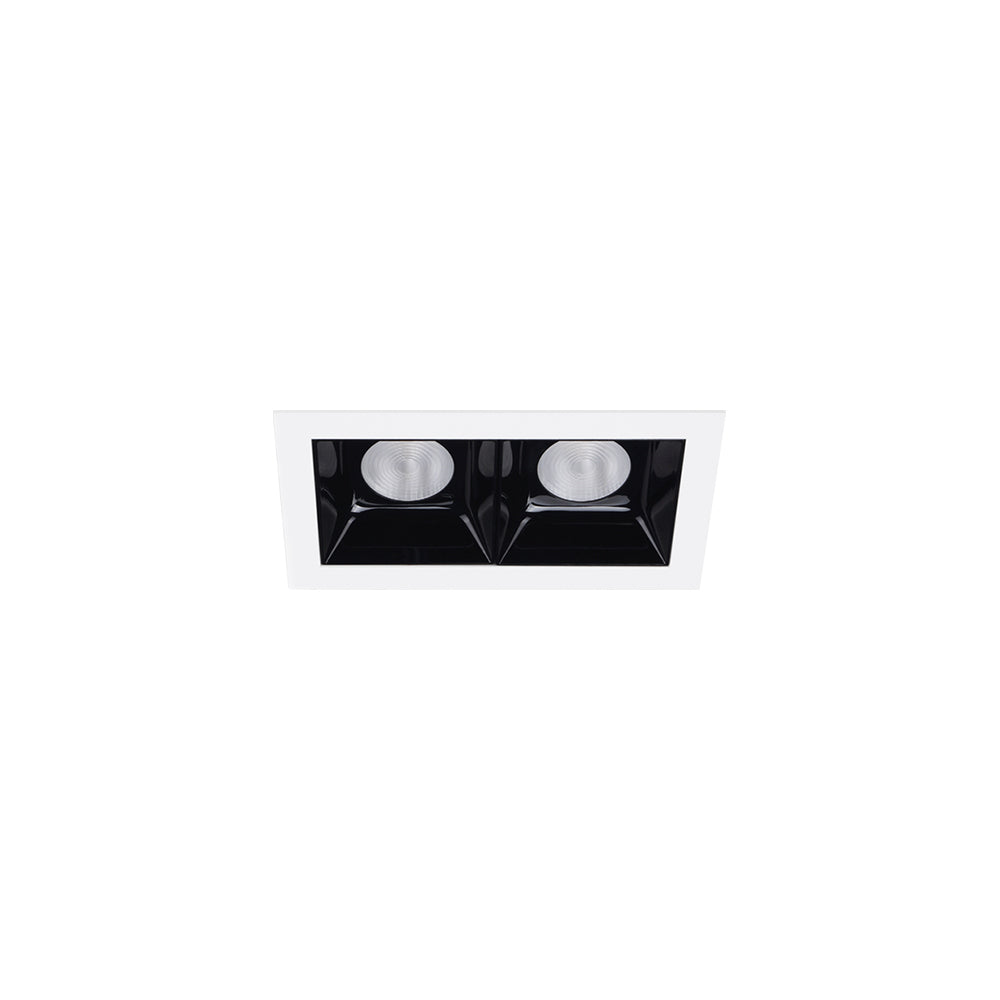

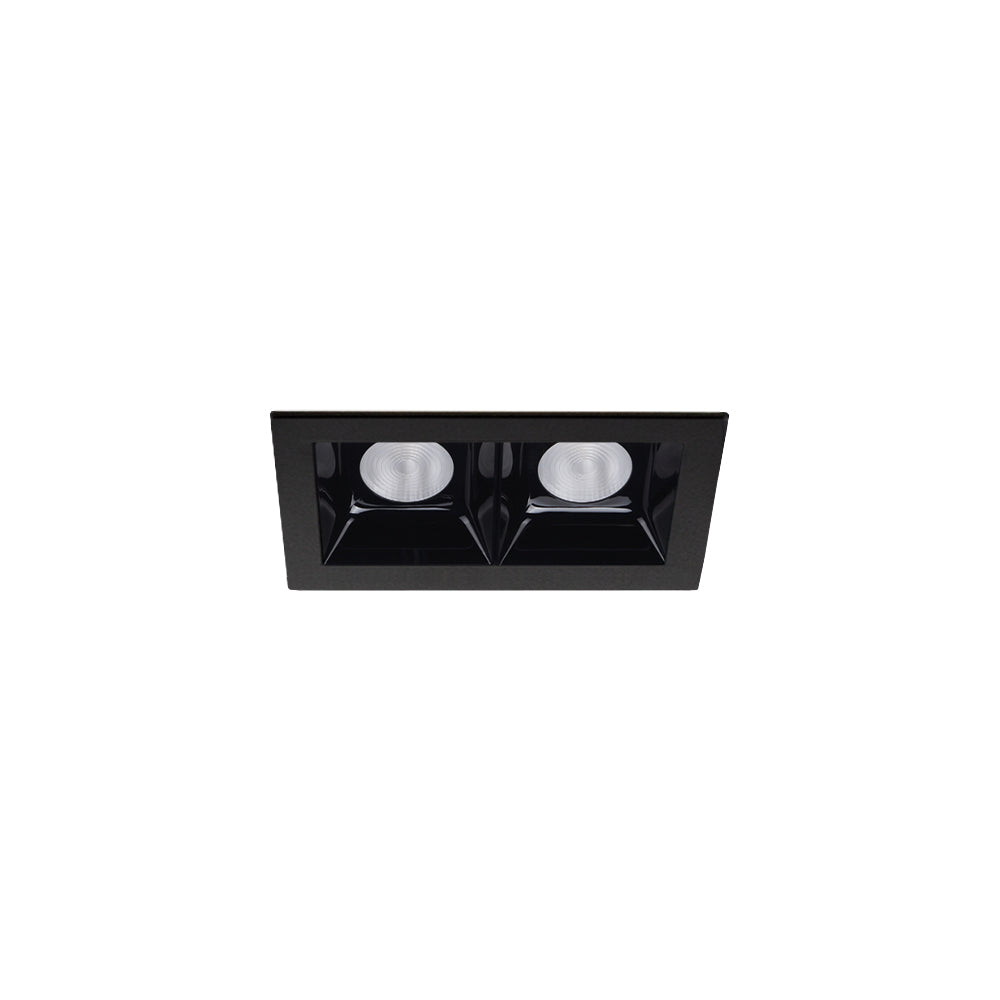

Yes. The family is available in black and white finish options, depending on the variant chosen. This makes it easier to match the fitting to darker architectural palettes or lighter ceiling designs.
What are the core performance specs of the Lattice L2 20W?
The product family is rated at 20W with 1700 lumens output on the listed variants. It also offers CRI 90, a 50,000 hour lifetime, and a 5 year warranty, which supports long-term use in commercial interiors.
Is the driver included, and is this downlight dimmable?
The listed Lattice L2 20W variants include a driver. Dimming is optional, so buyers should choose the appropriate dimmable version or control compatibility based on project requirements.
What cut-out range does this downlight family support?
The child variants shown for this family list a cut-out range from 75 mm to 145 mm. That makes the Lattice L2 20W a flexible option for projects that need a recessed fitting suited to a wider cut-out tolerance.
