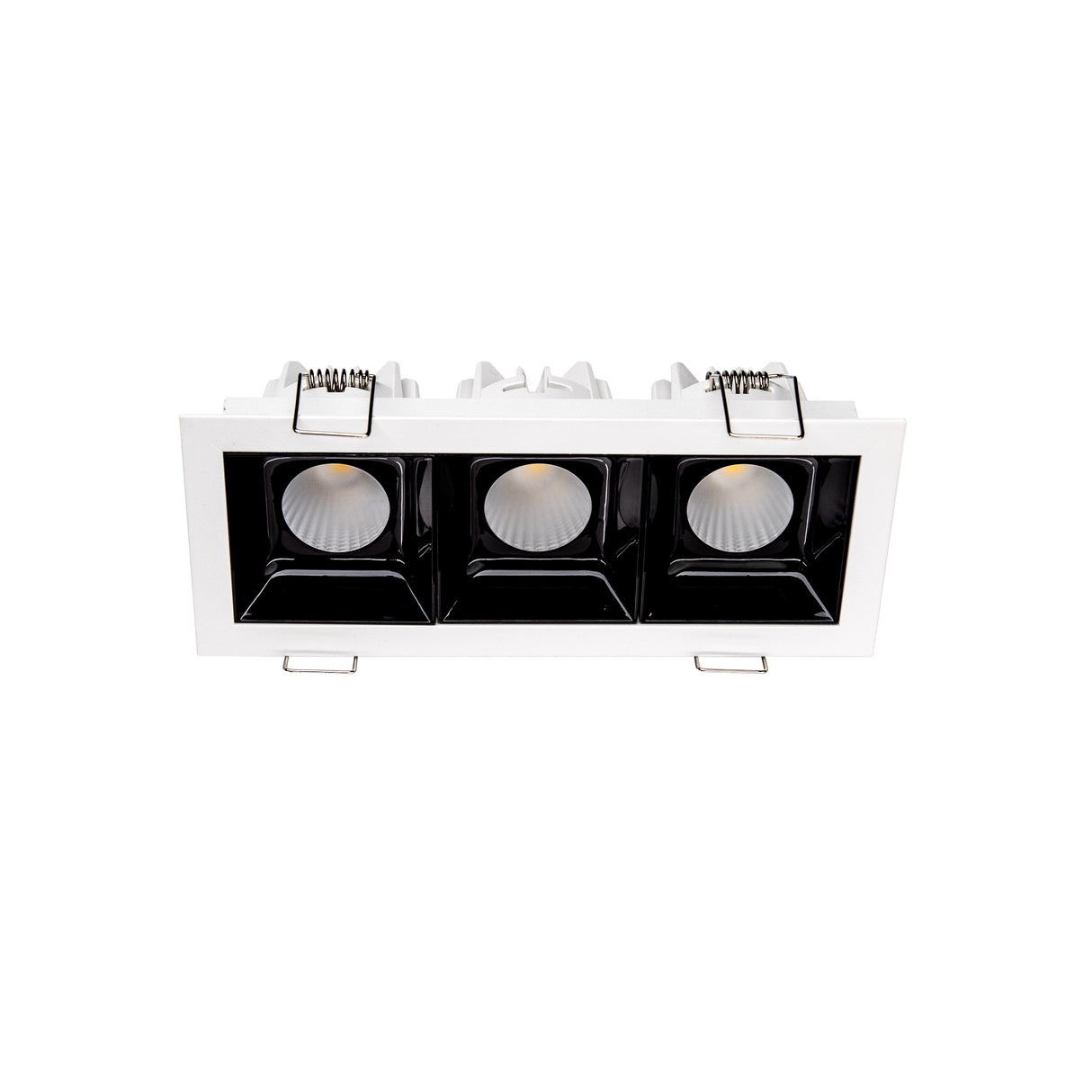

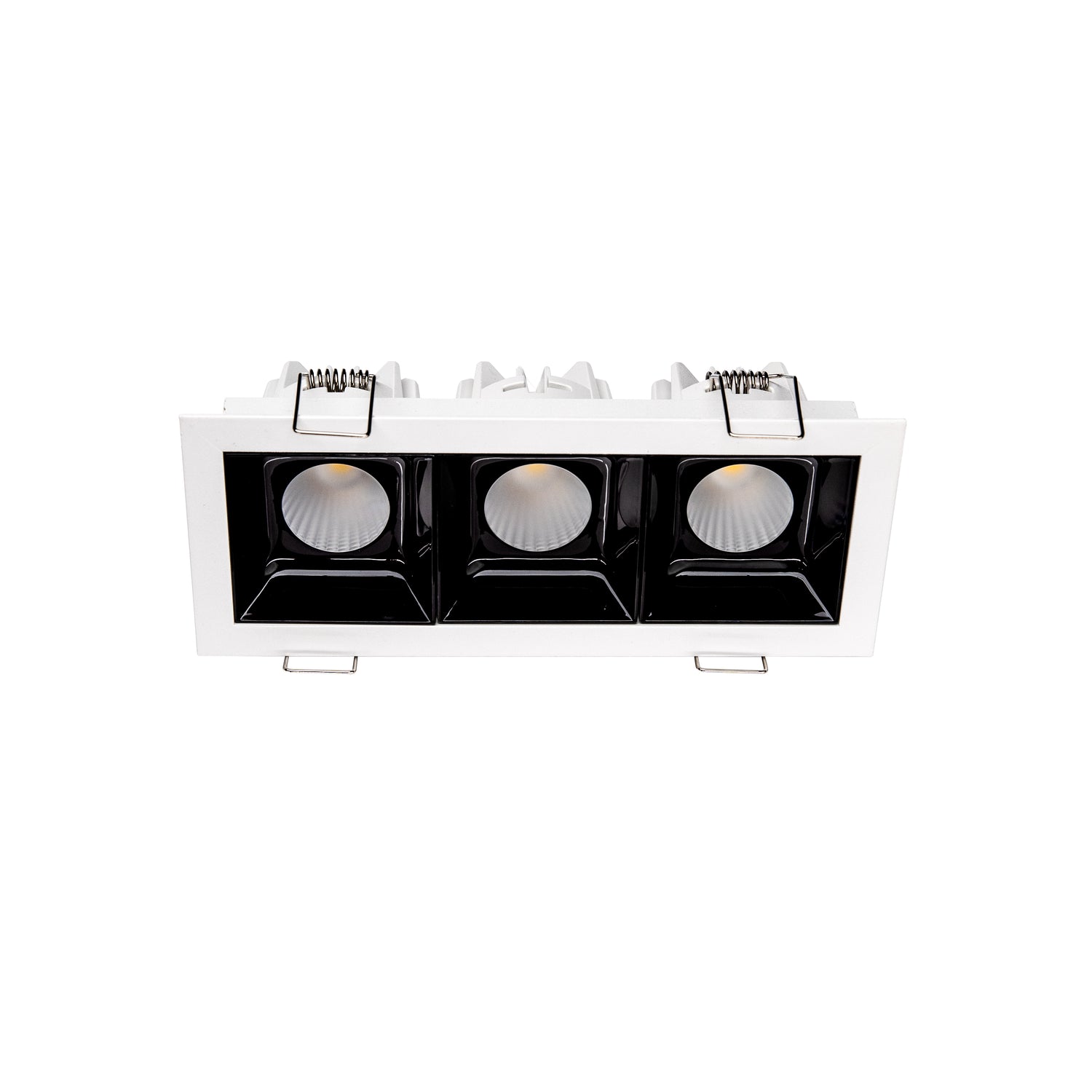

Archilight Lattice L3 Ac Dimmable Downlight 30W
Log in to see priceSpecifications
Archilight Lattice L3 Ac Dimmable Downlight 30WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | LED Colour | Finish Colour |
|---|---|---|
| KC-010011A03-45D-3000K-W-TDM | Warm White 3000K | White |

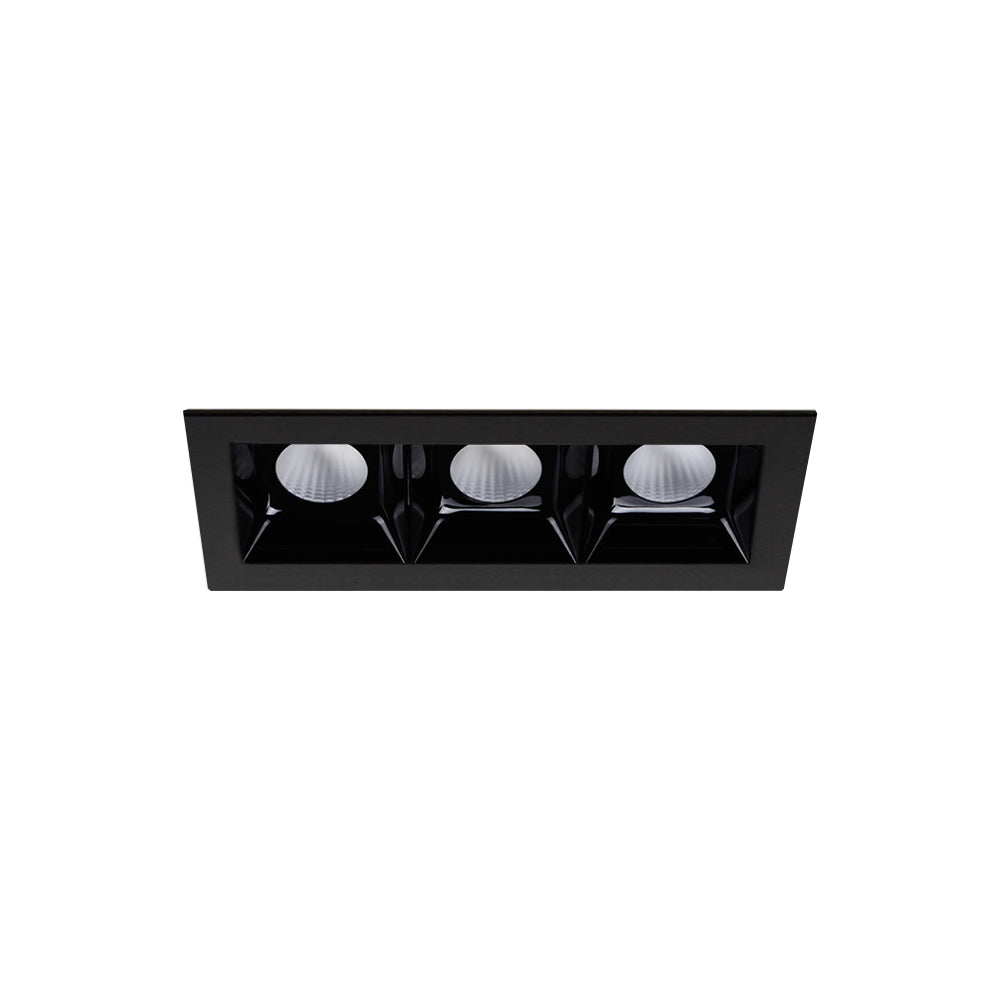

| KC-010011A03-45D-4000K-B-TDM | Natural White 4000K | Black |
| KC-010011A03-45D-4000K-W-TDM | Natural White 4000K | White |
| KC-010011A03-45D-5000K-B-TDM | Cool White 5000K | Black |
| KC-010011A03-45D-5000K-W-TDM | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 30W
- Beam angle
- 15° / 30° / 45°
- Brightness
- 2550lm
- Efficacy
- ≥85 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

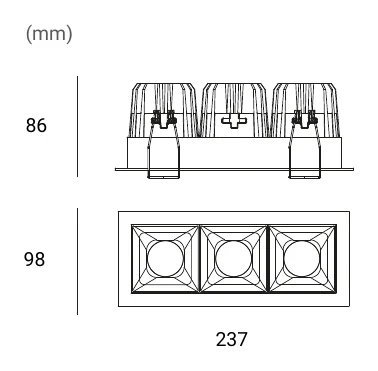

Technical drawings
Downloads
Datasheet1
FAQ
What type of spaces is the Archilight Lattice L3 AC Dimmable Downlight 30W best suited for?
This recessed LED downlight is designed for interior commercial and architectural spaces that need a modern square or rectangular look. Its low-glare UGR90 performance make it well suited to areas where visual comfort and accurate colour appearance matter.
What variant options are available across the Lattice L3 AC Dimmable Downlight 30W family?
This parent family includes beam angles of 15, 30, and 45 degrees, giving buyers narrow, medium, and wider distribution choices. It is also offered in 2700K, 3000K, 4000K, and 5000K colour temperatures, with black and white finish options available across the range.
Is the Archilight Lattice L3 30W downlight dimmable and does it include a driver?
Yes. The parent model is listed as dimmable, and the driver is included across the family data provided. That makes it a suitable option for projects that require adjustable light levels without sourcing a separate driver.
What light output and colour quality can buyers expect from this downlight family?
Child variants in this family are rated at 2550 lumens while maintaining CRI 90 colour rendering. This combination supports strong usable output with more accurate colour presentation than lower-CRI fittings, which is valuable in retail, hospitality, and premium interior environments.
How does the beam angle affect selection for this downlight range?
The 15 degree options are more focused for accent or directional lighting, while 30 degree versions offer a more balanced spread for general highlighting. The 45 degree variants provide the broadest distribution in this family, making them better suited where wider coverage is preferred.
What are the key physical and durability specifications of the Lattice L3 AC Dimmable Downlight 30W?
The parent model is listed at 237 mm wide, 86 mm long, 98 mm high, and 0.9 kg in weight. Across the family, it is rated for a 50,000 hour lifetime and carries a 5 year warranty, supporting longer-term use in professional interior lighting projects.
