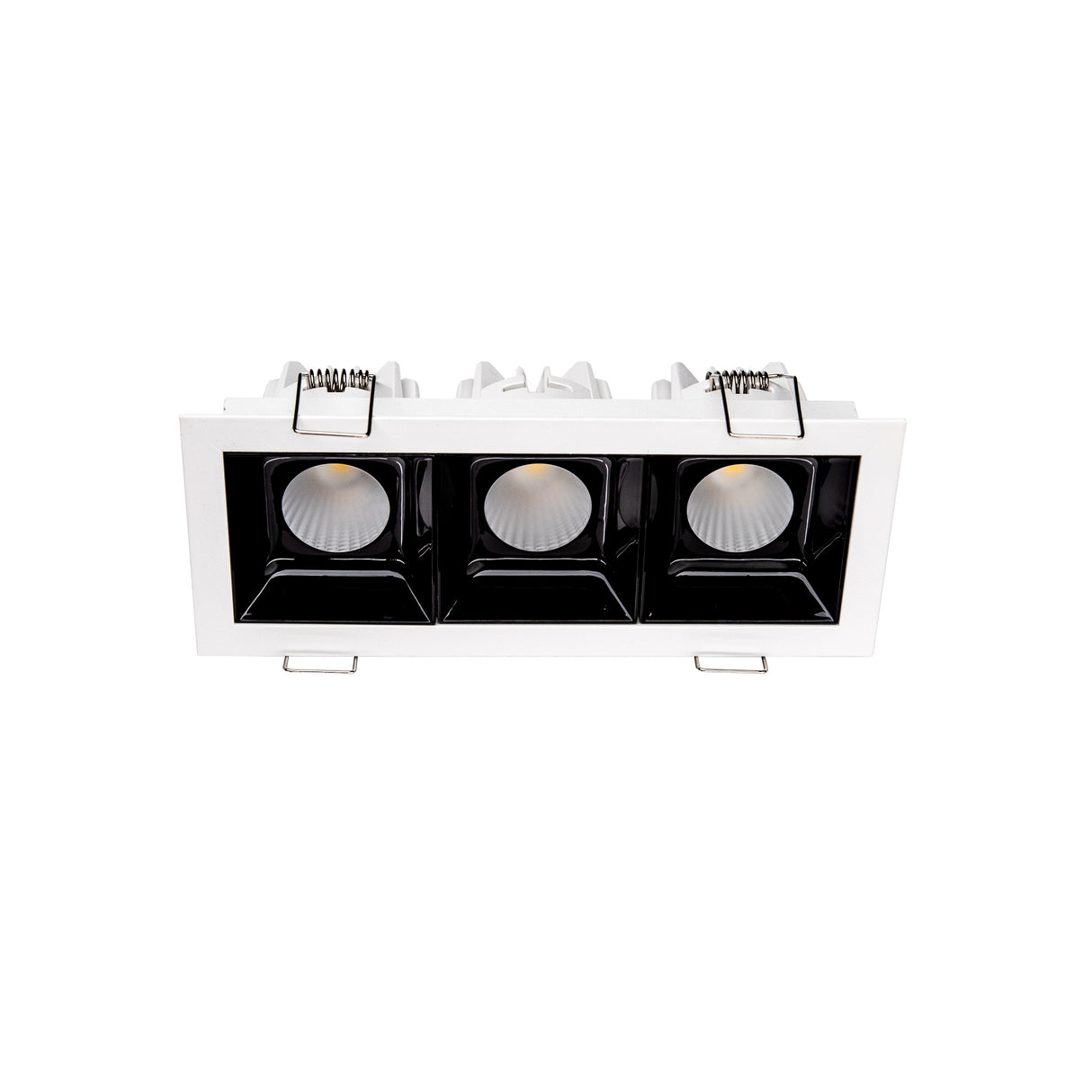

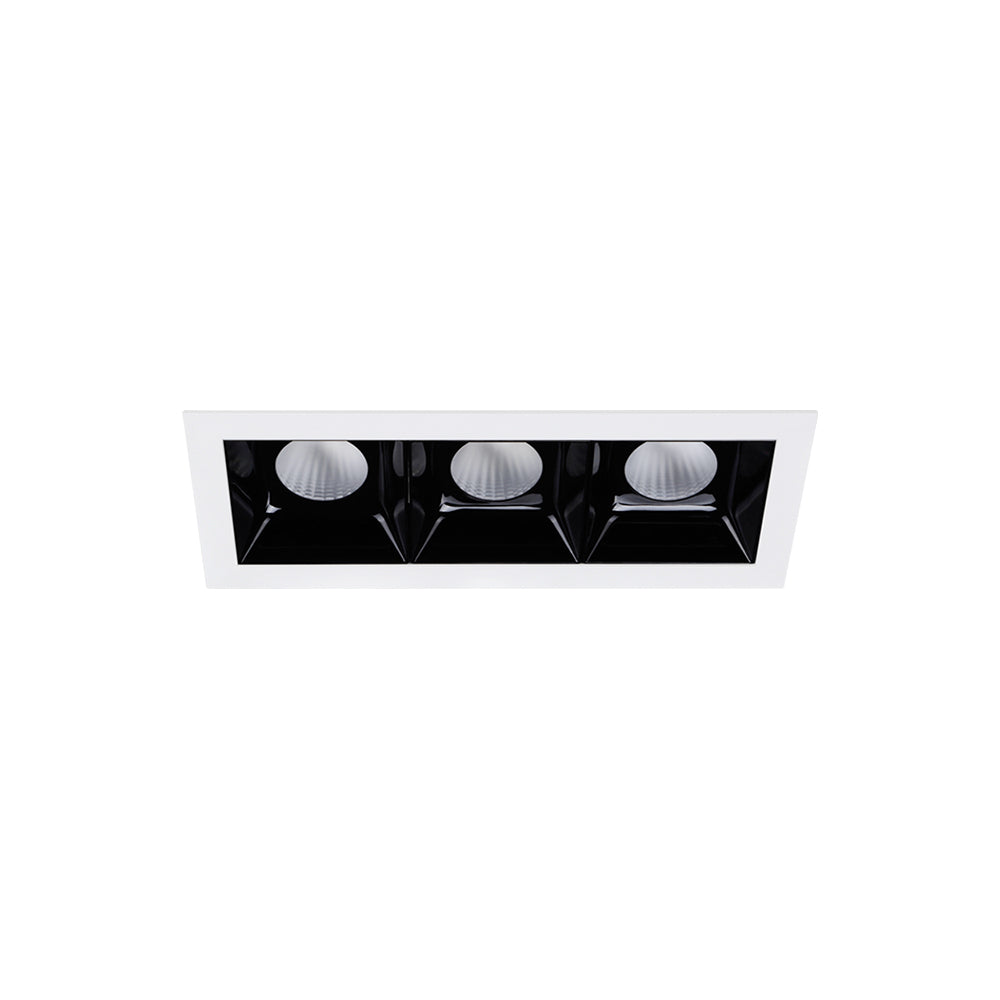

Archilight Lattice L3 Downlight 30W
Log in to see priceOverview
Recessed Downlight
Specifications
Archilight Lattice L3 Downlight 30WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | LED Colour | Finish Colour |
|---|---|---|
| KC-010011A03-45D-3000K-W | Warm White 3000K | White |
| KC-010011A03-45D-4000K-B | Natural White 4000K | Black |
| KC-010011A03-45D-4000K-W | Natural White 4000K | White |
| KC-010011A03-45D-5000K-B | Cool White 5000K | Black |
| KC-010011A03-45D-5000K-W | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 30W
- Beam angle
- 15° / 30° / 45°
- Brightness
- 2550lm
- Efficacy
- ≥85 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

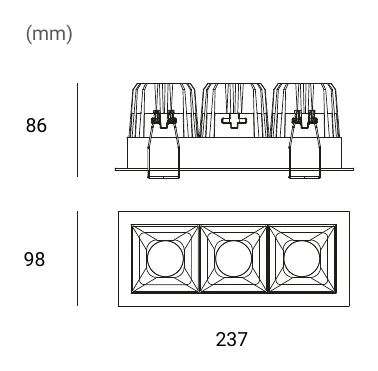

Technical drawings
Downloads
Datasheet1
FAQ
What is the Archilight Lattice L3 Downlight 30W designed for?
The Archilight L3 is a recessed commercial LED downlight in the Lattice L series, designed for interior spaces that need a modern square or rectangular look. Its low glare rating and high colour rendering make it suitable for environments where visual comfort and accurate colour appearance matter.
What beam angles are available across the Lattice L3 30W family?
This parent family is available in 15 degree, 30 degree, and 45 degree beam options. That gives buyers a choice between narrower and wider light distribution while staying within the same 30W product platform.
What colour temperature options are offered for this downlight?
The Lattice L3 30W family is offered in 2700K, 3000K, 4000K, and 5000K variants. These options let you choose from warmer to cooler light tones depending on the intended commercial interior setting.
Are different finish colours available?
Yes, the family is available in black and white finish options. The finish choice changes the appearance of the fitting while the core electrical and performance specifications remain consistent across the family data shown.
What are the main performance specifications of the Archilight Lattice L3 Downlight 30W?
This model is rated at 30W, delivers CRI 90, and has a 50,000 hour lifetime with a 5 year warranty. Child variants listed for this family show 2550 lumens and are designed for 230V power input, with driver included and optional dimming.
Is the Lattice L3 30W dimmable?
The product family is listed as dimmable optional, not as standard dimming on every configuration. It also includes a driver, so buyers can evaluate the dimming requirement at selection stage rather than assuming every order includes the same dimming setup.
How does this downlight support visual comfort in commercial interiors?
The Lattice L series is described as having a low UGR below 19 and a CRI above 90. That combination is intended to reduce glare while helping spaces show colours more accurately, which is useful in many professional interior environments.
What size and cut-out information is relevant for the Lattice L3 family?
The parent model dimensions are 237 mm wide, 86 mm long, and 98 mm high, with a listed product weight of 0.9 kg. Across the child variants provided, the cut-out range is shown as 75 mm minimum to 218 mm maximum.
