Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

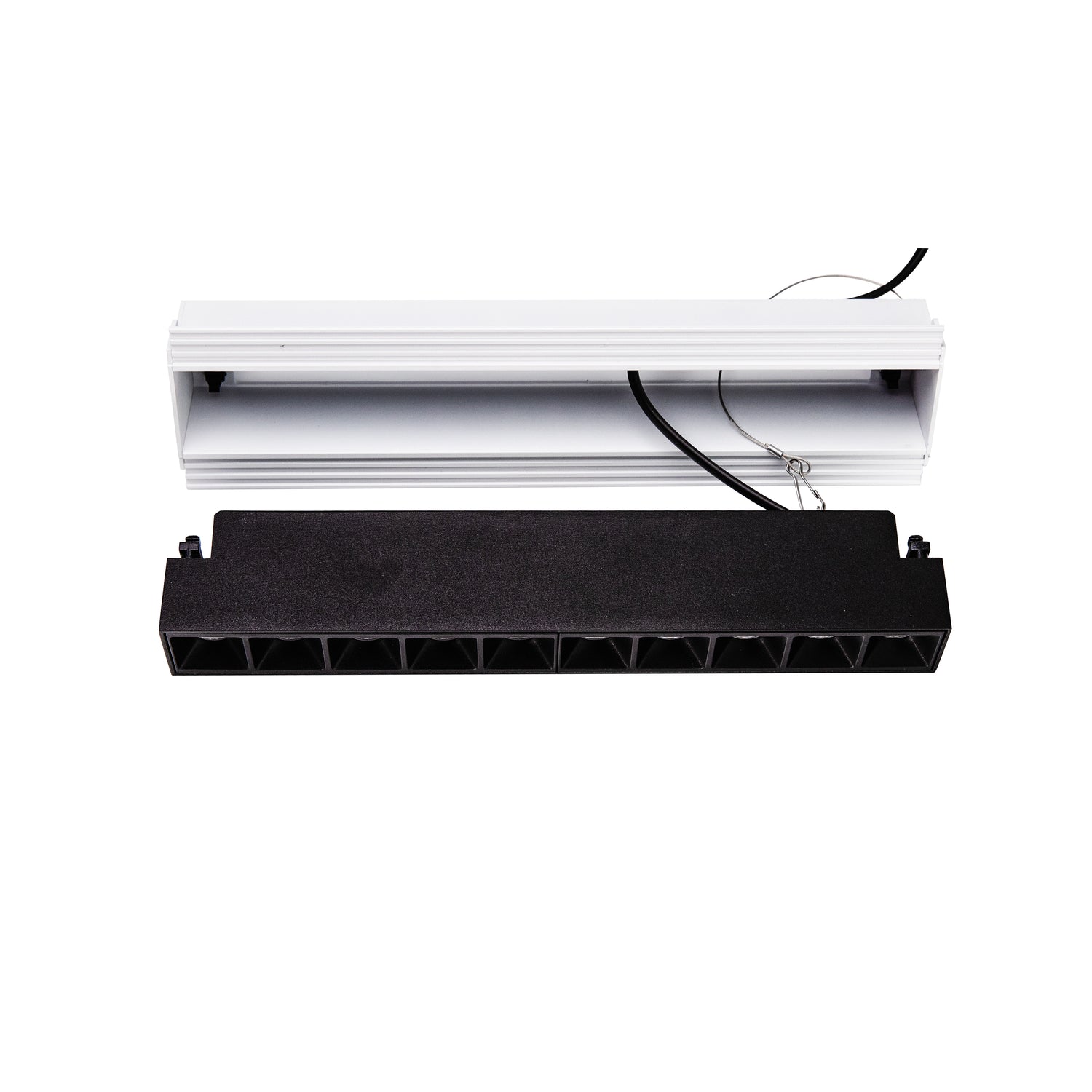

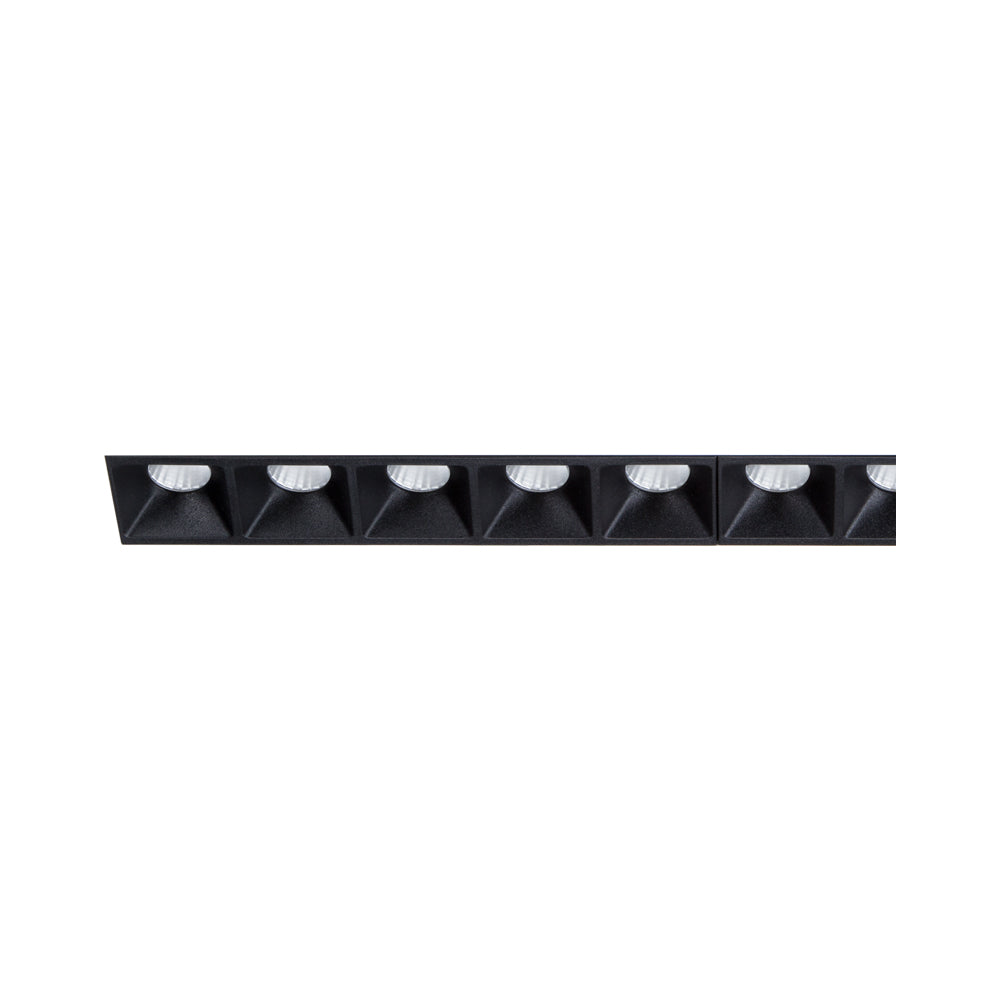

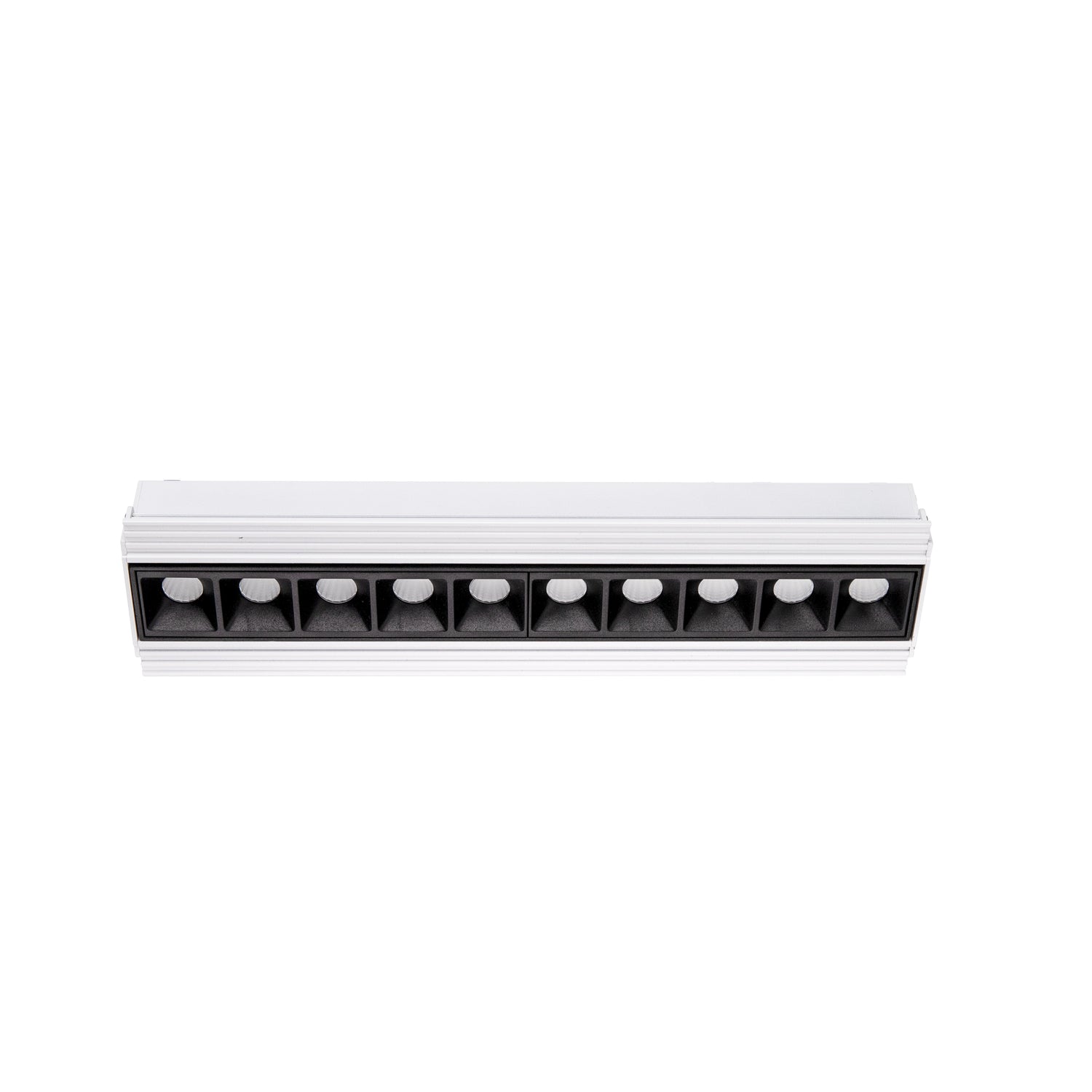

Archilight Lattice Trimless 10 Ac Dimmable Downlight 20W
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
SKU:
KC-010180B10-15D-2700K-B-TDM
Log in to see price
Trade pricing & online ordering for account holders
|
Notify me when it's back in stock
Archilight Lattice Trimless 10 Ac Dimmable Downlight 20W
Log in to see priceThe Lattice series is a stylish, compact, and near-invisible linear downlight series. Its power efficient design with high colour rendering index (CRI>90) and low UGR rating (UGR<19) makes it a top quality light with low glare to provide high visual comfort, whilst displaying the true colours of an area beautifully. With a unique look, the Lattice series is for the modern interior that wants to add that subtle wow factor, without being too extravagant.
-
BrandArchilight
-
SeriesArchilight Lattice Trimless 10 AC Dimmable Series
-
Power Rating20 Watt
-
Standards MetCB,CCC,CE,SAA,TUV
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length27.35 cm
-
Width7 cm
-
Height5.65 cm
-
Weight0.8 kg
::specification::
Frequently Asked Questions
What type of spaces is the Archilight Lattice Trimless 10 AC Dimmable Downlight 20W best suited for?
This downlight is designed for modern interior spaces that need a compact, low-visibility lighting solution with a refined architectural look. Its low glare rating of UGR90 make it well suited to commercial and design-focused indoor environments where visual comfort and accurate colour appearance matter.
What are the main differences between the variants in this Lattice Trimless 10 family?
The family varies by colour temperature, beam angle, and finish colour. Available CCT options are 2700K, 3000K, 4000K, and 5000K, beam angles are 15, 30, and 45 degrees, and finishes are black or white. Core specifications such as 20W power, 1700 lm output, CRI 90, dimmable operation, and included driver remain consistent across the family.
How do the beam angle options affect light distribution?
This family is offered in 15 degree, 30 degree, and 45 degree beam angles. A 15 degree beam gives a narrower, more focused effect, while 30 degree and 45 degree options provide progressively broader light spread. This makes it easier to choose between accent-focused and more general illumination needs within the same product family.
What colour temperature options are available in this product range?
The Archilight Lattice Trimless 10 AC Dimmable Downlight 20W family is available in 2700K, 3000K, 4000K, and 5000K versions. This gives buyers a choice from warmer light tones through to cooler, brighter-looking white light, depending on the feel and purpose of the space.
Is this downlight dimmable and does it include a driver?
Yes, the full parent family is dimmable and includes a driver. Those features are consistent across all listed variants, so they do not depend on beam angle, finish, or colour temperature selection.
What performance can I expect from this downlight family?
All variants in this family are rated at 20W and produce 1700 lumens. They also have a colour rendering index of 90, giving strong colour accuracy, and are designed for low glare performance with a stated UGR below 19.
What are the size and cut-out considerations for this product family?

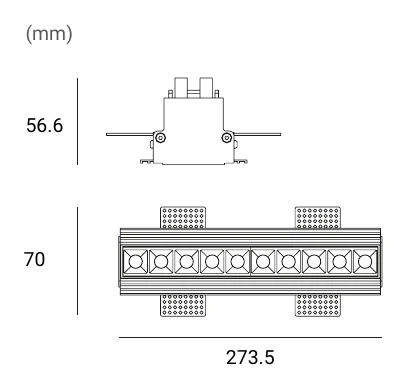

The parent model dimensions are 273.5 mm long, 70 mm wide, and 56.5 mm high, with a product weight of 0.8 kg. Across the listed variants, the cut-out range is shown as 70 mm minimum to 278 mm maximum, so buyers can compare that requirement against their project opening size.
What is the expected service life and warranty for this downlight range?
This family is rated for a 50,000 hour lifetime and is backed by a 5 year warranty. Those figures are consistent across all listed child variants, making them standard range-level specifications rather than variant-specific differences.
