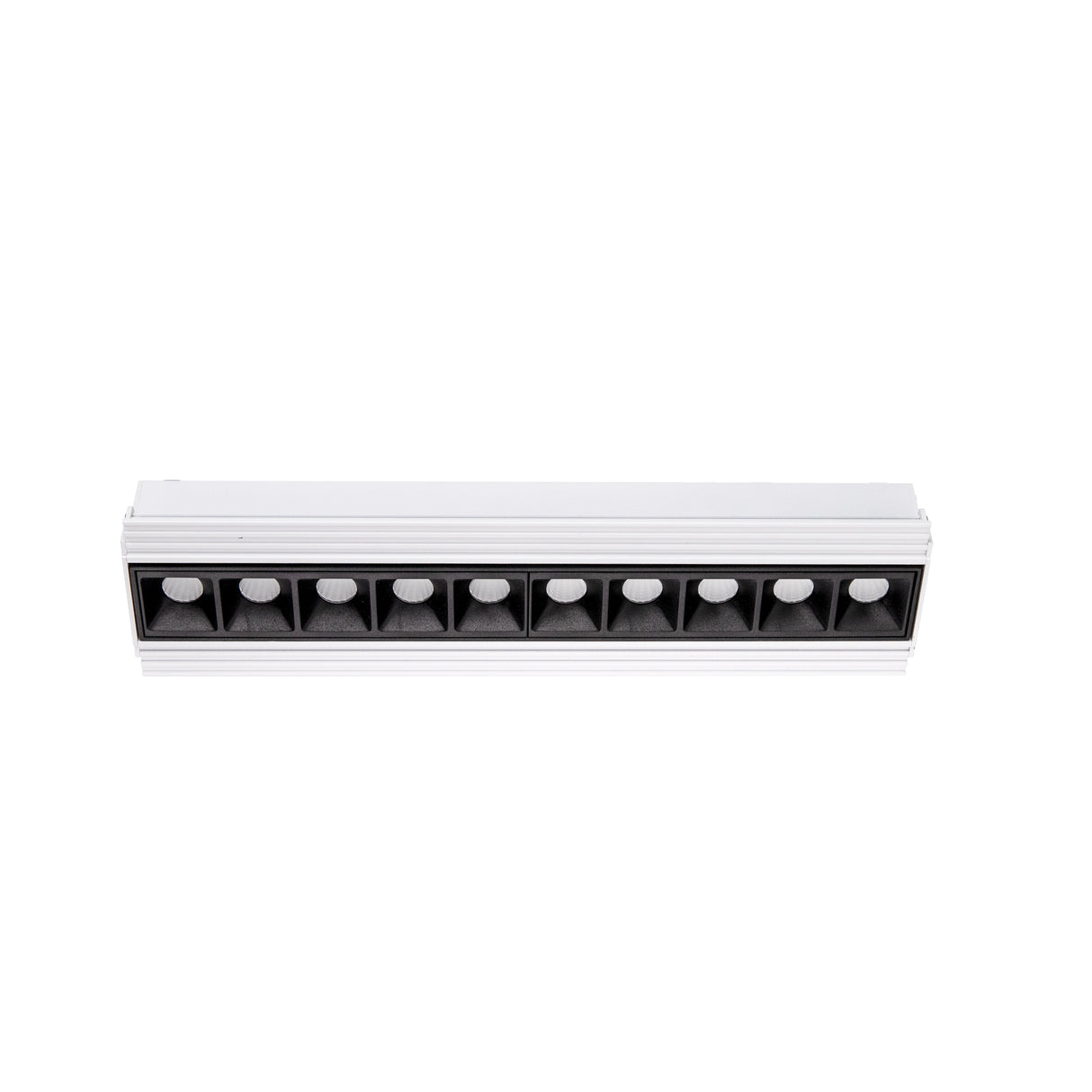

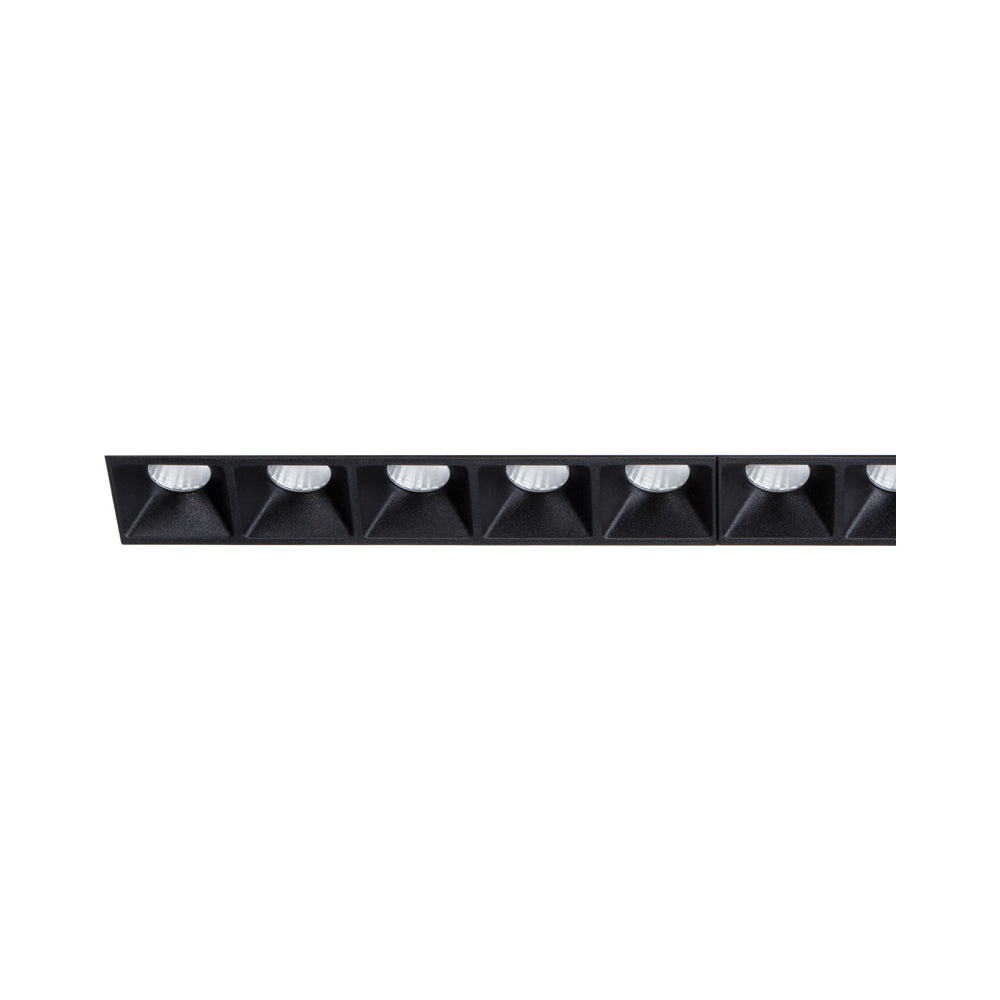

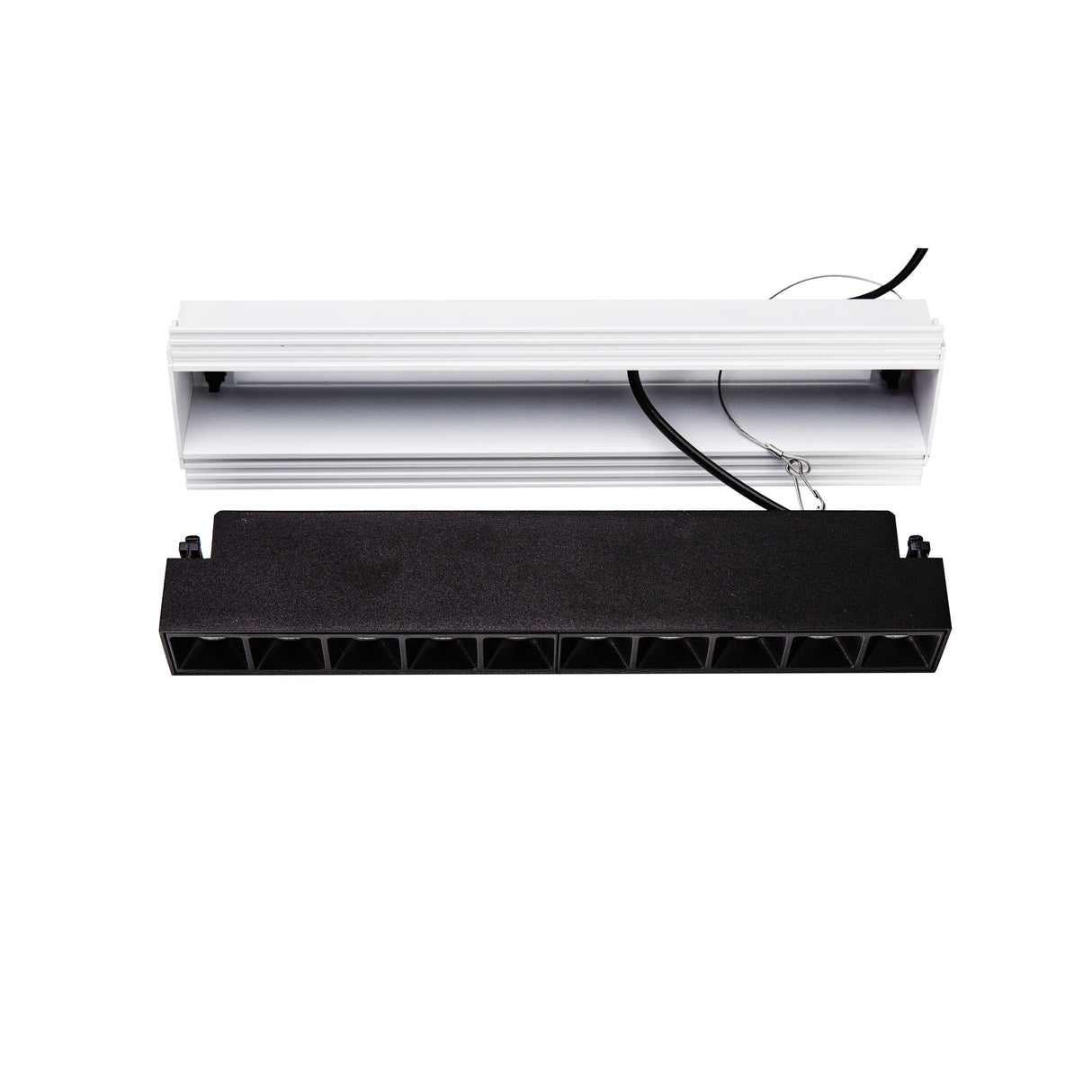

Archilight Lattice Trimless 10 Downlight 20W
Log in to see priceOverview
Recessed Downlight
Specifications
Archilight Lattice Trimless 10 Downlight 20WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180B10-15D-2700K-B | 15° | Warm White 2700K | Black |
| KC-010180B10-15D-2700K-W | 15° | Warm White 2700K | White |
| KC-010180B10-15D-3000K-B | 15° | Warm White 3000K | Black |
| KC-010180B10-15D-3000K-W | 15° | Warm White 3000K | White |
| KC-010180B10-15D-4000K-B | 15° | Natural White 4000K | Black |
| KC-010180B10-15D-4000K-W | 15° | Natural White 4000K | White |
| KC-010180B10-15D-5000K-B | 15° | Cool White 5000K | Black |
| KC-010180B10-15D-5000K-W | 15° | Cool White 5000K | White |
| KC-010180B10-30D-2700K-B | 30° | Warm White 2700K | Black |
| KC-010180B10-30D-2700K-W | 30° | Warm White 2700K | White |
| KC-010180B10-30D-3000K-B | 30° | Warm White 3000K | Black |
| KC-010180B10-30D-3000K-W | 30° | Warm White 3000K | White |
| KC-010180B10-30D-4000K-B | 30° | Natural White 4000K | Black |
| KC-010180B10-30D-4000K-W | 30° | Natural White 4000K | White |
| KC-010180B10-30D-5000K-B | 30° | Cool White 5000K | Black |
| KC-010180B10-30D-5000K-W | 30° | Cool White 5000K | White |
| KC-010180B10-45D-2700K-B | 45° | Warm White 2700K | Black |
| KC-010180B10-45D-2700K-W | 45° | Warm White 2700K | White |
| KC-010180B10-45D-3000K-B | 45° | Warm White 3000K | Black |
| KC-010180B10-45D-3000K-W | 45° | Warm White 3000K | White |
| KC-010180B10-45D-4000K-B | 45° | Natural White 4000K | Black |
| KC-010180B10-45D-4000K-W | 45° | Natural White 4000K | White |
| KC-010180B10-45D-5000K-B | 45° | Cool White 5000K | Black |
| KC-010180B10-45D-5000K-W | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 20W
- Brightness
- 1220lm
- Efficacy
- ≥61 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

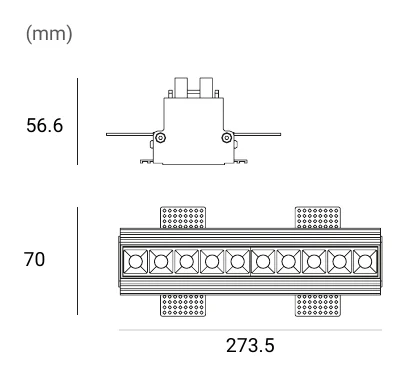

Technical drawings
Downloads
Datasheet1
FAQ
What type of spaces is the Archilight Lattice Trimless 10 Downlight 20W best suited for?
This product is designed for interior recessed downlight applications where a clean, low-visibility look is important. Its trimless linear design suits modern commercial and architectural spaces that want subtle visual impact with low glare and high visual comfort.
What beam angle options are available in this product family?
The Lattice Trimless 10 Downlight 20W family is available with 15 degree, 30 degree, and 45 degree beam angles. That gives buyers the ability to choose a narrower or wider light distribution depending on the project requirement, while keeping the same 20W platform.
What colour temperature options are available?
Across the family, this model is offered in 2700K, 3000K, 4000K, and 5000K variants. These options let specifiers choose from warmer to cooler light output without changing the product family or wattage.
What finish colours can I choose from?
This parent family is available in black and white finishes. Both finish options are offered across the listed beam angle and colour temperature variants.
Is the Archilight Lattice Trimless 10 Downlight 20W dimmable, and is a driver included?
The product family is listed as driver included, so a driver is supplied with the fitting. It is also marked as dimmable optional, which means dimming capability is available depending on the selected configuration or compatible control setup.
What are the main performance specifications of this downlight?
This family uses 20W of power and delivers 1700 lumens across the listed child variants. It also has CRI 90, which supports strong colour rendering, and a rated lifetime of 50,000 hours backed by a 5 year warranty.
What size cut-out is required for this downlight family?
The listed variants show a cut-out range of 70 mm minimum to 278 mm maximum. The product itself is 273.5 mm long, 70 mm wide, and 56.5 mm high, so buyers can check ceiling space and opening dimensions against those measurements.
Does this downlight focus on visual comfort as well as output?
Yes. The product description states that the Lattice series combines a high CRI greater than 90 with a low UGR below 19, which helps reduce glare while maintaining strong colour quality. That makes it suitable for projects where both appearance and occupant comfort matter.
