Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

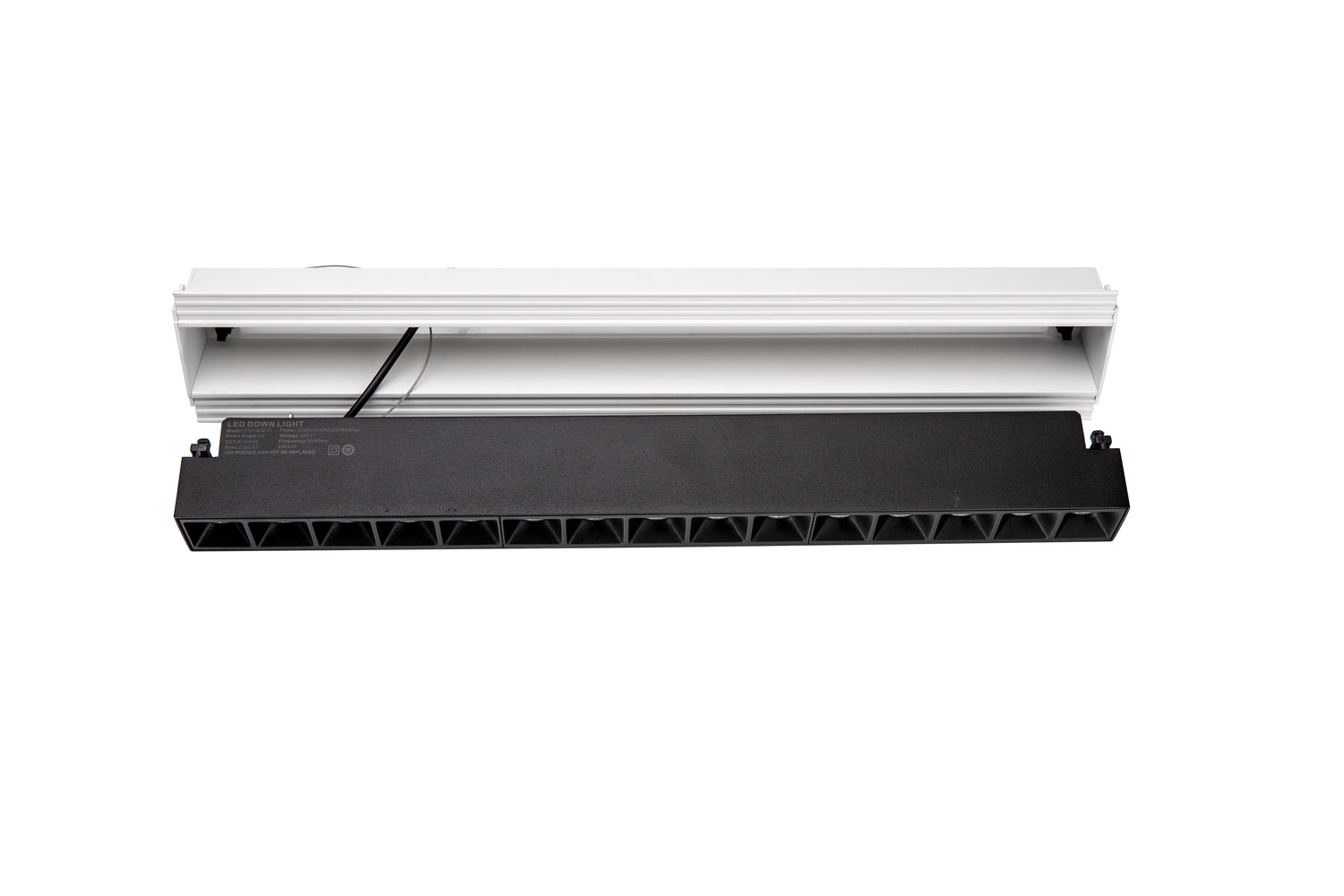

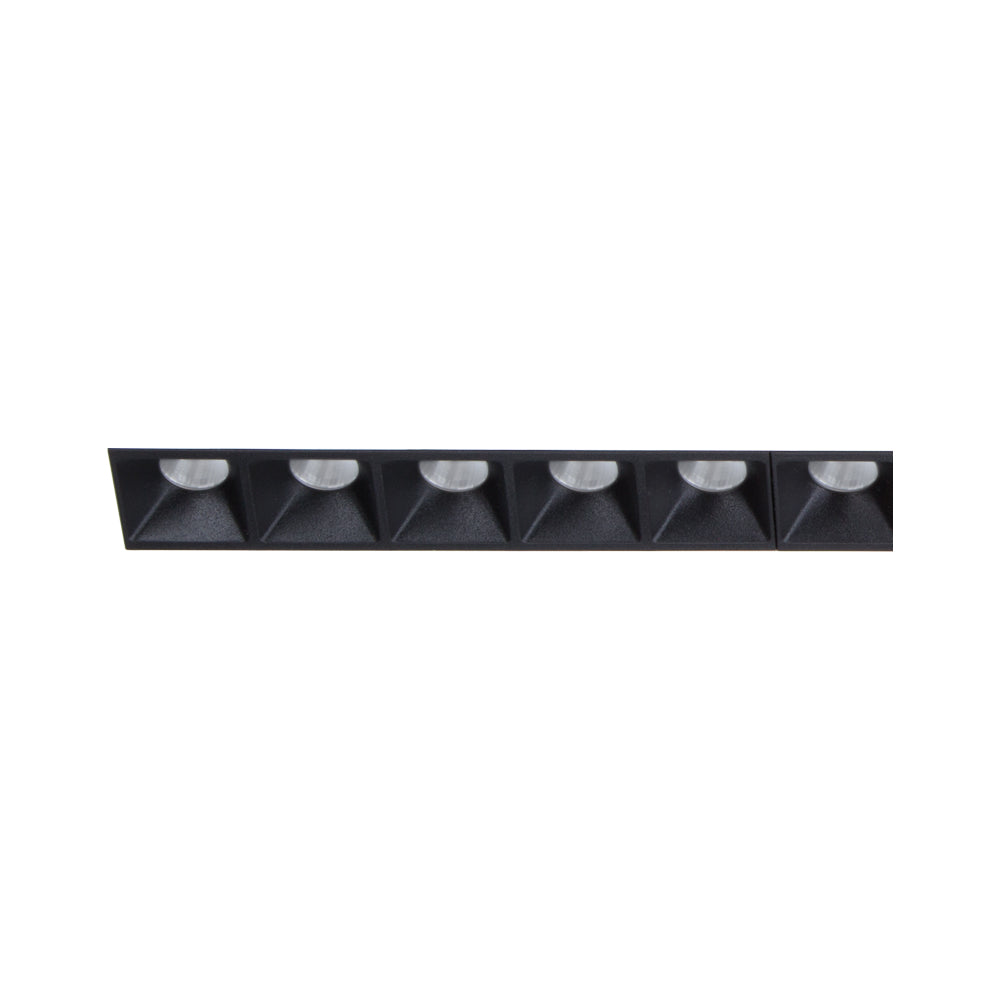

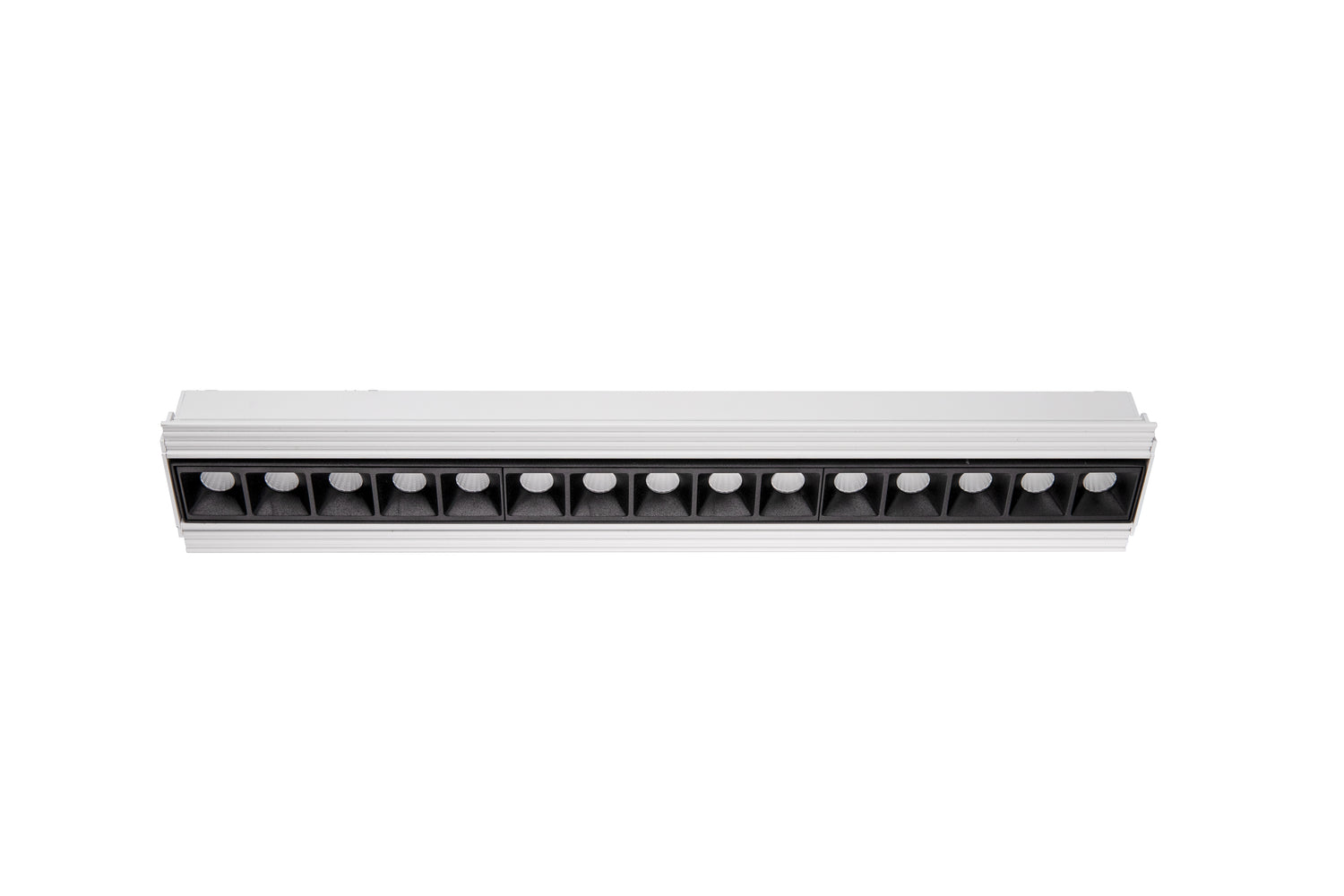

Archilight Lattice Trimless 15 Ac Dimmable Downlight 30W
Log in to see priceOverview
Recessed Ac Dimmable Downlight
Specifications
Archilight Lattice Trimless 15 Ac Dimmable Downlight 30WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180B15-15D-4000K-W-TDM | 15° | Natural White 4000K | White |
| KC-010180B15-15D-5000K-B-TDM | 15° | Cool White 5000K | Black |
| KC-010180B15-15D-5000K-W-TDM | 15° | Cool White 5000K | White |
| KC-010180B15-30D-2700K-B-TDM | 30° | Warm White 2700K | Black |
| KC-010180B15-30D-2700K-W-TDM | 30° | Warm White 2700K | White |
| KC-010180B15-30D-3000K-B-TDM | 30° | Warm White 3000K | Black |
| KC-010180B15-30D-3000K-W-TDM | 30° | Warm White 3000K | White |
| KC-010180B15-30D-4000K-B-TDM | 30° | Natural White 4000K | Black |
| KC-010180B15-30D-4000K-W-TDM | 30° | Natural White 4000K | White |
| KC-010180B15-30D-5000K-B-TDM | 30° | Cool White 5000K | Black |
| KC-010180B15-30D-5000K-W-TDM | 30° | Cool White 5000K | White |
| KC-010180B15-45D-2700K-B-TDM | 45° | Warm White 2700K | Black |
| KC-010180B15-45D-2700K-W-TDM | 45° | Warm White 2700K | White |
| KC-010180B15-45D-3000K-B-TDM | 45° | Warm White 3000K | Black |
| KC-010180B15-45D-3000K-W-TDM | 45° | Warm White 3000K | White |
| KC-010180B15-45D-4000K-B-TDM | 45° | Natural White 4000K | Black |
| KC-010180B15-45D-4000K-W-TDM | 45° | Natural White 4000K | White |
| KC-010180B15-45D-5000K-B-TDM | 45° | Cool White 5000K | Black |
| KC-010180B15-45D-5000K-W-TDM | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 30W
- Brightness
- 2550 lm
- Efficacy
- ≥75 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

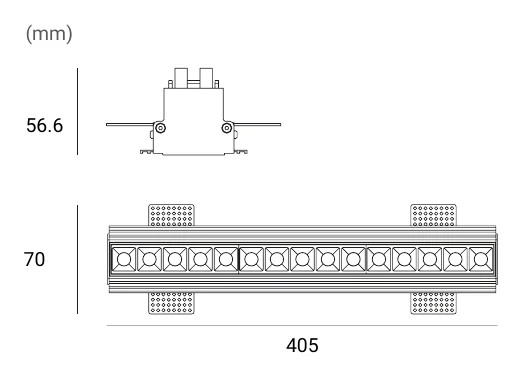

Technical drawings
Downloads
Datasheet1
Archilight Lattice Trimless 15 Ac Dimmable Downlight 30W datasheetLATTICE_TRIMLESS_15_AC_DIMMABLE.pdf
PDF
Download
FAQ
What type of product is the Archilight Lattice Trimless 15 AC Dimmable Downlight 30W?
This is a trimless linear recessed LED downlight designed for modern interior applications where a subtle, near-invisible look is preferred. It is part of Archilight's Lattice series, which focuses on compact styling, low glare, and strong visual comfort.
What variant options are available in this Lattice Trimless 15 family?
Across this parent family, buyers can choose beam angles of 15, 30, or 45 degrees. The range is also available in 2700K, 3000K, 4000K, and 5000K colour temperatures, with black or white finish options.
Is the Archilight Lattice Trimless 15 downlight dimmable?
Yes, this product family is dimmable and includes a driver. That makes it suitable for projects where light output control is needed without changing to a different product series.
How bright is this 30W downlight?
The child variants in this family are listed at 2550 lumens with a 30W power rating. This gives a consistent output level across the available beam angle, colour temperature, and finish combinations shown for the family.
Is this downlight suitable for spaces where glare control matters?
Yes, the Lattice series is positioned for low-glare environments and is described with a UGR below 19. Combined with CRI over 90, it is intended to provide visual comfort while still rendering colours accurately.
What are the key size and cut-out dimensions for this product family?
The parent model is listed as 405 mm long, 70 mm wide, and 56.5 mm high. The variants shown use a cut-out range of 70 mm to 410 mm, which helps define the recess size this family is designed around.
How long is this downlight expected to last, and what warranty is provided?
This family is rated for a 50,000-hour lifetime and comes with a 5-year warranty. Those specs are consistent across the child variants provided for this parent model.
