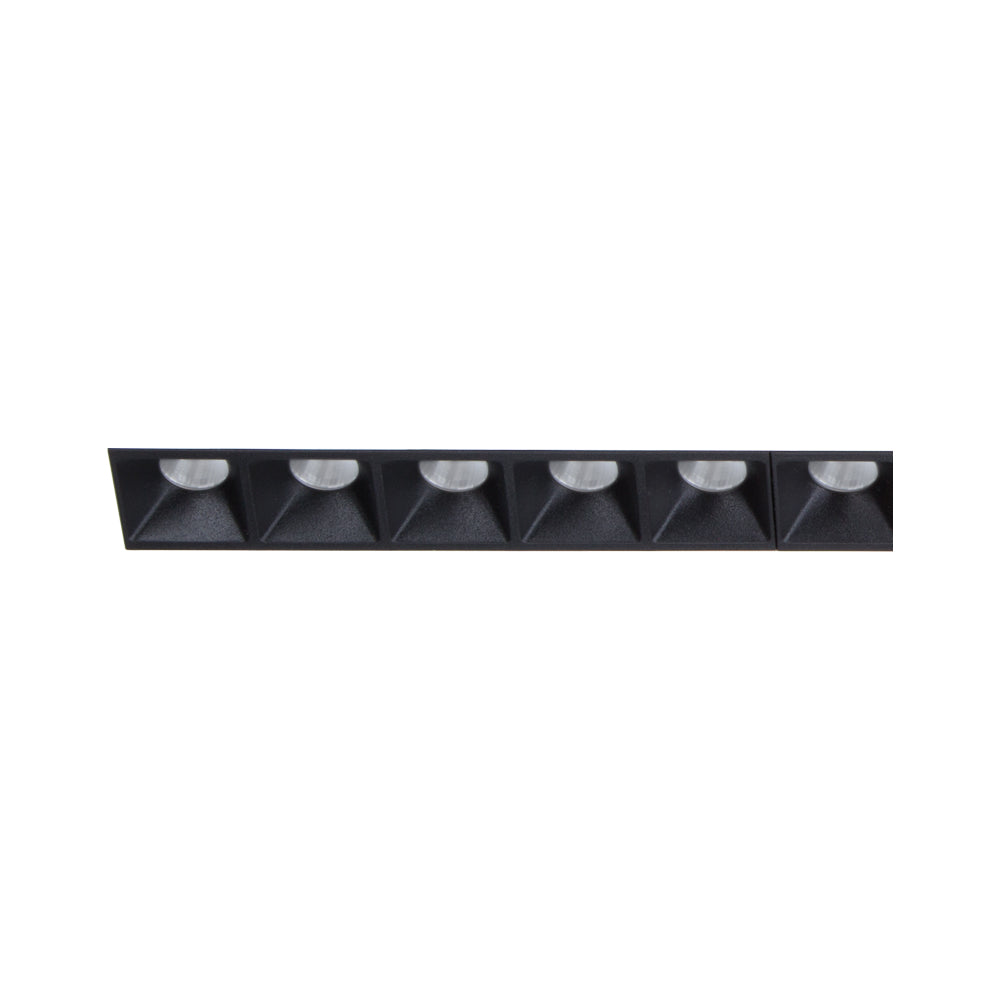

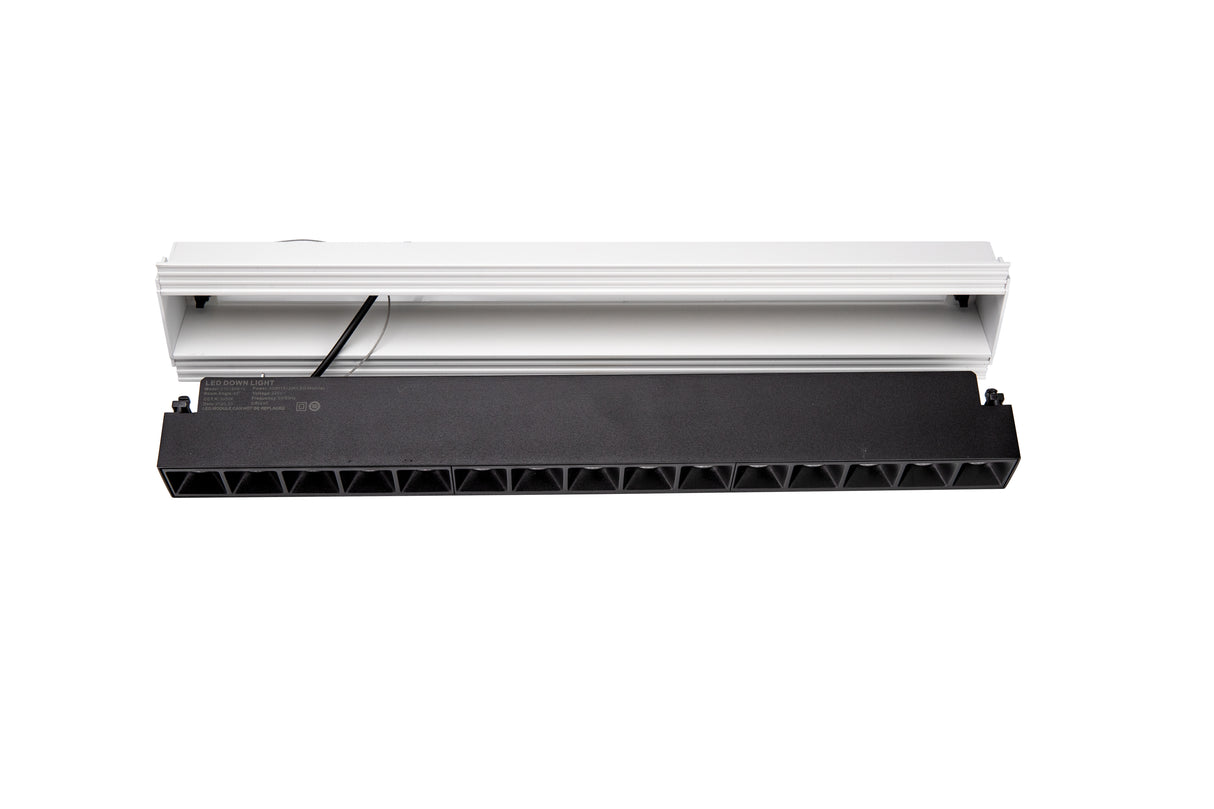

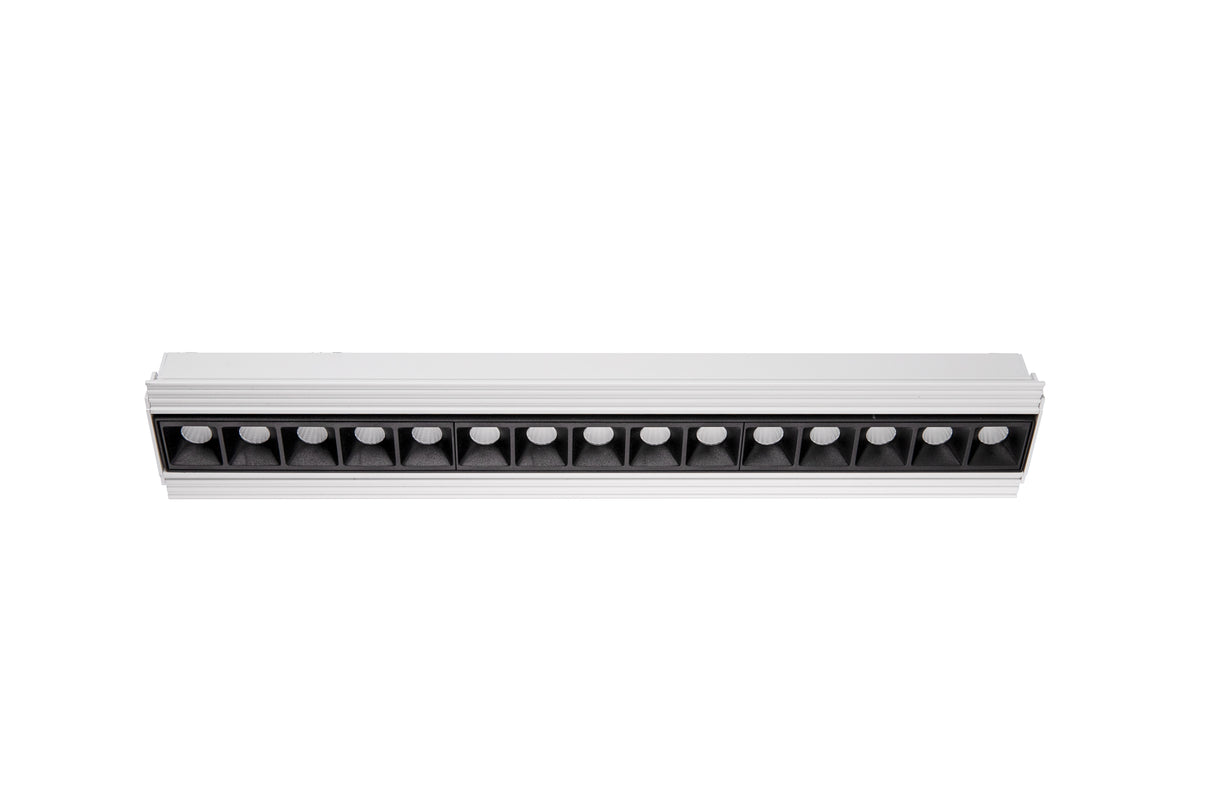

Archilight Lattice Trimless 15 Downlight 30W
Log in to see priceOverview
Recessed Downlight
Specifications
Archilight Lattice Trimless 15 Downlight 30WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180B15-15D-5000K-B | 15° | Cool White 5000K | Black |
| KC-010180B15-15D-5000K-W | 15° | Cool White 5000K | White |
| KC-010180B15-30D-2700K-B | 30° | Warm White 2700K | Black |
| KC-010180B15-30D-2700K-W | 30° | Warm White 2700K | White |
| KC-010180B15-30D-3000K-B | 30° | Warm White 3000K | Black |
| KC-010180B15-30D-3000K-W | 30° | Warm White 3000K | White |
| KC-010180B15-30D-4000K-B | 30° | Natural White 4000K | Black |
| KC-010180B15-30D-4000K-W | 30° | Natural White 4000K | White |
| KC-010180B15-30D-5000K-B | 30° | Cool White 5000K | Black |
| KC-010180B15-30D-5000K-W | 30° | Cool White 5000K | White |
| KC-010180B15-45D-2700K-B | 45° | Warm White 2700K | Black |
| KC-010180B15-45D-2700K-W | 45° | Warm White 2700K | White |
| KC-010180B15-45D-3000K-B | 45° | Warm White 3000K | Black |
| KC-010180B15-45D-3000K-W | 45° | Warm White 3000K | White |
| KC-010180B15-45D-4000K-B | 45° | Natural White 4000K | Black |
| KC-010180B15-45D-4000K-W | 45° | Natural White 4000K | White |
| KC-010180B15-45D-5000K-B | 45° | Cool White 5000K | Black |
| KC-010180B15-45D-5000K-W | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 30W
- Brightness
- 2250 lm
- Efficacy
- ≥75 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

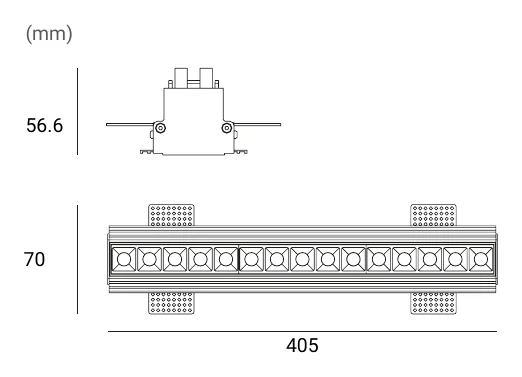

Technical drawings
Downloads
Datasheet1
FAQ
What type of spaces is the Archilight Lattice Trimless 15 Downlight 30W suited for?
This trimless linear downlight is designed for modern interior applications where a clean, near-invisible recessed look is important. Its low glare rating of UGR90 make it suitable for commercial and interior spaces that need both visual comfort and strong colour quality.
What beam angle options are available across the Lattice Trimless 15 family?
This product family is offered in 15 degree, 30 degree, and 45 degree beam angles. That gives buyers a choice between narrower and wider light distribution while staying within the same 30W trimless downlight platform.
What colour temperature options are available for this parent product?
Across the family, this model is available in 2700K, 3000K, 4000K, and 5000K variants. This allows the same fixture style to be specified for warmer or cooler lighting schemes depending on the project requirement.
Are there finish options available for the Archilight Lattice Trimless 15 Downlight 30W?
Yes, the family includes both black and white finish options. These finish choices are available across the listed beam angle and colour temperature variants, so the visual appearance can be aligned with the interior design.
What are the main performance specifications of this downlight?
This model is rated at 30W and the listed variants deliver 2550 lumens. It has a CRI of 90, a rated lifetime of 50,000 hours, and a 5-year warranty, making it a strong option for projects that need consistent light quality and long service life.
Is a driver included, and is dimming supported?
The family data shows that a driver is included with the product. Dimming is optional, so buyers should confirm the required dimming setup at specification stage if dimming control is needed for the project.
What are the physical dimensions and cut-out details for this product family?
The parent model dimensions are 405 mm long, 70 mm wide, and 56.5 mm high, with a listed weight of 1 kg. The child variant data shows a cut-out range of 70 mm minimum to 410 mm maximum across the family.
