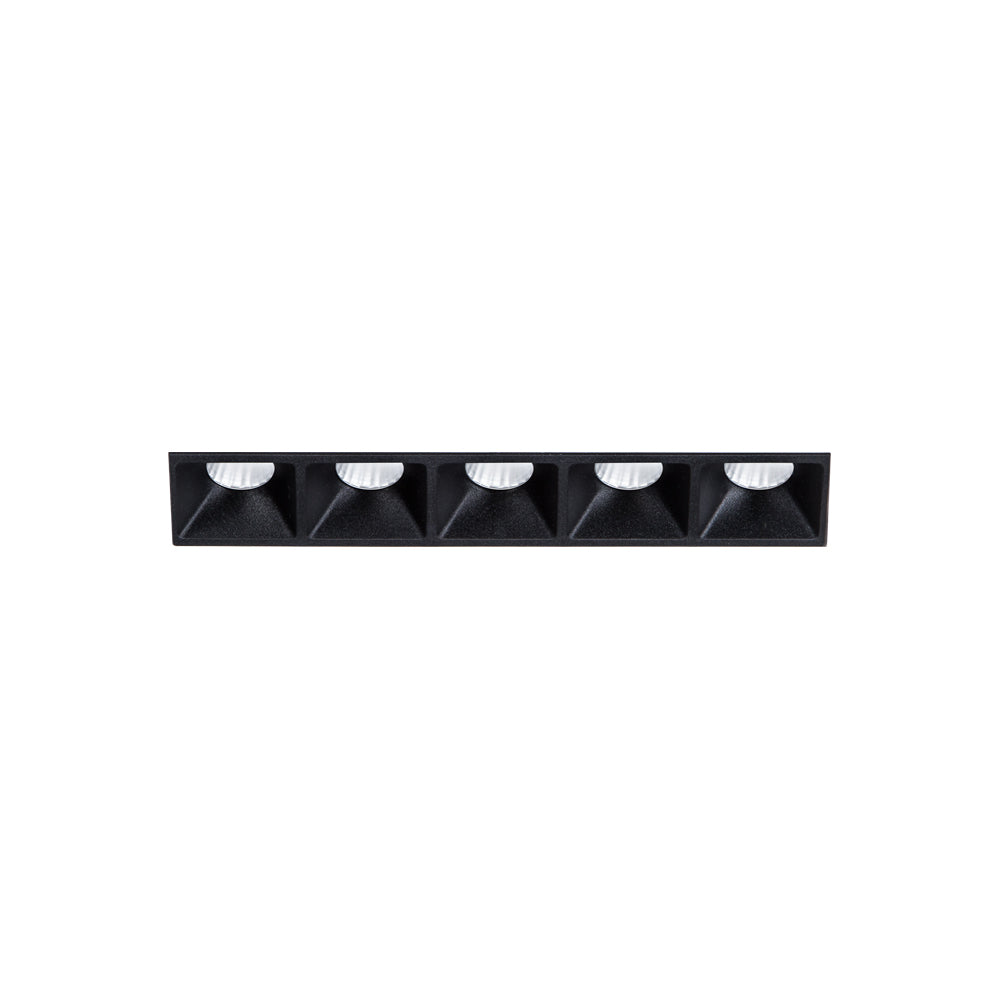

Archilight Lattice Trimless 5 Ac Dimmable Downlight 10W
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
13% off
SKU:
KC-010180B05-15D-2700K-B-TDM
Log in to see price
Trade pricing & online ordering for account holders
|
Notify me when it's back in stock
Archilight Lattice Trimless 5 Ac Dimmable Downlight 10W
Log in to see priceThe Lattice series is a stylish, compact, and near-invisible linear downlight series. Its power efficient design with high colour rendering index (CRI>90) and low UGR rating (UGR<19) makes it a top quality light with low glare to provide high visual comfort, whilst displaying the true colours of an area beautifully. With a unique look, the Lattice series is for the modern interior that wants to add that subtle wow factor, without being too extravagant.
-
BrandArchilight
-
SeriesArchilight Lattice Trimless 5 AC Dimmable Series
-
Power Rating10 Watt
-
Standards MetCB,CCC,CE,SAA,TUV
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length14.1 cm
-
Width7 cm
-
Height5.65 cm
-
Weight0.6 kg
::specification::
Frequently Asked Questions
What type of lighting effect does the Archilight Lattice Trimless 5 provide?
This product is a compact, trimless linear downlight designed for a clean, near-invisible look in modern interiors. The Lattice series is built to deliver high visual comfort with low glare, supported by a UGR rating below 19. It is intended for projects that want subtle architectural lighting rather than a bulky fitting.
What options are available across this Lattice Trimless 5 family?
Across the family, buyers can choose between 15 degree, 30 degree, and 45 degree beam angles, as well as 2700K, 3000K, 4000K, and 5000K colour temperatures. The range is also offered in black and white finishes. These differences let you match the fitting to the required ambience, beam spread, and interior style.
How bright is this downlight and what is its power rating?
All listed variants in this parent family use 10W and produce 850 lumens. That gives the range a consistent output level while allowing beam angle, colour temperature, and finish to vary. It is positioned as a power-efficient option for interior architectural lighting.
Is the Archilight Lattice Trimless 5 dimmable?
Yes, this parent model is dimmable across the family. The driver is also included, which supports specification for projects looking for a complete luminaire solution. Dimming makes it more flexible for hospitality, retail, residential, and other interior environments where lighting levels may need adjustment.
How does the beam angle affect the choice between variants?
The 15 degree options are the narrowest and are typically better for tighter accent effects, while 30 degree gives a more balanced spread and 45 degree offers the widest distribution in this family. The right choice depends on whether the goal is focused highlighting or broader illumination. Since output stays the same at 850 lumens, beam angle is one of the main differentiators in how the light is delivered.
What colour temperatures are available, and how should they be compared?
This family is available in 2700K, 3000K, 4000K, and 5000K versions. That gives buyers a range from warmer to cooler white light, depending on the visual tone required for the space. Because all variants maintain CRI 90, the family is designed to support strong colour appearance across the available CCT options.
Is this downlight suitable for projects that need strong colour rendering and long service life?
Yes, the family is specified with CRI 90 and a rated lifetime of 50,000 hours. It also carries a 5-year warranty, which makes it relevant for commercial and design-led interior projects that prioritize both visual quality and durability. These specifications are consistent across the variants shown.

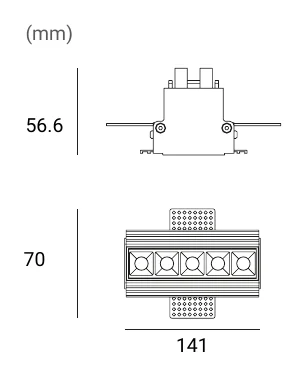

What are the key physical dimensions and cut-out values for this family?
The parent model dimensions are 141 mm long, 70 mm wide, and 56.5 mm high, with a listed weight of 0.6 kg. Across the child variants provided, the cut-out values are shown as 70 mm minimum and 145 mm maximum. These shared dimensions help keep specification consistent while other options such as beam angle, CCT, and finish change.
