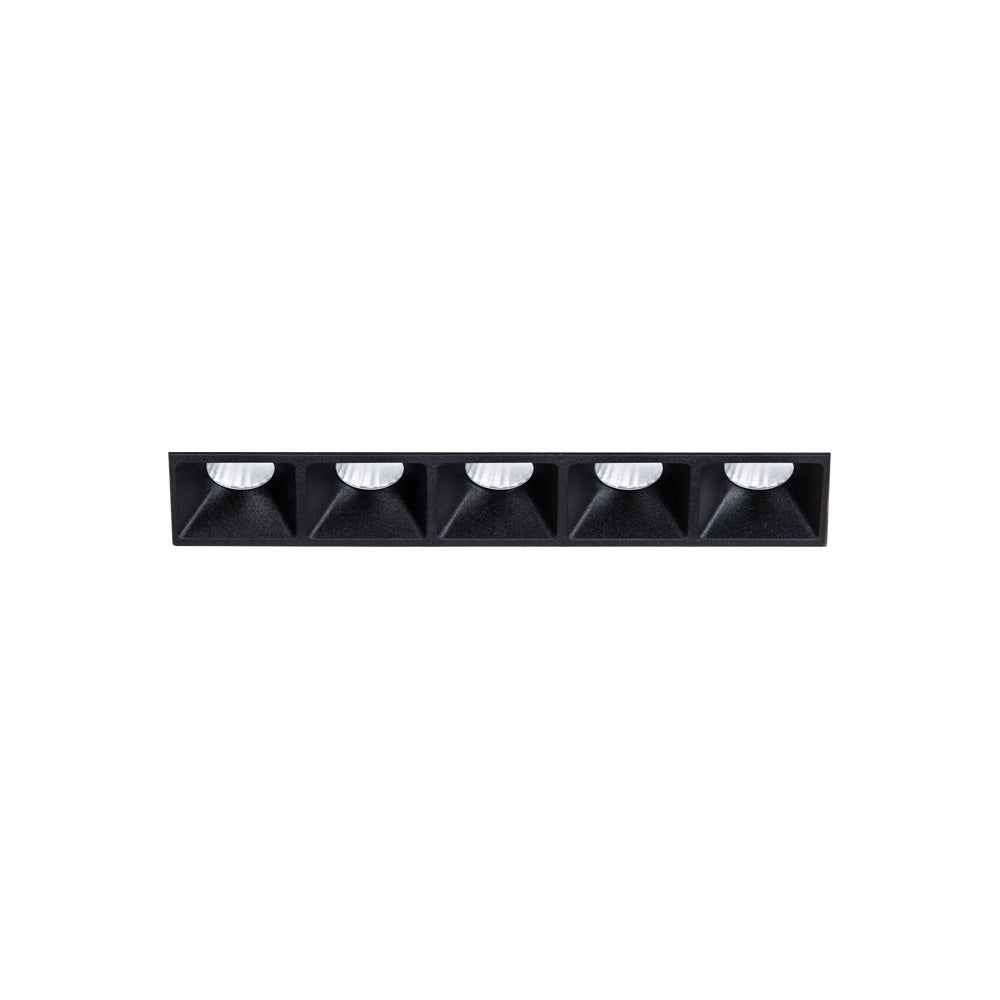

Archilight Lattice Trimless 5 Downlight 10W
Log in to see priceOverview
Recessed Downlight
Specifications
Archilight Lattice Trimless 5 Downlight 10WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010180B05-15D-4000K-B | 15° | Natural White 4000K | Black |
| KC-010180B05-15D-4000K-W | 15° | Natural White 4000K | White |
| KC-010180B05-15D-5000K-B | 15° | Cool White 5000K | Black |
| KC-010180B05-15D-5000K-W | 15° | Cool White 5000K | White |
| KC-010180B05-30D-2700K-B | 30° | Warm White 2700K | Black |
| KC-010180B05-30D-2700K-W | 30° | Warm White 2700K | White |
| KC-010180B05-30D-3000K-B | 30° | Warm White 3000K | Black |
| KC-010180B05-30D-3000K-W | 30° | Warm White 3000K | White |
| KC-010180B05-30D-4000K-B | 30° | Natural White 4000K | Black |
| KC-010180B05-30D-4000K-W | 30° | Natural White 4000K | White |
| KC-010180B05-30D-5000K-B | 30° | Cool White 5000K | Black |
| KC-010180B05-30D-5000K-W | 30° | Cool White 5000K | White |
| KC-010180B05-45D-2700K-B | 45° | Warm White 2700K | Black |
| KC-010180B05-45D-2700K-W | 45° | Warm White 2700K | White |
| KC-010180B05-45D-3000K-B | 45° | Warm White 3000K | Black |
| KC-010180B05-45D-3000K-W | 45° | Warm White 3000K | White |
| KC-010180B05-45D-4000K-B | 45° | Natural White 4000K | Black |
| KC-010180B05-45D-4000K-W | 45° | Natural White 4000K | White |
| KC-010180B05-45D-5000K-B | 45° | Cool White 5000K | Black |
| KC-010180B05-45D-5000K-W | 45° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 10W
- Brightness
- 540 lm
- Efficacy
- ≥54 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

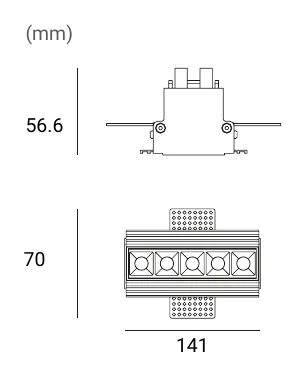

Technical drawings
Downloads
Datasheet1
FAQ
What are the main variant options available in the Archilight Lattice Trimless 5 Downlight 10W range?
This parent range offers choices in beam angle, colour temperature, and finish. Available beam angles are 15, 30, and 45 degrees, while colour temperatures include 2700K, 3000K, 4000K, and 5000K. The fixture is offered in both black and white finishes across the family.
What type of spaces is this downlight range designed for?
The Lattice Trimless 5 is suited to modern interior spaces where a compact, low-visibility recessed downlight is preferred. Its low glare rating of UGR90 make it appropriate for commercial and architectural environments where visual comfort and colour quality matter. The trimless linear design also supports a clean, minimal ceiling appearance.
How bright is the Archilight Lattice Trimless 5 Downlight 10W?
Each variant in this family delivers 850 lumens at 10W. That gives buyers a consistent output level across the range, regardless of beam angle, finish, or colour temperature. This makes it easier to choose the light distribution and appearance needed without changing the nominal lumen output.
How do the 15, 30, and 45 degree beam angles differ?
The beam angle changes how tightly or broadly the light is distributed. A 15 degree beam is more focused, while 30 and 45 degree options provide progressively wider spread. This allows the same product family to support more accent-focused or broader general lighting effects depending on the project requirement.
What colour temperature options are available in this family?
The range is available in 2700K, 3000K, 4000K, and 5000K. This gives specifiers flexibility to select a warmer or cooler appearance while keeping the same product platform, output, and core performance characteristics. All listed variants maintain CRI 90 and 850 lumen output.
What are the key product dimensions and cut-out range for this downlight family?
The parent product dimensions are 141 mm long, 70 mm wide, and 56.5 mm high, with a listed weight of 0.6 kg. Across the child variants, the cut-out range is shown as 70 mm minimum and 145 mm maximum. These values help confirm whether the family suits the intended recessed ceiling layout.
Is the driver included, and is dimming available?
Yes, the family is listed with driver included across all variants. Dimming is shown as optional, so the range supports dimmable selection where the project calls for it. This makes the product suitable for applications that need flexibility in lighting control without changing the fixture family.
What performance and durability specifications are consistent across the range?
All variants in this family are rated at 10W, CRI 90, and a 50,000 hour lifetime. The range also carries a 5 year warranty and uses 230V power input. These shared specifications make the family consistent for projects that need matching performance across multiple beam and CCT options.
