Archilight

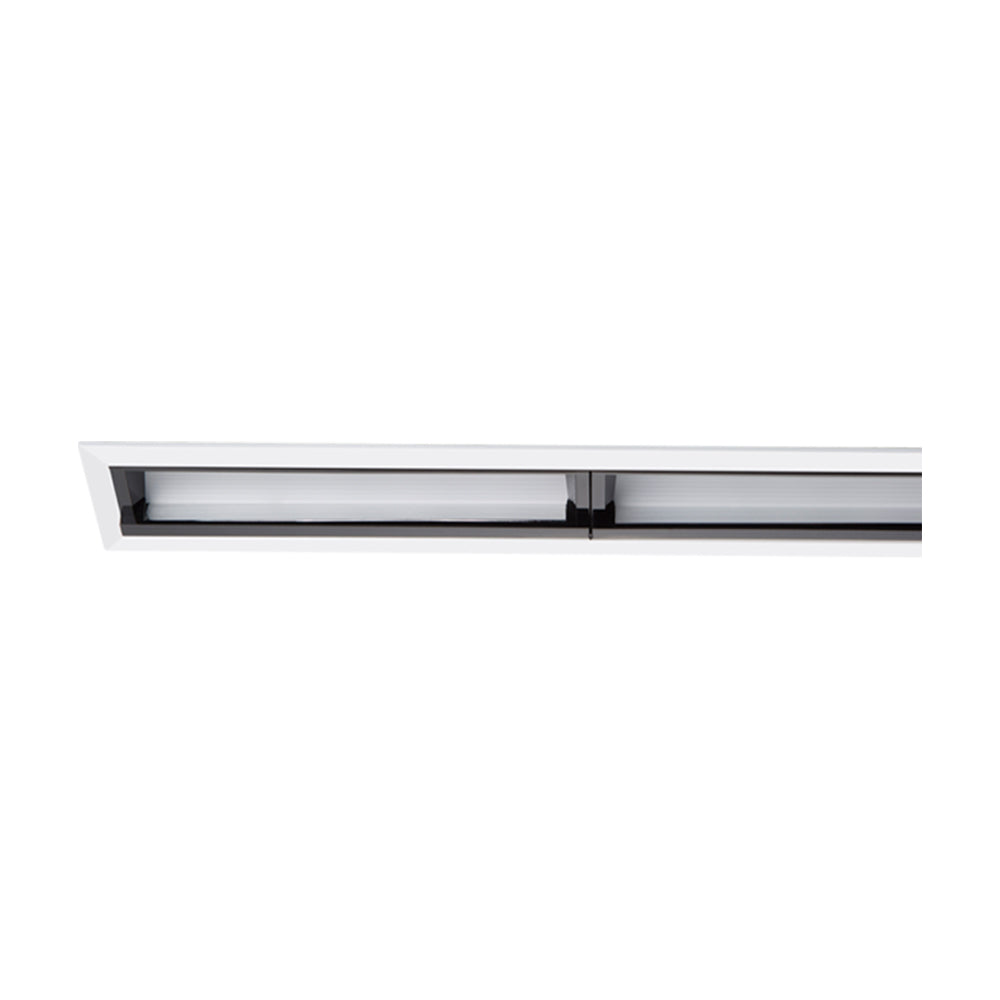

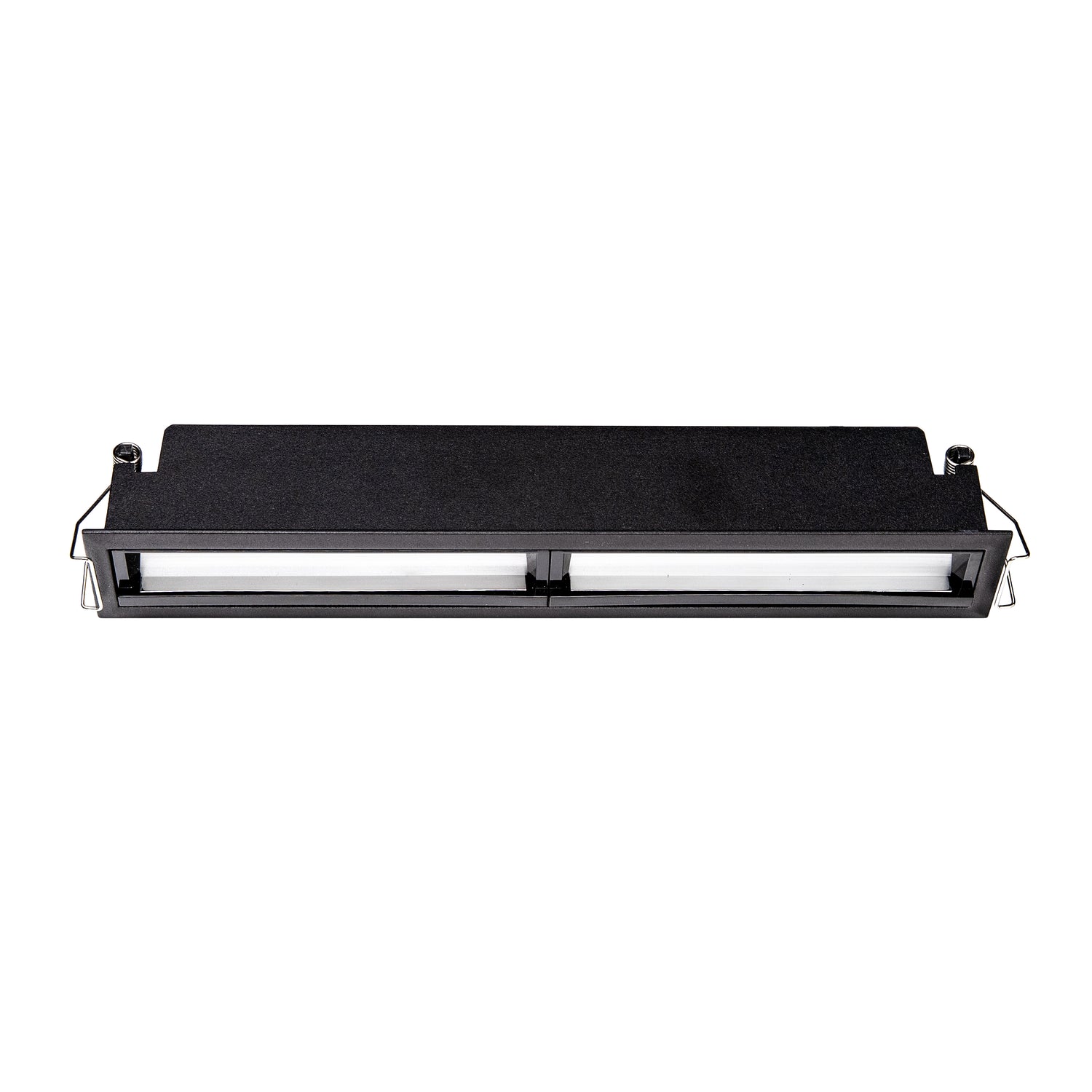

Archilight Lattice Wash 10 Ac Dimmable Downlight 20W

SKU KC-010180A10-2700K-B-TDM
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 10 variants

KC-010180A10-2700K-B-TDM
LED Colour
Finish Colour
10 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Overview

Dimmable Recessed Downlight

Specifications

Archilight Lattice Wash 10 Ac Dimmable Downlight 20WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourFinish Colour
KC-010180A10-4000K-B-TDMNatural White 4000KBlack
KC-010180A10-4000K-W-TDMNatural White 4000KWhite
KC-010180A10-5000K-B-TDMCool White 5000KBlack
KC-010180A10-5000K-W-TDMCool White 5000KWhite
KC-010180A10-RGBW-B-TDMRGB+WW MulticolourBlack
KC-010180A10-RGBW-W-TDMRGB+WW MulticolourWhite

Specifications

Input
230VAC
Power rating
20W
Beam angle
Wall Washer
Brightness
960 lm
Efficacy
≥48 lm/W
Colour render index(CRI)
≥90
Colour temperature
2700K / 3000K / 4000K / 5000K
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Dimmable (Dimmer Optional)
Tiltable
Fixed
Mounting
Recessed
Driver
Driver Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

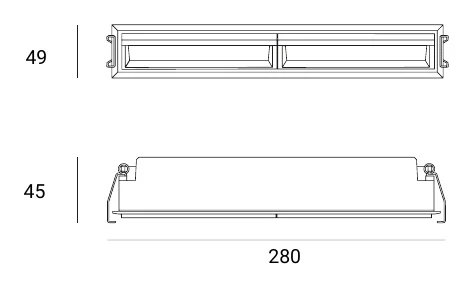

Archilight Lattice Wash 10 Ac Dimmable Downlight 20W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of lighting effect does the Archilight Lattice Wash 10 create?

The Archilight Lattice Wash 10 is a linear wall washer downlight designed to highlight vertical surfaces such as feature walls, artwork, and photos. Its near-invisible, compact form is intended for interiors that need a subtle architectural lighting effect rather than a standard general downlight beam.

What variant options are available in this product family?

This parent family is available in black and white finishes, with multiple light color options including 2700K, 3000K, 4000K, 5000K, and RGBW variants. Across the family, the beam style remains a wall washer and the rated power stays at 20W.

Is the Archilight Lattice Wash 10 dimmable?

Yes, this product family is dimmable. The parent model and all listed child variants are identified as dimmable, making the range suitable for projects that need adjustable light levels.

Does this downlight include a driver?

Yes, the driver is included across this family. The parent product data and all listed variants show the driver status as included, which helps simplify specification and product selection for commercial projects.

What are the main performance specifications for this downlight family?

The Lattice Wash 10 family is rated at 20W with 1200 lumens output on the listed variants and a CRI of 90 for strong color rendering. It also has a 50,000-hour lifetime and a 5-year warranty, supporting long-term interior lighting applications.

What cut-out size should buyers check for this product family?

The listed variants show a cut-out range of 37 mm minimum to 273 mm maximum. Buyers should check ceiling or joinery dimensions against the selected variant requirements before specifying the product for a project.

Is this product family suitable for modern interior commercial spaces?

Yes, this family is positioned for modern interior applications where a discreet architectural fitting is preferred. Its compact design, wall washing beam effect, and high CRI make it relevant for retail, hospitality, gallery-style, and other commercial interior settings where surface presentation matters.
