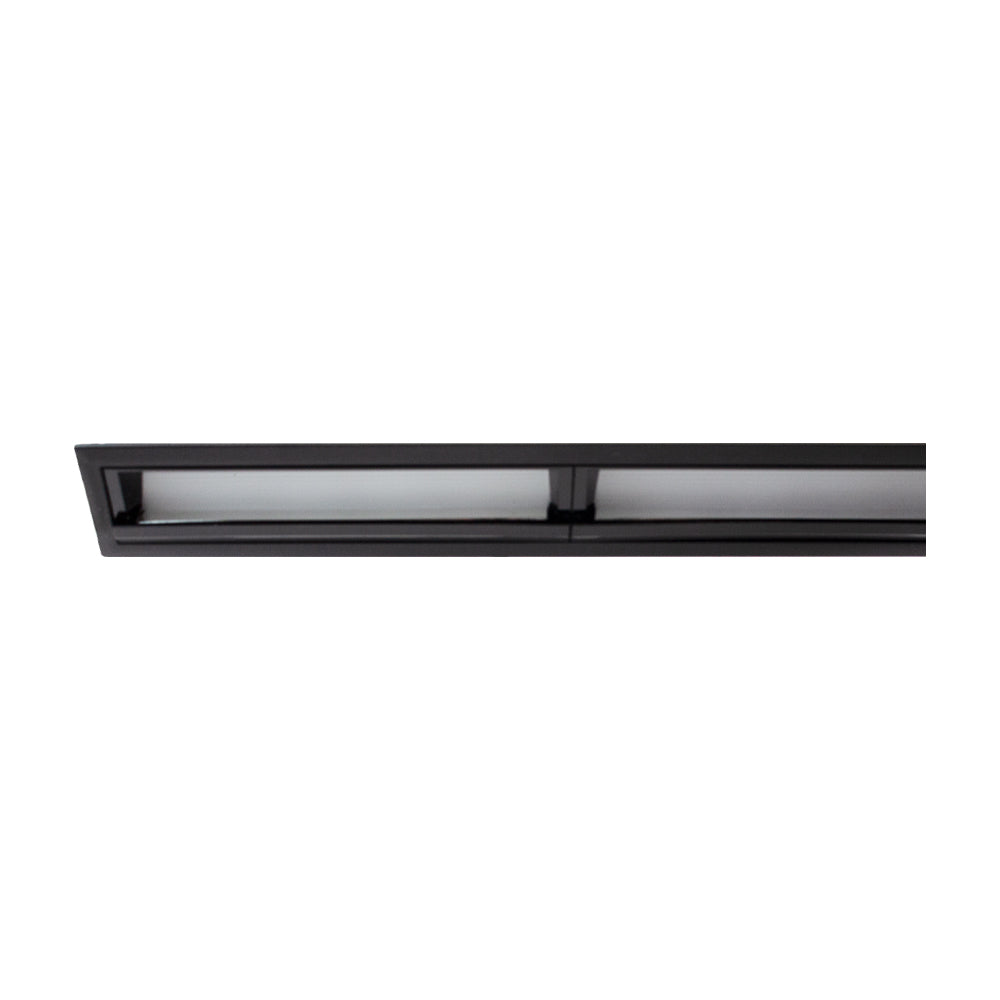

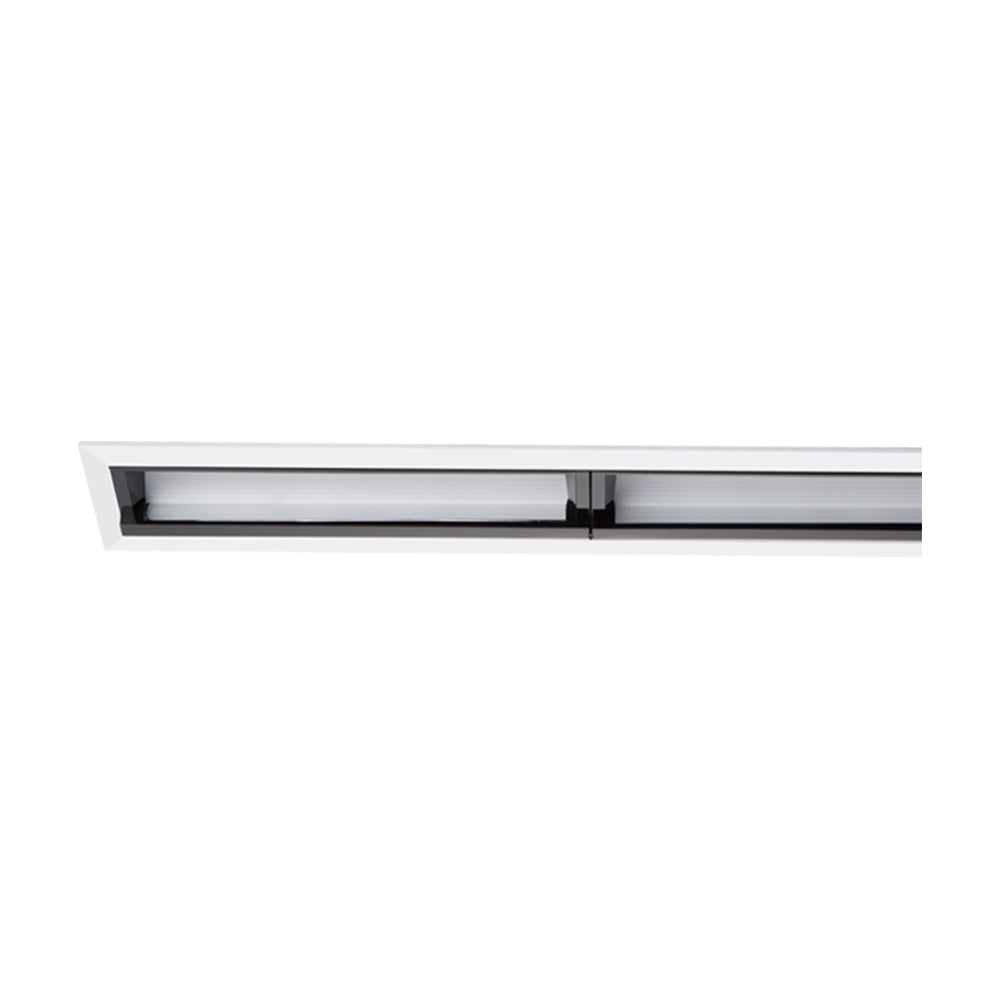

Archilight Lattice Wash 15 Ac Dimmable Downlight 30W
Log in to see priceOverview
Recessed Dimmable Downlight
Specifications
Archilight Lattice Wash 15 Ac Dimmable Downlight 30WSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | LED Colour | Finish Colour |
|---|---|---|
| KC-010180A15-2700K-B-TDM | Warm White 2700K | Black |
| KC-010180A15-2700K-W-TDM | Warm White 2700K | White |
| KC-010180A15-3000K-B-TDM | Warm White 3000K | Black |
| KC-010180A15-3000K-W-TDM | Warm White 3000K | White |
| KC-010180A15-4000K-B-TDM | Natural White 4000K | Black |
| KC-010180A15-4000K-W-TDM | Natural White 4000K | White |
| KC-010180A15-5000K-B-TDM | Cool White 5000K | Black |
| KC-010180A15-5000K-W-TDM | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 30W
- Beam angle
- Wall Washer
- Brightness
- 1500lm
- Efficacy
- ≥50 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

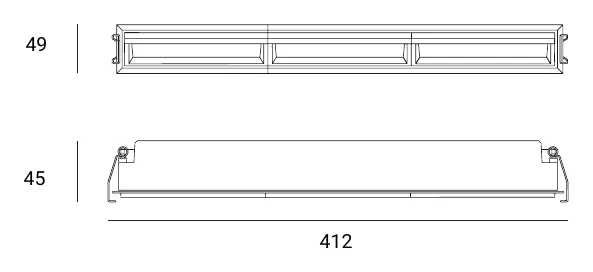

Technical drawings
Downloads
Datasheet1
Archilight Lattice Wash 15 Ac Dimmable Downlight 30W datasheetLATTICE_WASH_15_AC_DIMMABLE.pdf
PDF
Download
FAQ
What is the Archilight Lattice Wash 15 AC Dimmable Downlight 30W designed for?
This model is a linear wall washer downlight intended to highlight vertical surfaces such as feature walls, artwork, and photos. Its compact, near-invisible design suits modern interior spaces where a subtle architectural lighting effect is preferred.
What beam effect does this downlight provide?
All variants in this family use a wall washer beam. That makes the fitting more suitable for evenly lighting a wall surface than for creating a narrow spotlight effect.
What colour temperature options are available in this product family?
The family includes fixed white options in 2700K, 3000K, 4000K, and 5000K, plus RGBW variants. This gives buyers a choice between warmer ambient tones, cooler task-oriented light, or colour-changing capability depending on the project brief.
Are there different finish colours available?
Yes, this parent family is offered in both black and white finishes. Finish choice does not change the core electrical or optical specifications listed for the family.
Is the driver included and is the fitting dimmable?
Yes, the listed parent specifications show that the driver is included and the fitting is dimmable. Those attributes are consistent across all child variants provided for this family.
What are the main performance specifications for this downlight family?
This family is rated at 30W with CRI 90, a 50,000-hour lifetime, and a 5-year warranty. The child variants shown also list 1800 lumens of brightness across the range.
What size is the Archilight Lattice Wash 15 AC Dimmable Downlight 30W?
The parent product dimensions are 412 mm long, 45 mm wide, and 49 mm high, with a listed weight of 1 kg. The child data also shows cut-out values of 37 mm minimum and 405 mm maximum for the family.
