Archilight

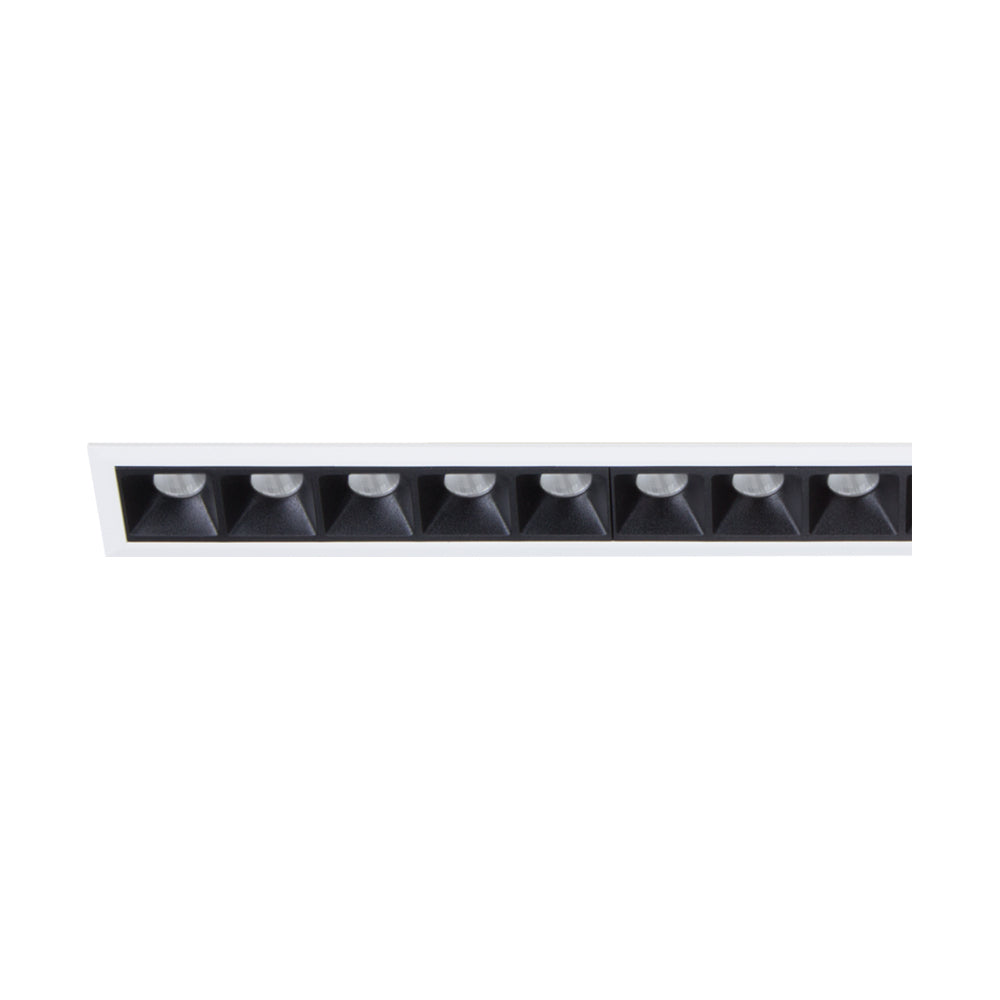

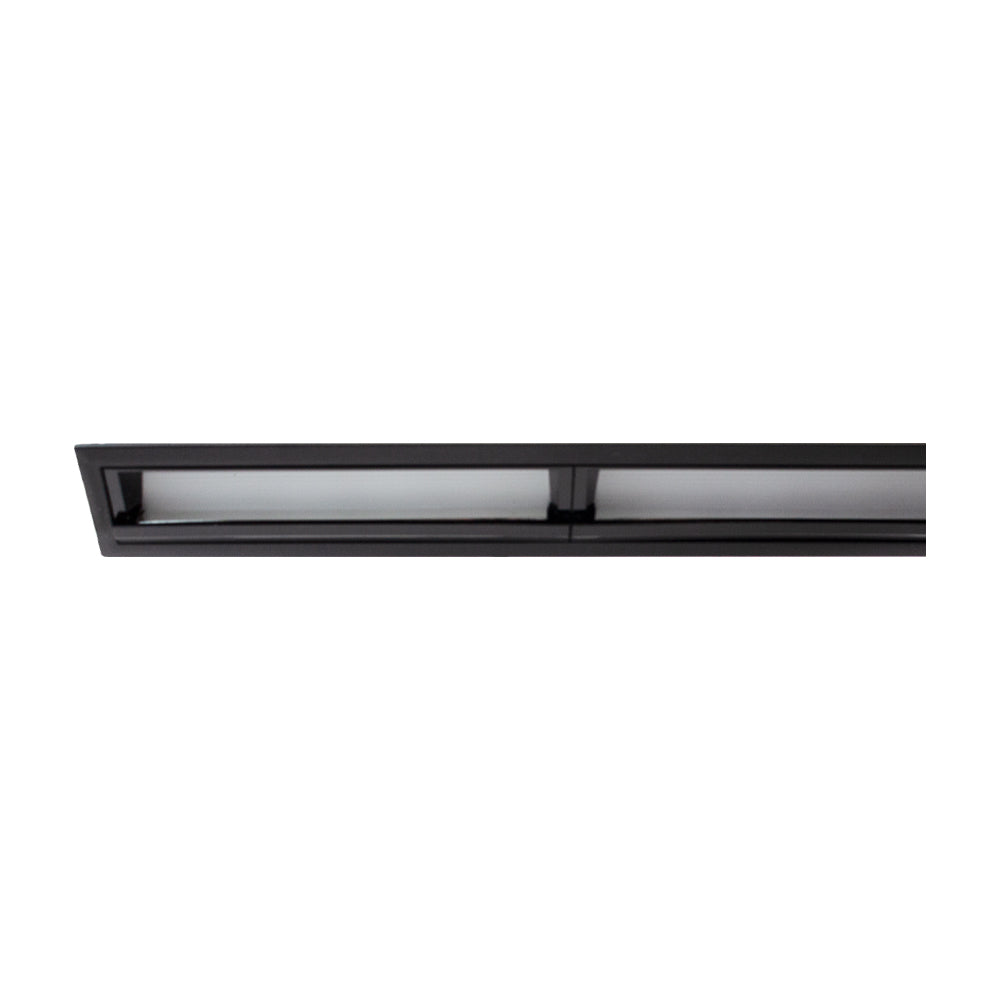

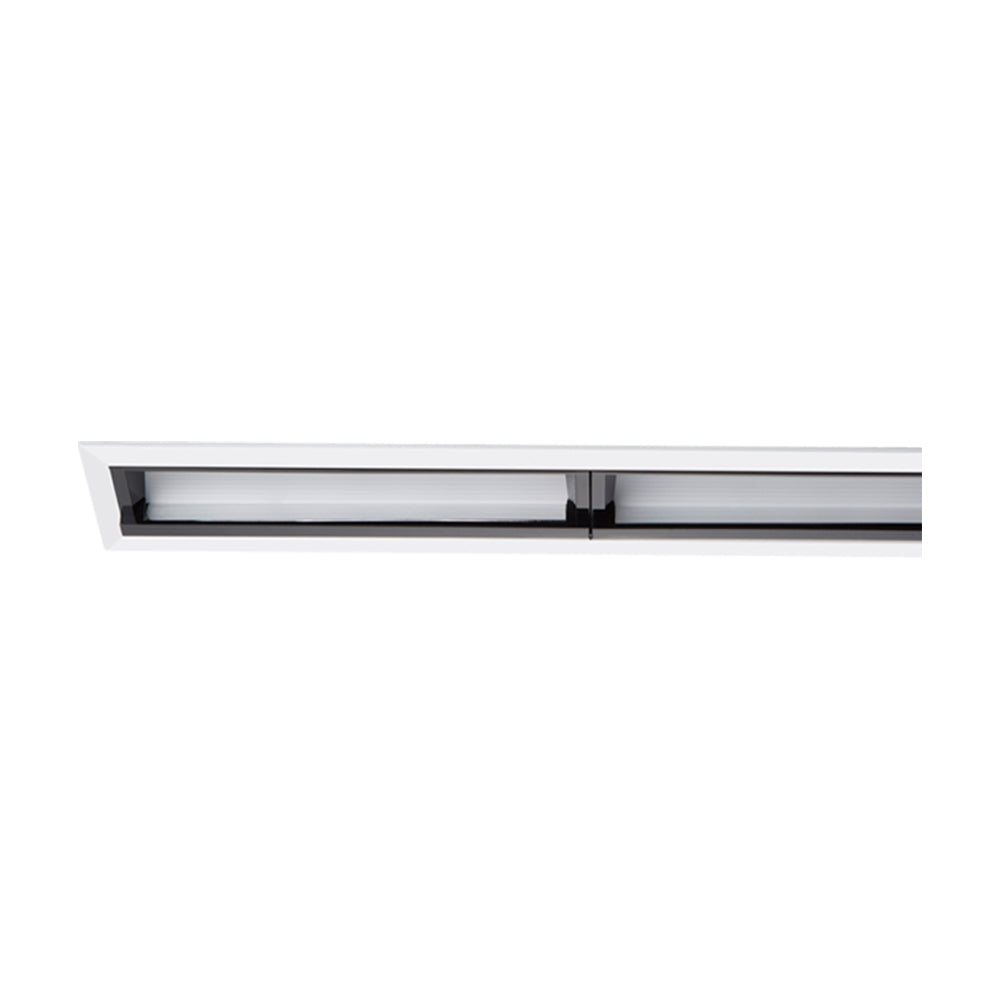

Archilight Lattice Wash 15 Downlight 30W

SKU KC-010180A15-2700K-B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 10 variants

KC-010180A15-2700K-B
LED Colour
Finish Colour
10 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Overview

Recessed Downlight

Specifications

Archilight Lattice Wash 15 Downlight 30WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourFinish Colour
KC-010180A15-2700K-BWarm White 2700KBlack
KC-010180A15-2700K-WWarm White 2700KWhite
KC-010180A15-3000K-BWarm White 3000KBlack
KC-010180A15-3000K-WWarm White 3000KWhite
KC-010180A15-4000K-BNatural White 4000KBlack
KC-010180A15-4000K-WNatural White 4000KWhite
KC-010180A15-5000K-BCool White 5000KBlack
KC-010180A15-5000K-WCool White 5000KWhite

Specifications

Input
230VAC
Power rating
30W
Beam angle
Wall Washer
Brightness
1500lm
Efficacy
≥50 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Dimmable (Dimmer Optional)
Tiltable
Fixed
Mounting
Recessed
Driver
Driver Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

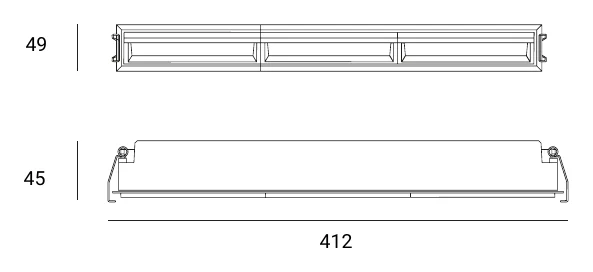

Archilight Lattice Wash 15 Downlight 30W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the Archilight Lattice Wash 15 Downlight 30W designed for?

The Archilight Lattice Wash 15 is a compact linear wall washer downlight made for highlighting vertical surfaces such as feature walls, artwork, and photos. Its near-invisible recessed form is suited to modern interior spaces that want a subtle architectural lighting effect rather than a conventional wide downlight beam.

What light output and colour quality does this product family offer?

Across the family, each variant is rated at 30W and delivers 1800 lumens. The series also has a CRI of 90, which supports strong colour rendering for surfaces and displays where visual accuracy matters.

What colour temperature options are available in this family?

This parent family includes 2700K, 3000K, 4000K, and 5000K options, plus RGBW variants. That gives buyers a choice between warmer, more neutral, cooler, or colour-changing lighting effects while staying within the same Lattice Wash 15 platform.

What finish options are available for the Lattice Wash 15 Downlight 30W?

The family is available in both black and white finishes. These finish options are offered across the listed light colour variants, making it easier to coordinate the fitting with different ceiling and interior design schemes.

Is the Archilight Lattice Wash 15 Downlight 30W dimmable and does it include a driver?

The family is listed as driver included, so the driver is supplied with the product. It is also marked as optionally dimmable, which indicates dimming is available depending on the selected control setup.

What are the key physical dimensions and cut-out details for this family?

The parent model dimensions are 412 mm long, 45 mm wide, and 49 mm high, with a listed weight of 1 kg. The child variants show a cut-out range of 37 mm to 405 mm, which is consistent across the family.

Is this downlight suitable for long-term commercial interior use?

This family is positioned for interior and commercial lighting applications and carries a 50,000-hour lifetime rating. It also includes a 5-year warranty, which supports use in projects where durability and maintenance intervals matter.
