Overview
Downlight
Specifications
Variants
| SKU |
|---|
| 891803MW6902 |
Specifications
- Input
- 230VAC
- Power rating
- 16W
- Beam angle
- 60°
- Brightness
- 1250 lm
- Efficacy
- ≥78.1 lm/W
- Colour render index(CRI)
- ≥83
- Colour temperature
- 3000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~45°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 7 years
- Lifetime
- 70,000hrs
- Material
- Die-Cast Aluminum
- Finish
- White/Black
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F, Class II

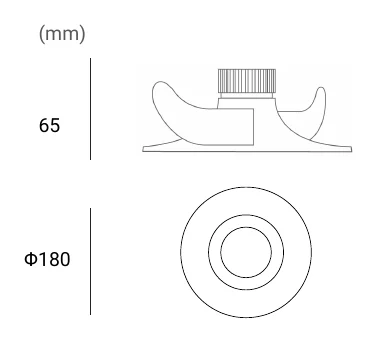

Technical drawings
Downloads
Datasheet1
FAQ
What are the core specifications of the Archilight Linea 120 Downlight 16W?
This recessed LED downlight is rated at 16W and delivers 1250 lumens. Across the family, it uses a 3000K color temperature, a 60-degree beam angle, and CRI 83 performance. It is backed by a 7-year warranty and a 70,000-hour rated lifetime.

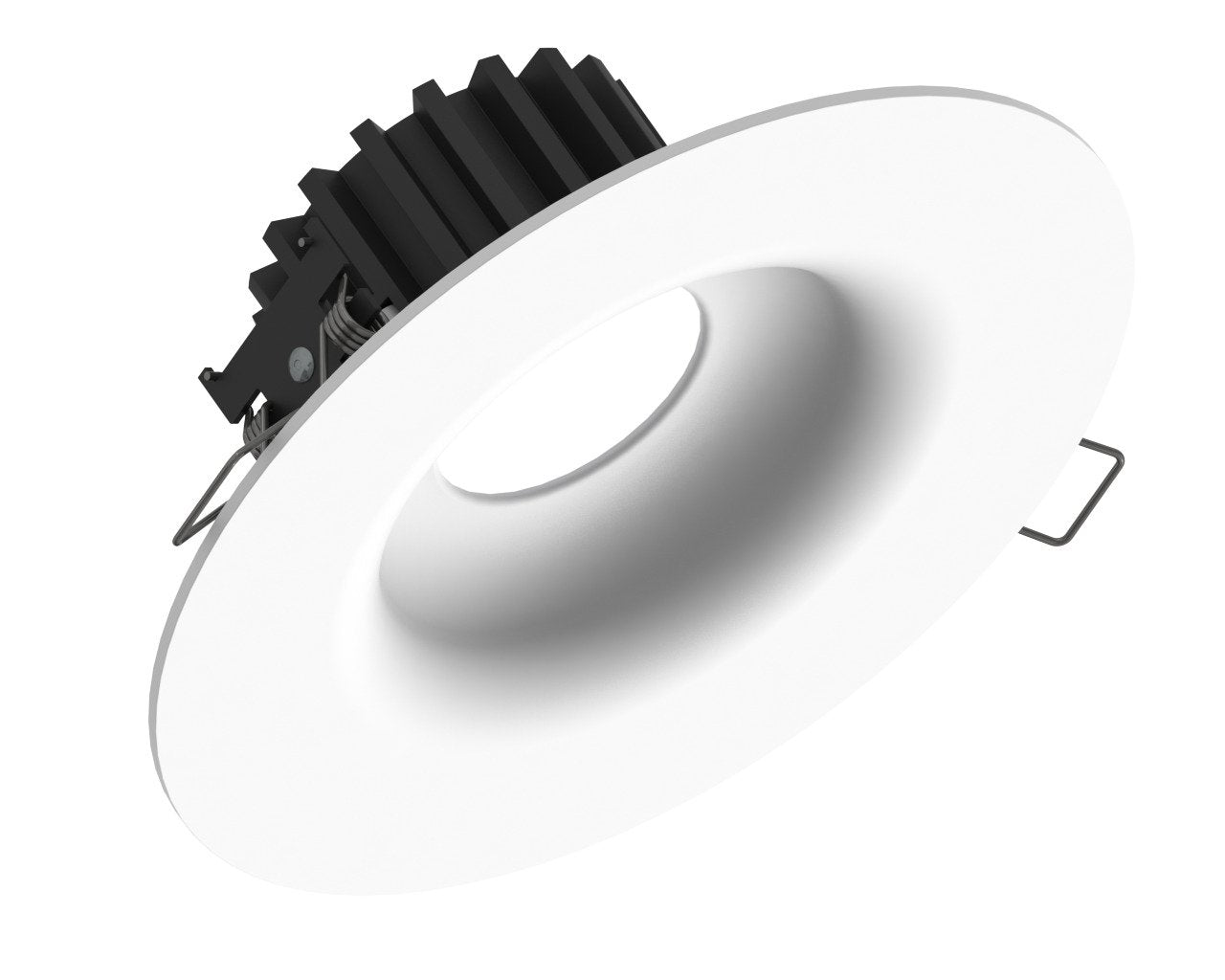

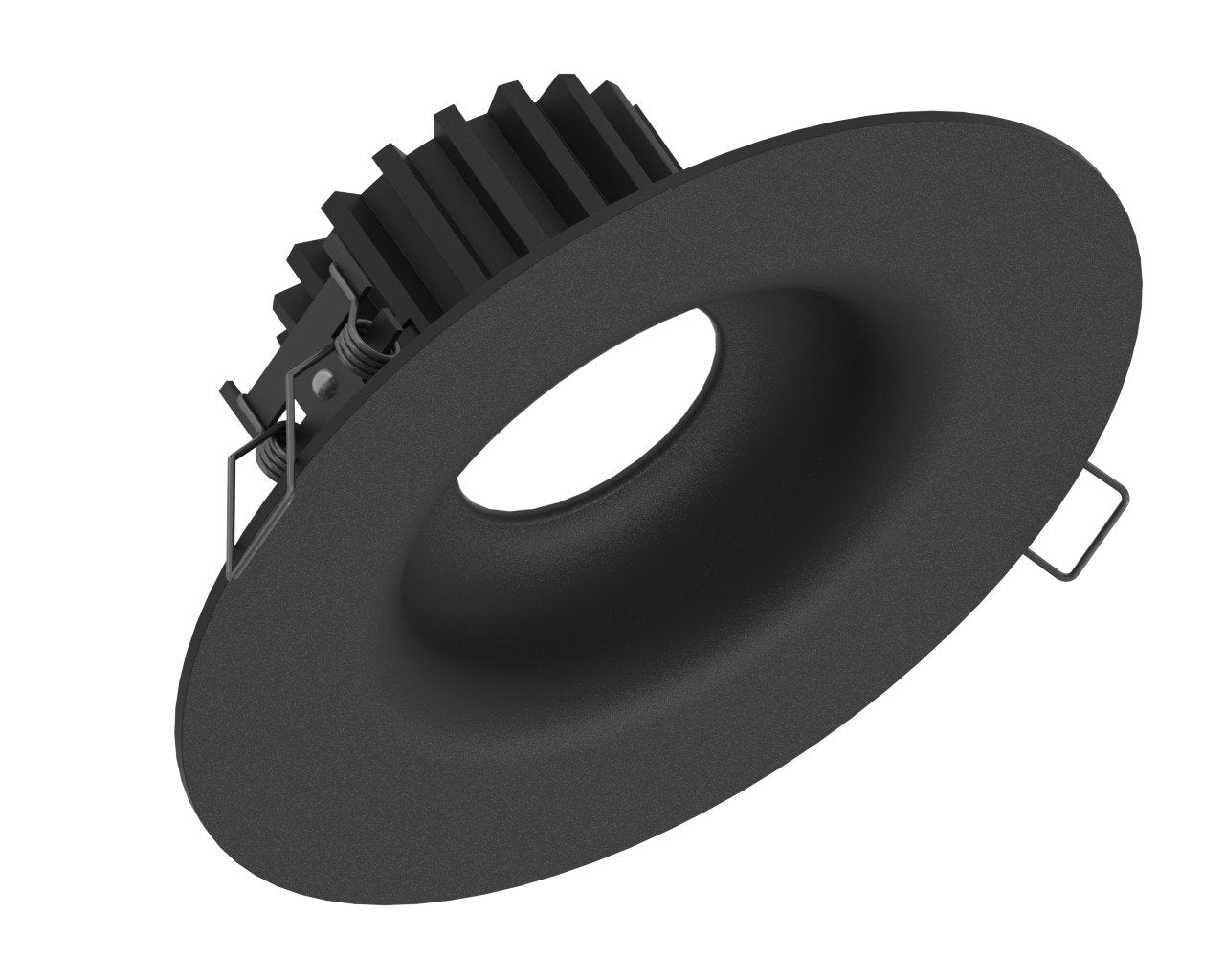

What finish options are available in the Linea 120 family?
The Linea 120 Downlight 16W family is available in black and white finish options. The core lighting performance remains the same across these variants, so the finish choice is primarily aesthetic. This makes it easier to match different commercial or interior design schemes.
Is the Archilight Linea 120 suitable for commercial interior lighting projects?
Yes, this product is positioned for interior and commercial lighting applications, including recessed LED downlight use. Its combination of 1250-lumen output, 60-degree beam spread, and consistent light color supports professional indoor environments. The long rated lifetime and 7-year warranty also make it relevant for B2B projects focused on durability.
Is the Linea 120 Downlight dimmable?
Yes, the Linea 120 family is listed as dimmable optional. That means the product supports dimming when paired with an appropriate dimming setup. The driver is included with the product family.
Can this downlight be used in areas exposed to moisture or splashes?
The product is rated IP44 only when installed in a closed ceiling and only for water splashes on the front side. This means it has limited splash resistance rather than broad wet-area suitability. It is best considered for interior applications where those conditions are met.
What ceiling cut-out range does this product family support?
Based on the listed variants, the supported cut-out range is 120 mm to 160 mm. This range applies across the family shown here rather than to just one finish. It helps buyers assess whether the product fits existing recessed openings in retrofit or specification projects.
