Archilight Linea 120 Downlight 49.8W
Log in to see priceOverview
Downlight
Specifications
Variants
| SKU | Beam Angle | LED Colour | Brightness | Finish Colour |
|---|---|---|---|---|
| 282003BLUP02 | 37° | Natural White 4000K | 5,700 lm | Black |
| 282003MWUR02 | 18° | Warm White 3000K | 3,750 lm | White |
Specifications
- Input
- 230VAC
- Power rating
- 49.8 W
- Efficacy
- ≥114.4 lm/W
- Colour render index(CRI)
- ≥82
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~45°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 7 years
- Lifetime
- 70,000hrs
- Material
- Die-Cast Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

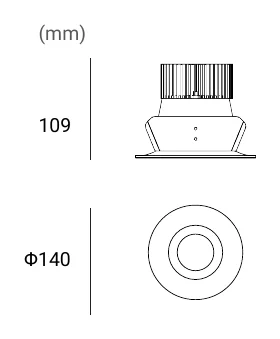

Technical drawings
Downloads
Datasheet1
FAQ
What type of product is the Archilight Linea 120 Downlight 49.8W?
The Archilight Linea 120 is a recessed LED downlight intended for interior commercial lighting applications. It is part of a Holland-made luminaire range developed for efficient, high-end lighting performance with a compact form factor.
What are the main specifications shared across the Linea 120 family?
All variants in this family use 49.8W of power, include a driver, and support optional dimming. They also share a CRI of 82, a rated lifetime of 70,000 hours, and a 7-year warranty.
What variant differences are available within this product family?
The family includes variants with different color temperatures, beam angles, finishes, and lumen outputs. Based on the listed variants, options include 3000K or 4000K, 18 degree or 37 degree beam angles, white or black finishes, and outputs from 3750 lm to 5700 lm.
How do I choose between the available beam angles in this family?
The available variants shown use either an 18 degree beam or a 37 degree beam. A narrower beam is generally better for more focused illumination, while a wider beam suits broader light distribution across the target area.
Is the Archilight Linea 120 suitable for areas exposed to moisture?
This product is rated IP44 only when installed in a closed ceiling. In that condition, it may be exposed to water splashes on the front side only.
What cut-out size does the Linea 120 family use?
The listed variants in this family use a 120 mm cut-out. That makes the Linea 120 family consistent across the shown options in terms of ceiling opening size.
