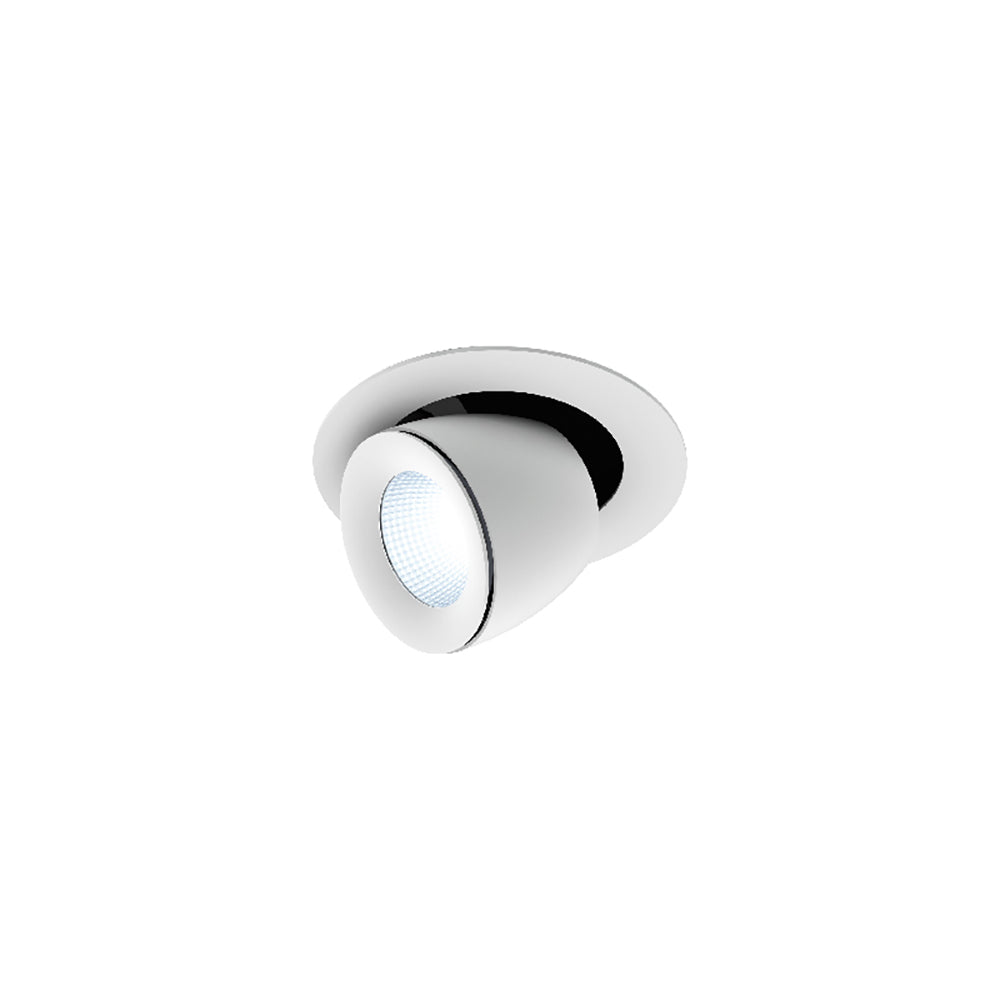

Archilight Linea 195 Downlight 27.9W
Log in to see priceAt Archilight we research and provide inventive lighting solutions, which offer as much comfort and ease as possible, all without damaging the environment on a day to day basis. After many years of experience in product development our results show in a range of completely self-developed, high-end luminaires.
Backed up by 7 years warranty, Linea is designed to waste no space and effort, while creating the best lighting experience possible with our proudly Holland made fitting. The colour is truly consistent with MacAdam step 3 SDCM.
IP44 - Only when the product is installed in a closed ceiling it may be exposed to water splashes, and only on its front side.
-
BrandArchilight
-
SeriesArchilight DS-A Series
-
Power Rating27.9 Watt
-
Operating Temperature-20°C~45°C
-
Warranty7 Year
-
Length20.5 cm
-
Width20.5 cm
-
Height12.7 cm
-
Weight2.09 kg
::specification::
Frequently Asked Questions
What type of product is the Archilight Linea 195 Downlight 27.9W?
This is a recessed LED downlight family for interior commercial lighting applications. The parent model covers Linea 195 variants that share the same 27.9W power rating, included driver, 70,000-hour rated lifetime, and 7-year warranty.
What are the main differences between the available Linea 195 variants?

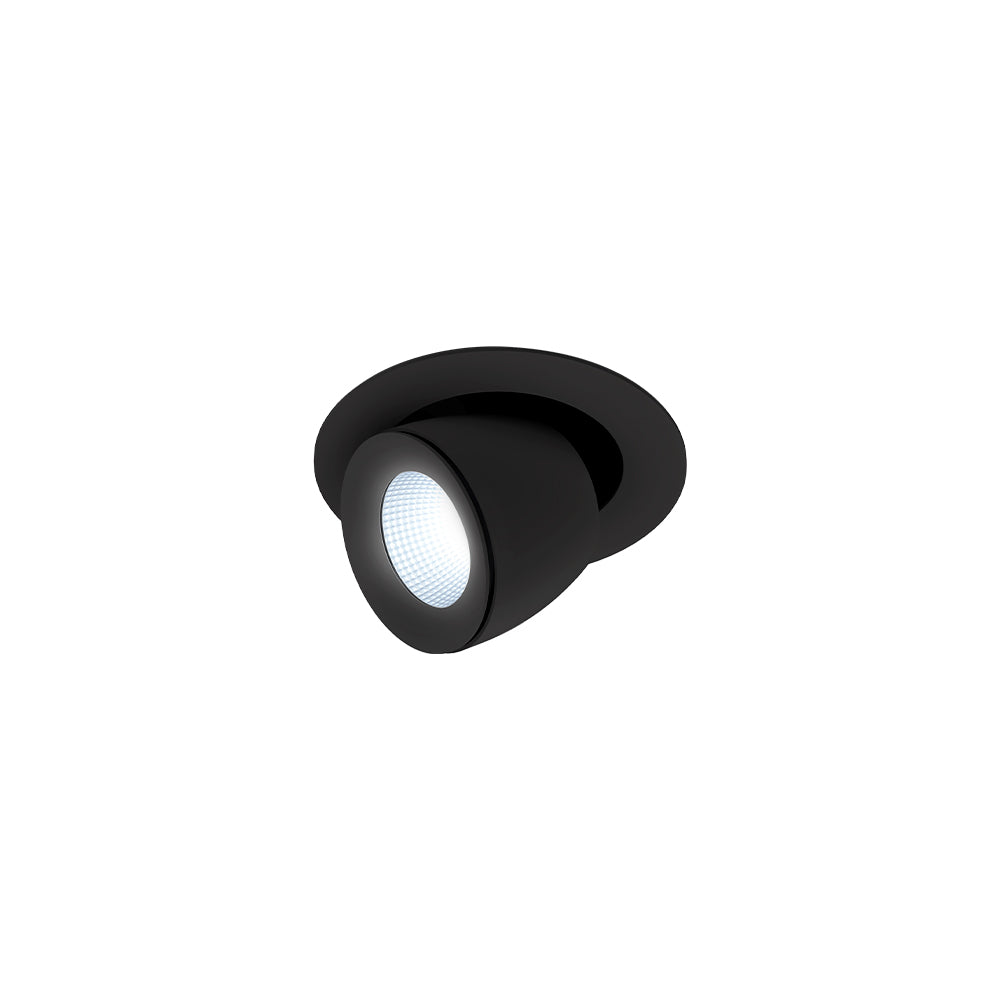

The variants differ in colour temperature, beam angle, finish colour, and lumen output. One version is 4000K with a 60 degree beam, black finish, and 5700 lm, while another is 3000K with an 18 degree beam, white finish, and 3000 lm.
How do I choose between the 18 degree and 60 degree beam options?
The 18 degree version is better suited to more focused lighting where a narrower beam is preferred. The 60 degree version is the broader distribution option and also provides higher listed light output at 5700 lm versus 3000 lm.
What cut-out size is this downlight family designed for?
The child variants shown use a 195 mm cut-out, with both minimum and maximum cut-out values listed as 195 mm. That makes this family suitable for projects specifying a consistent 195 mm recessed opening.
Is the Archilight Linea 195 Downlight dimmable and does it include a driver?
Yes, the family is listed with driver included. It is also marked as optionally dimmable, so dimming capability depends on the compatible dimming setup used with the product family.
Is this downlight suitable for areas exposed to moisture or splashing water?
The product is rated IP44 only when installed in a closed ceiling. In that condition, it may be exposed to water splashes on the front side only, so it is not described as suitable for unrestricted wet-area exposure.
