Specifications
Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-030832A01-15D-2700K-B-TDM | 15° | Warm White 2700K | Black |
| KC-030832A01-15D-2700K-W-TDM | 15° | Warm White 2700K | White |
| KC-030832A01-15D-3000K-B-TDM | 15° | Warm White 3000K | Black |
| KC-030832A01-15D-3000K-W-TDM | 15° | Warm White 3000K | White |
| KC-030832A01-15D-4000K-B-TDM | 15° | Natural White 4000K | Black |
| KC-030832A01-15D-4000K-W-TDM | 15° | Natural White 4000K | White |
| KC-030832A01-15D-5000K-B-TDM | 15° | Cool White 5000K | Black |
| KC-030832A01-15D-5000K-W-TDM | 15° | Cool White 5000K | White |
| KC-030832A01-23D-2700K-B-TDM | 23° | Warm White 2700K | Black |
| KC-030832A01-23D-2700K-W-TDM | 23° | Warm White 2700K | White |
| KC-030832A01-23D-3000K-B-TDM | 23° | Warm White 3000K | Black |
| KC-030832A01-23D-3000K-W-TDM | 23° | Warm White 3000K | White |
| KC-030832A01-23D-4000K-B-TDM | 23° | Natural White 4000K | Black |
| KC-030832A01-23D-4000K-W-TDM | 23° | Natural White 4000K | White |
| KC-030832A01-23D-5000K-B-TDM | 23° | Cool White 5000K | Black |
| KC-030832A01-23D-5000K-W-TDM | 23° | Cool White 5000K | White |
| KC-030832A01-36D-2700K-B-TDM | 36° | Warm White 2700K | Black |
| KC-030832A01-36D-2700K-W-TDM | 36° | Warm White 2700K | White |
| KC-030832A01-36D-3000K-B-TDM | 36° | Warm White 3000K | Black |
| KC-030832A01-36D-4000K-B-TDM | 36° | Natural White 4000K | Black |
| KC-030832A01-36D-4000K-W-TDM | 36° | Natural White 4000K | White |
| KC-030832A01-36D-5000K-B-TDM | 36° | Cool White 5000K | Black |
| KC-030832A01-36D-5000K-W-TDM | 36° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 8 W
- Brightness
- 640 lm
- Efficacy
- ≥80 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Adjustable 30°
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

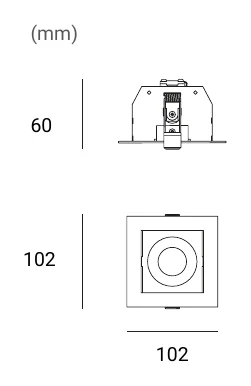

Technical drawings
Downloads
Datasheet1
FAQ
What are the main features of the Archilight Mocha 1 AC Dimmable Downlight 8W?
This is an 8W recessed downlight with a high CRI of over 90 for strong colour accuracy and a low UGR rating under 19 for reduced glare. It is dimmable, includes its driver, and is designed for 230V power input. The fitting is also adjustable, making it suitable for projects that need controlled, comfortable lighting.
What beam angles are available in the Mocha 1 AC Dimmable Downlight 8W range?
The parent family is available in 15 degree, 23 degree, and 36 degree beam angles. This gives buyers a choice between narrower and wider light distribution depending on the application. Beam angle selection should be based on how focused or broad you want the light spread to be.
What colour temperatures are offered across this downlight family?
Variants in this family are available in 2700K, 3000K, 4000K, and 5000K colour temperatures. That gives a range from warmer ambient lighting through to cooler, more neutral or crisp-looking light. Availability depends on the specific variant selected within the parent range.
What finishes are available for the Archilight Mocha 1 range?
The family is offered in both black and white finishes. This makes it easier to match the luminaire to different ceiling designs and interior palettes. Finish availability is supported across the variants listed for this parent model.
How bright is the Archilight Mocha 1 AC Dimmable Downlight 8W?
The listed child variants in this family provide 640 lumens of brightness. That output is paired with an 8W power rating, supporting an efficient downlight option for interior recessed lighting projects. Brightness is consistent across the variants shown here.
What cut-out size does this downlight family require?
The variants shown for this parent model specify an 85 mm cut-out size, with both minimum and maximum cut-out values listed as 85 mm. This indicates a consistent cut-out requirement across the family data provided. Buyers comparing variants do not need to account for different cut-out sizes within this range.
Is the Archilight Mocha 1 suitable for projects where visual comfort and colour quality matter?
Yes. The family combines CRI above 90 with a low UGR below 19, which supports accurate colour presentation and reduced glare. That makes it a strong option for interior applications where both appearance and occupant comfort are important.
What is the expected service life and warranty for this downlight family?
This parent family is rated for a 50,000 hour lifetime and carries a 5 year warranty. Those figures are consistent across the child variants provided. This makes the range suitable for buyers looking for a longer-term commercial or architectural lighting solution.
