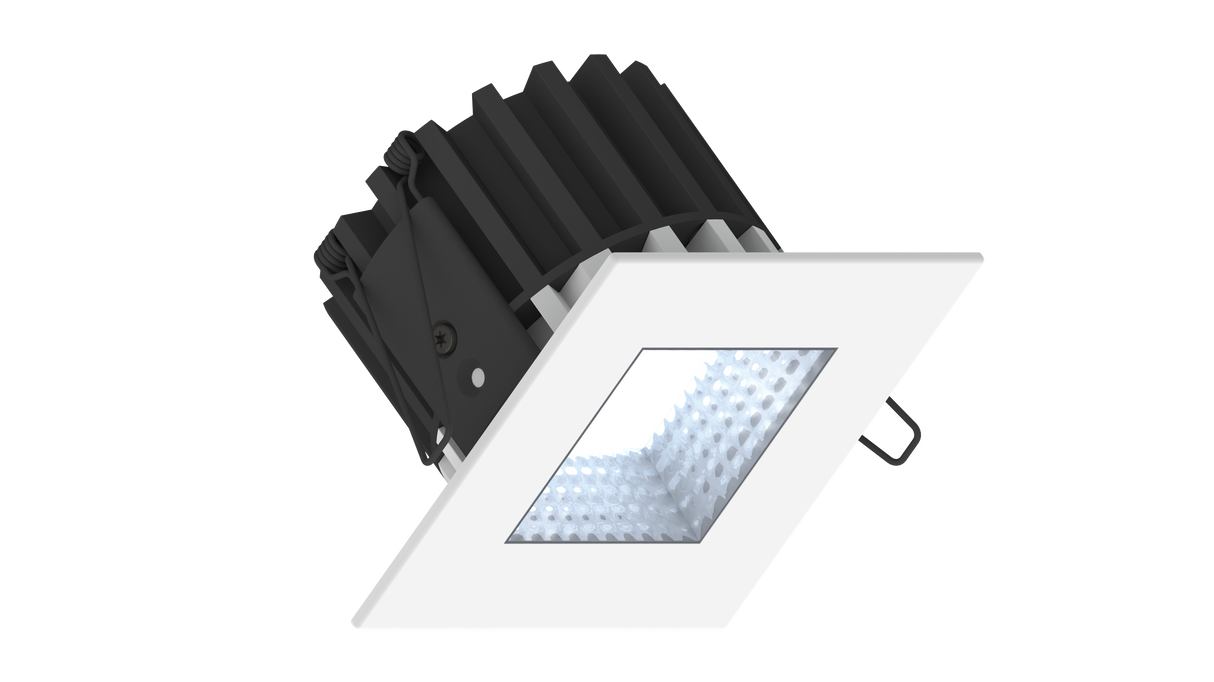

Archilight Quad 75 Downlight 16W

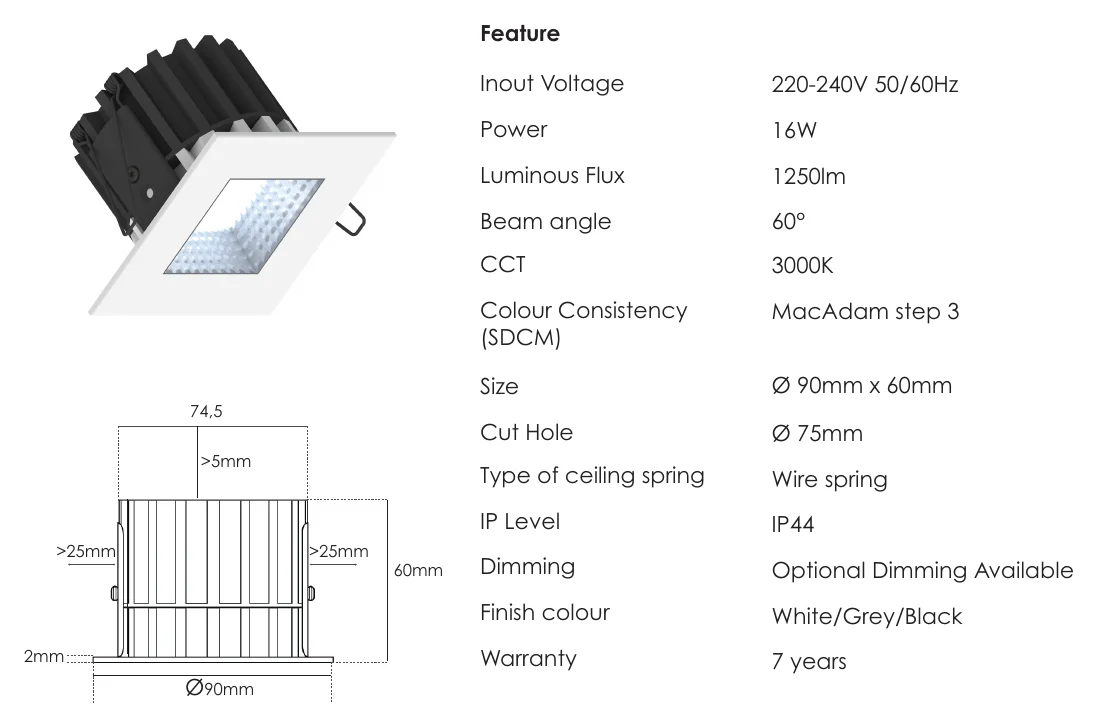

The Quad 75 is a 16W recessed LED downlight with 1250 lm output, CRI 82, and a 60 degree beam angle across the family variants shown. It uses 230V power input, includes the driver, and is backed by a 70,000 hour lifetime rating. The fitting dimensions are 90 x 90 x 60 mm.

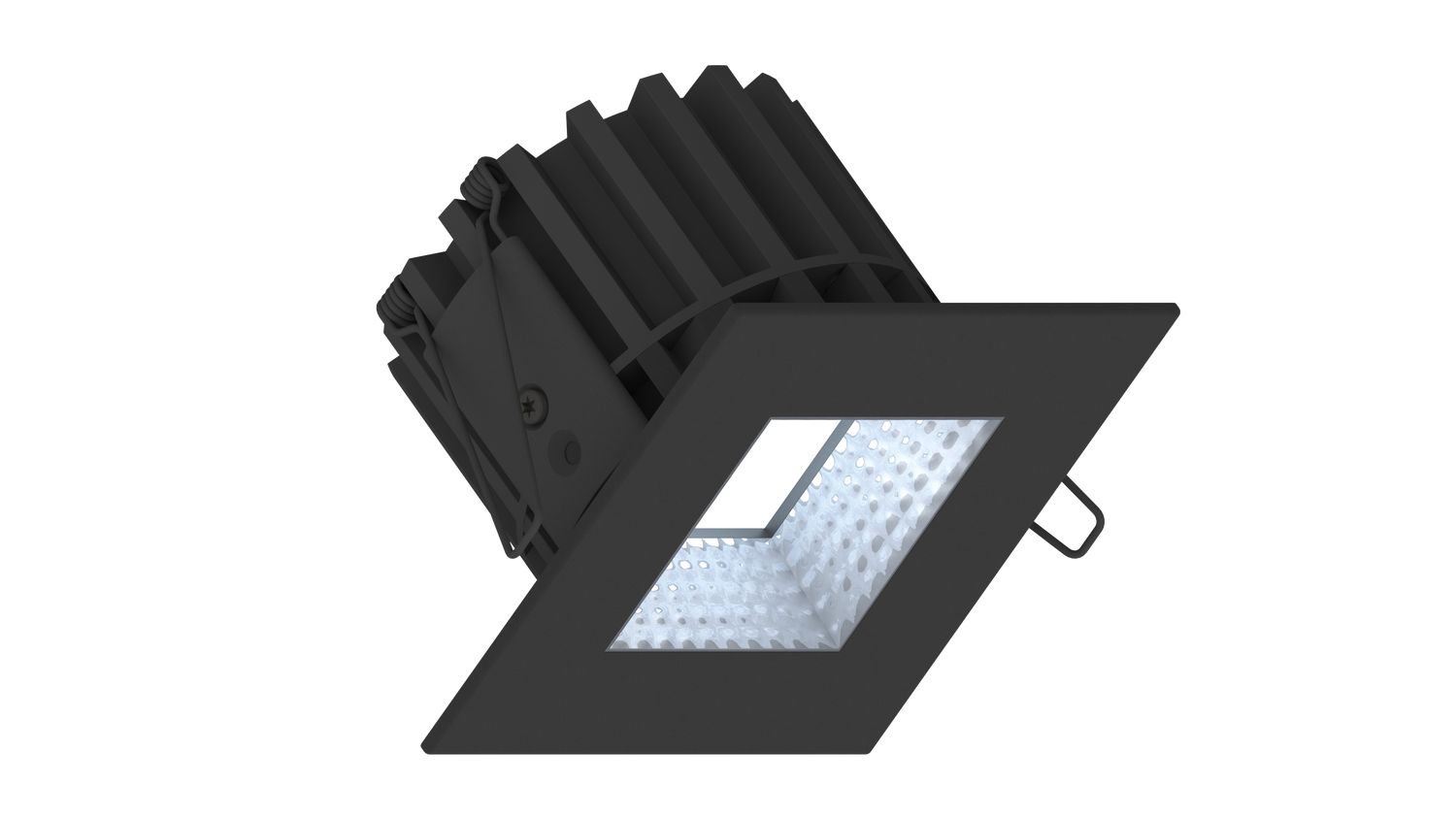

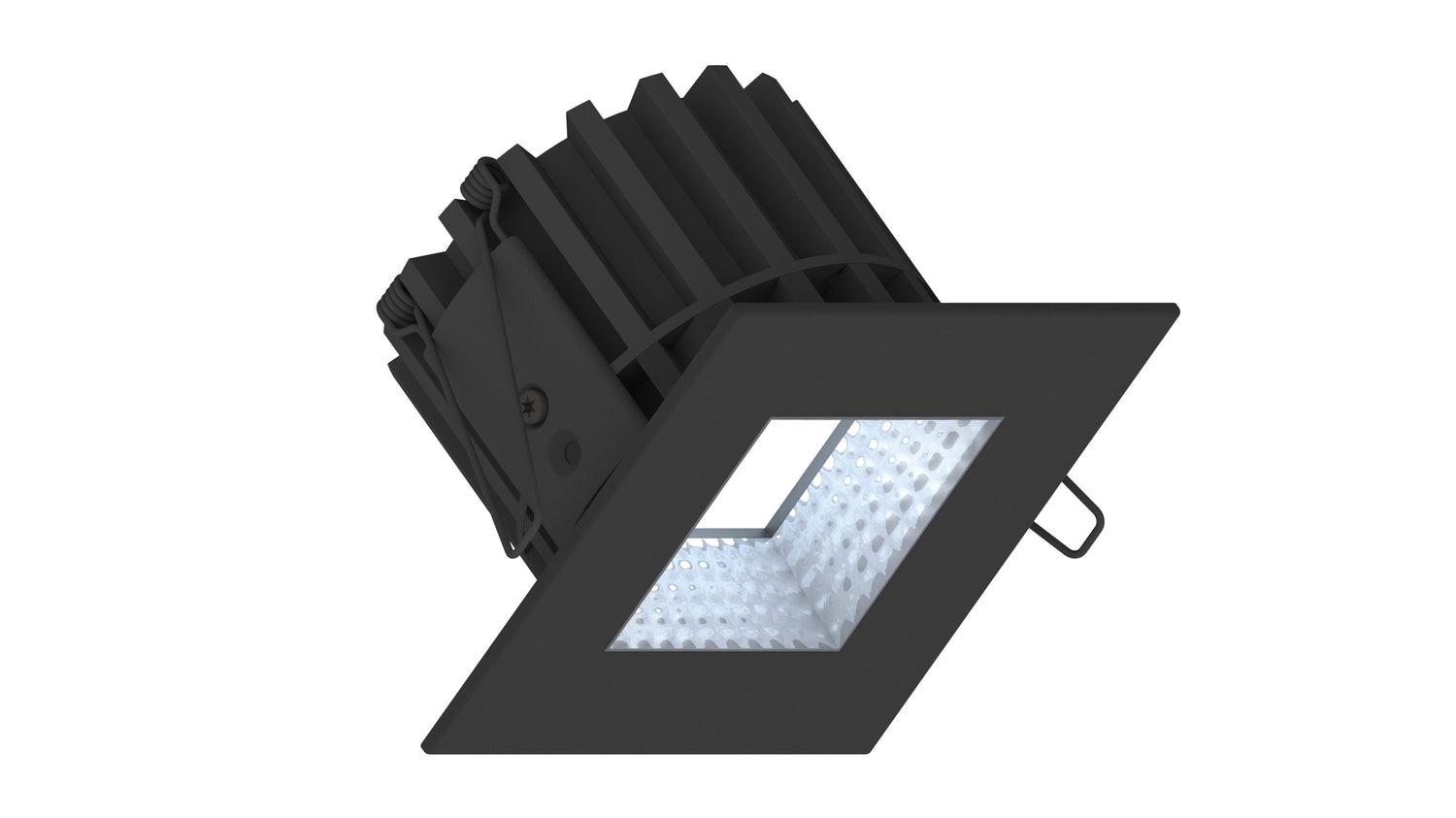

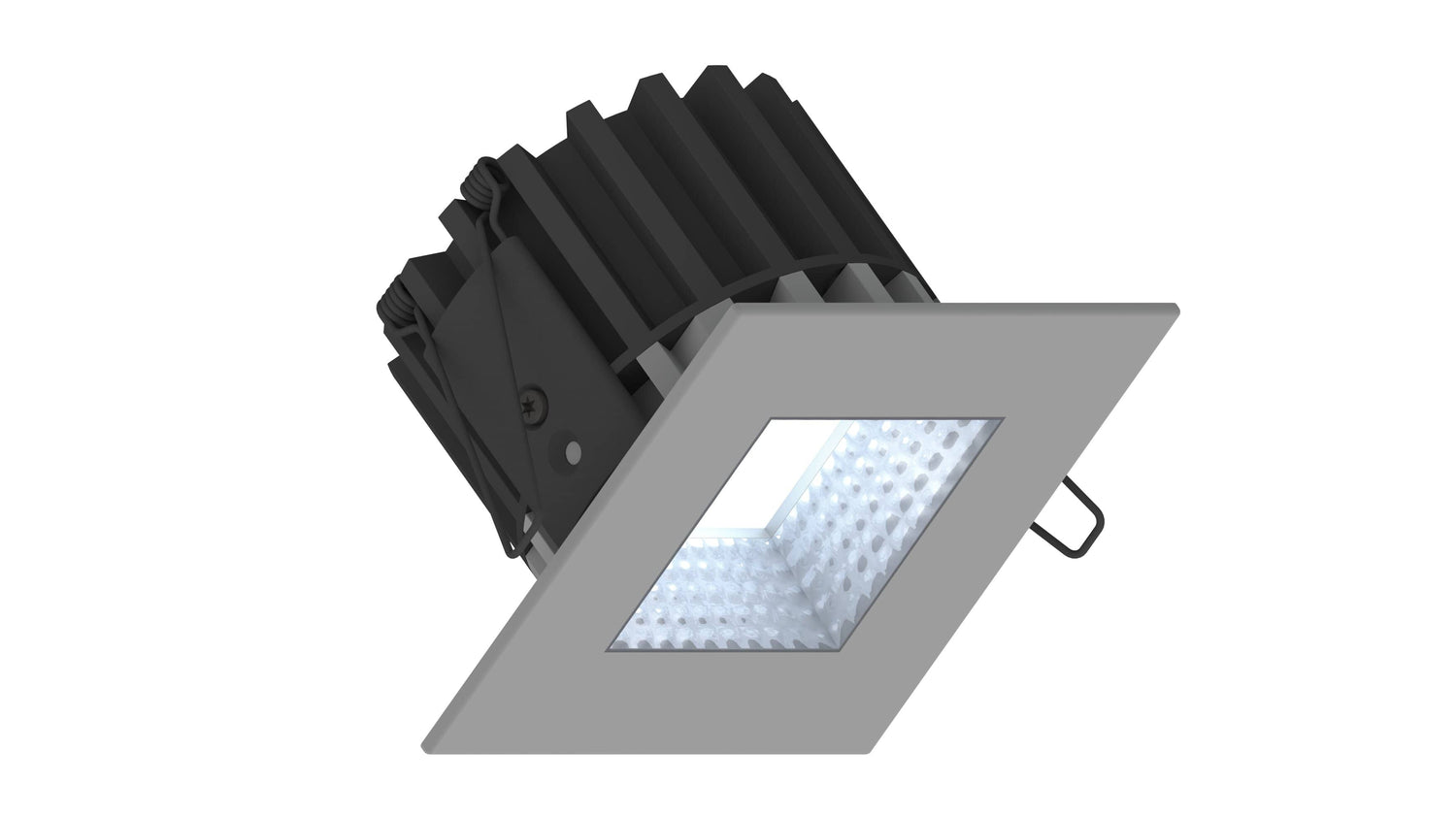

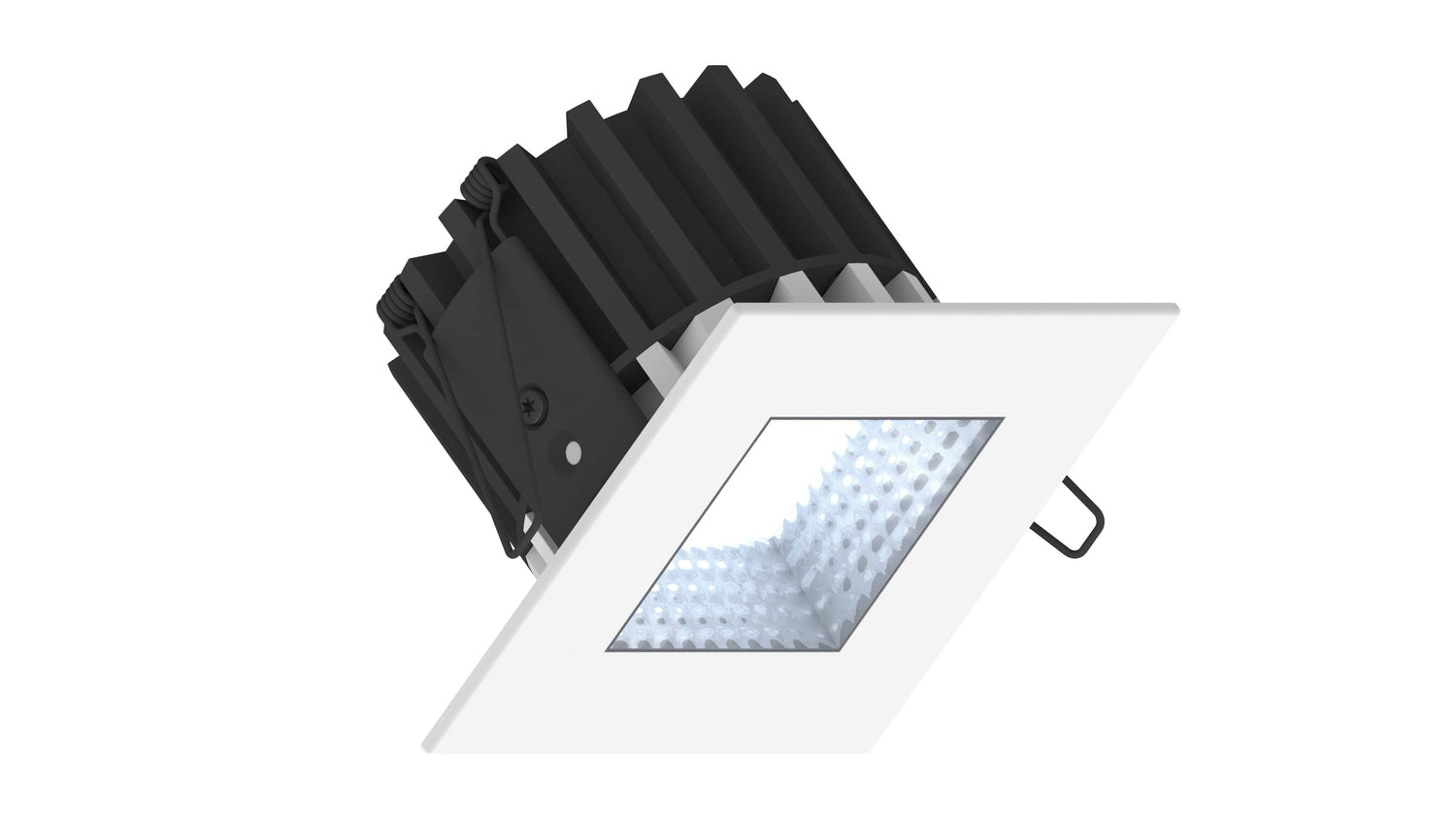

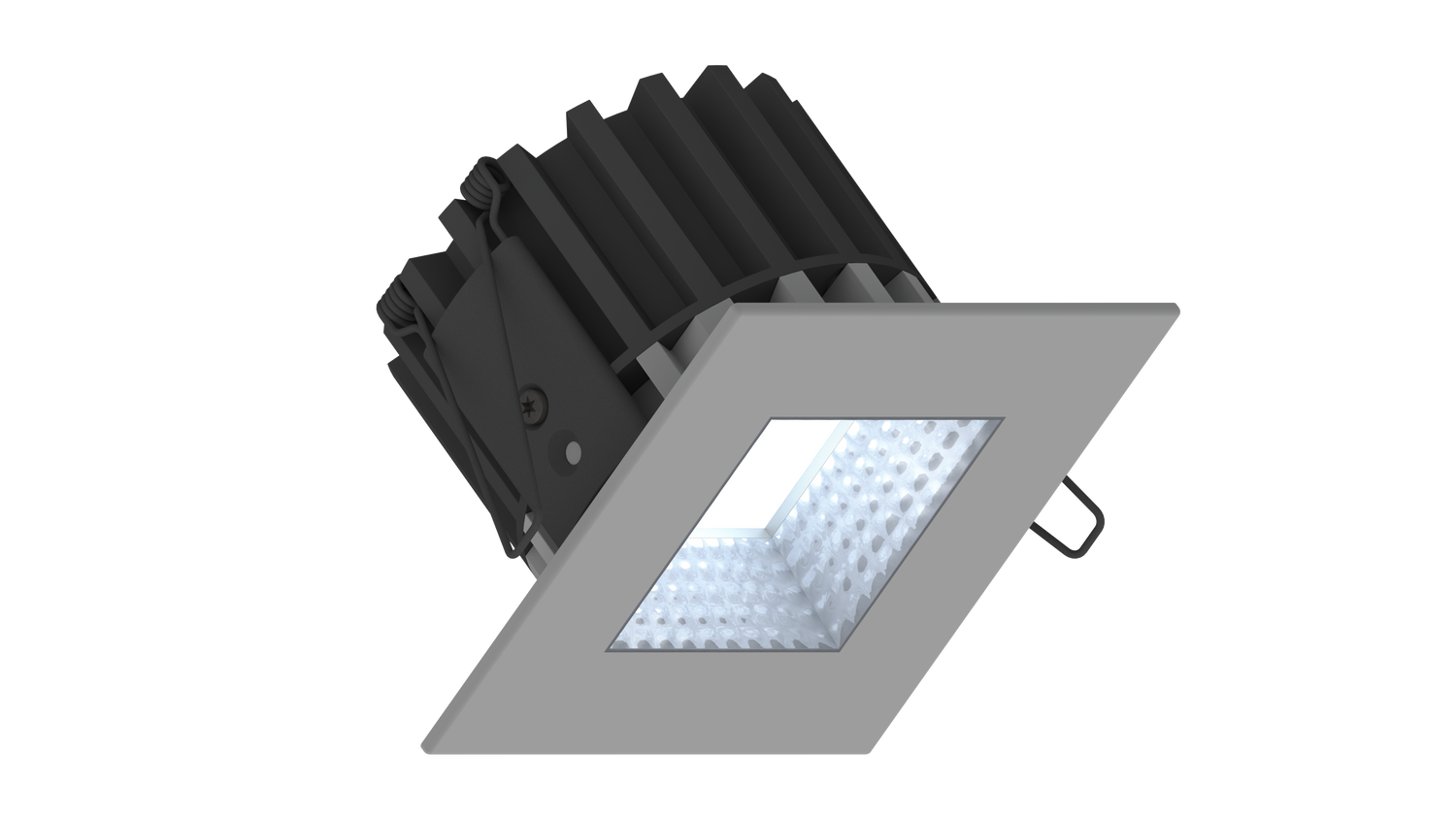

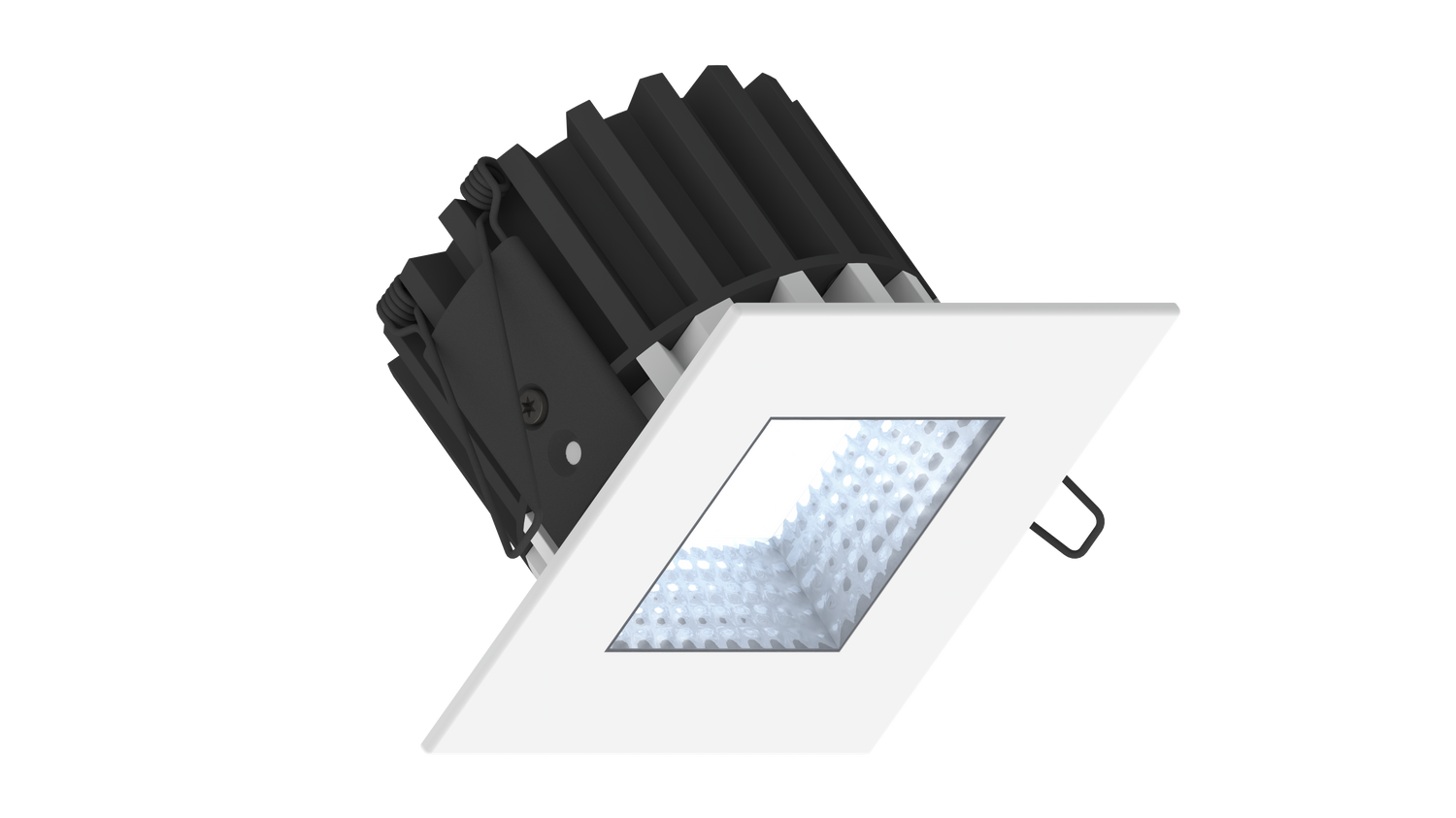

This parent model is available in black, grey, and white finishes. The core light output and electrical specs remain the same across those variants, so the finish is the main visible difference in the family data provided. That makes it easier to match the fitting to different commercial interior styles without changing performance.

Yes, the Quad 75 is listed as dimmable optional. That means the product family supports dimming, but dimming capability depends on the optional control setup used with the fitting. The included driver is part of the product family specification.

This downlight is positioned for interior recessed lighting applications, especially where a compact 75 mm cut-out and consistent light quality are important. With a 3000K colour temperature, 60 degree beam angle, and MacAdam 3-step colour consistency, it suits professional indoor spaces that need warm, uniform illumination. Typical B2B use cases include hospitality, retail, offices, and other commercial interiors.

The product is rated IP44 only when installed in a closed ceiling, and only the front side may be exposed to water splashes. That means it is intended for controlled interior environments rather than open exposure to water. If the location involves more demanding moisture conditions, the IP limitation should be checked carefully against the project requirement.

The child variant data shows a 75 mm minimum and 75 mm maximum cut-out, so the family is designed around a 75 mm ceiling cut-out. This is consistent across the variants listed. That makes the parent model straightforward to specify where a fixed cut-out size is required.

The Quad 75 is backed by a 7 year warranty and a rated lifetime of 70,000 hours. Those figures make it suited to commercial projects where maintenance intervals and product consistency matter. Archilight also positions the range as a high-end Holland-made luminaire family with tightly controlled colour consistency.
