Archilight Ray Small Downlight TDM 8W

Q: What type of lighting is the Archilight Ray Small Downlight TDM 8W designed for?

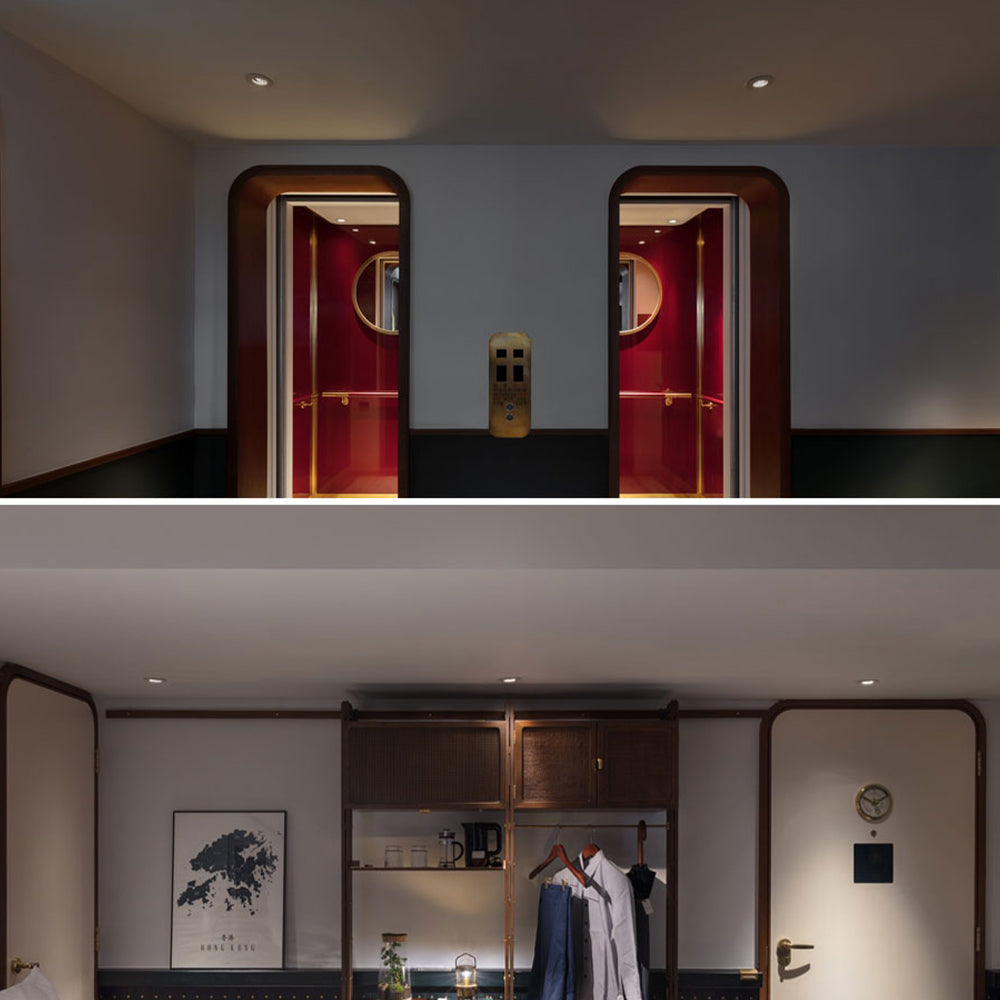

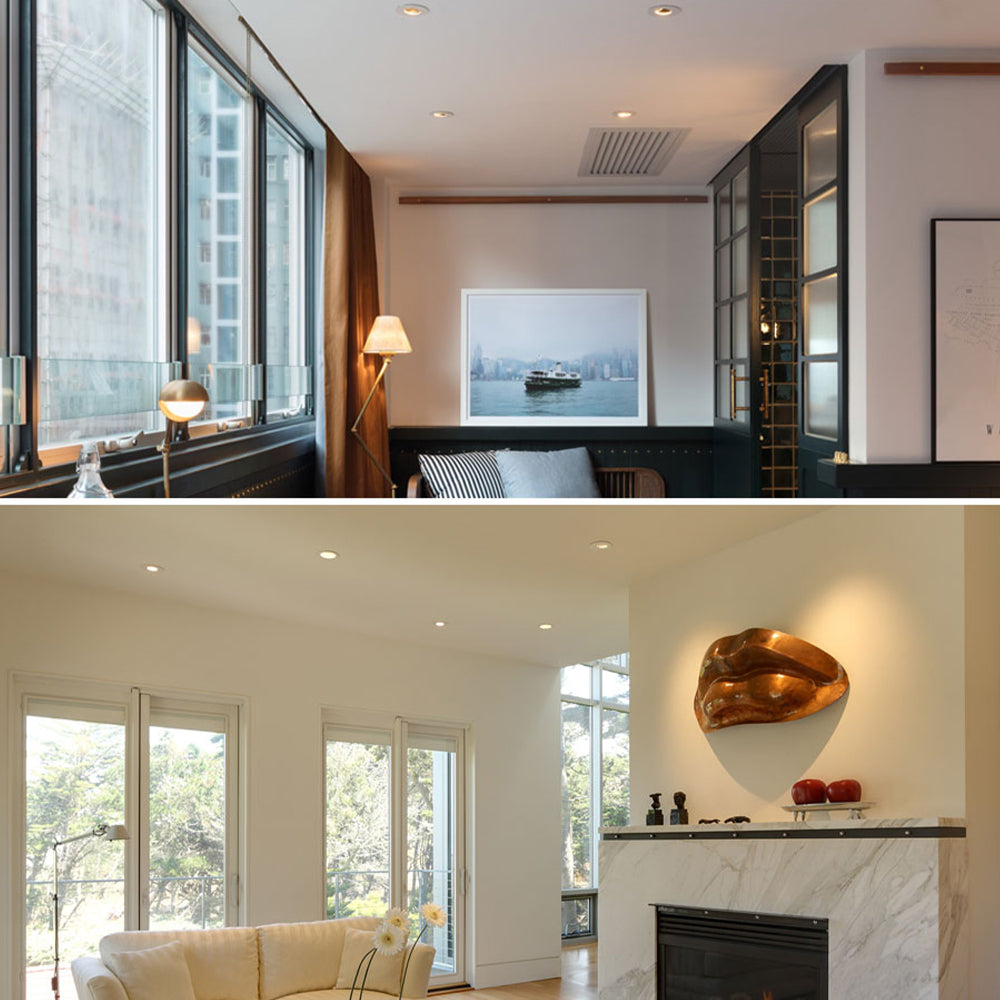

This is a compact recessed LED downlight intended for interior lighting applications. The Ray series is positioned for both general lighting and accent lighting, making it suitable for projects that need a clean, minimalist ceiling appearance with focused visual comfort.

Q: What are the key performance specifications of this downlight family?

The parent model is rated at 8W and is built for efficient LED performance. It has a CRI of over 90 for strong colour accuracy, a rated lifetime of 50,000 hours, and a 5-year warranty period.

Q: How compact is the Archilight Ray Small Downlight TDM 8W?

This downlight is designed for compact recessed applications, with overall dimensions of 58 mm x 58 mm x 70 mm. Its small trim and compact body support a discreet, minimalist look in finished interiors.

Q: Is the Archilight Ray Small Downlight TDM 8W suitable for visually comfortable spaces?

Yes. The Ray series is described as having a low glare design with a UGR below 19, which helps support visual comfort in commercial and architectural spaces. Its high CRI also helps materials and finishes appear more natural under the light.

Q: Does this downlight include a driver, and can it be dimmed?

The product data indicates that a driver is included with this model. Dimming is optional, so dimming capability depends on the selected control setup rather than being standard in every use case.

Q: What beam option is shown for this Ray Small Downlight TDM 8W family listing?

The child variant data provided for this parent model shows a 36 degree beam angle. That makes it appropriate for more controlled light distribution than a wide flood, which can be useful when highlighting features or creating focused lighting effects.

SKU:

KC-010191A02-36D-3000K-WB-TDM

LED Colour

Warm White 3000K

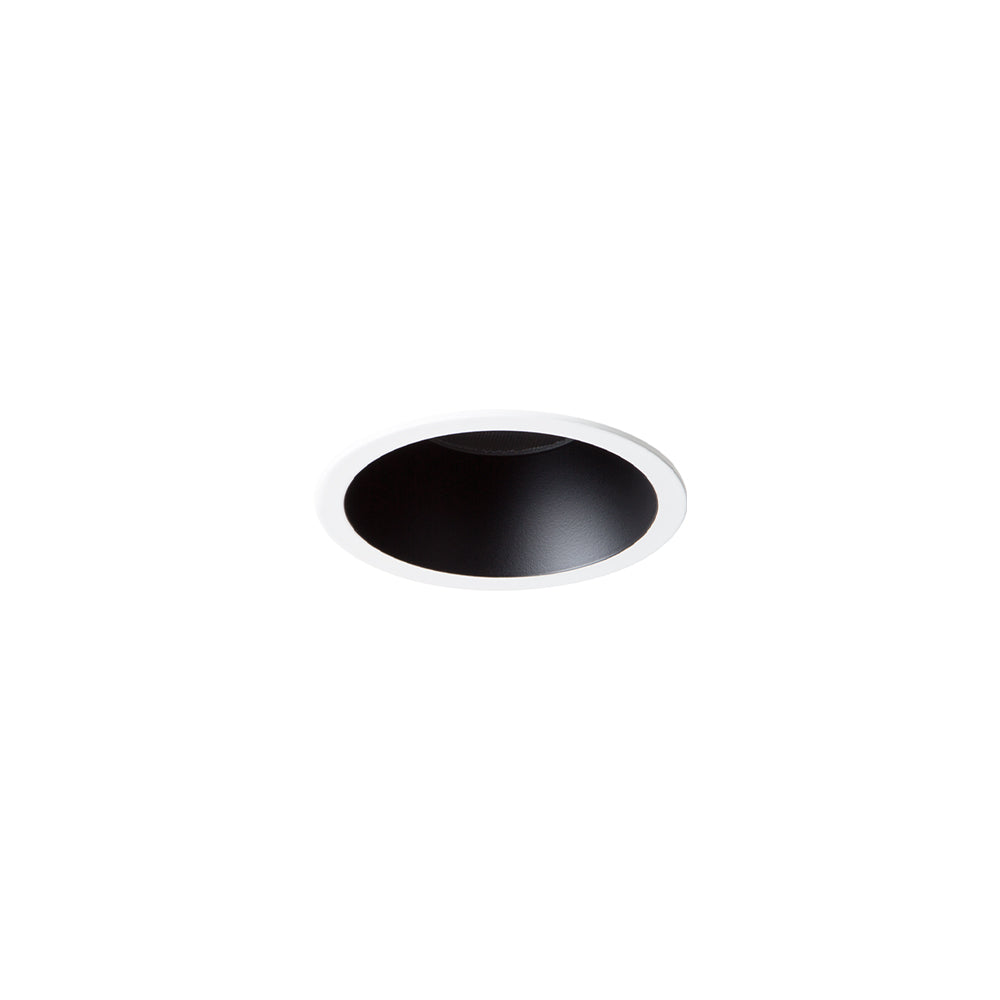

Finish Colour

White and Black

Beam Angle

36 Degree

Product variants

Please for Pricing

Notify me when it's back in stock

Description

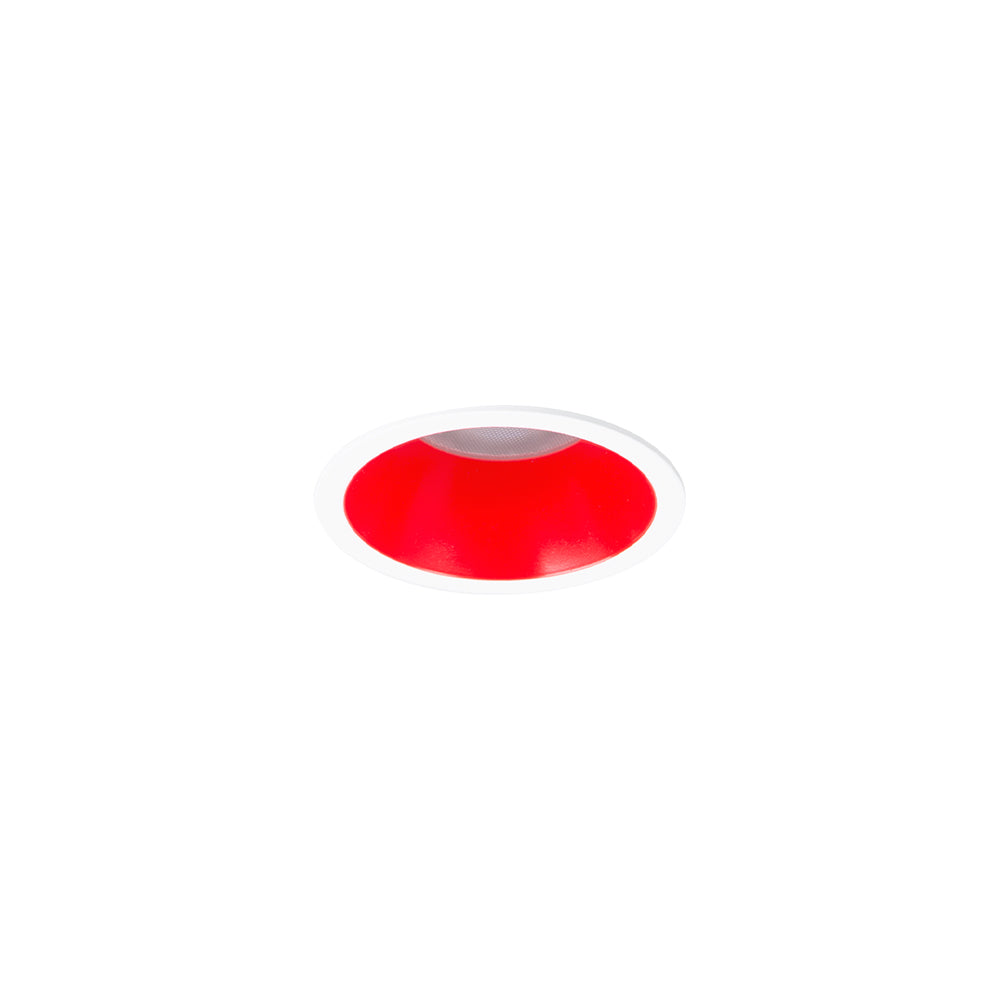

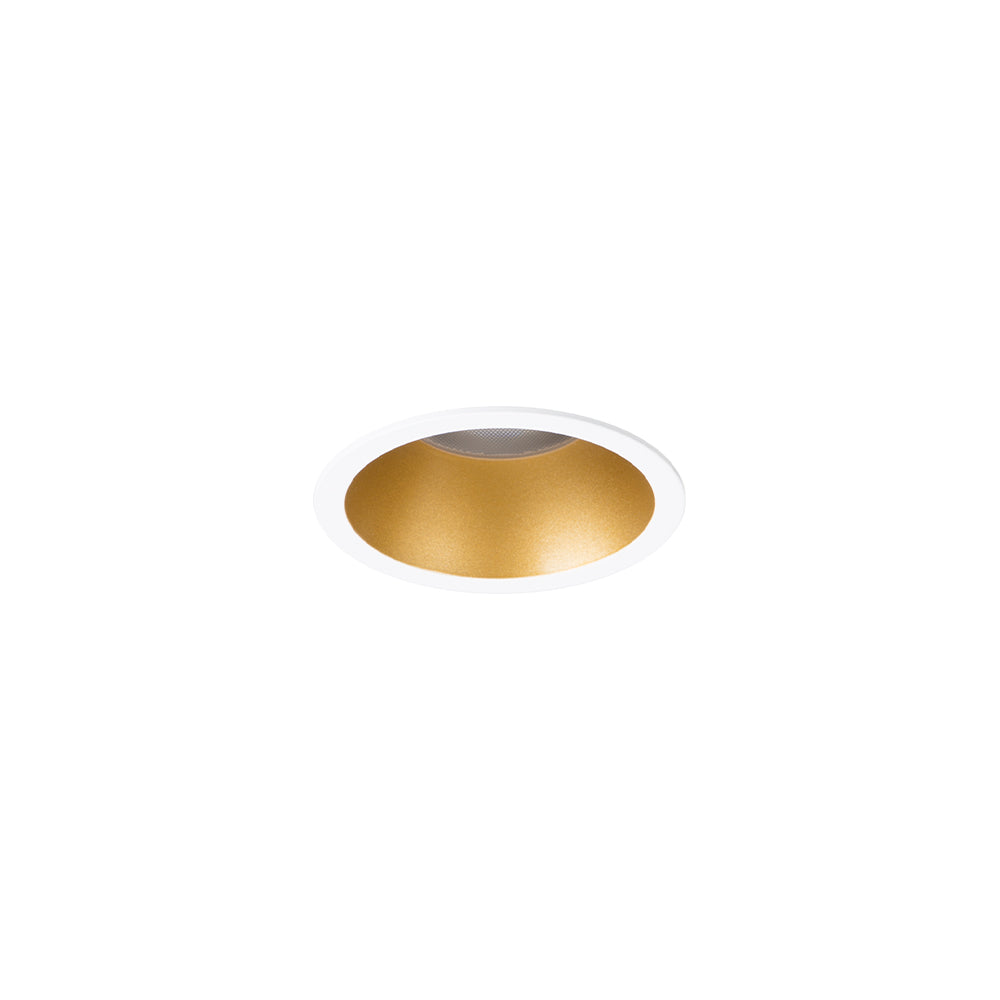

The Ray series is a stylish, and compact downlight series that offers a wide variety of colour options with a very small trim for that minimalist look. Its power efficient design with high colour rendering index (CRI>90) and low UGR rating (UGR<19) makes it a top quality light with low glare to provide high visual comfort, whilst displaying the true colours of an area beautifully. With a wide variety of colour, size and beam options available, the Ray series is perfect for all uses, from general lighting to accent lighting to highlight the important features in your project.

Specifications

Brand

Archilight
Series

Archilight Ray Small Series
Power Rating

8 Watt
Standards Met

CB,CCC,CE,SAA,TUV
Operating Temperature

-25°C~50°C
Warranty

5 Year
Length

5.8 cm
Width

5.8 cm
Height

7 cm
Weight

0.6 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of lighting is the Archilight Ray Small Downlight TDM 8W designed for?

This is a compact recessed LED downlight intended for interior lighting applications. The Ray series is positioned for both general lighting and accent lighting, making it suitable for projects that need a clean, minimalist ceiling appearance with focused visual comfort.

What are the key performance specifications of this downlight family?

The parent model is rated at 8W and is built for efficient LED performance. It has a CRI of over 90 for strong colour accuracy, a rated lifetime of 50,000 hours, and a 5-year warranty period.

How compact is the Archilight Ray Small Downlight TDM 8W?

This downlight is designed for compact recessed applications, with overall dimensions of 58 mm x 58 mm x 70 mm. Its small trim and compact body support a discreet, minimalist look in finished interiors.

Is the Archilight Ray Small Downlight TDM 8W suitable for visually comfortable spaces?

Yes. The Ray series is described as having a low glare design with a UGR below 19, which helps support visual comfort in commercial and architectural spaces. Its high CRI also helps materials and finishes appear more natural under the light.

Does this downlight include a driver, and can it be dimmed?

The product data indicates that a driver is included with this model. Dimming is optional, so dimming capability depends on the selected control setup rather than being standard in every use case.

What beam option is shown for this Ray Small Downlight TDM 8W family listing?

The child variant data provided for this parent model shows a 36 degree beam angle. That makes it appropriate for more controlled light distribution than a wide flood, which can be useful when highlighting features or creating focused lighting effects.

Model	Power	CRI	Dimming	Cut-out
Archilight Ray Small Downlight 8W	8W	90	Optional	50 Millimeter	View
