Archilight Slim 150 Downlight 12W
Log in to see priceSpecifications
Archilight Slim 150 Downlight 12WSpecifications from the official datasheetDownload datasheet PDF

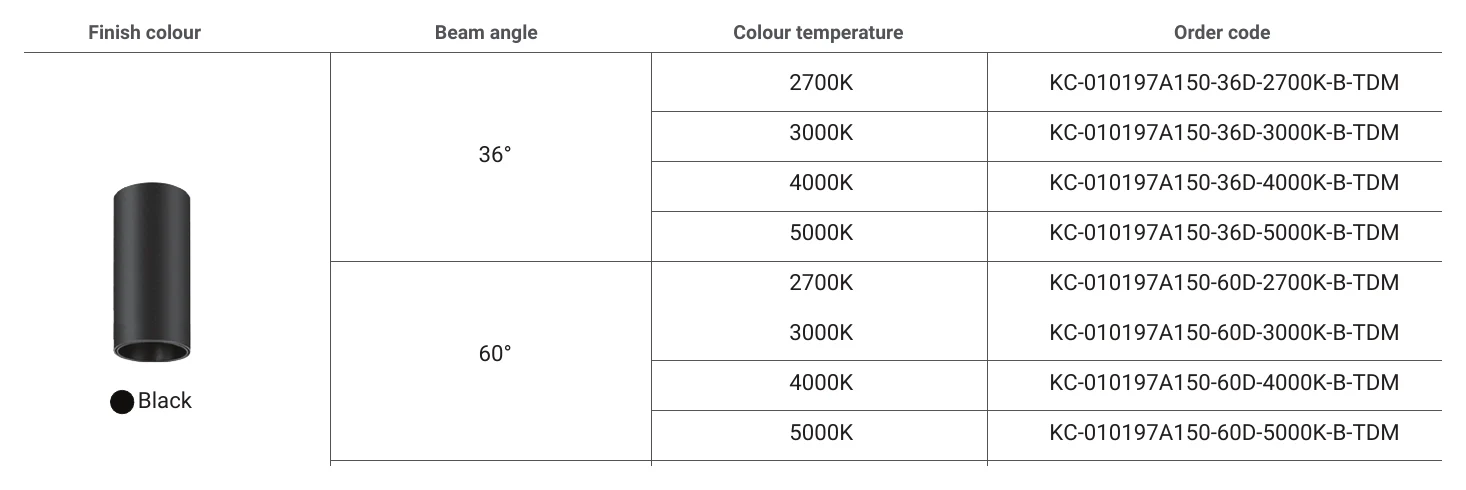

Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010197A150-36D-2700K-B | 36° | Warm White 2700K | Black |
| KC-010197A150-36D-2700K-W | 36° | Warm White 2700K | White |
| KC-010197A150-36D-3000K-B | 36° | Warm White 3000K | Black |
| KC-010197A150-36D-3000K-W | 36° | Warm White 3000K | White |
| KC-010197A150-36D-4000K-B | 36° | Natural White 4000K | Black |
| KC-010197A150-36D-4000K-W | 36° | Natural White 4000K | White |
| KC-010197A150-36D-5000K-B | 36° | Cool White 5000K | Black |
| KC-010197A150-36D-5000K-W | 36° | Cool White 5000K | White |
| KC-010197A150-60D-2700K-B | 60° | Warm White 2700K | Black |
| KC-010197A150-60D-2700K-W | 60° | Warm White 2700K | White |
| KC-010197A150-60D-3000K-B | 60° | Warm White 3000K | Black |
| KC-010197A150-60D-3000K-W | 60° | Warm White 3000K | White |
| KC-010197A150-60D-4000K-B | 60° | Natural White 4000K | Black |
| KC-010197A150-60D-4000K-W | 60° | Natural White 4000K | White |
| KC-010197A150-60D-5000K-B | 60° | Cool White 5000K | Black |
| KC-010197A150-60D-5000K-W | 60° | Cool White 5000K | White |
Specifications
- Input
- 230VAC
- Power rating
- 12W
- Brightness
- 1044 lm
- Efficacy
- ≥87 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Non-Dimmable or Dimmable
- Tiltable
- Fixed
- Mounting
- Surface Mounted
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, Class II
Technical drawings
Downloads
Datasheet1
FAQ
What type of downlight is the Archilight Slim 150 Downlight 12W?
The Archilight Slim 150 Downlight 12W is a surface mount downlight designed for interior lighting applications. It is part of the Slim series, which is intended for decorative ceiling layouts and array-style lighting designs.
What variant options are available in this product family?
This parent family is available in black or white finishes, with 36 degree or 60 degree beam angles. It also comes in four colour temperatures: 2700K, 3000K, 4000K, and 5000K. These options let buyers choose the look and light distribution that best suits the space.
How bright is the Archilight Slim 150 Downlight 12W?
All listed variants in this family deliver 1080 lumens at 12W. That gives the range a consistent light output regardless of finish colour, beam angle, or colour temperature selection.
Is the Archilight Slim 150 Downlight 12W dimmable?
This product family is listed as dimmable optional, so dimming is available depending on the selected control setup. The driver is included across the family, which helps simplify product selection at the specification stage.
What light quality can I expect from this downlight range?
The Slim 150 series has a CRI of 90, which supports strong colour rendering in interior spaces. The product description also states a low UGR rating of less than 19, helping provide lower glare and higher visual comfort.
What environments is this downlight suited to?
This range is suited to indoor ceiling lighting where visual comfort and decorative layout flexibility are important. Its surface mount format and multiple beam angle and colour temperature options make it relevant for commercial, retail, hospitality, and other interior B2B applications.
What are the physical dimensions and service life of the Archilight Slim 150 Downlight 12W?
The parent model dimensions are 150 mm high, 73 mm long, and 73 mm wide, with a weight of 1.3 kg. The family is rated for a 50,000 hour lifetime and includes a 5 year warranty, supporting longer-term commercial use.
