Archilight Slim 600 Downlight 12W
Log in to see priceOverview
Downlight
Specifications
Archilight Slim 600 Downlight 12WSpecifications from the official datasheetDownload datasheet PDF

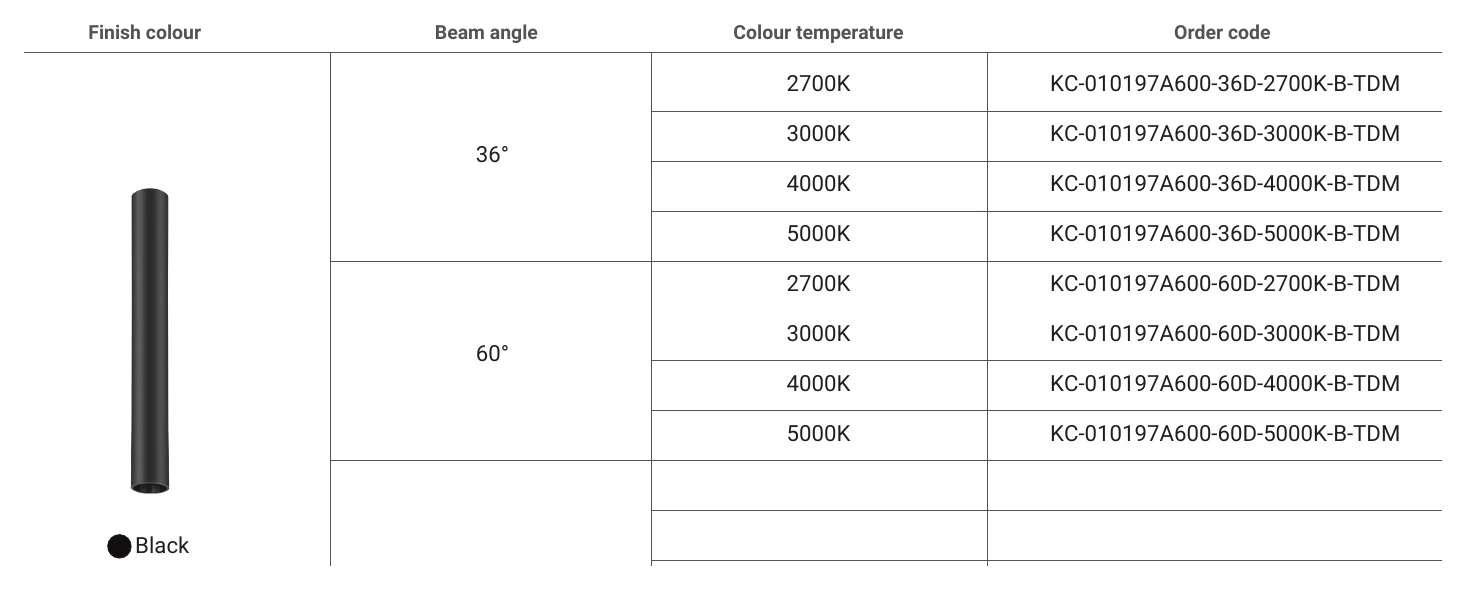

Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010197A600-36D-2700K-B | 36° | Warm White 2700K | Black |
| KC-010197A600-36D-2700K-W | 36° | Warm White 2700K | White |
| KC-010197A600-36D-3000K-B | 36° | Warm White 3000K | Black |
| KC-010197A600-36D-3000K-W | 36° | Warm White 3000K | White |
| KC-010197A600-36D-4000K-B | 36° | Natural White 4000K | Black |
| KC-010197A600-36D-4000K-W | 36° | Natural White 4000K | White |
| KC-010197A600-36D-5000K-B | 36° | Cool White 5000K | Black |
| KC-010197A600-36D-5000K-W | 36° | Cool White 5000K | White |
| KC-010197A600-60D-2700K-B | 60° | Warm White 2700K | Black |
| KC-010197A600-60D-2700K-W | 60° | Warm White 2700K | White |
| KC-010197A600-60D-3000K-B | 60° | Warm White 3000K | Black |
| KC-010197A600-60D-3000K-W | 60° | Warm White 3000K | White |
| KC-010197A600-60D-4000K-B | 60° | Natural White 4000K | Black |
| KC-010197A600-60D-4000K-W | 60° | Natural White 4000K | White |
| KC-010197A600-60D-5000K-B | 60° | Cool White 5000K | Black |
| KC-010197A600-60D-5000K-W | 60° | Cool White 5000K | White |
General
- Input
- 230VAC
- Power rating
- 12W
- Brightness
- 1044 lm
- Efficacy
- ≥87 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Non-Dimmable or Dimmable
- Tiltable
- Fixed
- Mounting
- Surface Mounted
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, Class II

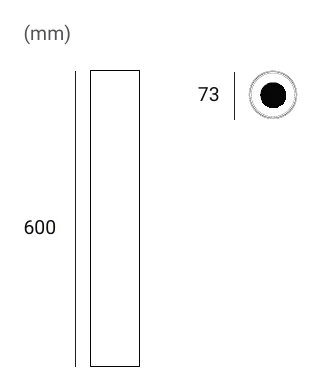

Technical drawings
Downloads
Datasheet1
FAQ
What is the Archilight Slim 600 Downlight 12W designed for?
This model is a surface mount downlight intended for interior decorative lighting. Its slim 600 mm form factor is suited to creating single fittings or repeated linear-style arrays across a space. The combination of CRI above 90 and UGR below 19 supports comfortable, high-quality illumination.
What variant options are available in the Slim 600 family?
Across this parent family, variants differ by colour temperature, beam angle, and finish colour. Available colour temperatures are 2700K, 3000K, 4000K, and 5000K, with beam angles of 36° or 60°. Finish options shown are black and white.
How do I choose between the 36° and 60° beam angles?
A 36° beam is the narrower option and is better when you want a more focused light effect. A 60° beam spreads light more broadly, which can suit more general illumination across a wider area. Both beam options in this family keep the same 12W power rating and 1080 lm output.
What light quality can I expect from this downlight?
The Slim 600 family has a CRI of 90, which means it is designed to show colours more accurately than lower-CRI fittings. It also has a low glare rating of UGR below 19, helping support visual comfort in interior settings. This makes it suitable for spaces where both appearance and comfort matter.
Is the Archilight Slim 600 Downlight dimmable?
Yes, this family is listed as dimmable optional. It also includes the driver as part of the product specification. If dimming performance is a deciding factor, the key point is that dimming is available across the family rather than limited to one finish or beam version.
What are the main physical and performance specifications of the Slim 600?
This downlight is rated at 12W and delivers 1080 lumens across the listed variants. The parent model dimensions are 600 mm height with a 73 mm by 73 mm profile, and the weight is 1.8 kg. It is designed for 230V power input.
Is this downlight suitable for long-term commercial use?
The family is specified with a 50,000-hour lifetime and a 5-year warranty period, which supports longer-term use expectations. Its low-glare performance and high CRI also align well with professional interior environments where comfort and visual quality are important. These specifications are consistent across the listed variants.
