Archilight Slim 800 Downlight 12W
Log in to see priceSpecifications
Archilight Slim 800 Downlight 12WSpecifications from the official datasheetDownload datasheet PDF

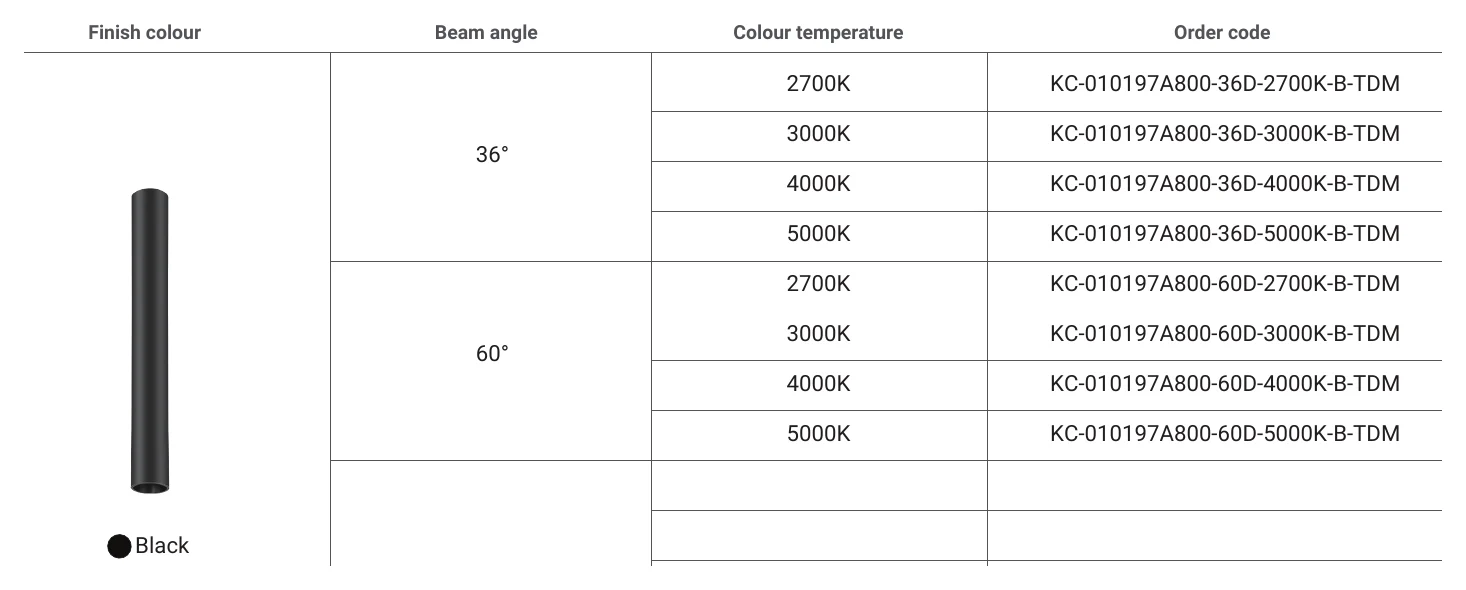

Variants
| SKU | Beam Angle | LED Colour | Finish Colour |
|---|---|---|---|
| KC-010197A800-36D-2700K-B | 36° | Warm White 2700K | Black |
| KC-010197A800-36D-2700K-W | 36° | Warm White 2700K | White |
| KC-010197A800-36D-3000K-B | 36° | Warm White 3000K | Black |
| KC-010197A800-36D-3000K-W | 36° | Warm White 3000K | White |
| KC-010197A800-36D-4000K-B | 36° | Natural White 4000K | Black |
| KC-010197A800-36D-4000K-W | 36° | Natural White 4000K | White |
| KC-010197A800-36D-5000K-B | 36° | Cool White 5000K | Black |
| KC-010197A800-36D-5000K-W | 36° | Cool White 5000K | White |
| KC-010197A800-60D-2700K-B | 60° | Warm White 2700K | Black |
| KC-010197A800-60D-2700K-W | 60° | Warm White 2700K | White |
| KC-010197A800-60D-3000K-B | 60° | Warm White 3000K | Black |
| KC-010197A800-60D-3000K-W | 60° | Warm White 3000K | White |
| KC-010197A800-60D-4000K-B | 60° | Natural White 4000K | Black |
| KC-010197A800-60D-4000K-W | 60° | Natural White 4000K | White |
| KC-010197A800-60D-5000K-B | 60° | Cool White 5000K | Black |
| KC-010197A800-60D-5000K-W | 60° | Cool White 5000K | White |
Product Specifications
- Input
- 230VAC
- Power rating
- 12W
- Brightness
- 1044 lm
- Efficacy
- ≥87 lm/W
- Colour render index(CRI)
- ≥90
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Non-Dimmable or Dimmable
- Tiltable
- Fixed
- Mounting
- Surface Mounted
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, Class II

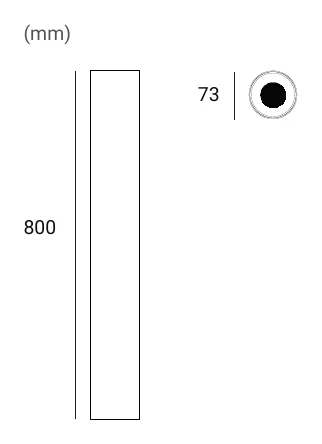

Technical drawings
Downloads
Datasheet1
FAQ
What type of product is the Archilight Slim 800 Downlight 12W?
The Archilight Slim 800 is a surface mount downlight designed for interior ceiling applications. It is part of the Slim series, which is intended for decorative lighting layouts and linear arrays. This parent model has a 12W power rating and an 800 mm height with a 73 x 73 mm profile.
What variant options are available in the Slim 800 family?
This product family is offered in two beam angles, 36 degree and 60 degree, to suit different lighting effects. It is also available in four colour temperatures: 2700K, 3000K, 4000K, and 5000K. Finish options include black and white across the listed variants.
How bright is the Archilight Slim 800 Downlight 12W?
The listed variants in this family deliver 1080 lumens at 12W. That gives buyers a consistent output level across the available beam angles, finishes, and colour temperatures shown here. This makes the main choice more about beam spread, appearance, and light colour rather than lumen output.
Is the Archilight Slim 800 suitable for spaces where visual comfort and colour quality matter?
Yes. The Slim series is specified with CRI 90 and a low UGR rating below 19, which supports strong colour rendering and reduced glare. That makes it a good fit for interior spaces where both appearance and visual comfort are important.
Does the Archilight Slim 800 Downlight 12W include a driver and support dimming?
Yes, the parent model is listed as driver included. It is also marked as optionally dimmable, so dimming capability is part of the product family specification rather than being limited to one variant shown here. Buyers can compare variants by beam angle, finish, and colour temperature without losing those core features.
What are the expected service life and warranty for this product family?
The Archilight Slim 800 Downlight 12W is listed with a 50,000 hour lifetime and a 5 year warranty period. Those values are consistent across the child variants provided. This makes the family suitable for projects that prioritize long service intervals and warranty-backed performance.
