Archilight Smart R1 Downlight 12W
Log in to see priceOverview
Recessed Downlight
Specifications

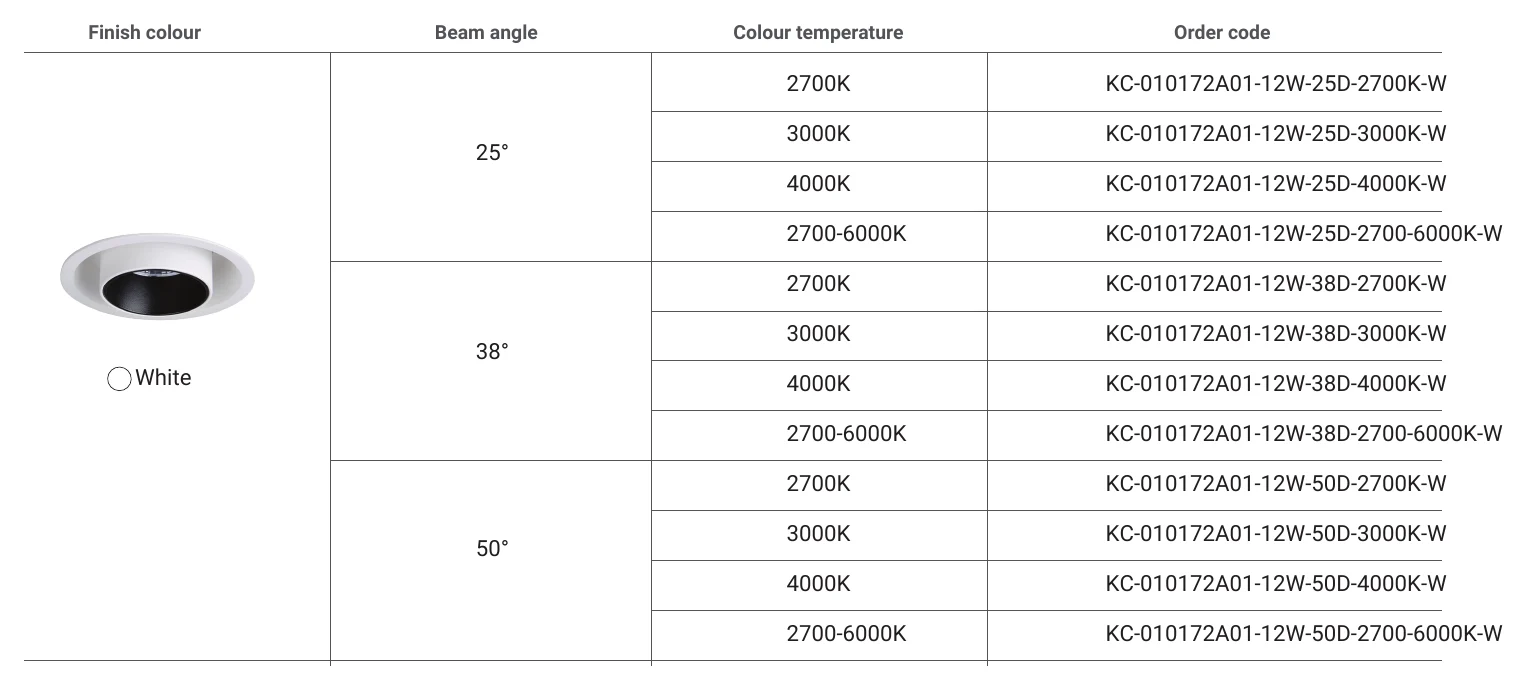

Variants
| SKU |
|---|
| KC-010172A01-50D-3000K-W |
Product specsheet
- Input
- 230V AC
- Power rating
- 12W
- Beam angle
- 25° / 38° / 50°
- Brightness
- 792 lm
- Efficacy
- ≥66 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 2700K - 6000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable Optional
- Tiltable
- Adjustable 90°
- Mounting
- Recessed
- Driver
- Driver Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- White
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, Class II, IP20

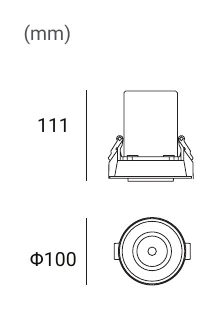

Technical drawings
Downloads
Datasheet1
FAQ
What type of product is the Archilight Smart R1 Downlight 12W?
The Archilight Smart R1 is a recessed gimbal downlight designed for interior lighting projects. It is positioned for both commercial and residential use, with a power-efficient 12W output, high CRI 90 color quality, and low glare performance with UGR below 19.
What beam angle options are available across the Smart R1 12W family?
This parent family includes beam angle options of 23°, 36°, 50°, and 60° depending on the variant selected. That gives buyers a choice between narrower and wider light distribution for different lighting layouts and emphasis levels.
What color temperature options are available for this downlight range?
The Smart R1 12W family is offered in warm to cool white options, with variants shown in 2700K, 3000K, 4000K, and 5000K. Availability depends on the beam angle selected, so not every combination is shown for every variant.
How bright is the Archilight Smart R1 Downlight 12W?
Most variants in this family are listed at 1080 lumens. One 50° variant is shown with a higher listed brightness, so output can vary by option rather than being identical across the full family.
Is the Archilight Smart R1 Downlight 12W dimmable?
This downlight is listed as dimmable optional, and the driver is included. That means the family supports dimming capability when paired with the appropriate dimming setup, but dimming is not described as a universal default feature on every use case.
What cut-out size does this downlight require?
All child variants shown for this parent model use a 90 mm cut-out. That consistency makes the family easier to specify when comparing different beam angles or color temperatures within the same product range.
What are the main performance and durability specifications of this range?
The Smart R1 12W family is rated at CRI 90, has a 50,000-hour lifetime, and comes with a 5-year warranty. These specs make it suitable for projects where color quality, service life, and long-term reliability matter.
What are the physical dimensions of the parent model?
The parent product data lists the fitting at 100 mm length, 100 mm width, and 111 mm height, with a weight of 0.7 kg. These dimensions are useful for planning fixture selection at the product-family level before narrowing to a specific variant.
