Archilight Strand 1203 Black Tracklight Light 40W
Notify me when it's back in stock
Specifications
Specifications

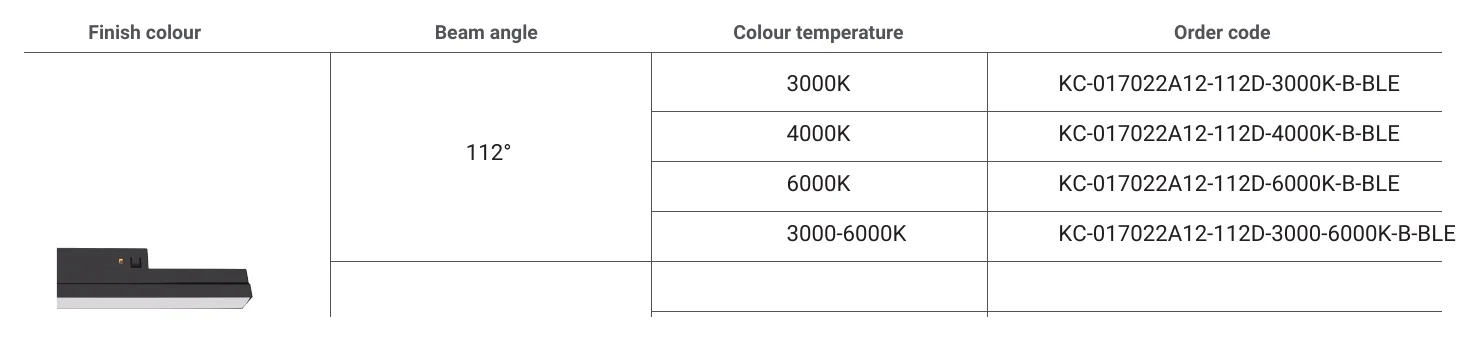

- Order code
- KC-017022A12
- Input
- 48 V
- Power rating
- 40 W
- Beam angle
- 112°
- Brightness
- 2360 lm
- Efficacy
- ≥59 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 3000K / 4000K / 6000K
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Bluetooth APP Control (Default) or DALI (Optional)
- Tiltable
- Fixed
- Mounting
- Motion Magnetic Track Series
- Driver
- 48V Driver not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- Black
Certifications & ratings
- Certification marks
- CE, CB, TÜV, Class II

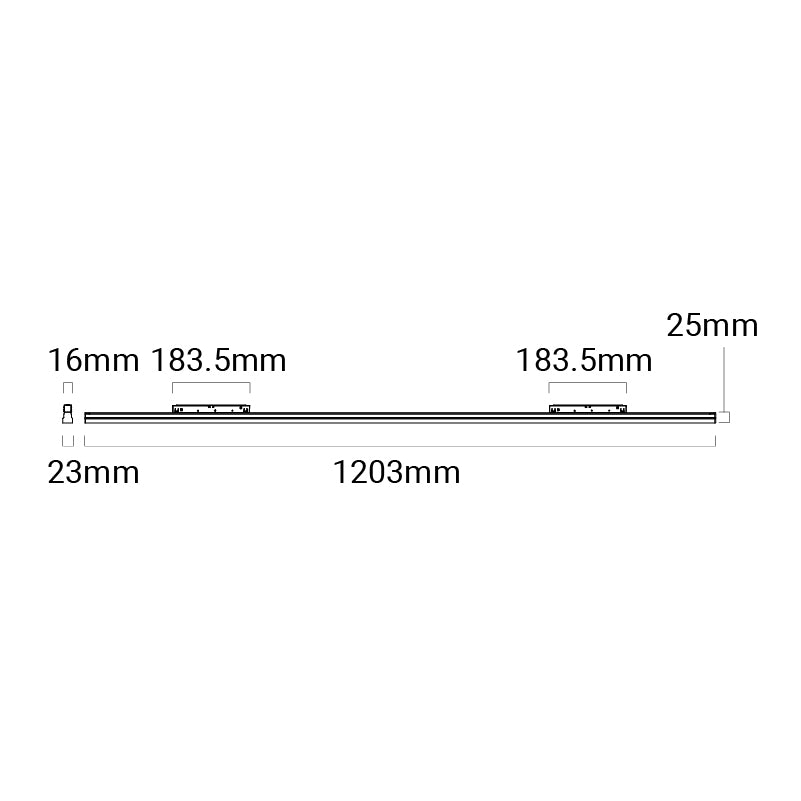

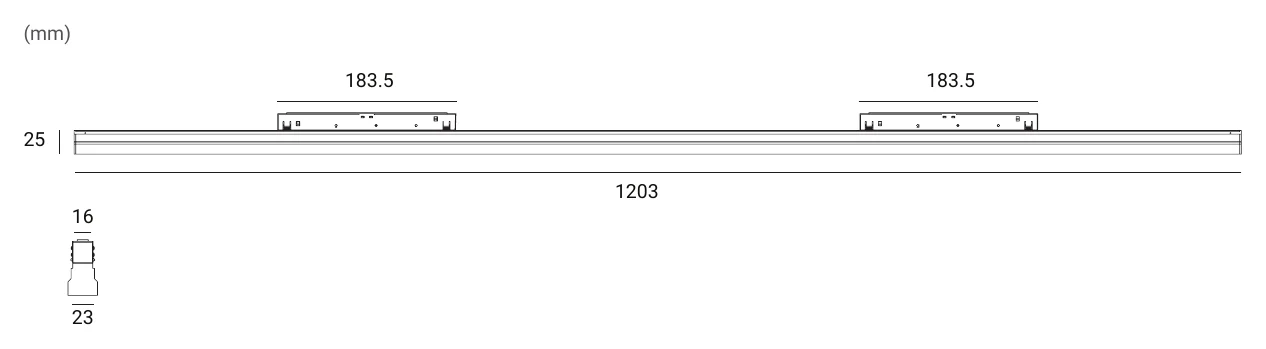

Technical drawings
Downloads
Datasheet1
FAQ
What is this light used for?
It is a 40W track light designed for indoor commercial and residential lighting applications.
What are the power and brightness specifications?
The light has a 40W power rating, produces 2360 lumens, and has an efficacy of at least 59 lm/W.
How is the light dimmed or controlled?
It supports Bluetooth APP Control as the default method, with DALI control available as an optional feature.
How is the light mounted?
It is designed for the Motion Magnetic Track Series. The unit is fixed and not tiltable.
What is the IP rating and operating temperature?
The light has an IP20 rating, making it suitable for dry indoor use only. It operates within a temperature range of -25°C to 50°C.
Is a driver included with the light?
No, the 48V driver is not included and must be purchased separately.
What is the warranty period?
The product comes with a 5-year warranty and has a rated lifetime of 50,000 hours.
