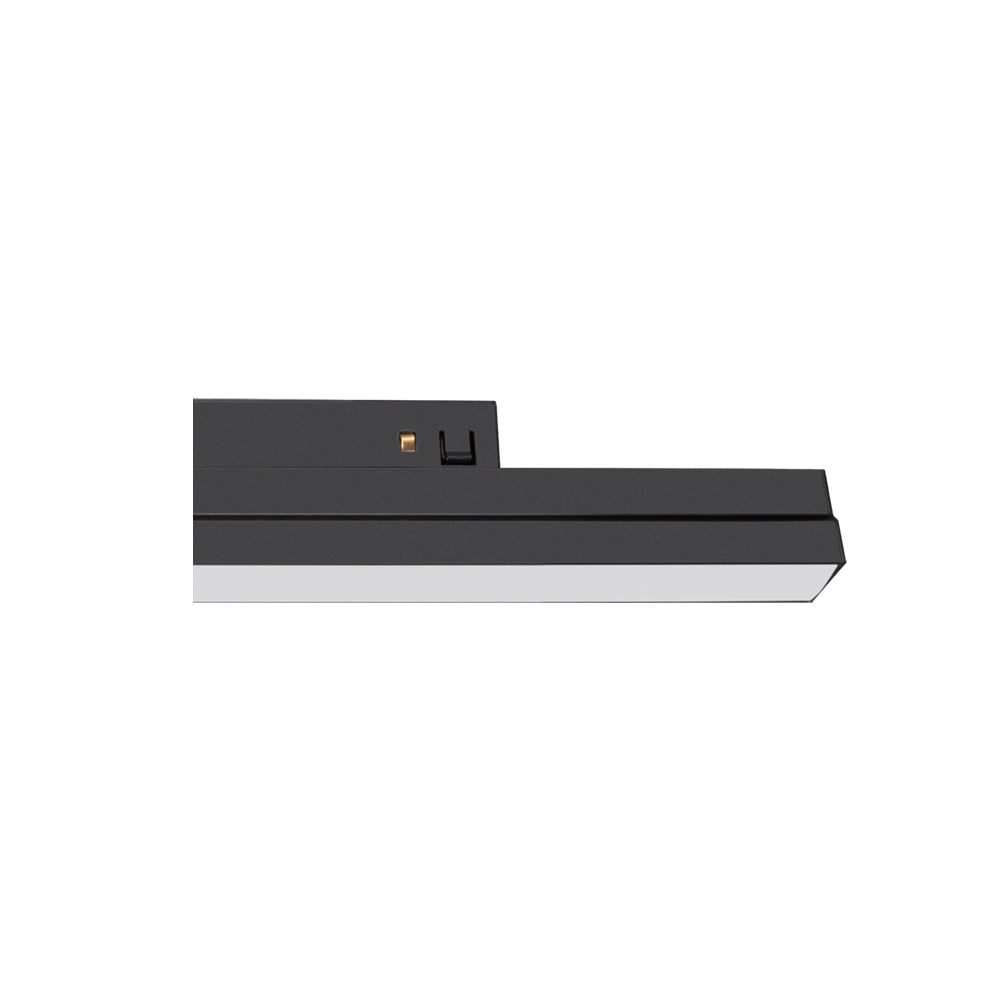

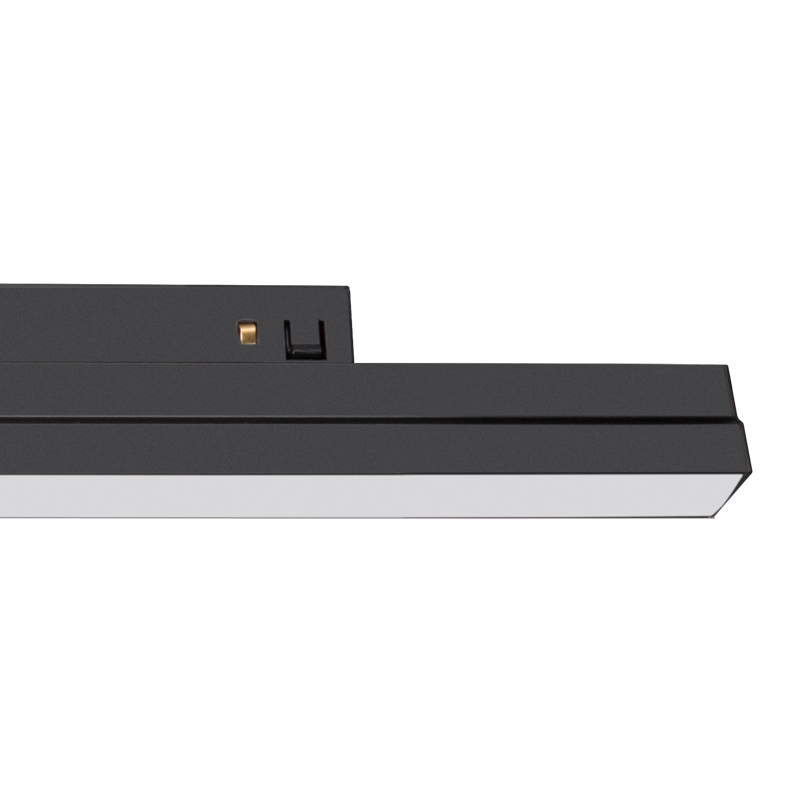

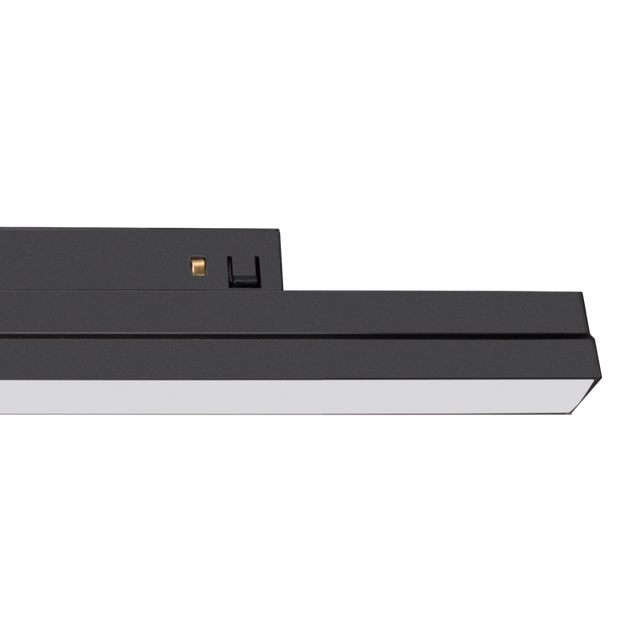

Archilight Strand 903 Black Tracklight Light 30W
Notify me when it's back in stock
Specifications
General
- Order code
- KC-017022A09
- Input
- 48 V
- Power rating
- 30 W
- Beam angle
- 112°
- Brightness
- 1980 lm
- Efficacy
- ≥66 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 3000K / 4000K / 6000K / 3000K - 6000K
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Bluetooth APP Control (Default) or DALI (Optional)
- Tiltable
- Fixed
- Mounting
- Motion Magnetic Track Series
- Driver
- 48V Driver not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- Black
Certifications & ratings
- Certification marks
- CE, CB, TÜV, SAA, Class II

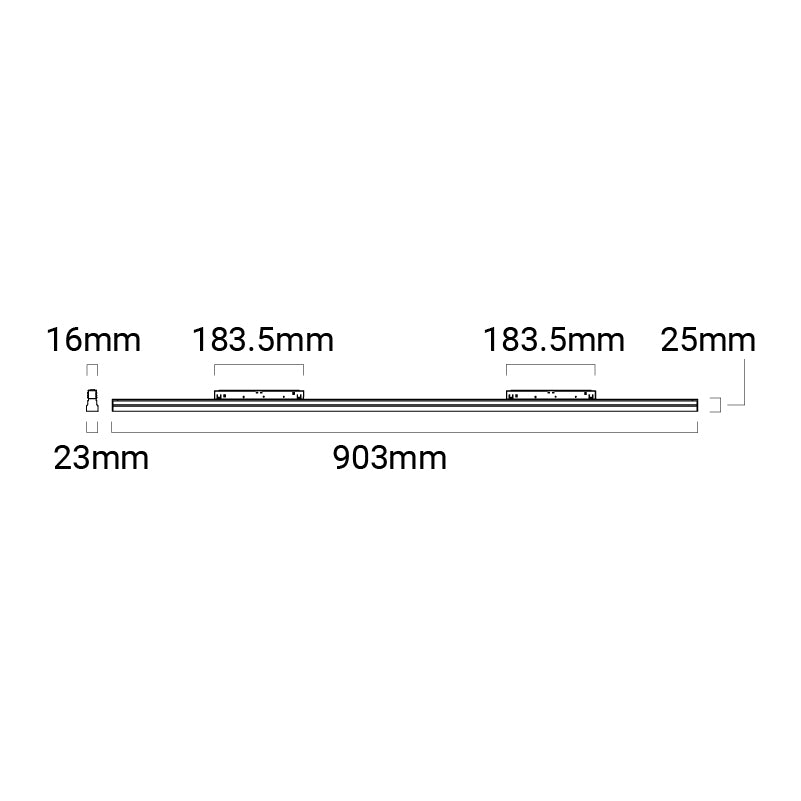

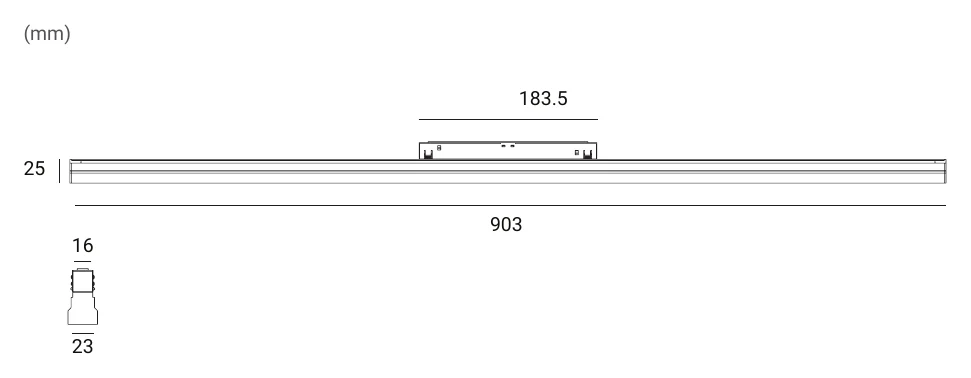

Technical drawings
Downloads
Datasheet1
FAQ
What type of product is the Archilight Strand 903 Black Tracklight Light 30W?
This is a linear magnetic track light module from the Archilight Strand series. It sits flush within a compatible Motion series magnetic track and is designed for interior lighting applications such as residential, hospitality, office, and retail spaces.
What are the main specifications of this Strand 903 track light?
This model is rated at 30W and operates on 48V power input. It has a CRI of over 90, an estimated lifetime of 50,000 hours, and a 5-year warranty. The body dimensions are 903 mm long.
Is the driver included with this track light?
No, the driver is not included with this product. Buyers should account for a suitable system design that matches the product's 48V magnetic track configuration.
Is this track light dimmable?
Yes, this track light supports dimming control via Bluetooth APP Control (Default) or DALI (Optional).
What kind of light quality can I expect from this fitting?
The Strand series uses a high-quality LED chip with a CRI greater than 90, which supports strong color rendering in commercial and architectural settings. For the listed child variant in this family, output is 1980 lumens with a 112-degree beam angle and 6000K color temperature.
Where is this track light best used?
This fitting is intended for indoor applications where a clean, architectural linear light is needed. Typical B2B use cases include retail displays, office fit-outs, hospitality projects, and other commercial interiors using magnetic track systems.
What track system is this light compatible with?
The product description states that it pairs with Motion series track systems. It is part of a magnetic track lighting range, so compatibility should be considered within that Motion magnetic track ecosystem.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

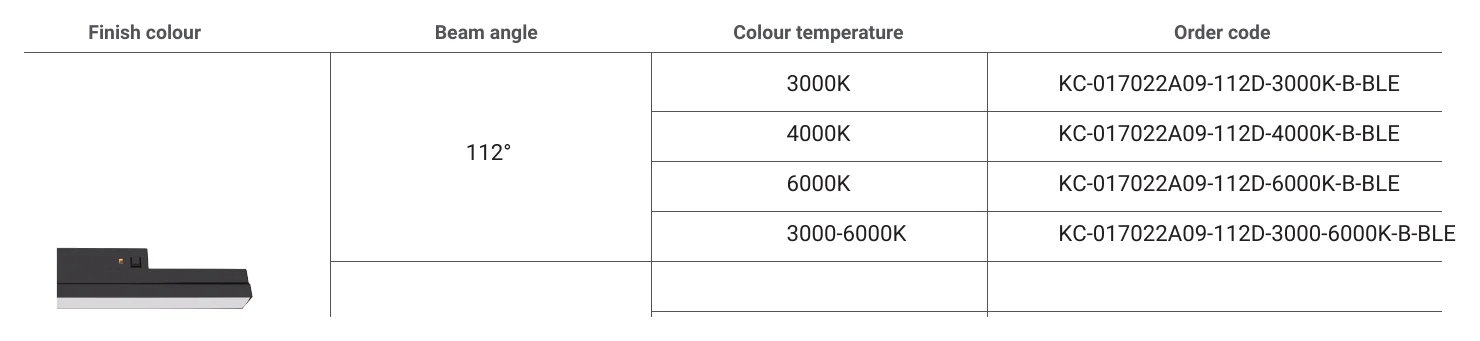

Other Archilight Strand 903 Series Models
1 other model| Model | Power | CRI | Dimming | UGR | |
|---|---|---|---|---|---|
| Archilight Strand 903 Black Track Light BLE 30W | 30W | 90 | Optional | 19 | View |
